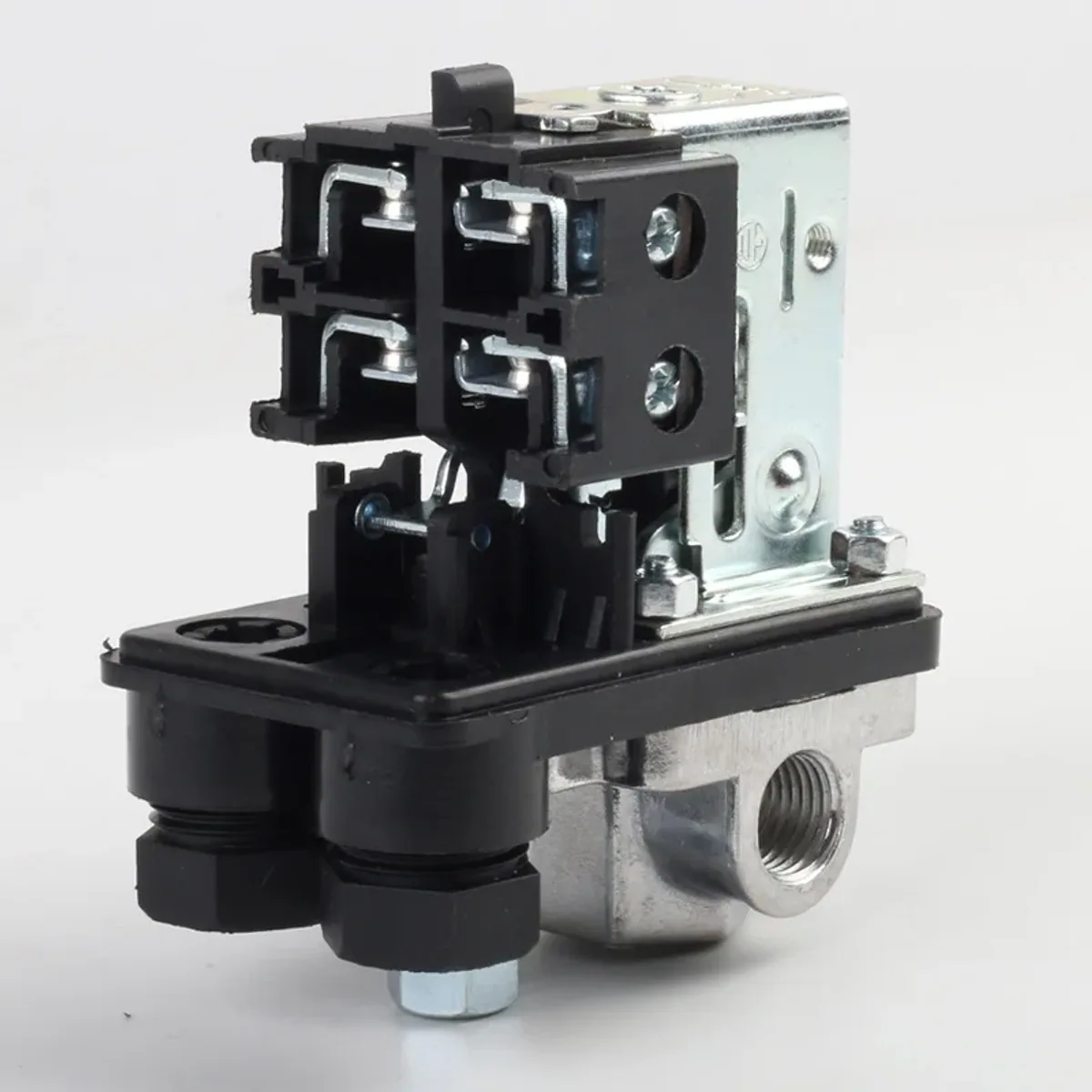

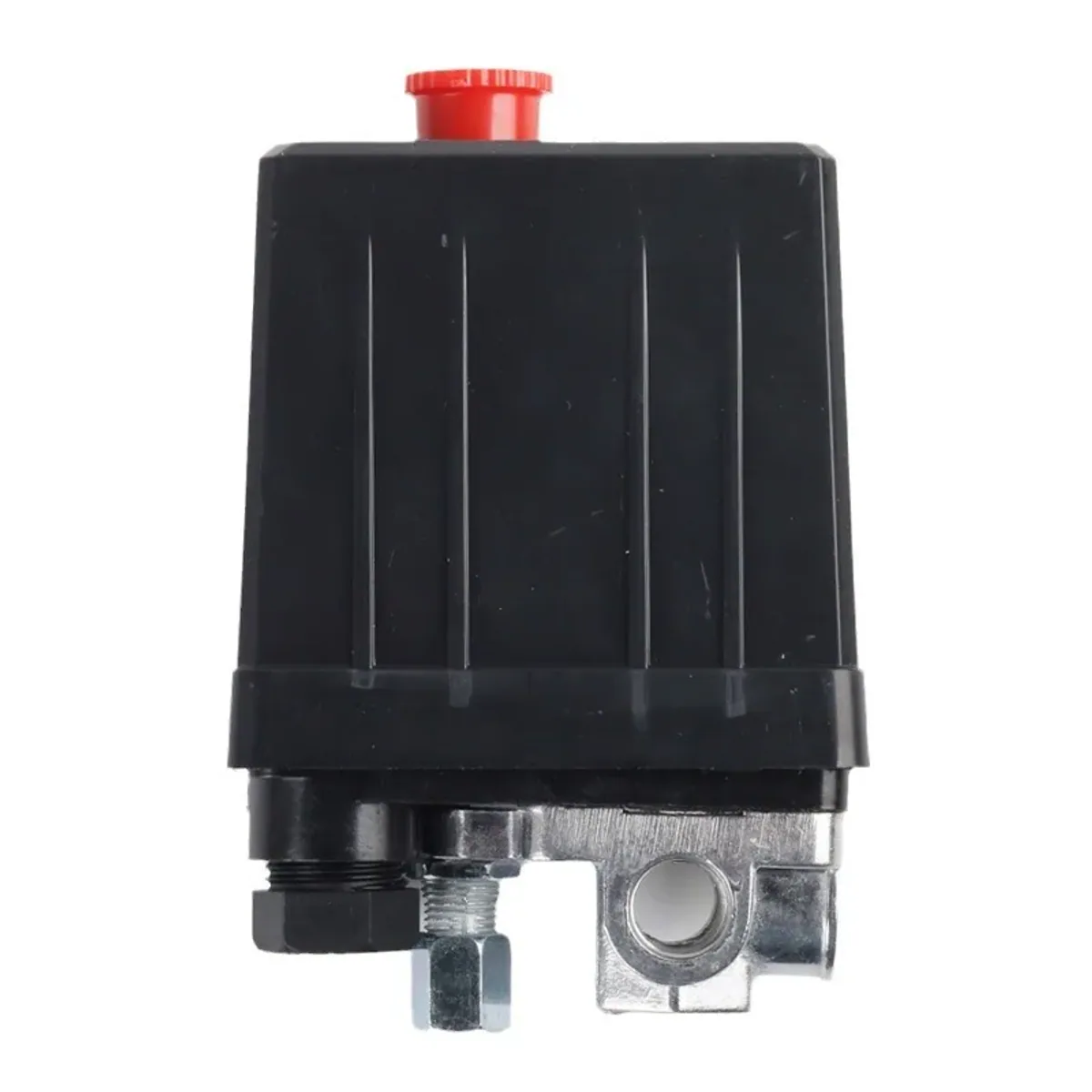

Compressor Pressure Switch 4 Way | 15A 240V | 90 to 120PSI | G1/4

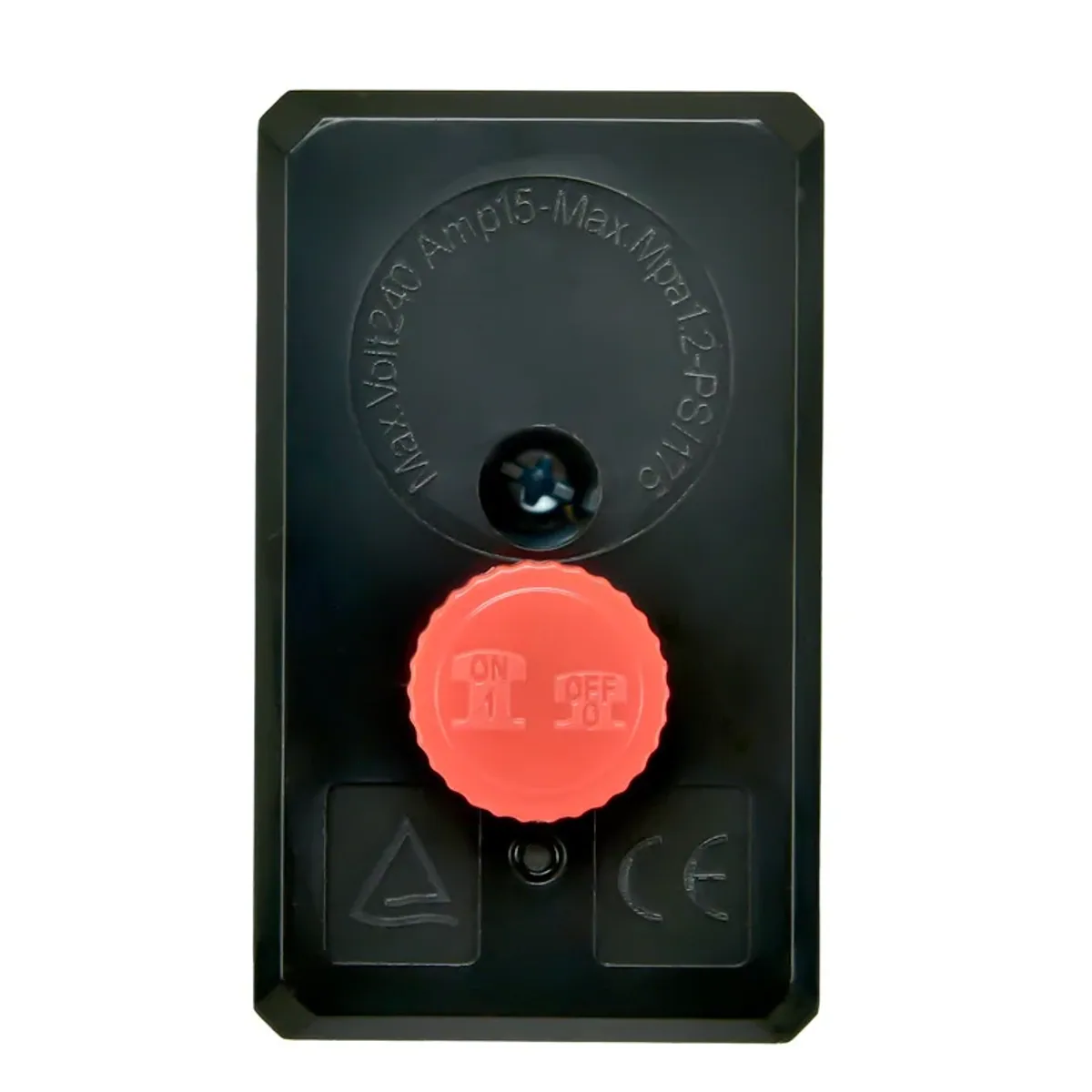

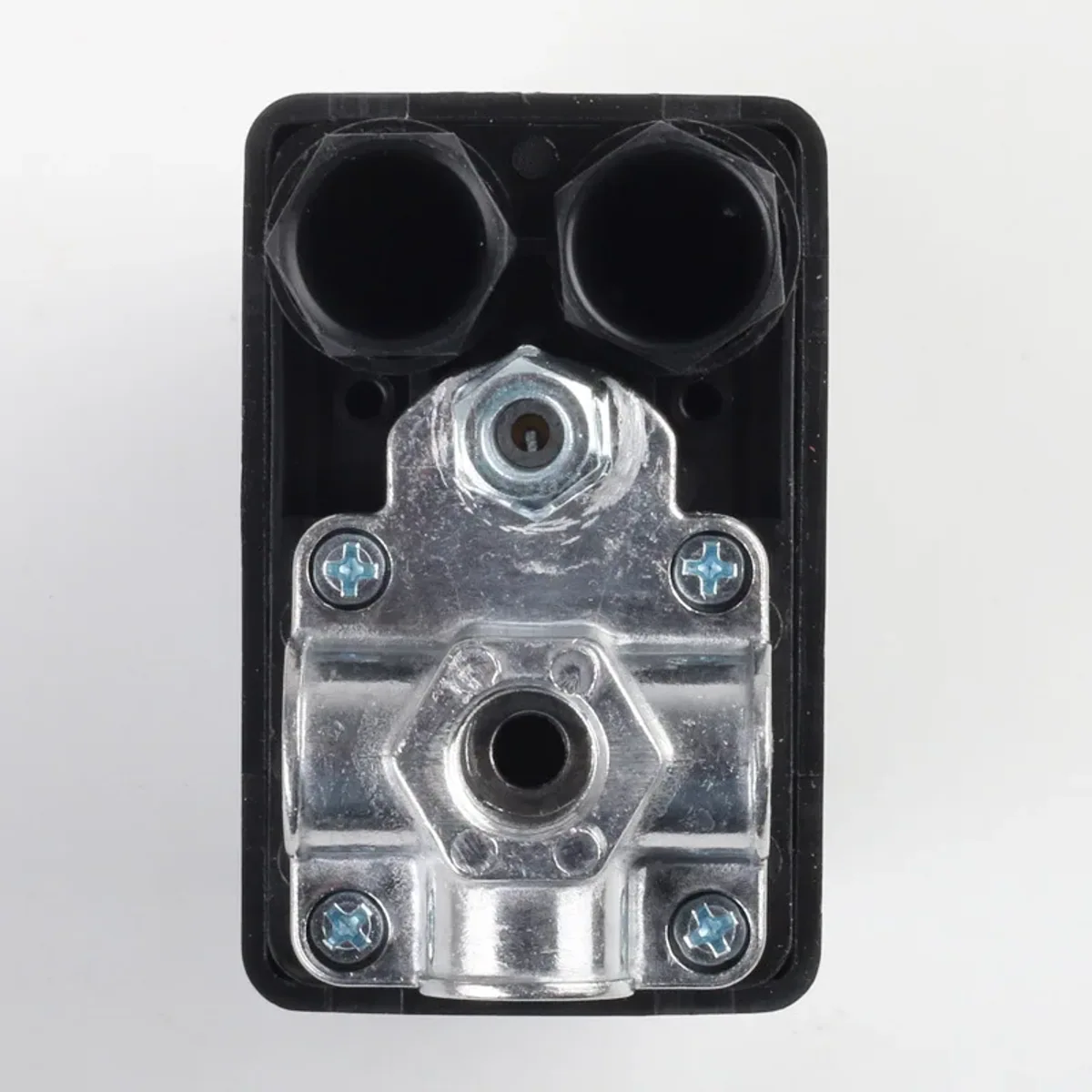

This vertical compressor pressure switch is a die-cast aluminium, 4 way automatic pressure controller for piston air compressors. It switches the motor on and off to hold the tank in a 0.6 to 0.8MPa working band (90 to 120PSI), and is rated for up to 240V and 15A with a normally closed contact. Features and benefits: - Automatic cut-in and cut-out at a working pressure of 0.6 to 0.8MPa (90 to 120PSI, 6 to 8BAR): the compressor refills the tank without anyone watching the gauge - Rated up to 240V and 15A, with the ratings printed on the switch dial: easy to check against the motor before fitting - Vertical four hole layout with a G1/4 threaded connector: suits repair jobs where the old switch has the same port arrangement - Pressure relief valve with a 6mm inner diameter exhaust pipe: lets tank pressure release through the switch - Red knob marked ON and OFF: manual isolation of the motor during servicing - Die-cast aluminium body: stands up to workshop vibration and handling - Electrical lifespan of 100,000 cycles (seller figure) Applications: - Replacing a worn or failed pressure switch on a piston air compressor - Workshop and garage compressor repair - Spares stock for maintenance engineers - Rebuilding a compressor controller on a small piston air pump In the box: 1 x automatic pressure switch, supplied in a white box. Note: Check the voltage, current and pressure rating against your compressor before fitting. Disconnect the power and release all tank pressure before removing the old switch, and have the wiring done by a competent person. Terminals and wiring must suit your supply.
