Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO

Name: Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO
Brand: Compel Group
SKU: SING-00324
Price: 1136.99 GBP
Availability: InStock

Stock Nr:

SKU:

Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO - Image 1

1 / 3

£1,136.99inc VAT

Quantity

Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO

£1,136.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What is the operating temperature range of the ARK-1123L?: The unit operates in temperatures from -30°C to 70°C when paired with 0.7m/s airflow. The aluminium housing acts as a heatsink, so it runs completely fanless in these conditions. It also tolerates up to 95% relative humidity at 40°C non-condensing.
Can the Advantech ARK-1123L be mounted on a DIN rail?: Yes, you can fit it to a DIN rail using an optional mounting kit. It also supports standard VESA brackets and wall-mount brackets. At 133.8 x 43.1 x 94.2 mm and 0.8 kg, it fits neatly inside control cabinets.
What type of memory does this box PC accept?: It takes DDR3L 1066MHz memory via a single 204-pin SO-DIMM socket. The integrated Intel Atom E3825 dual-core processor handles standard low-power embedded tasks.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £1,136.99

This product

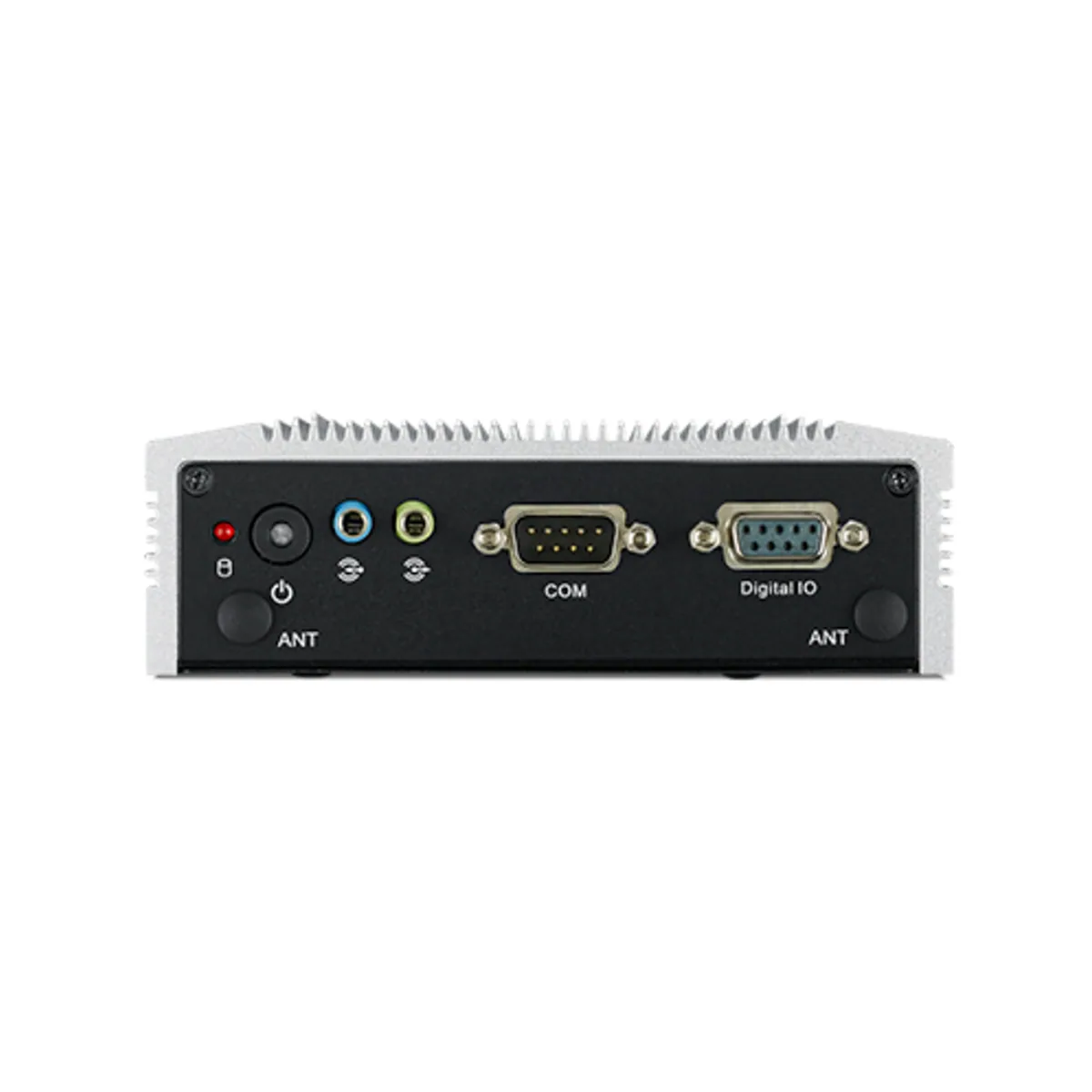

Fanless Industrial Mini PC showing front interface with COM, Digital IO, and audio ports.

Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO

Price: £1,136.99
Rating: Not rated
Stock: In stock

You're viewing this

Alternative

Fanless Industrial Mini PC with finned heatsink and I/O panel featuring LAN, USB, and power ports.

Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N

Price: £732.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC showing front ports, audio jacks, COM connector, and green terminal block.

Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box

Price: £877.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC showing side panel with two antenna ports and heatsink fins.

Fanless Industrial Mini PC | 4x 2.5GbE PoE | DDR5 Alder Lake-N

Price: £997.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC rear panel showing serial ports, LAN, USB, display outputs, and audio jacks.

Fanless Industrial Mini PC | 2x 2.5GbE | 6x COM RS232 RS485

Price: £694.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC | 6x RS232 COM | Dual Gigabit LAN

Price: £1,069.99
Rating: Not rated
Stock: In stock

View

Alternative

Port panel of a black Rail Fanless Industrial Mini PC showing serial, VGA, Ethernet, and USB connections.

Rail Fanless Industrial Mini PC | EN50155 Certified | Railway Automation

Price: £901.99
Rating: Not rated
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This palm-size fanless industrial mini PC runs an energy-efficient dual-core processor built for factory automation and continuous remote operation. The compact Advantech ARK-1123L handles harsh settings without moving parts, offering dual COM ports, programmable GPIO, and a sealed aluminum chassis that keeps out dust and airborne debris. Features and Benefits - Fanless chassis with passive cooling - Runs quietly 24/7 without drawing in workshop dust or needing fan replacements - Dual RS-232/422/485 serial ports and GPIO - Connects directly to legacy machinery, PLC controllers, and automated switches - Wide-range 12V DC input with lockable jack - Prevents accidental cord disconnects during floor vibration - Optional DIN rail and VESA mounting - Fits cleanly inside crowded electrical panels and behind machine displays Applications - Factory automation control units collecting sensor telemetry via RS-485 connections - Digital signage players mounted in dusty public transport terminals and utility closets - Remote IoT gateways sending data over cellular or local networks in unconditioned spaces

Processor: Intel Atom E3825 SoC. Chassis Construction: Aluminum Alloy. Cooling System: Passive Fanless. Device Type: Fanless Industrial Mini PC. Form Factor: Palm-Size Box PC. I/O Interfaces: 2 x COM, 1 x GPIO. Dimensions (W x H x D): 133.5 x 43 x 94 mm. Chassis Construction: Aluminum Heatsink & Heavy-Duty Steel. Input Voltage: 12V DC (Lockable DC Jack). Power Consumption: Typical 6W, Max 12W. Display Interface: 1 x VGA (up to 1920 x 1200). Serial Interfaces: 2 x RS-232/422/485 COM Ports. Operating Temperature: -20°C ~ 60°C with 0.7m/s air flow. Cooling System: Passive Fanless Thermal Design. Digital I/O: 8-bit Programmable GPIO (Isolated). Ethernet: 2 x GbE RJ45 (Intel I210-IT). Form Factor: Palm-Size Fanless Industrial Mini PC. Mounting Options: DIN-Rail, VESA, Desk/Wall Mount. Processor: Intel Atom E3825 Dual Core (1.33 GHz, 1MB L2 Cache). Q: What core processor and ports does this system feature? A: This unit runs on a dual-core Intel Atom E3825 clocked at 1.33 GHz. It features two RS-232/422/485 COM ports, dual gigabit Ethernet, GPIO headers, and space for a 2.5-inch drive.. Q: How does the fanless industrial mini pc build handle dusty factory settings? A: The aluminum chassis acts as a solid heat sink, so it cools without internal fans. Because there are no air vents, airborne dust cannot enter the housing and clog the electronics.. Q: Which operating systems can you install on this embedded box? A: It boots 32-bit and 64-bit Windows 7, Windows 8.1, and Windows Embedded Standard 7. You can also run standard Linux distributions like Ubuntu or Debian without driver issues.. Q: What warranty coverage does Advantech include with this model? A: Advantech covers this unit with a two-year standard hardware warranty against component defects. You can contact support directly for diagnostic help or RMA part replacements.. Q: Why is this unit cost-effective for continuous automation jobs? A: The processor draws just 6 watts under typical loads, keeping 24/7 power bills minimal. Without mechanical fans or moving parts, you also skip regular maintenance and repair trips..
