Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N

Name: Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N
Brand: Compel Group
SKU: SING-00330
Price: 732.99 GBP
Availability: InStock

Stock Nr:

SKU:

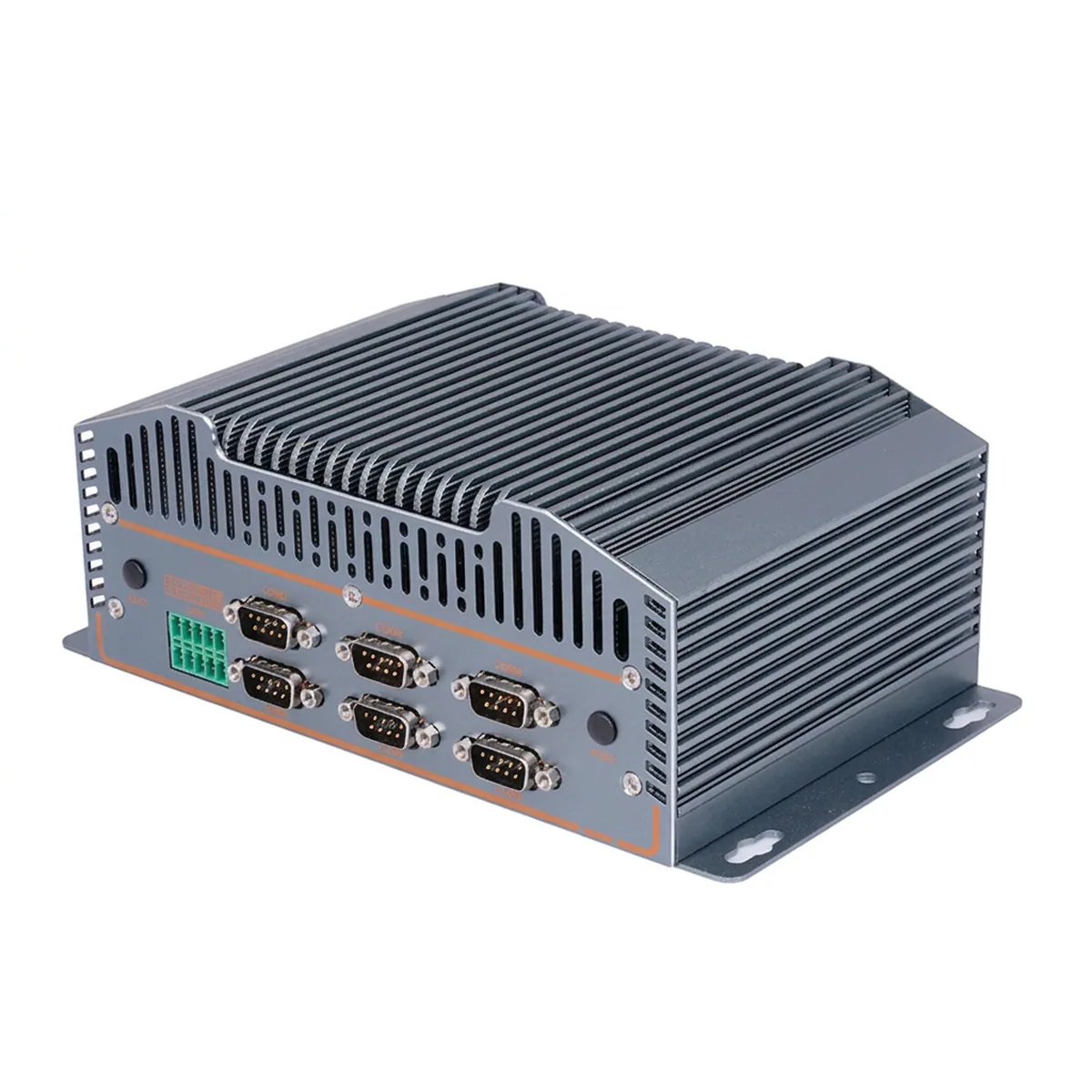

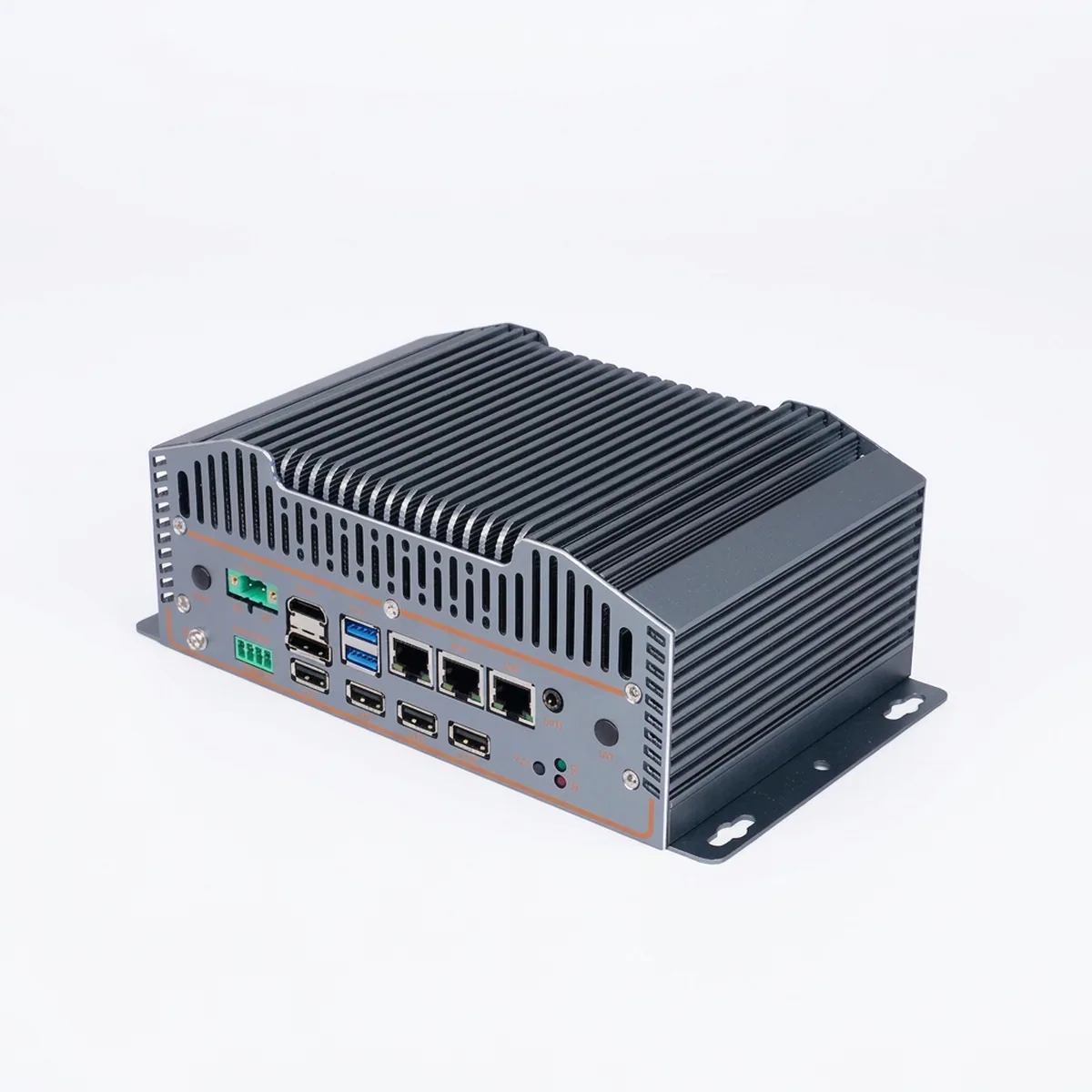

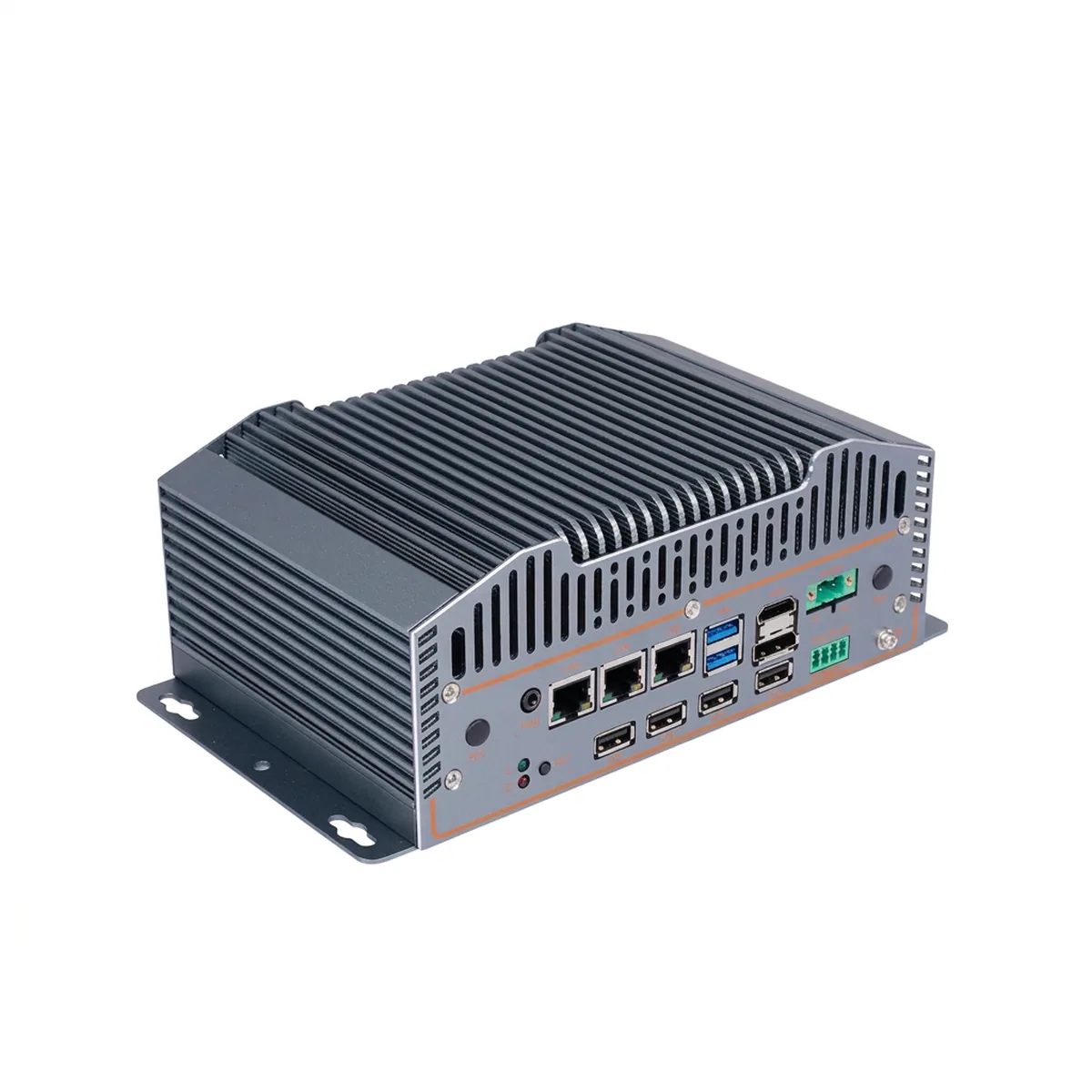

Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N - Image 1

1 / 4

£732.99inc VAT

Quantity

Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N

£732.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can this unit power machine vision cameras directly over Ethernet?: Yes, the three Intel i226-V network ports support optional 48V PoE at up to 15W per port. That gives you enough power and 2.5GbE bandwidth to run standard industrial vision cameras without separate power leads.
What type of power supply does this PC need?: The system runs on a wide DC input range from 9V to 36V via a standard terminal block connector. It draws minimal power, so you can wire it straight into a control cabinet's 12V or 24V rail.
Can this fanless PC run 24/7 inside a sealed electrical cabinet?: Yes, it uses a completely passive heatsink chassis to dump heat without moving parts. Because there are no fans to clog with dust or fail, it handles continuous 24/7 operation in closed enclosures.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £732.99

This product

Fanless Industrial Mini PC with finned heatsink and I/O panel featuring LAN, USB, and power ports.

Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N

Price: £732.99
Rating: Not rated
Stock: In stock

You're viewing this

Alternative

Fanless Industrial Mini PC showing front ports, audio jacks, COM connector, and green terminal block.

Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box

Price: £877.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC showing side panel with two antenna ports and heatsink fins.

Fanless Industrial Mini PC | 4x 2.5GbE PoE | DDR5 Alder Lake-N

Price: £997.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC showing front interface with COM, Digital IO, and audio ports.

Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO

Price: £1,136.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC rear panel showing serial ports, LAN, USB, display outputs, and audio jacks.

Fanless Industrial Mini PC | 2x 2.5GbE | 6x COM RS232 RS485

Price: £694.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC | 6x RS232 COM | Dual Gigabit LAN

Price: £1,069.99
Rating: Not rated
Stock: In stock

View

Alternative

Port panel of a black Rail Fanless Industrial Mini PC showing serial, VGA, Ethernet, and USB connections.

Rail Fanless Industrial Mini PC | EN50155 Certified | Railway Automation

Price: £901.99
Rating: Not rated
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This 3 LAN port mini pc runs on 12th Gen Alder Lake processors, serving as a dedicated fanless industrial mini pc poe for automation. It delivers direct power to network devices while handling fast data processing through dual-channel DDR5 memory and built-in industrial serial interfaces. Features and Benefits - Power over Ethernet ports - Powers machine vision cameras directly through network cables without separate power supplies. - Fanless aluminum chassis - Keeps dust out and prevents mechanical breakdowns on busy factory floors. - Six COM ports and onboard CAN bus - Connects legacy RS232 or RS485 equipment alongside vehicle network sensors. - Intel Core i3 N305 processor with DDR5 memory - Handles complex inspection algorithms and parallel industrial tasks without system lag. Applications - Machine vision systems running real-time defect inspection on packaging lines. - Factory automation setups linking PLCs, robotic arms, and legacy workshop sensors. - Automated edge vehicles coordinating onboard telemetry through integrated CAN bus networks.

Dimensions: 240mmx220mmx78.5 mm. Power Supply: DC 9-36V (5.08mm 2Pin). Display port: 1 *HD2.0 interface, 1*DP1.4 interface. Processor: Intel Alder Lake-N series processors,N97/N305/x7425E. Ram socket: 1*DDR5 SO-DIMM, Max up to 16GB. Storage: 1 *M.2 M-Key 2280 (NVMe PCIe_x2 protocol). DIY Supplies: Electrical. Keywords: Fanless Industrial Mini PC. Lan port: 3*LAN Intel i226-V(optional POE 48V/15W). Product Name: Industrial pc. products status: Stock. type: Embedded Computer. USB Port: 6*USB. Dimensions: 185 x 135 x 55 mm. Chassis Material: Heavy-duty extruded aluminum alloy. Power Input: Wide DC 9V-36V terminal block connector. Display Outputs: 1 x HDMI 2.0 (4K@60Hz), 1 x DisplayPort 1.4 (4K@60Hz). Ethernet Ports: 4 x 2.5GbE RJ45 (including PoE support). Fieldbus Interface: 1 x Isolated CAN Bus. Serial Interfaces: 6 x COM (RS232/RS485/RS422 selectable). Operating Temperature: -20°C to 70°C. Cooling System: Fanless passive aluminum heatsink chassis. Memory Support: 2 x DDR5 SO-DIMM, Up to 4800MHz, Max 32GB. Mounting Options: DIN-Rail and Wall mount support. Network Controller: Intel i226-V 2.5G LAN. Processor Options: Intel 12th Gen Alder Lake-N N97 / Core i3-N305 / Atom x7425E. Storage Expansion: 1 x M.2 2280 NVMe (PCIe 3.0 x2), 1 x SATA 3.0 (2.5-inch SSD/HDD). Q: What processor and memory options come with this embedded system? A: You can pick between Intel 12th Gen processors including the N97, N305, or X7425E. The motherboard features two DDR5 memory slots that support fast data speeds for automation tasks. It runs without moving parts to keep dust out of the internals.. Q: How is the chassis constructed to handle plant floor environments? A: The system uses an extruded aluminum casing with deep heatsink fins for passive heat dispersal. It operates between -20°C and 60°C without needing an internal fan. The sealed enclosure protects the circuit boards against airborne debris and shop vibrations.. Q: Can this unit replace a 4 port 2.5g mini pc for vision and network routing? A: While a dedicated 4 port 2.5g mini pc focuses mainly on network throughput, this unit gives you three LAN ports with PoE alongside industrial serial headers. It provides direct power to IP cameras for machine vision setups while handling local networking tasks.. Q: What operating systems work on this hardware? A: The x86 architecture runs standard 64-bit operating systems including Windows 10, Windows 11 IoT, and Linux distributions like Ubuntu. Drivers are available for the onboard CAN bus and all six COM ports under both OS environments.. Q: What warranty and replacement support does the manufacturer provide? A: This industrial PC includes a standard one-year hardware warranty covering factory defects. If a component fails under normal operating conditions, the company repairs or replaces the mainboard. Extended coverage plans are also available for fleet deployments..
