Firewall Mini PC | 2.5G LAN & 10G SFP+ | Proxmox Home Lab Server

Name: Firewall Mini PC | 2.5G LAN & 10G SFP+ | Proxmox Home Lab Server
Brand: Compel Group
SKU: SING-00197
Price: 604.99 GBP
Availability: InStock
Rating: 5 (2 reviews)

Stock Nr:

SKU:

Firewall Mini PC | 2.5G LAN & 10G SFP+ | Proxmox Home Lab Server - Image 1

1 / 6

£604.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

Firewall Mini PC | 2.5G LAN & 10G SFP+ | Proxmox Home Lab Server

£604.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Does pfSense or OPNsense support the Intel i226-V ports straight out of the box?: Yes, current releases of both pfSense and OPNsense include native drivers for the Intel i226-V 2.5GbE controllers. You can install the operating system directly from a USB drive without loading extra network drivers during setup.

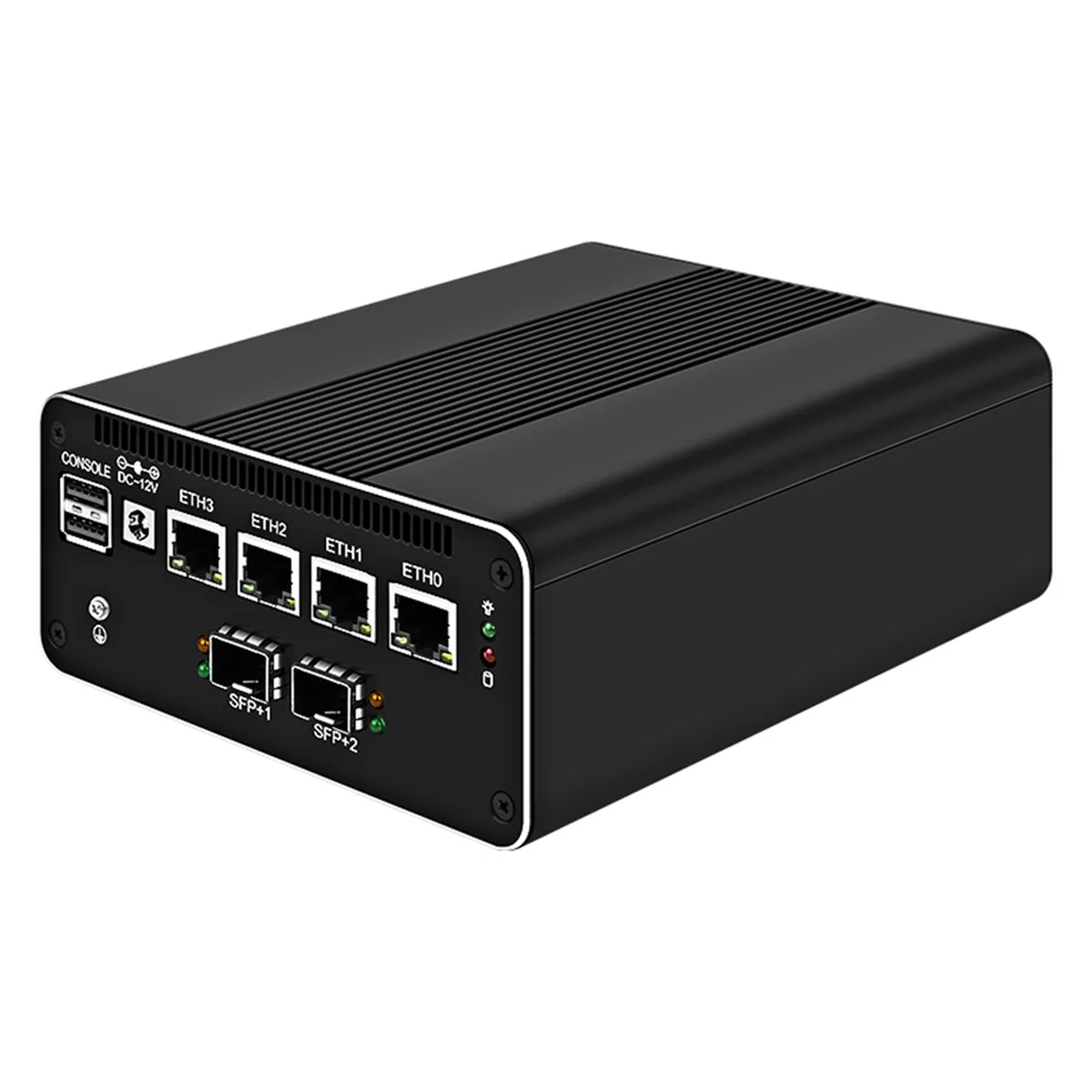

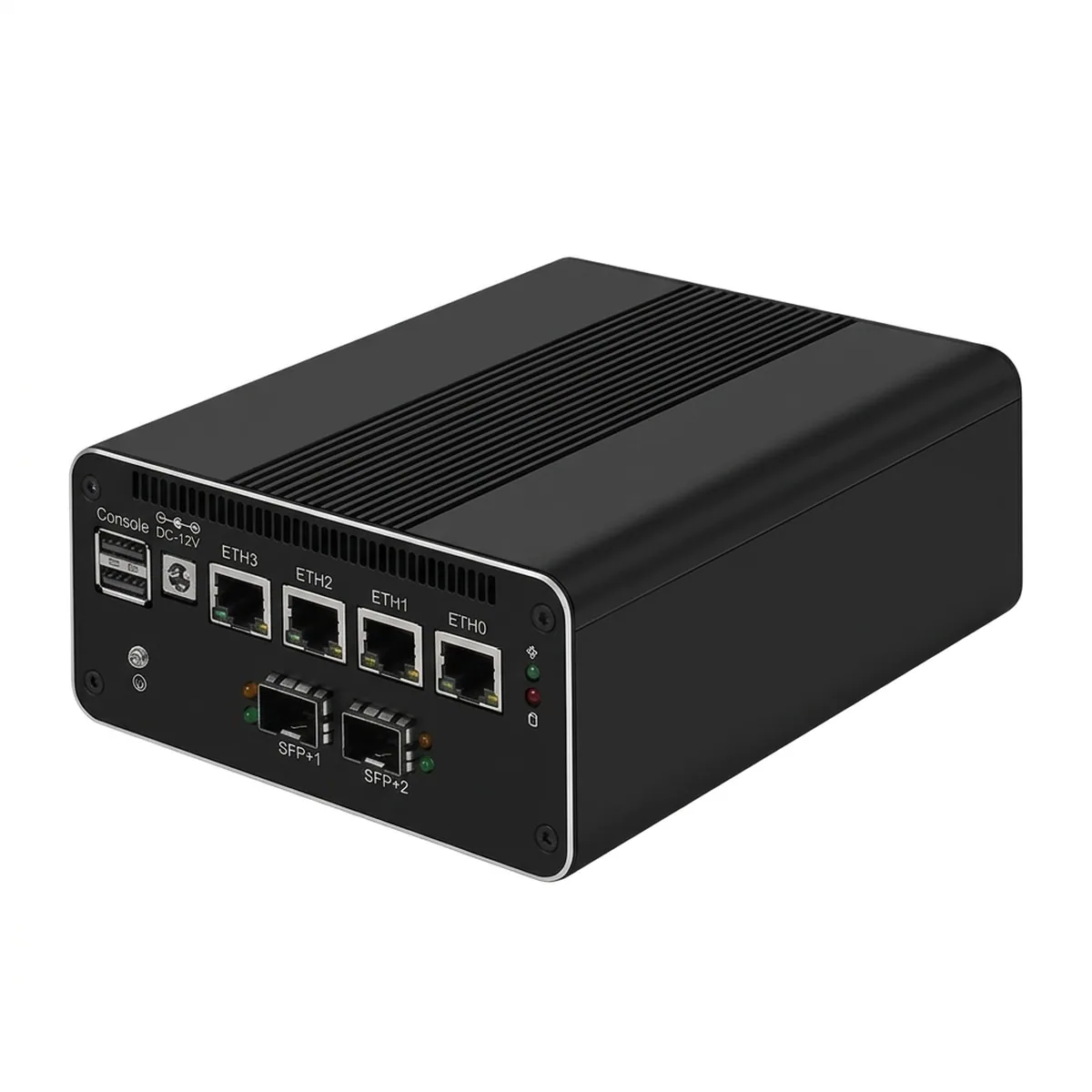

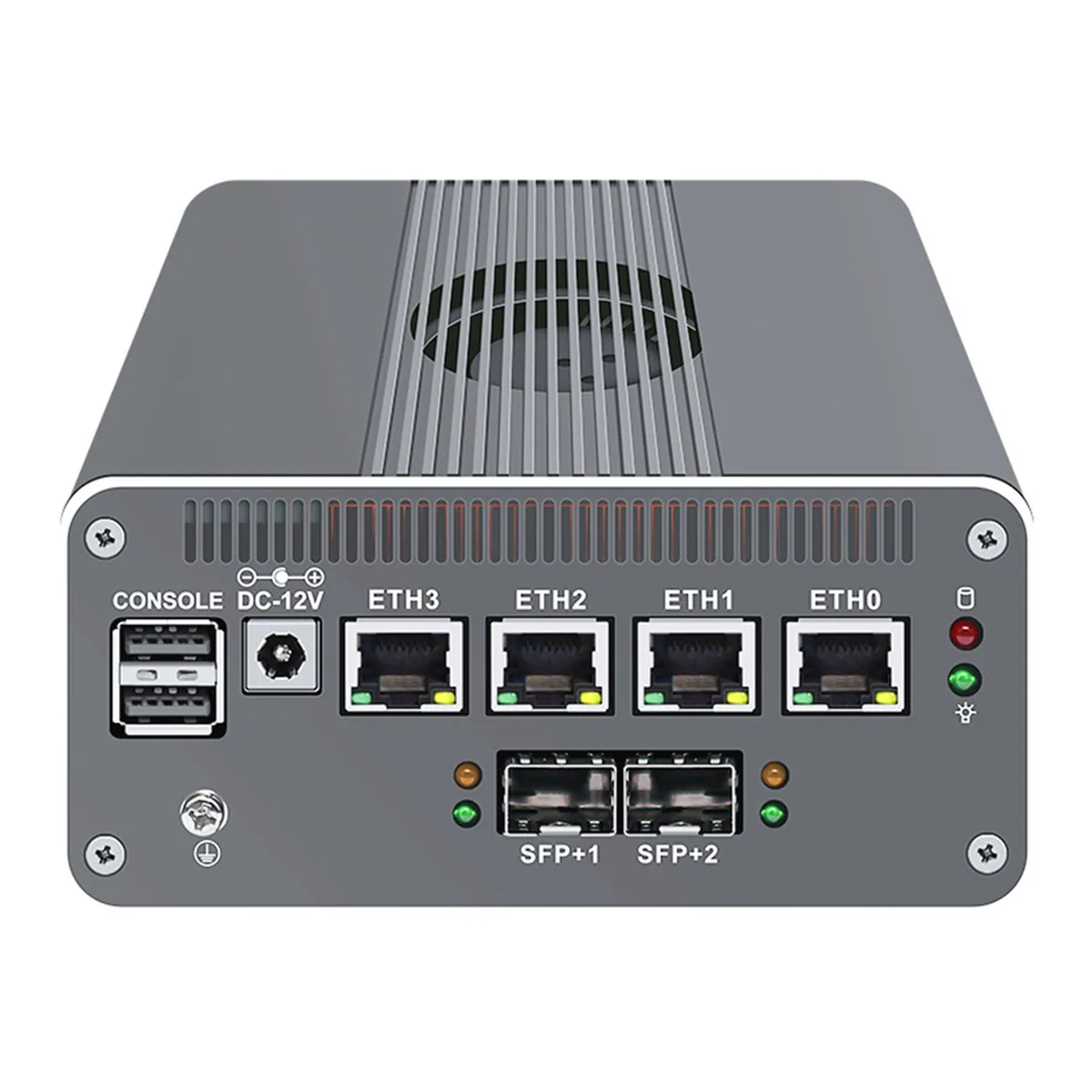

What network ports are fitted to this firewall appliance mini PC?: The board has two 10G SFP+ cages alongside four 2.5GbE RJ45 ports powered by Intel i226-V chips. It runs on low-power Intel N-series processors paired with DDR5 memory and NVMe internal storage.
Can I use 10G copper RJ45 transceivers in the SFP+ slots?: Standard 10G copper modules generate significant heat and can cause throttling in compact enclosures. For cooler operation, fit direct-attach copper (DAC) cables for short runs or use optical transceivers instead.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £604.99 · 5.0

This product

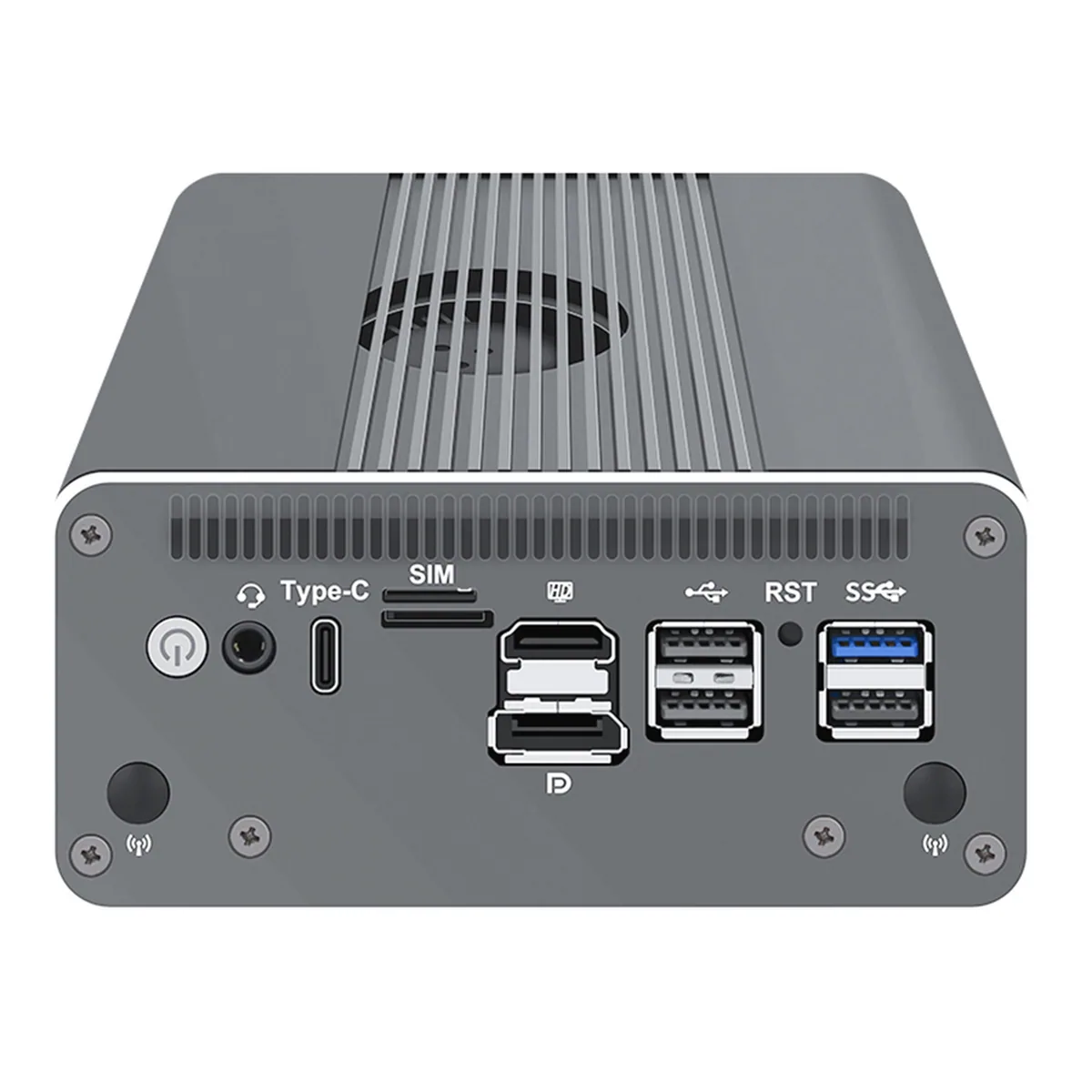

Front view of Firewall Mini PC featuring Type-C, SIM slot, video outputs, and USB ports.

Firewall Mini PC | 2.5G LAN & 10G SFP+ | Proxmox Home Lab Server

Price: £604.99
Rating: 5.0(2)
Sold: 32+
Stock: In stock

You're viewing this

Alternative

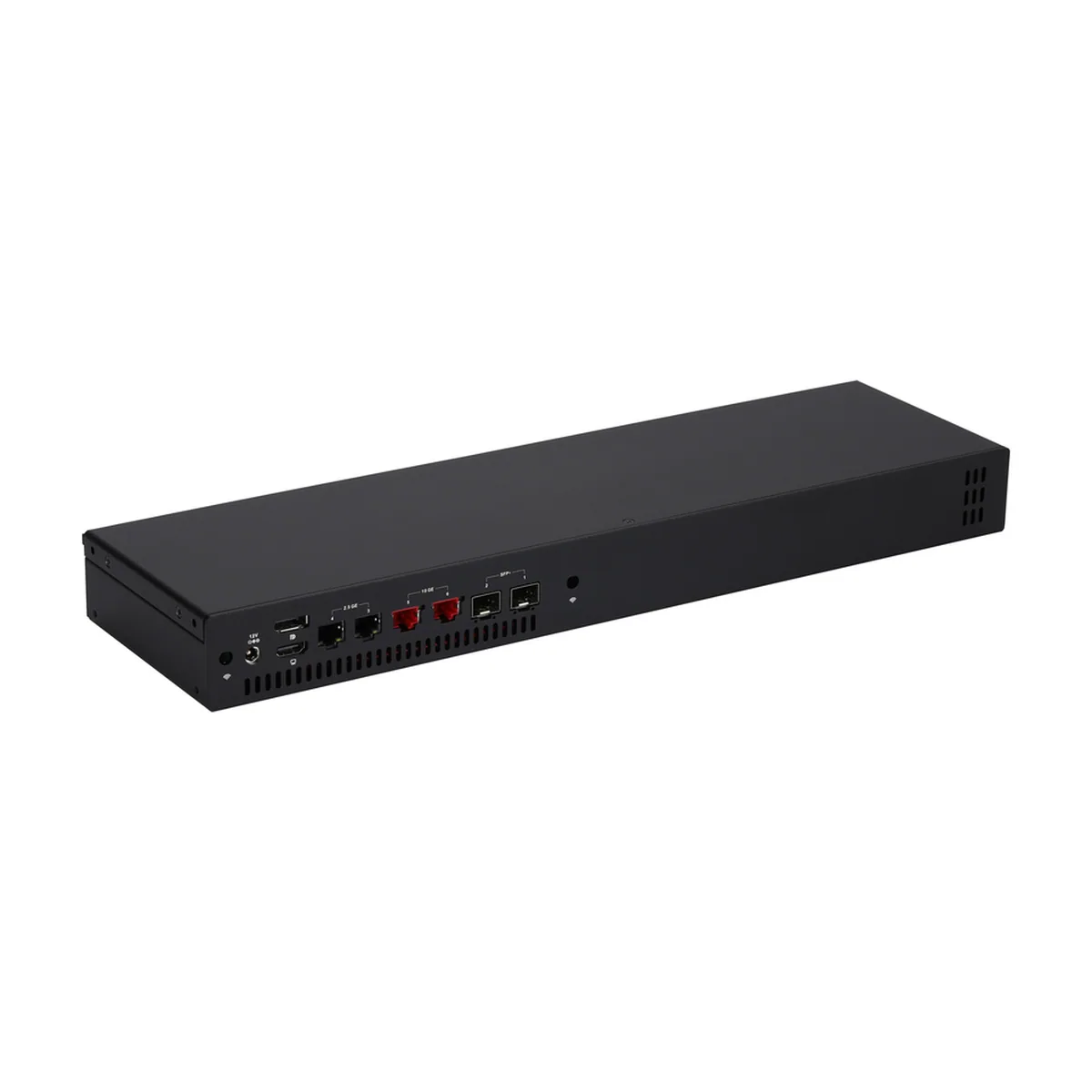

Rear panel of a black Rackmount Firewall showing display ports, RJ45 Ethernet jacks, and SFP+ cages.

Rackmount Firewall | 1U Rack Dual 10G SFP+ | 6-Port Multi-Gig Router

Price: £724.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This firewall mini PC is powered by low-power Intel N-series or Core i3 processors to manage intensive packet routing and network virtualisation. Available with four or eight 2.5G LAN ports, or four 2.5G ports alongside dual 10G SFP+ optical interfaces, it provides flexible multi-gigabit throughput for pfSense and Proxmox deployments. Features and Benefits - Flexible 2.5G i226-V RJ45 and dual 10G SFP+ configurations - Allows high-bandwidth network segmentation and direct integration into fibre uplinks. - Single DDR5 SO-DIMM and M.2 2280 NVMe PCIe slot - Delivers high-speed memory and fast storage throughput for hosting multiple virtual machines. - Active dual heat-pipe cooling with turbo fan - Draws heat away from the processor to maintain stable operating temperatures under continuous network loads. - Full aluminium alloy chassis measuring 131.7mm x 155mm x 60mm - Provides durable hardware protection in a compact desktop-friendly footprint. - AMI EFI BIOS supporting auto power-on, PXE boot, and watchdog - Ensures unattended system recovery and automated network deployments without manual intervention. Applications - Dedicated pfSense or OPNsense edge firewall router handling 2.5G multi-gigabit broadband inspection. - Proxmox VE or ESXi hypervisor server running multiple virtual machines and network services. - High-speed 10G SFP+ aggregation appliance bridging optical network switches with local copper LANs.

High-concerned chemical: none. Use: Commercial. Memory Capacity: ≤ 128MB. Hard Drive Capacity: ≤ 40 GB. Model Number: X8. Processor Brand: Intel. Processor Model: Intel N150. Type: PC Stick. Brand Name: Topton. Origin: Mainland China. Type: Mini PC. Q: What network ports and hardware specs does this unit include? A: The machine carries two 10G SFP+ cages and four Intel i226-V 2.5GbE RJ45 ethernet ports. It runs on low-power Intel chips like the N100, N150, N305, or Core i3-N355 paired with DDR5 SODIMM memory and an M.2 NVMe SSD slot.. Q: How is the thermal build handled on this firewall appliance mini pc? A: This firewall appliance mini pc uses a finned aluminum block enclosure that draws heat away from the processor directly through passive contact. It runs with zero fans, so you get silent operation and no moving parts that gather dust.. Q: Which operating systems and hypervisors work on this board? A: The Intel i226-V chips and SFP+ controllers have built-in driver support in Proxmox VE 8, VMware ESXi 7 and 8, and current Debian kernels. You can also install FreeBSD-based routing systems like pfSense and OPNsense without adding extra drivers.. Q: What coverage comes with the device if a component fails? A: The hardware includes a one-year manufacturer repair or replacement warranty that covers motherboard and port defects. You can get technical assistance for BIOS updates and hardware troubleshooting directly through the seller.. Q: Why buy this over a traditional rackmount network server? A: It gives you two 10-gigabit fiber connections and four 2.5G ports while drawing under 30 watts from the wall. You save substantial money on electric bills and fit the whole router into the palm of your hand..
