Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box

Name: Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box
Brand: Compel Group
SKU: SING-00288
Price: 877.99 GBP
Availability: InStock

Stock Nr:

SKU:

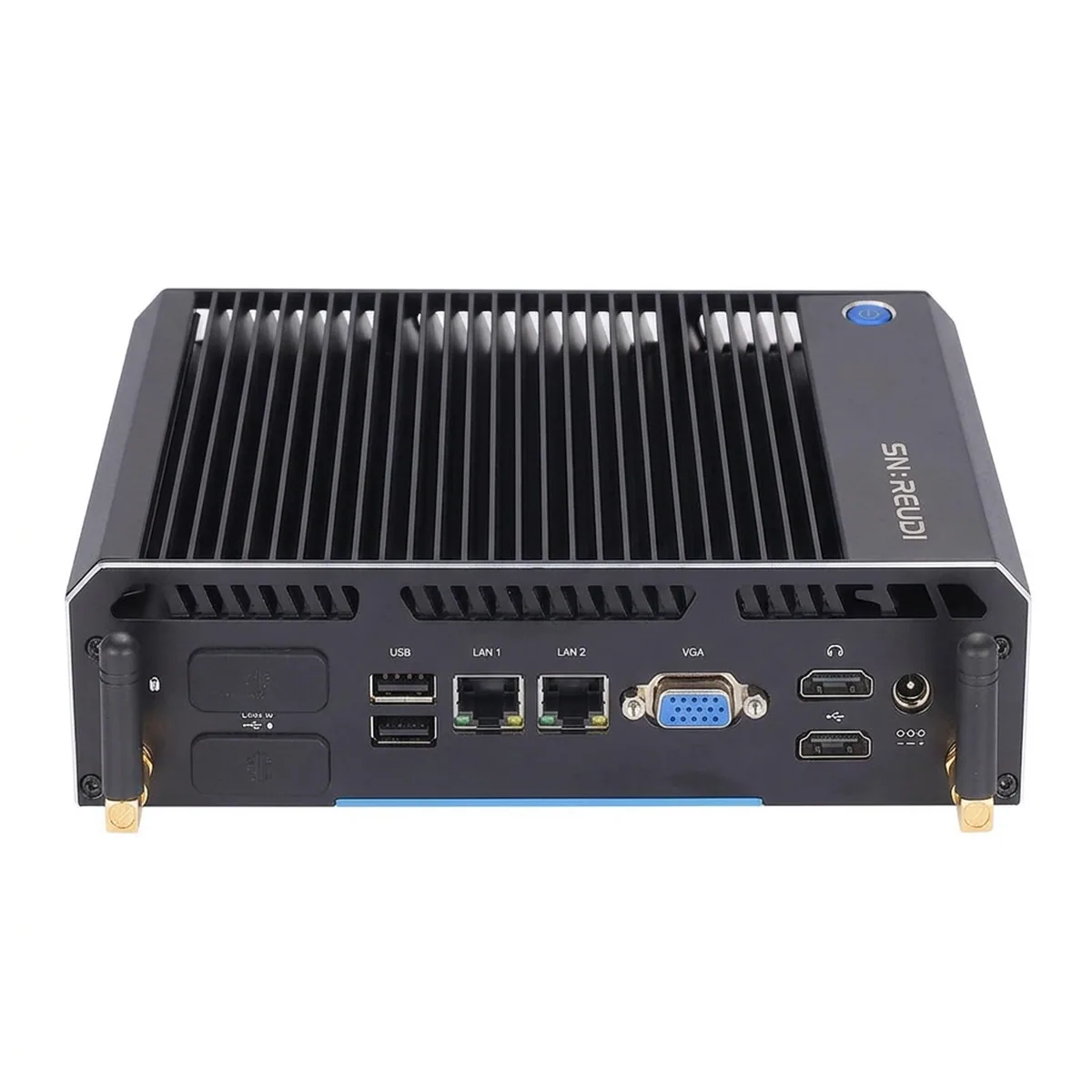

Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box - Image 1

1 / 2

£877.99inc VAT

Quantity

Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box

£877.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What operating systems are supported on this fanless PC?: The Haswell-ULT architecture supports standard x86 operating systems including Linux distributions and Windows 7, 8, or 10. You can install your chosen OS directly onto the internal mSATA or SATA solid-state drive.
What are the physical dimensions of the chassis?: The outer metal shell measures 19.8 cm wide, 19.8 cm deep, and 3.55 cm thick. That low profile makes it easy to slide into shallow electrical enclosures or mount behind display panels using the optional desktop bracket.
Does this unit need routine cleaning to stop it from overheating?: No, the sealed fanless design prevents dust, debris, and shop-floor grit from being pulled inside the housing. You only need to wipe down the outer fins periodically so dirt doesn't build up and insulate the case.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £877.99

This product

Fanless Industrial Mini PC showing front ports, audio jacks, COM connector, and green terminal block.

Fanless Industrial Mini PC | Intel Core i3 / i5 | Rugged Embedded Box

Price: £877.99
Rating: Not rated
Stock: In stock

You're viewing this

Alternative

Fanless Industrial Mini PC with finned heatsink and I/O panel featuring LAN, USB, and power ports.

Fanless Industrial Mini PC | 3 LAN PoE 6 COM | 12th Gen Alder Lake-N

Price: £732.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC showing side panel with two antenna ports and heatsink fins.

Fanless Industrial Mini PC | 4x 2.5GbE PoE | DDR5 Alder Lake-N

Price: £997.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC showing front interface with COM, Digital IO, and audio ports.

Fanless Industrial Mini PC | Intel Atom E3825 | Dual COM & GPIO

Price: £1,136.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC | 6x RS232 COM | Dual Gigabit LAN

Price: £1,069.99
Rating: Not rated
Stock: In stock

View

Alternative

Fanless Industrial Mini PC rear panel showing serial ports, LAN, USB, display outputs, and audio jacks.

Fanless Industrial Mini PC | 2x 2.5GbE | 6x COM RS232 RS485

Price: £694.99
Rating: Not rated
Stock: In stock

View

Alternative

Port panel of a black Rail Fanless Industrial Mini PC showing serial, VGA, Ethernet, and USB connections.

Rail Fanless Industrial Mini PC | EN50155 Certified | Railway Automation

Price: £901.99
Rating: Not rated
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This compact fanless industrial mini pc pairs an x86 single board computer with a sealed cast-aluminum enclosure. Powered by Intel Core i3 or i5 processors, it handles 24/7 workloads without clogging from shop-floor debris. It mounts easily to DIN rails or machine frames using wide 9V to 36V DC power. Features and Benefits - Solid finned aluminum housing without fans - Stops metal shavings, sawdust, and grease from settling on internal electronic traces. - Dual Gigabit Ethernet and multiple COM serial ports - Connects modern vision sensors and older RS-232/422/485 serial controllers at the same time. - Wide 9V to 36V DC input protection - Protects internal boards against voltage spikes caused by heavy induction motors kicking on. - Industrial x86 architecture supporting Windows and Linux - Runs legacy plant supervision tools, soft PLCs, and headless control scripts without software rewrites. Applications - CNC machine monitoring where airborne cutting fluids and metallic dust quickly wreck standard office PCs - Automated packaging conveyor lines reading barcode scanners and firing sorting diverters in real time - Outdoor self-service kiosks and toll systems running unassisted in fluctuating seasonal temperatures

Processor Options: Intel Core i3 / Core i5. Architecture: x86 Single Board Computer (SBC). Chassis Design: Rugged Embedded Box. Cooling System: Fanless Passive Cooling. Form Factor: Mini PC. Product Type: Fanless Industrial Mini PC. Dimensions: 150 x 105 x 45 mm. Chassis Construction: Rugged Industrial Anodized Aluminum. Power Supply: DC 12V (+/- 5%) Terminal Block / Barrel Jack. Display Outputs: 1x HDMI, 1x VGA Dual Independent Display. I/O Ports: 4x USB 3.0, 2x RJ45 GbE LAN, 2x COM (RS232). Operating Temperature: -10°C to 55°C. Relative Humidity: 10% to 95% Non-condensing. Architecture: x86 Single Board Computer (SBC) Embedded PC. Cooling Mechanism: Fanless Fin-Block Extrusion Design. Installation Type: Self-contained / Desktop / VESA / Wall Mount. Processor Options: Intel Core i3 / i5 Dual/Quad-Core. Storage Options: 1x mSATA Slot, 1x SATA III (6Gb/s). System Memory: 1x DDR4 SO-DIMM Socket, up to 16GB. Q: What are the core technical specifications of this single board mini PC? A: It runs on x86 Intel Core i3 or i5 processors and supports up to 32GB of DDR4 RAM. Storage options include high-speed M.2 NVMe solid-state drives alongside standard SATA connections.. Q: What physical protection does the chassis provide for the internal components? A: The body is machined from thick extruded aluminum that protects the single board computer from accidental drops and impacts. The metal casing also functions as a passive heatsink to keep operating temperatures low.. Q: Will this fanless industrial mini pc run proprietary automation software? A: Yes, because it uses standard x86 architecture, this fanless industrial mini pc runs both 32-bit and 64-bit Windows and Linux software. It also handles legacy factory automation platforms without requiring custom drivers.. Q: How long is the warranty period for this model? A: We back this PC with a two-year factory warranty covering all internal parts and assembly. We also keep matching boards in stock to make long-term servicing simple.. Q: How does choosing this rugged unit reduce long-term operational costs? A: The sealed, solid-state build removes the primary failure point in dirty environments: the cooling fan. You spend less on routine maintenance, filter cleaning, and unexpected factory line stops..
