Firewall Appliance | 6x 2.5GbE Intel i226-V | Fanless Mini PC

Name: Firewall Appliance | 6x 2.5GbE Intel i226-V | Fanless Mini PC
Brand: Compel Group
SKU: SING-00231
Price: 1122.99 GBP
Availability: InStock

Stock Nr:

SKU:

Firewall Appliance | 6x 2.5GbE Intel i226-V | Fanless Mini PC - Image 1

1 / 6

£1,122.99inc VAT

Quantity

Firewall Appliance | 6x 2.5GbE Intel i226-V | Fanless Mini PC

£1,122.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Does pfSense work with the Intel i226-V 2.5GbE network ports?: Yes, pfSense Community Edition 2.7.0 and later versions natively support Intel i226-V controllers via the igc driver. OPNsense also detects and runs all six 2.5G ports straight after installation. You will not need extra manual driver patches during setup.
What are the physical dimensions and case materials of this firewall?: The chassis measures 131.7 mm wide, 145.4 mm deep, and 60 mm tall. It uses a brushed aluminium alloy shell that doubles as a passive heatsink for silent cooling. The outer fins pull heat away from the board without needing internal fans.
What memory and drive options fit inside this chassis?: The board accepts two DDR5 SO-DIMM RAM sticks running at 4800MHz, with support up to 5600MHz. For storage, you get slots for two M.2 NVMe 2280 SSDs alongside two SATA 3.0 ports. That lets you split fast cache drives from standard bulk storage.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £1,122.99

This product

Top view of a black Firewall Appliance featuring horizontal ventilation slats and an internal fan.

Firewall Appliance | 6x 2.5GbE Intel i226-V | Fanless Mini PC

Price: £1,122.99
Rating: Not rated
Sold: -
Stock: In stock

You're viewing this

Alternative

Perspective view of a black Firewall Appliance Mini PC showing Ethernet, SFP+, USB, and Type-C ports.

Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt

Price: £597.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance Mini PC displaying six RJ45 Ethernet ports and two antenna connectors.

Firewall Appliance Mini PC | 6x 2.5GbE Fanless | Dual COM Ports

Price: £690.99
Rating: 5.0(1)
Sold: 9+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC | Dual 2.5G LAN 2 COM | Fanless Intel N100/N150

Price: £496.99
Rating: 5.0(2)
Sold: 45+
Stock: In stock

View

Alternative

Rear panel of a Firewall Appliance Mini PC with LAN, HDMI, USB ports, and antenna mounts.

Firewall Appliance Mini PC | Ryzen 7 Dual LAN | Dual HDMI Home Lab Host

Price: £513.99
Rating: 5.0(3)
Sold: 12+
Stock: In stock

View

Alternative

Firewall Appliance with four Ethernet ports, DC input, COM port, and finned heatsink top.

Firewall Appliance | 4x 2.5GbE Intel I226-V Ports | 8GB RAM NVMe SSD

Price: £604.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing top heatsink fins, power button, console port, and USB ports.

Firewall Appliance Mini PC | Dual 10G SFP+ & 10GbE | Dual 2.5GbE LAN

Price: £816.99
Rating: Not rated
Sold: 4+
Stock: In stock

View

Alternative

Port panel of Firewall Appliance Mini PC featuring USB, Type-C, display connections, and top heatsink.

Firewall Appliance Mini PC | 6x 2.5G LAN | Intel Ultra 7 2xDDR5

Price: £1,200.99
Rating: 5.0(1)
Sold: 2+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing front USB-C, USB-A ports, audio jack, power button, and side vent.

Firewall Appliance Mini PC | AMD Ryzen 3 5425U | 4x 2.5G LAN

Price: £654.99
Rating: 5.0(6)
Sold: 52+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This firewall appliance mini pc packs an Intel Core processor into a compact shell. It gives network engineers six independent 2.5GbE ports powered by Intel i226-V controllers, delivering multi-gigabit routing and encrypted VPN throughput without generating fan noise or throttling under heavy bandwidth loads. Features and Benefits - Six 2.5GbE network interfaces - Allows fine-grained physical separation for your local networks, guest access, and isolated equipment. - Intel Core processor options - Provides ample compute capacity to virtualize routing software alongside auxiliary services without bottlenecks. - Fanless passive cooling chassis - Dissipates heat through the outer metal case so the unit runs 24/7 without cooling fans. - Dual display outputs and direct USB access - Connects straight to desk monitors for fast setup, recovery, and offline maintenance tasks. Applications - Dedicated perimeter routing with pfSense or OPNsense filtering raw multi-gigabit fiber connections. - Virtualized network lab hosting virtual routers, intrusion detection systems, and testing setups under Proxmox VE. - Encrypted VPN tunnel gateway handling site-to-site branch links and secure remote office logins.

Processor Options: Intel Core i7-1355U / i7-1270P / i5-1240P / i5-1335U. Network Interfaces: 6 x 2.5 GbE Intel i226-V LAN. Cooling System: Fanless Passive Cooling. Device Type: Firewall Appliance / Soft Router. Form Factor: Mini PC. Supported Operating Systems: pfSense, Proxmox VE, OPNsense, Linux. Dimensions: 178 x 126 x 55 mm. Weight: 1.10 kg. Chassis Construction: All-Aluminum Alloy with Fin Block Radiator. Power Supply: DC 12V/5A, 60W Adapter. Thermal Design Power (TDP): 15W Base (Configurable to 55W). Storage Capacity: 1x M.2 2280 NVMe (PCIe 4.0 x4), 1x 2.5-inch SATA SSD/HDD. I/O Ports: 1x RJ45 Console, 2x USB 3.0, 2x USB 2.0, 1x HDMI 2.0. Network Interfaces: 6x Intel i226-V 2.5GbE RJ45 LAN Ports. OS / Virtualization Compatibility: pfSense, Proxmox VE, OPNsense, ESXi, Linux. Cooling System: Fanless Passive Aluminum Chassis Block. Form Factor: Fanless Firewall Appliance Mini PC. Memory Support: 2x DDR4 3200MHz SO-DIMM Slots, up to 64GB. Processor: Intel Core i7-1355U (10C/12T, up to 5.00 GHz). Q: What are the network specs on this firewall appliance mini pc? A: It features six Intel i226-V 2.5-gigabit Ethernet ports for high-bandwidth routing. You can configure it with 12th or 13th Gen Intel chips ranging from an i5-1240P up to an i7-1355U.. Q: How does the machine stay cool without an internal fan? A: The entire chassis is made from extruded aluminum with deep ridges that function as a heat sink. It draws heat straight off the CPU block through copper piping, keeping the unit completely silent under network load.. Q: Will this box work with pfSense and virtualization hypervisors? A: Yes, the Intel i226-V network controllers are fully recognized by pfSense Plus, OPNsense, and Proxmox VE 8. You can run multiple virtual machines and assign dedicated network ports directly to your virtual firewall.. Q: What kind of warranty and hardware support is included? A: The firewall comes with a standard one-year warranty on the chassis, motherboard, and preinstalled memory. You get technical assistance for BIOS updates and hardware troubleshooting if an interface stops responding.. Q: Is this system cost-effective for multi-gigabit home networks? A: Commercial multi-gigabit security appliances often cost hundreds more and charge annual subscription fees. This box lets you run free, open-source routing software across six 2.5G ports with zero recurring license costs..

Firewall Appliance | 6x 2.5GbE Intel i226-V | Fanless Mini PC

Questions about this product

Compare with similar products

More Computers & Tablets

Firewall Appliance Mini PC | Intel N150 | Up to 10G SFP+ & 8x 2.5G

1U Firewall Appliance | 9.5in Rackmount | Intel N150 Quad 4x 2.5GbE

NAS Mini PC | 4x M.2 NVMe Slots | Intel N150 Dual 2.5GbE

Firewall Appliance Mini PC | 4x 2.5G LAN | Optional 10G SFP+ & DDR5

Firewall Mini PC | 2.5G LAN & 10G SFP+ | Proxmox Home Lab Server

Firewall Appliance | 6x 2.5GbE & Optional SFP | Intel Core Ultra

Firewall Appliance Mini PC | 2x 10G & 2x 2.5G RJ45 | Intel N150 / i3-N305

Firewall Appliance Mini PC | 2x 10G SFP+ or 8x 2.5G LAN | Proxmox Server

Firewall Appliance Mini PC | 4x 2.5GbE LAN | Fanless Dual NVMe

Appliance Mini PC | Fanless Intel N355 DDR5 | 4x2.5GbE Dual NVMe NAS

1U Rack Firewall Appliance | Intel Core i3-N300 | DDR5 mSATA

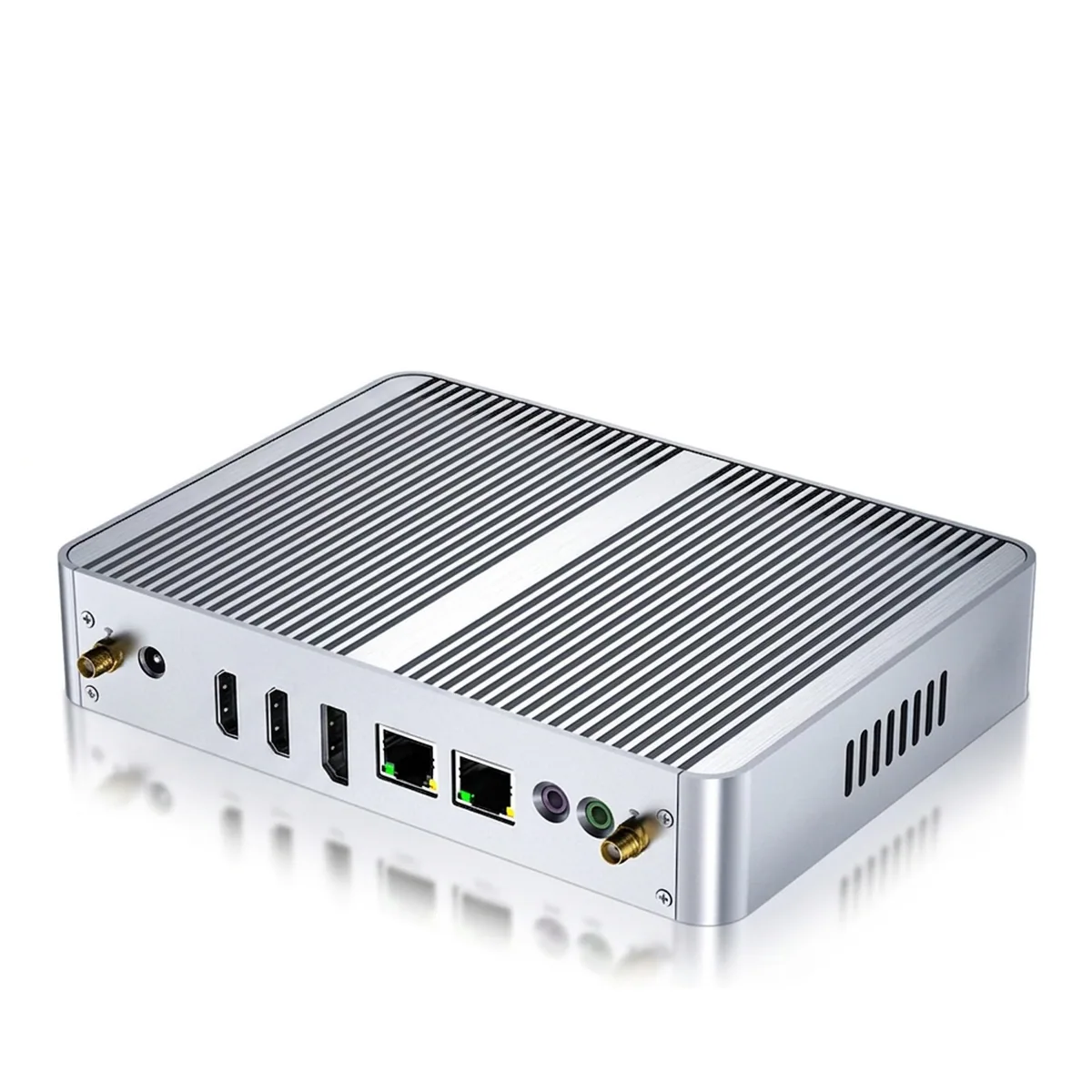

Fanless Mini PC | Intel N100/N95 Dual LAN | Triple 4K
