Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt

Name: Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt
Brand: Compel Group
SKU: SING-00223
Price: 597.99 GBP
Availability: InStock

Stock Nr:

SKU:

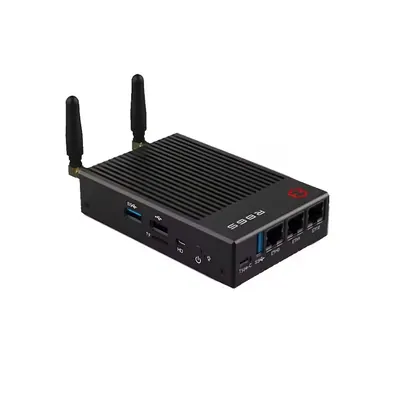

Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt - Image 1

1 / 3

£597.99inc VAT

ColorSelect an option

Quantity

Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt

£597.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can the GW R86S run pfSense or OPNsense without driver issues?: Yes, it runs FreeBSD-based systems like pfSense and OPNsense, as well as Linux distributions like OpenWrt. The hardware supports standard x86 firewall operating systems right out of the box. You can install your chosen OS directly onto an internal drive via USB boot.
What memory and drive capacities does this mini PC support?: The system accepts up to 16GB of DDR4 RAM. For storage, it fits a standard 2.5-inch SATA hard drive or solid-state drive inside the chassis. That gives you plenty of capacity for local logging, traffic monitoring, and firewall caching.
What network port speeds does the unit provide?: The board features a combination of multi-gigabit 2.5G RJ45 Ethernet ports and 10G LAN ports depending on the specific model variation. These high-speed interfaces let you route multi-gigabit broadband without creating a local network bottleneck.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £597.99

This product

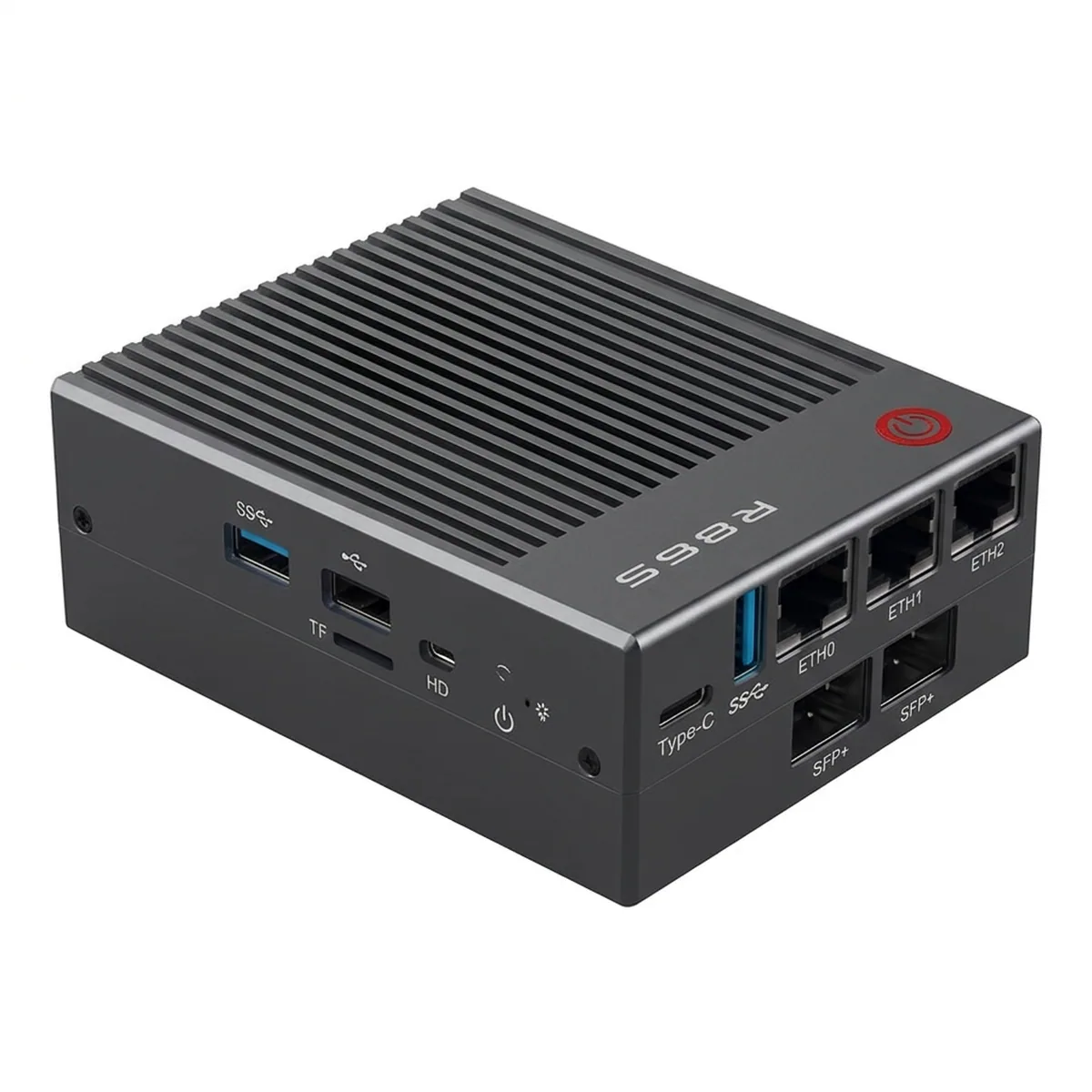

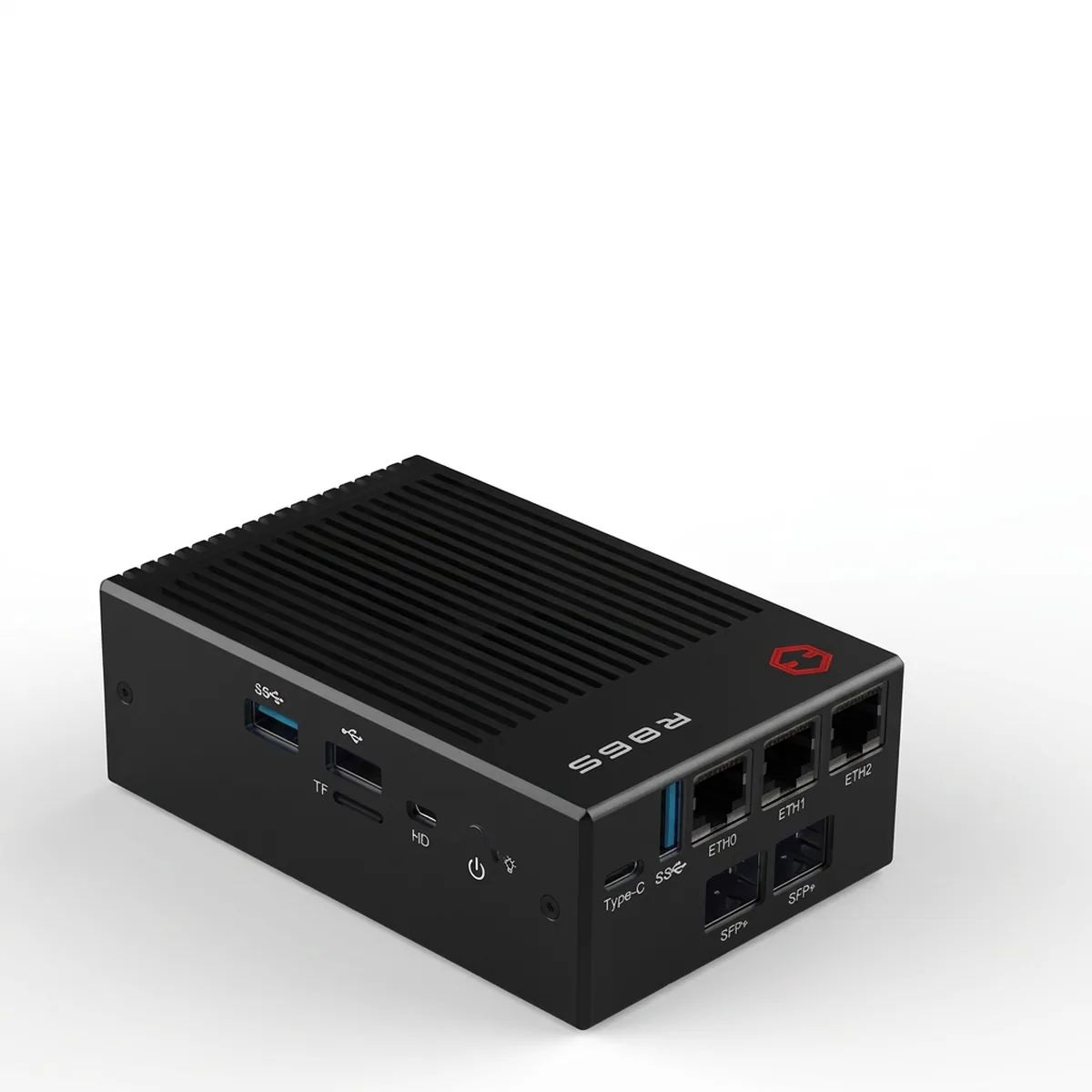

Perspective view of a black Firewall Appliance Mini PC showing Ethernet, SFP+, USB, and Type-C ports.

Firewall Appliance Mini PC | Fanless 2.5G & 10G | pfSense OpenWrt

Price: £597.99
Rating: Not rated
Sold: -
Stock: In stock

You're viewing this

Alternative

Firewall Appliance Mini PC displaying front USB, HDMI, DP, SIM slot, and antenna ports.

Firewall Appliance Mini PC | 4x 2.5GbE LAN | Fanless OPNsense Router

Price: £392.99
Rating: 4.7(12)
Sold: 110+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing four Ethernet ports, power jack, and top heatsink fins.

Firewall Appliance Mini PC | 4 LAN Soft Router | Fanless PC

Price: £297.99
Rating: Not rated
Sold: 14+
Stock: In stock

View

Alternative

Firewall Appliance | Fanless i3-N300 6x 2.5G i226 LAN | DDR4 Mini PC

Price: £348.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing side panel with VGA, SIM slot, USB-C, and SFF8087 port under heatsink fins.

Firewall Appliance Mini PC | 4x SFP+ 5x 2.5GbE | Intel Denverton

Price: £348.99
Rating: 5.0(1)
Sold: 11+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC displaying six RJ45 Ethernet ports and two antenna connectors.

Firewall Appliance Mini PC | 6x 2.5GbE Fanless | Dual COM Ports

Price: £690.99
Rating: 5.0(1)
Sold: 9+
Stock: In stock

View

Alternative

Firewall Appliance Mini PC showing four LAN ports and DC power input on black metal chassis.

Firewall Appliance Mini PC | Intel Celeron | 4x LAN pfSense Router

Price: £264.99
Rating: 4.8(66)
Sold: 600+
Stock: In stock

View

Alternative

1U Firewall Appliance | 6-LAN 2x 10GbE SFP+ | Core i3/i5/i7 Router

Price: £696.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance | 4x 2.5G LAN M.2 NVMe | Celeron J6412/J6413

Price: £451.99
Rating: Not rated
Sold: 4+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This small x86 network box runs silent security software right on your desk. It uses an Intel Jasper Lake quad-core chip with 2.5G copper and 10G fiber ports, drawing about 10W during everyday use. Features and Benefits - Solid aluminum heatsink case - Pulls heat out through the metal body, so there are no spinning fans to collect dust or fail. - Intel i225-V 2.5G ports and dual 10G SFP+ slots - Feeds 2.5Gbps local network devices and 10Gbps fiber runs at line speed. - Intel N5105 or N6005 processor - Has four cores to manage packet inspection, ad blocking, and WireGuard VPN tunnels. - Native BSD and Linux compatibility - Boots OPNsense, pfSense, or OpenWrt from USB without hunting down custom drivers. Applications - Quiet edge router for homes with multi-gigabit fiber connections. - Low-draw firewall appliance running 24/7 intrusion detection in a home lab. - Portable security box to create private subnets on hotel or remote networks.

Processor: Intel Celeron N5105 / Pentium N6005 (up to 3.3 GHz). Cooling System: Fanless Passive Cooling. Device Type: Firewall Appliance Mini PC. Ethernet Ports: Multi-Port (2.5GbE RJ45 + 10GbE SFP+). Form Factor: Fanless Mini PC. Supported Software: OpenWrt, pfSense, OPNsense. Dimensions: 114 x 90 x 40 mm. Weight: 0.45 kg. Chassis Material: Aluminum Alloy. Power Consumption: 10W - 15W TDP. Power Input: DC 12V / 3A (USB Type-C PD supported). Ethernet Ports: 3x 2.5GbE RJ45 (Intel i225-V/i226-V). Optical Ports: 2x 10GbE SFP+ (via Mellanox ConnectX-3). OS Compatibility: pfSense, OPNsense, OpenWrt, Proxmox VE, Linux. Cooling System: Fanless Passive Cooling. Device Type: Firewall Appliance Mini PC. Form Factor: Ultra-Compact Mini PC. Memory Support: Onboard 8GB / 16GB LPDDR4x 2933MHz. Processor: Intel Celeron N5105 / Pentium Silver N6005 (4 Cores, up to 3.30 GHz). Storage Options: 1x M.2 2280 NVMe SSD (PCIe 3.0 x2), 1x MicroSD slot. Q: What network ports and processors come on this firewall appliance mini pc? A: This unit runs on either an Intel Celeron N5105 or Pentium N6005 processor. It features three 2.5GbE RJ45 ethernet ports alongside two 10GbE SFP+ cages for high-speed fiber links.. Q: How is the thermal dissipation handled without a fan? A: The entire exterior uses an extruded aluminum chassis that acts as a passive heatsink. Heat moves directly from the CPU through an internal copper block out into the finned shell, keeping the system silent.. Q: Which operating systems can I install on the GW R86S? A: It runs standard x86 systems directly from USB installation media. You can use pfSense, OPNsense, OpenWrt, Proxmox VE, or standard Linux distributions like Debian and Ubuntu without driver issues.. Q: What warranty coverage is included with this unit? A: The device includes a one-year hardware replacement warranty for factory defects. If a component fails under normal home or office use, you can send it back for repair or an exchange.. Q: Is this machine worth buying over a standard commercial router? A: Yes, because it gives you full control over your firewall rules without recurring subscription fees. The combined 2.5G and 10G ports also prevent network bottlenecks when you upgrade to multi-gigabit internet plans..
