Engineered for precision and durability, the Tooleye Carbide End Mills deliver exceptional performance in demanding CNC machining applications. Featuring a robust tungsten steel core and a specialized alloy coating, these cutters provide superior wear resistance and extended tool life, ensuring clean, efficient cuts in various metals. Features and Benefits
- Premium Tungsten Steel Core - Offers exceptional hardness and rigidity for stable, vibration-free milling, even at high speeds and feed rates.
- Specialized Alloy Coating - Reduces friction and heat buildup while significantly enhancing wear resistance, leading to longer tool life and consistent performance.
- 2 or 4 Flute Design Options - Provides versatility; 2-flute cutters excel at chip evacuation in softer materials, while 4-flute designs deliver finer finishes and increased feed rates in harder metals.

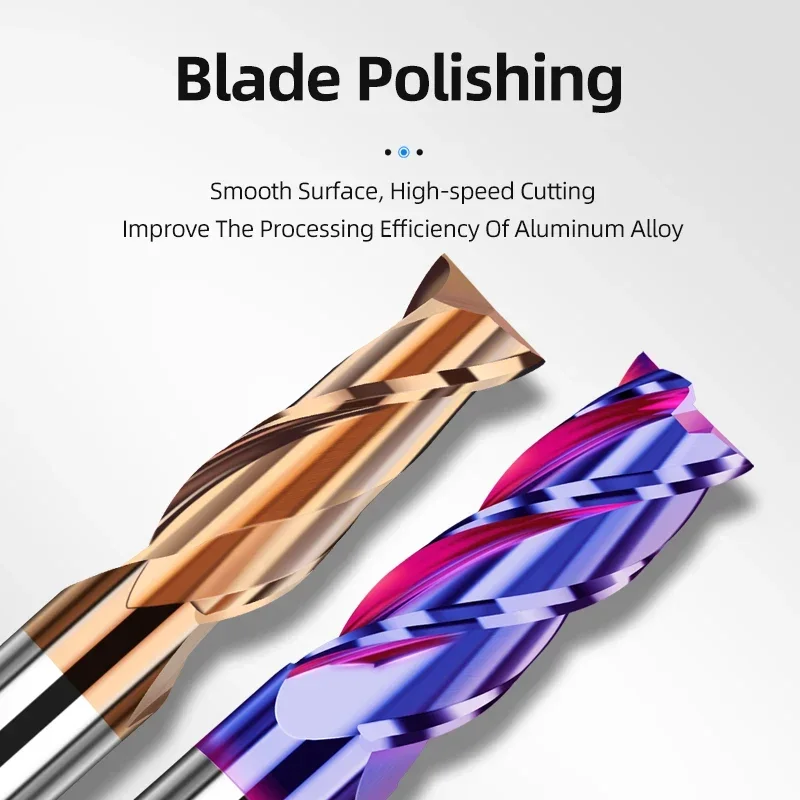

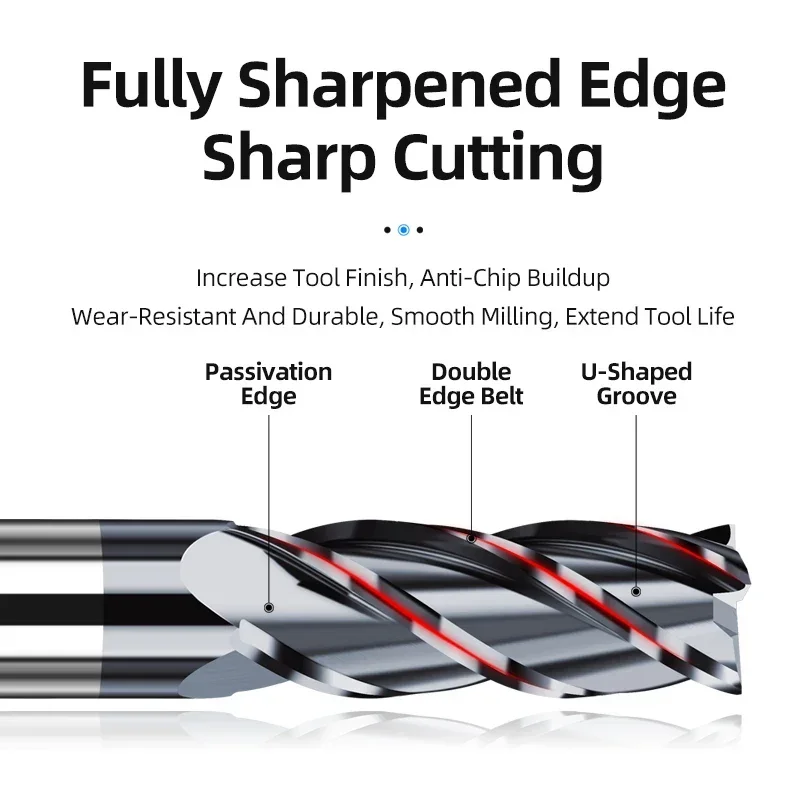

- Precision Ground Cutting Edges - Ensures sharp, accurate geometry for clean cuts, reduced burring, and improved surface finish on your workpiece.

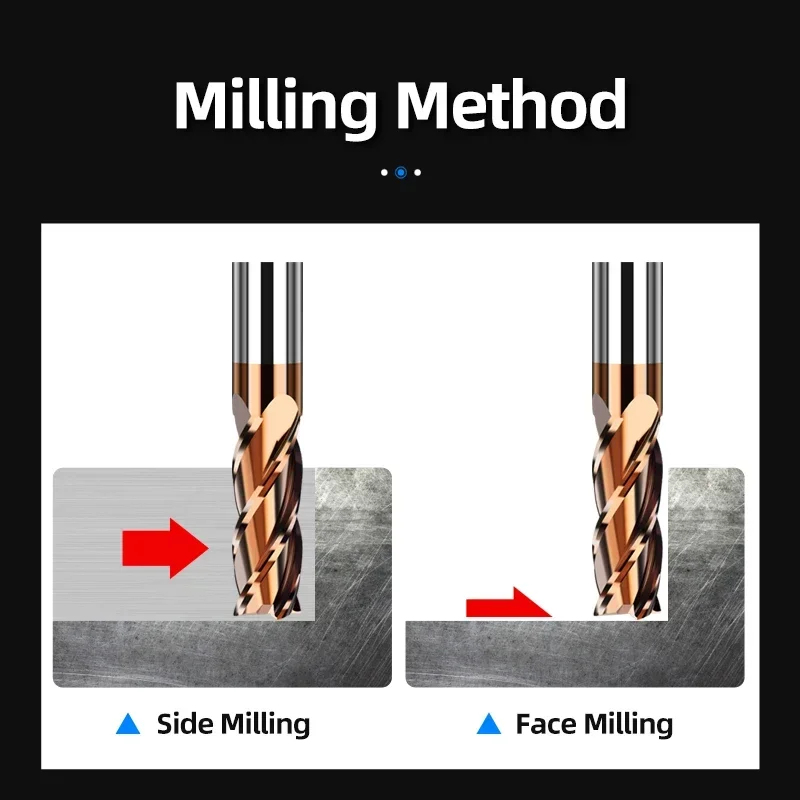

- Flat End Design - Ideal for profiling, slotting, and plunging, making it a versatile workhorse for a wide range of milling operations. Applications
- Precision Metal Machining - Perfect for milling steel, aluminum, cast iron, and other alloys in professional machine shops and fabrication.
- Prototyping and Model Making - Delivers the accuracy and fine finish required for creating detailed prototypes and components.
- Maintenance and Repair Work - A reliable, value-focused choice for in-house maintenance teams and workshops needing dependable performance for regular use. Note
For optimal performance and longevity, use appropriate cutting speeds and feeds for your material and always employ adequate coolant or lubrication.
Core Diameter: Approximately 50-60% of cutter diameter (typical for strength). Flute Length: Varies by diameter (e.g., 15-38mm typical range). Overall Length: Varies by diameter (e.g., 50-100mm typical range). Shank Diameter: Equal to cutter diameter (standard for end mills). Material: Tungsten Carbide (WC-Co). Maximum Recommended Cutting Speed (Vc): 150-300 m/min for aluminum (coating dependent). Axial Rake Angle: Positive (typical for general-purpose milling). Coating: Alloy Coating (likely TiAlN or AlTiN based on industry standard for metal cutting). Cutting Direction: Right-Hand Cut (standard for CNC). Cutting Edge Preparation: Honed or micro-geometry (inferred from carbide tool quality). Flute Count: 2 or 4 Flutes (model dependent). Flute Type: Straight Flutes (inferred from "Flat" cutter description). Helix Angle: 30° to 45° (typical for general-purpose metal milling). Maximum Recommended Feed per Tooth (fz): 0.05-0.15 mm/tooth for aluminum. Primary Application: Milling of Aluminum, Alloy Steel, and other Non-Ferrous Metals. Product Type: Carbide End Mill. Radial Rake Angle: Positive (typical for aluminum and non-ferrous metals). Shank Tolerance: h6 (standard for precision toolholders). Shank Type: Straight Cylindrical Shank. Q: What are the specifications and available sizes for these Tooleye carbide end mills? A: This product line includes carbide end mills with 2 and 4 flutes, featuring an alloy coating for enhanced performance. Specific diameters and shank sizes are listed in the product's size selection menu, so please check there for the exact dimensions you require for your CNC machining project.. Q: How durable is the tungsten steel and alloy coating on these milling cutters? A: The combination of tungsten carbide substrate and a specialized alloy coating provides excellent wear resistance and heat tolerance. This makes the end mills suitable for cutting harder materials like steel and alloys, offering a long tool life and consistent performance under regular machining conditions.. Q: Can these 2 and 4 flute carbide end mills be used for aluminum and non-ferrous metals? A: Yes, these end mills are versatile cutting tools designed for a range of materials. The 2-flute design is typically optimized for aluminum and other non-ferrous metals, while the 4-flute version provides a finer finish and is excellent for cutting steel and harder alloys on your CNC machine.. Q: Does this Tooleye carbide end mill come with any warranty or guarantee? A: While specific warranty terms should be verified at the point of purchase, products of this type typically come with a guarantee against manufacturing defects. We recommend reviewing the seller's policy for detailed information on coverage and any return procedures for the flat metal cutter.. Q: Is this Tooleye milling cutter a good value compared to premium brand end mills? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in CNC machining, providing the essential features of a carbide end mill with alloy coating at a competitive price point..
