Flute Carbide End Mill | 3.175-6mm | DLC Coating for Aluminum & Acrylic

Stock #:TBS-05604

SKU:MANU-00233

Flute Carbide End Mill | 3.175-6mm | DLC Coating for Aluminum & Acrylic - Image 1

1 / 6

$5.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Achieve exceptional finishes in non-ferrous materials with this single flute carbide spiral end mill. Featuring a premium DLC coating, it is specifically designed to minimize heat buildup and chip wel...

Cutting Edge Length22 optionsSelect an option

Quantity

1

Flute Carbide End Mill | 3.175-6mm | DLC Coating for Aluminum & Acrylic

$5.95

$5.95

1

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Can I use this end mill to cut steel or other hard metals?: No, do not use this tool on steel. It is specifically designed for non-ferrous materials like aluminum, acrylic, wood, and composite plastics. Cutting harder metals will quickly chip or ruin the sharp carbide edge.
What is the maximum speed I can run this end mill at?: We recommend running this mill at a maximum speed of 20,000 to 30,000 RPM. The single-flute design and DLC coating help manage heat at these high speeds. Pushing the tool past these limits can cause premature wear or tool breakage.
Why should I choose a single-flute end mill with a DLC coating for aluminum?: Aluminum tends to melt and stick to cutting tools during machining. This single-flute design maximizes space for chips to escape to prevent clogging. Combined with the slick Diamond-Like Carbon coating, this tool stops aluminum from welding to the cutter.

Manufacturing & CNC spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare manufacturing & cnc

This product

1pc AAAAA Single Flute Carbide Spiral End Mill 3.175 ,4,5,6m - Premium Industrial & Machinery > Manufacturing & CNC with professional quality and features

Flute Carbide End Mill | 3.175-6mm | DLC Coating for Aluminum & Acrylic

Price$5.95

Rating4.9

Sold1,000+

Stock In stock

You're viewing this

Alternative

Solid carbide end mill with 2-flute design for straight slot milling, engraving, and general milling applications.

Carbide End Mill | 3.175-8mm Shank Engraving Bit | Straight Slot Milling Cutter

Price$5.95

Rating5.0

Sold800+

Stock In stock

Alternative

Four-flute carbide end mill for milling hardened steel up to HRC50, available in diameters from 4mm to 16mm for metal cutting applications.

4 Flute End Mill | HRC50 Alloy Carbide Steel | 4mm-16mm CNC Milling Cutter

Price$5.95

Rating4.8

Sold1,000+

Stock In stock

Alternative

Tooleye HRC45 carbide flat end mill with alloy coating for CNC metal machining, featuring 2 flutes and multiple shank sizes.

2-Flute End Mill Set | HRC45 Carbide Cutter | 1-12mm Sizes for Metal CNC Machining

Price$11.99

Rating5.0

Sold15+

Stock In stock

Alternative

Two-flute spiral carbide compression end mill for CNC routing, featuring up-cut and down-cut design for clean woodworking.

2 Flute Spiral Carbide Router Bit | UP & DOWN Cut Compression | CNC Wood End Mill Cutter

Price$5.95

Rating4.9

Sold600+

Stock In stock

Alternative

Tungsten carbide rotary burr set with 3x6mm dimensions for metal drawing, engraving, milling, and polishing in metalworking applications.

Carbide Rotary Burr Set | 3x6mm Metal Drawing Cutter | Engraving & Polishing Tools

Price$5.95

Rating4.9

Sold226+

Stock In stock

Compare options

More Manufacturing & CNC

All Manufacturing & CNC

Spiral CNC Router Bits | Single Flute End Mill | 3.175-8mm Shank Woodworking Cutter

Spiral CNC Router Bits | Single Flute End Mill | 3.175-8mm Shank Woodworking Cutter

6mm Shank Router Bit | 1/4 Cutting Diameter | For Detail Woodworking & CNC

6mm Shank Router Bit | 1/4 Cutting Diameter | For Detail Woodworking & CNC

Brass Threaded Ball Knob | CNC Lathe & Milling Machine Upgrade

Brass Threaded Ball Knob | CNC Lathe & Milling Machine Upgrade

Heavy-Duty T-Slot Milling Cutter | YG8 Alloy Carbide Groove Tool | For Metal CNC Machining

Heavy-Duty T-Slot Milling Cutter | YG8 Alloy Carbide Groove Tool | For Metal CNC Machining

Ball Nose End Mill Set | 2 & 4 Flute CNC Milling Cutters | R0.5-R16 Radius for Metal Machining

Ball Nose End Mill Set | 2 & 4 Flute CNC Milling Cutters | R0.5-R16 Radius for Metal Machining

Industrial Presser Foot Set | Precision Steel Construction | 0.1-0.5 Inch Sizes

Industrial Presser Foot Set | Precision Steel Construction | 0.1-0.5 Inch Sizes

CNC End Mill Set | Tungsten Carbide 2 & 4 Flute Cutters | Alloy Coating for Metal & Alloy Milling

CNC End Mill Set | Tungsten Carbide 2 & 4 Flute Cutters | Alloy Coating for Metal & Alloy Milling

Milling Cutter Set | 4 Flute End Mills 1/16-5/8 | CNC Router Bits for Metal

Milling Cutter Set | 4 Flute End Mills 1/16-5/8 | CNC Router Bits for Metal

Nose End Mill | 2 Flute Tungsten Carbide | 6.35mm CNC Router Bit for Milling

Nose End Mill | 2 Flute Tungsten Carbide | 6.35mm CNC Router Bit for Milling

Bottom Cleaning Router Bit | 10mm Screw Thread Lock | CNC Woodworking Milling Cutter

Bottom Cleaning Router Bit | 10mm Screw Thread Lock | CNC Woodworking Milling Cutter

CNC Motion Controller | 100kHz USB Interface | MACH3 Compatible Stepper Motor Driver

CNC Motion Controller | 100kHz USB Interface | MACH3 Compatible Stepper Motor Driver

Delrin V-Wheel Kit for V-Slot Linear Rails | High-Performance 3D Printer Components

Delrin V-Wheel Kit for V-Slot Linear Rails | High-Performance 3D Printer Components

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

608ZZ Skateboard Bearings | Double Metal Shield | 8x22x7mm 10-Pack

608ZZ Skateboard Bearings | Double Metal Shield | 8x22x7mm 10-Pack

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

Solenoid Valve | 12V/24V/220V NC | 1/2 & 3/4 for Water & Air

Solenoid Valve | 12V/24V/220V NC | 1/2 & 3/4 for Water & Air

Hydraulic Valve | 1/2 Float for Tank Water Level Control

Hydraulic Valve | 1/2 Float for Tank Water Level Control

Temperature Sensor | 5-Pack DS18B20 Probes | 1M/2M/3M Waterproof

Temperature Sensor | 5-Pack DS18B20 Probes | 1M/2M/3M Waterproof

Pneumatic Fitting Push-In Connectors | Air Hose Quick Release | 4-14mm Tube

Pneumatic Fitting Push-In Connectors | Air Hose Quick Release | 4-14mm Tube

Flute End Mill | Solid Carbide with DLC Coating | For Aluminum CNC

Flute End Mill | Solid Carbide with DLC Coating | For Aluminum CNC

Hose Fitting | Quick Release Push to Connect | 1/4 NPT Elbow

Hose Fitting | Quick Release Push to Connect | 1/4 NPT Elbow

Empty Spray Bottles 200ml | Fine Mist Atomiser | Hair, Plant & Cleaning

Empty Spray Bottles 200ml | Fine Mist Atomiser | Hair, Plant & Cleaning

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

Fitting | 304 Stainless Steel Compression | 1/2 NPT Union

Fitting | 304 Stainless Steel Compression | 1/2 NPT Union

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

Reflector Plate | Photoelectric Sensor Accessory | TD Series

Reflector Plate | Photoelectric Sensor Accessory | TD Series

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

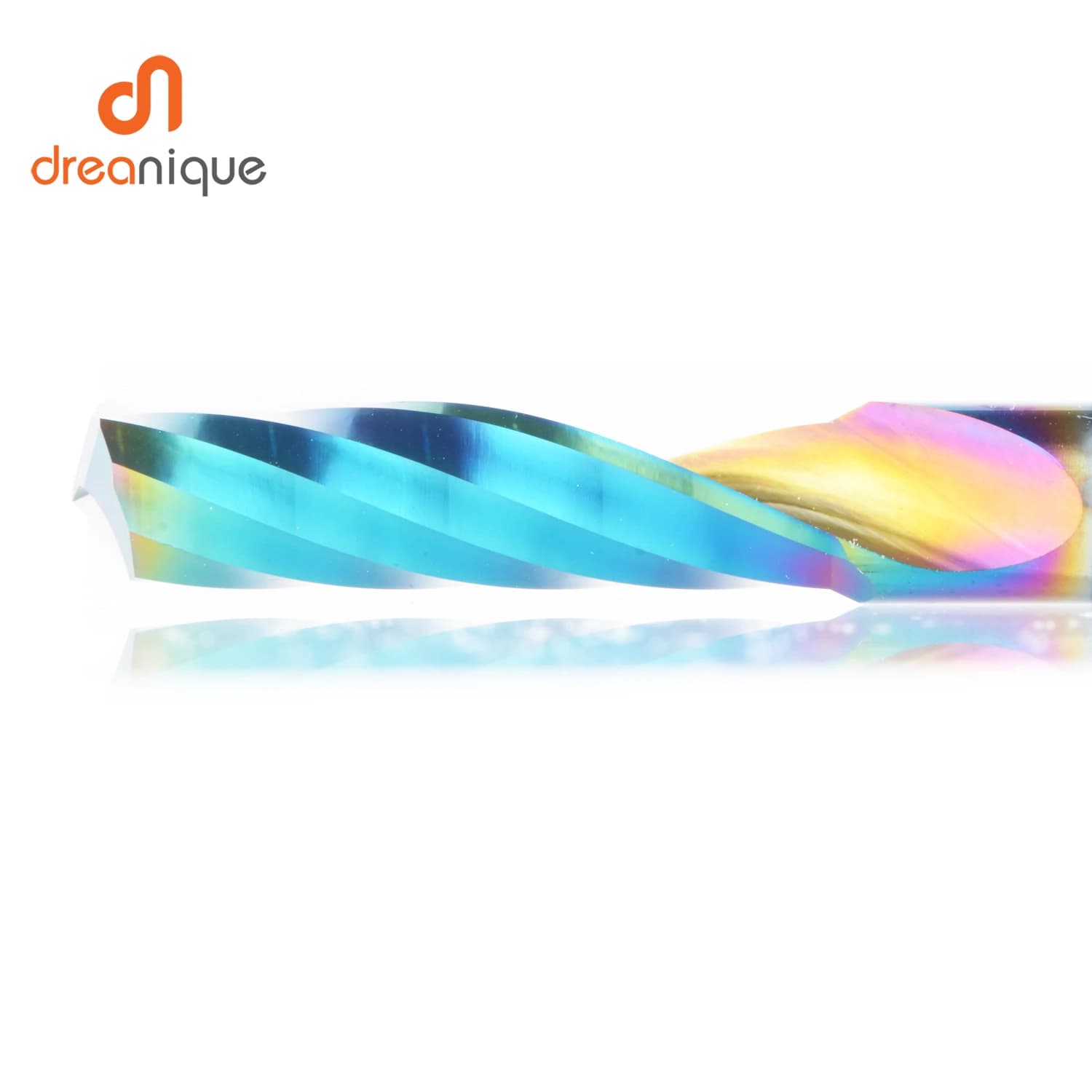

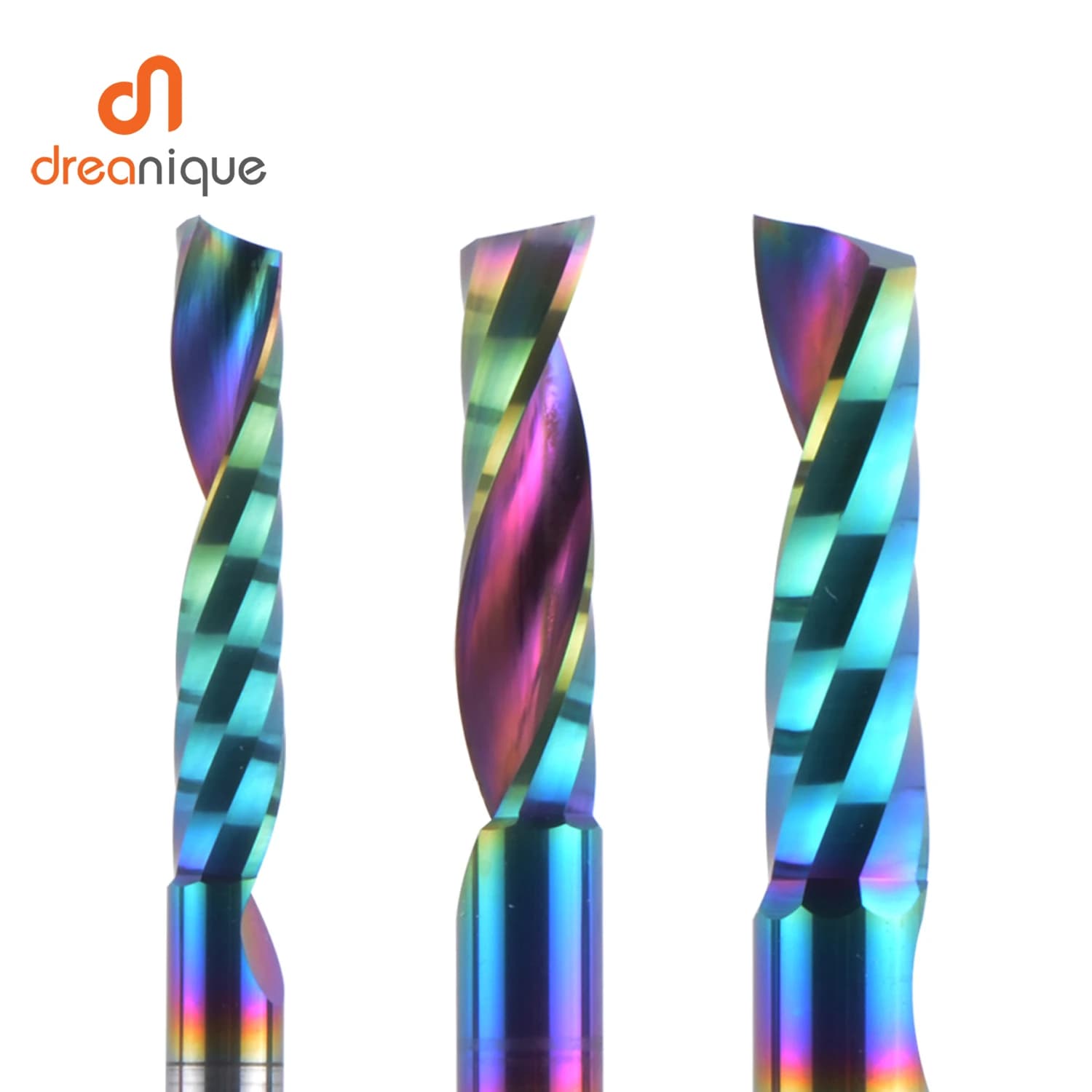

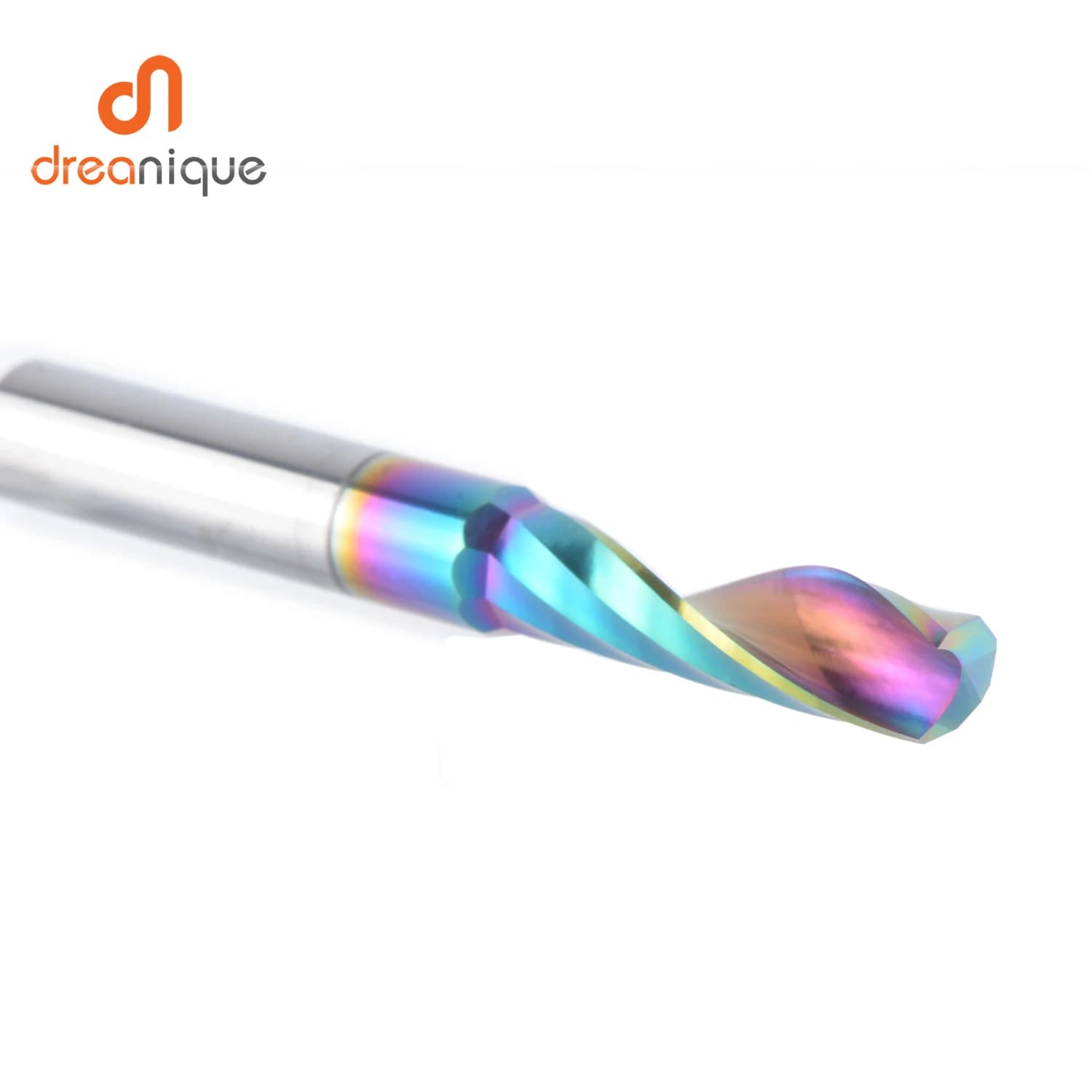

Achieve exceptional finishes in non-ferrous materials with this single flute carbide spiral end mill. Featuring a premium DLC coating, it is specifically designed to minimize heat buildup and chip welding, delivering clean, precise cuts in aluminum, wood, and acrylics with remarkable efficiency. Features and Benefits - Single-flute, high helix design - Maximizes chip clearance to prevent clogging and ensures cooler cutting in soft, gummy materials. - Diamond-Like Carbon (DLC) coating - Dramatically reduces friction and adhesion, extending tool life and improving surface finish. - Available in precise diameters (3.175mm to 6mm) - Provides versatility for detailed engraving, pocketing, and contouring tasks. - Solid micro-grain carbide construction - Delivers the necessary toughness and sharpness for high-speed machining operations. Applications - High-speed machining and finishing of aluminum components. - Intricate engraving and detailed woodworking projects. - Precise cutting and milling of acrylics and composite plastics.

Material: Carbide. Suitable Materials: Aluminum, Wood, Acrylic, Plastics. Coating: DLC (Diamond-Like Carbon). Cutting Length: 22mm. Diameter Options: 3.175mm, 4mm, 5mm, 6mm. Flute Count: 1. Helix Angle: 30°. Overall Length: 75mm. Product Type: Single Flute End Mill. Shank Diameter: 6mm. Cutting Diameter Options: 3.175 mm, 4 mm, 5 mm, 6 mm. Flute Length: Approx. 6-12 mm. Overall Length: Approx. 38-50 mm. Shank Diameter: 3.175 mm, 4 mm, 5 mm, 6 mm (typically matching cutting diameter). Material: Solid Carbide. Suitable Materials: Aluminum, Wood, Acrylic, Plastics, Non-Ferrous Metals. Chip Evacuation: Excellent due to single flute design. Coating: DLC (Diamond-Like Carbon). Cutting Direction: Right-hand cut, right-hand helix. Helix Angle: 30-40 degrees. Max RPM (Recommended): 20,000-30,000 RPM. Number of Flutes: 1. Primary Application: Engraving, detail work, slotting. Product Type: Single Flute Spiral End Mill. Tool Geometry: Spiral flute, sharp cutting edge. Q: What are the specifications for the AAAAA Single Flute Carbide Spiral End Mill? A: This single-flute end mill is available in diameters of 3.175mm (1/8"), 4mm, 5mm, and 6mm. It features a carbide spiral design with a DLC (Diamond-Like Carbon) coating, optimized for high-speed machining of non-ferrous materials.. Q: How does the quality of the DLC coating benefit this milling cutter? A: The DLC coating provides an extremely hard, low-friction surface that enhances tool life and heat resistance. This makes it excellent for engraving and milling soft materials like aluminum, wood, and acrylics at high speeds with reduced chip welding.. Q: Is this cutter compatible with aluminum and acrylic machining? A: Yes, the single-flute design and sharp cutting geometry are specifically engineered for optimal performance on aluminum, acrylic, wood, and other non-ferrous materials. It helps prevent clogging and ensures clean cuts in soft materials.. Q: What warranty coverage is available for this engraving tool? A: Warranty terms depend on the seller. Review the product documentation or listing details for specific warranty information regarding material or workmanship defects.. Q: Is this a good value tool for woodworking and acrylic engraving? A: For its specialized single-flute design and DLC coating tailored for soft materials, it offers excellent value to users who require clean, fast cuts in aluminum, wood, and plastics without the need for multi-purpose tooling..
