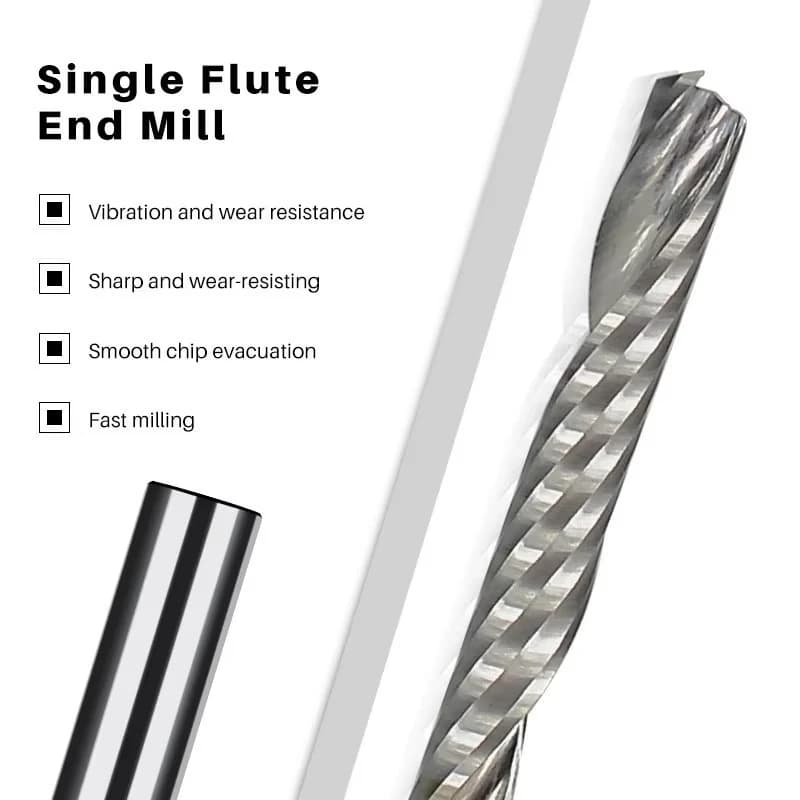

This single-flute spiral CNC router bit is designed for superior woodworking and composite material machining. The tungsten carbide construction and single-flute geometry provide aggressive material removal, clean cuts, and reduced chip load, making it ideal for high-speed CNC routing. Features and Benefits
- Single-flute spiral design - Allows for higher feed rates and efficient chip evacuation, preventing burning and clogging in soft materials.
- Premium tungsten carbide tip - Maintains a sharp cutting edge far longer than high-speed steel, ensuring consistent cut quality over time.

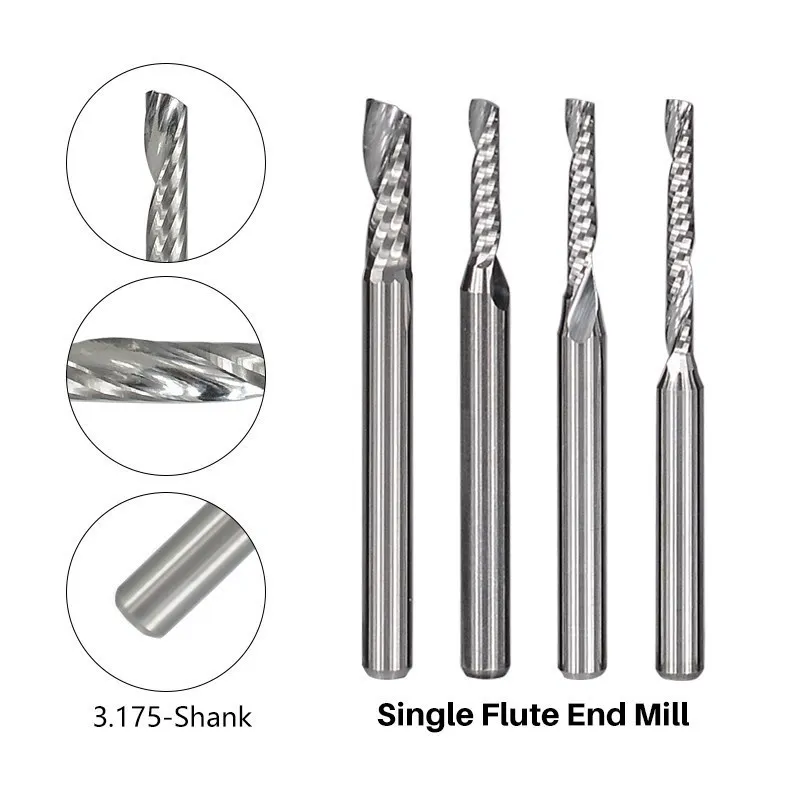

- Multiple shank size options (3.175mm to 8mm) - Offers compatibility with a wide range of CNC routers and collet chucks for versatile workshop use.
- Up-cut spiral geometry - Pulls chips upward and away from the cut, resulting in a cleaner top surface finish on the workpiece. Applications
- High-speed profiling and cutting of plywood, MDF, and solid wood.
- Precise pocketing and detailed inlay work in cabinetry and sign making.
- Machining acrylics, plastics, and non-ferrous composites with a clean edge.

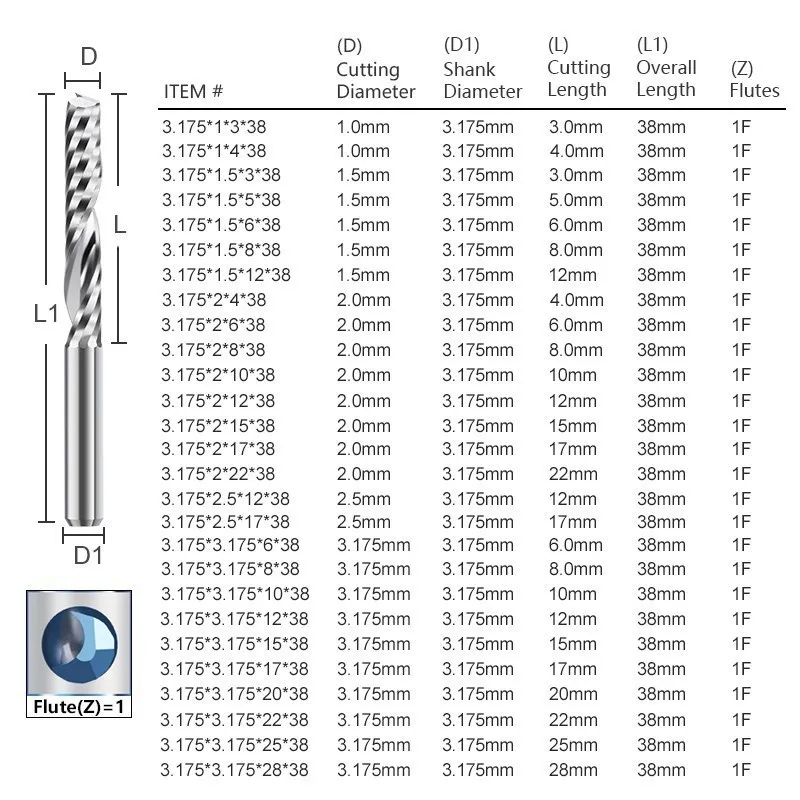

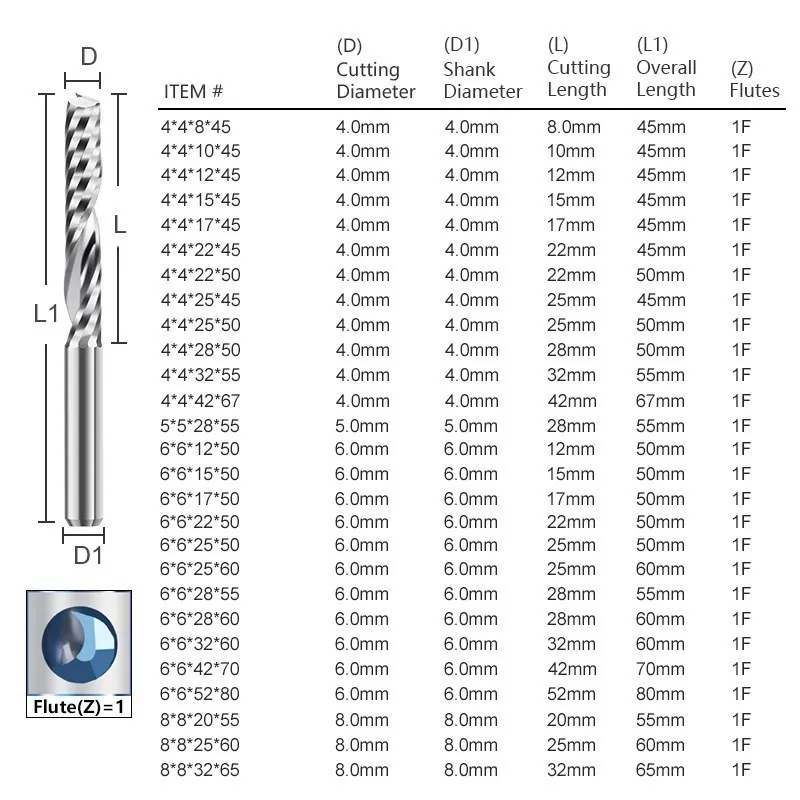

Material: Tungsten Carbide. Certifications: None specified. Application: Wood, CNC routing. Coating: AlTiN (Aluminum Titanium Nitride). Cutting Diameter: Matches shank diam. Cutting Direction: Spiral. Flute Count: 1. High-Concern Chemicals: None. Product Type: Single Flute Spiral End Mill. Shank Diameter: 3.175mm, 4mm, 5mm, 6mm, 8mm. Cutting Diameter: Not specified in title (typically matches or is slightly less than shank). Flute Length: Not specified (typical: 12mm to 50mm). Overall Length: Not specified (typical: 38mm to 75mm). Shank Diameter Options: 3.175mm (1/8"), 4mm, 5mm, 6mm, 8mm. Application Material: Wood, Plastics, Composite Boards. Material: Tungsten Carbide. Chip Load Recommendation: Not specified (varies by wood type and diameter). Coating: AlTiN (Aluminum Titanium Nitride). Coating Properties: High hardness, heat resistance (~800°C), reduced friction. Cutting Edge Geometry: Spiral (Up-cut or Down-cut). Flute Count: 1. Helix Angle: Not specified (typical for wood: 15° to 30°). Maximum RPM: Not specified (typically up to 24,000 RPM or higher). Primary Use: CNC Routing, Engraving, Grooving, Profiling. Product Type: Single Flute Spiral Router Bit / End Mill. Q: What are the available specifications for this single flute router bit? A: This single flute milling cutter is available with shank diameters of 3.175mm (1/8"), 4mm, 5mm, 6mm, and 8mm. It features a spiral design and is made from tungsten carbide, specifically engineered for woodworking applications on CNC routers.. Q: How does the single flute design affect cutting quality in wood? A: The single flute design provides larger chip clearance, which helps prevent clogging and burning when routing softer materials like wood, plastics, or composites. This results in cleaner cuts and reduced heat buildup during operation.. Q: Will this CNC router bit fit my standard router collets? A: Compatibility depends on your router's collet sizes. The bit is offered in multiple standard shank diameters (3.175mm to 8mm). You must select the size that matches your router's collet or use a suitable reducer/adapter if available.. Q: Is there a warranty on these spiral CNC router bits? A: Warranty policies vary by seller. You should review the specific terms in the product description or contact customer service. Warranties generally cover defects in materials and workmanship for a specified period.. Q: Is this a good value bit for hobbyist or professional woodworking? A: Yes, the tungsten carbide construction offers superior sharpness and lifespan compared to high-speed steel bits. The range of shank sizes and efficient single-flute design make it a versatile and durable value option for various woodworking tasks..
