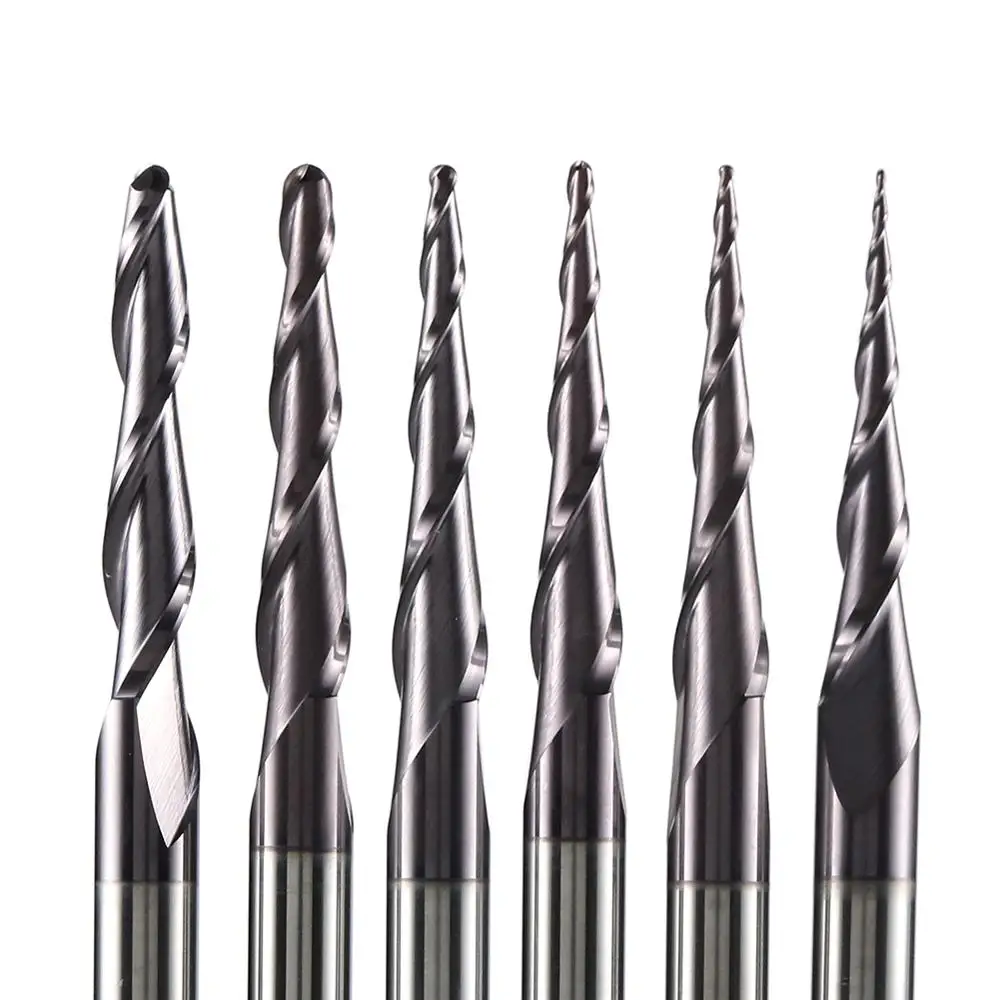

This solid carbide taper ball nose end mill is a premium cutting tool designed for high-performance milling in both wood and metal. The coated solid carbide body and tapered ball nose design provide superior strength, fine detail carving, and excellent finish quality on contoured surfaces. Features and Benefits
- Solid Carbide Body with Coating - Maximizes tool rigidity, wear resistance, and thermal stability for extended tool life in demanding materials.
- Tapered Ball Nose Design - Allows for intricate 3D contouring, deep cavity milling, and smooth radius generation with reduced tool deflection.
- CNC-Optimized Geometry - Engineered for high-speed machining, efficient chip evacuation, and reduced vibration during operation.
- Multi-Material Capability - Effectively machines wood, plastics, aluminum, and other non-ferrous metals, offering workshop versatility. Applications
- 3D carving and sculpting of decorative elements in woodworking.
- Machining molds, dies, and complex prototypes in engineering workshops.
- Creating smooth, finished pockets and contours in sign-making and engraving.
Material: Solid Carbide. Coating: Coated. Shank Diameter: 3.175 mm, 4 mm, 6 mm, 8 mm. Tip Shape: Taper Ball Nose. Overall Length: 50, 75, 100 mm. Workpiece: Hard wood, hard alloy, steel, stainless steel, cast iron, Cu, Al. Suitable Working Hardness: 0–55 HRC. Radius: R0.25–R2.0 mm. Flute Count: 2. Cutting Flute Length: 20, 30.5, 47 mm. Cutting Length: 12-38mm depending on diameter. Diameter Options: 3.175mm, 4mm, 6mm, 8mm. Overall Length: 38-75mm depending on diameter. Shank Diameter: 3.175mm (1/8 inch) or matching cutting diameter. Material: Solid carbide. Suitable Materials: Wood, aluminum, non-ferrous metals, plastics. Application: CNC milling for wood and metal. Coating: Coated (specific coating not specified). Cutting Edge Geometry: Ball nose end for 3D contouring. Cutting Type: Taper ball nose. Flute Count: Typically 2-4 flutes. Helix Angle: 30-45°. Maximum RPM: 18,000-30,000 RPM depending on diameter. Taper Angle: 1-5°. Q: What are the specifications of this CNC milling cutter? A: This is a solid carbide taper ball nose end mill with a coating for enhanced performance. It's designed for milling operations on both wood and metal materials in CNC applications.. Q: How does the coating affect the bit's quality and performance? A: The specialized coating reduces friction and heat buildup during cutting operations. This extends tool life, improves surface finish, and allows for higher cutting speeds compared to uncoated carbide tools.. Q: What machines and materials is this cutter compatible with? A: This end mill is compatible with CNC routers and milling machines. It's designed to cut both wood and various metals, making it versatile for mixed-material workshops and manufacturing applications.. Q: What warranty coverage is offered for this milling cutter? A: The manufacturer provides a warranty covering manufacturing defects. Users should retain proof of purchase and contact the seller for specific warranty claims and duration details.. Q: Why is this cutter considered good value for its price? A: As a solid carbide tool with specialized coating, it offers superior durability and performance compared to standard end mills. Its ability to handle both wood and metal eliminates the need for separate tools for different materials..
