Air Compressor Automatic Drain Valve G1/2 | 230VAC Solenoid | Timer Controller

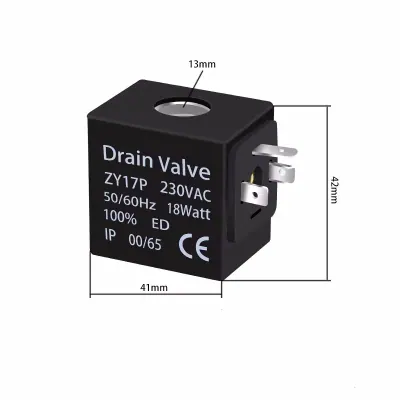

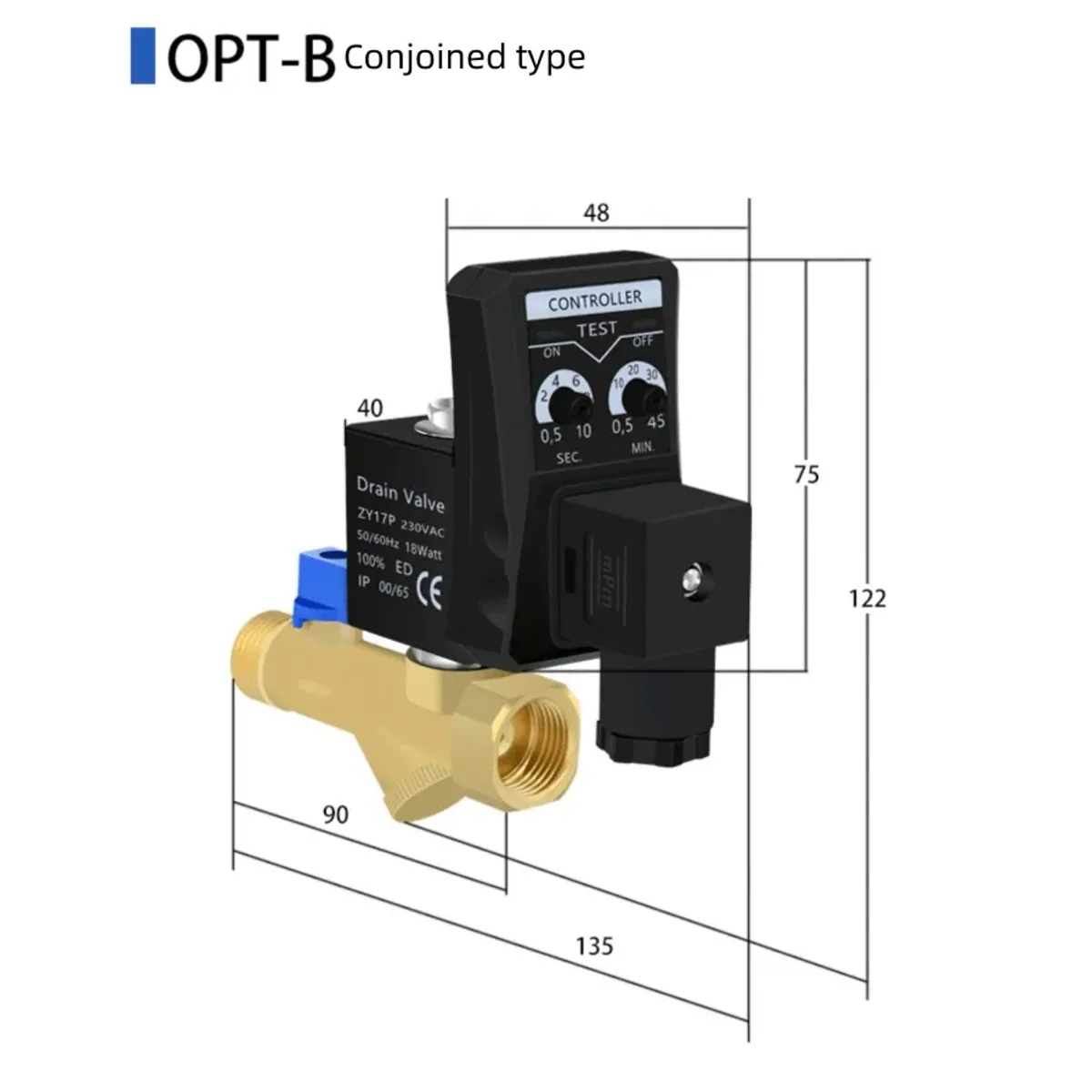

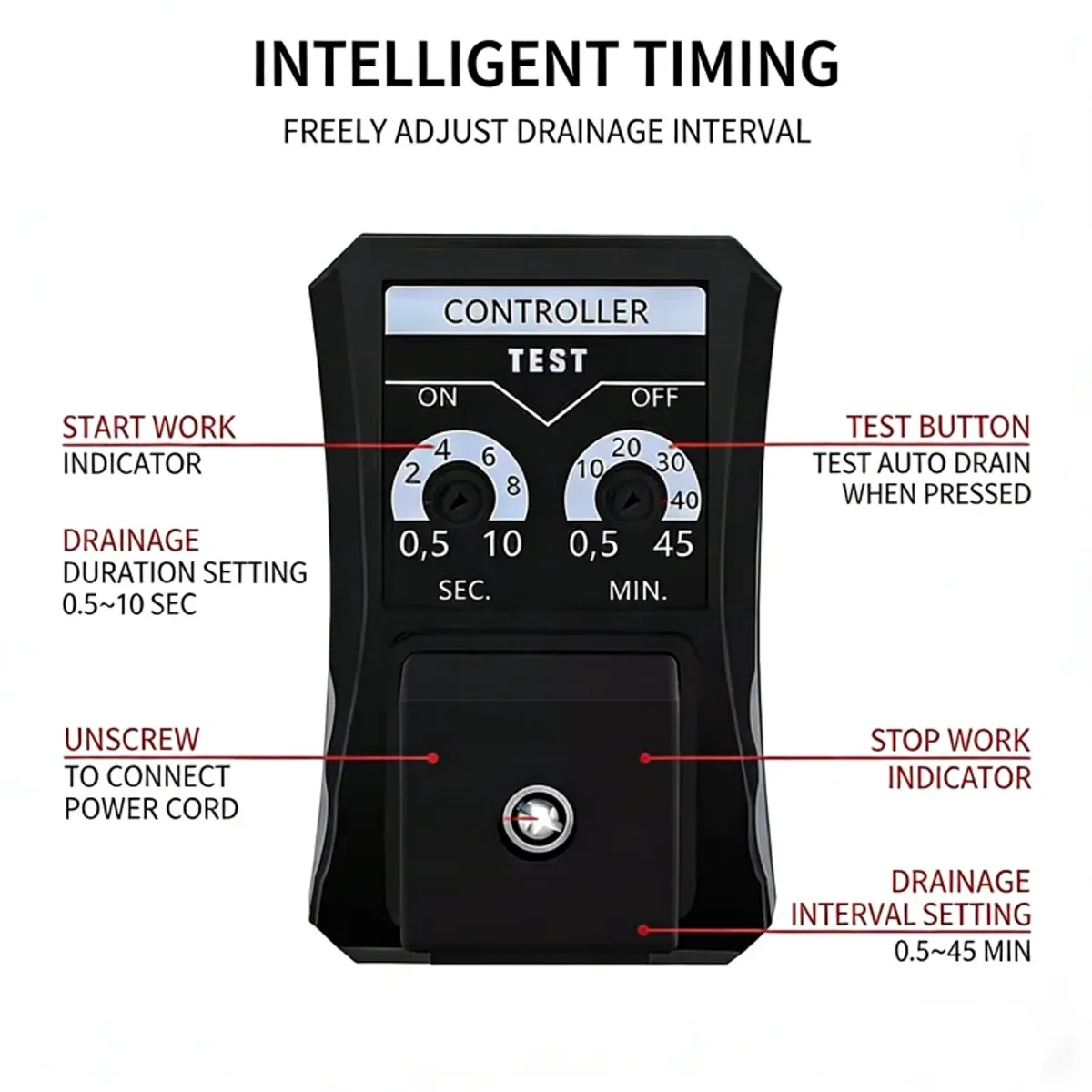

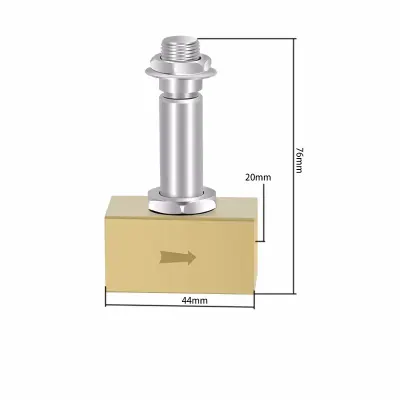

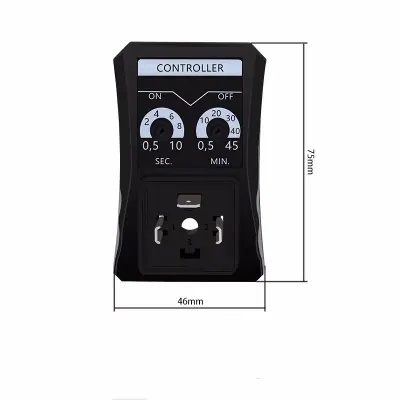

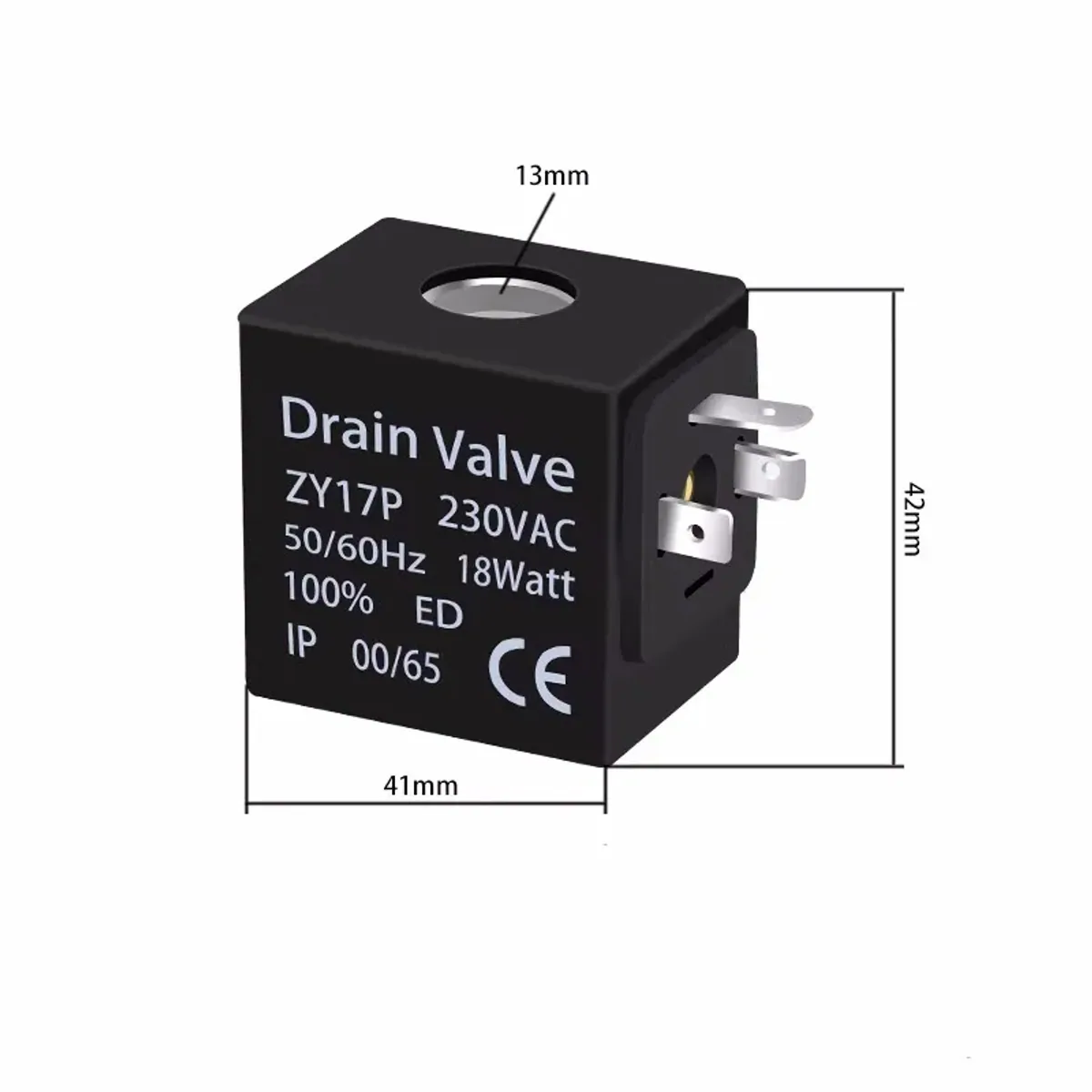

This electronic automatic drain valve for air compressors pairs a G1/2 solenoid valve with a timer controller, so condensate is let out of the air tank at set intervals without anyone opening a drain cock by hand. The coil is rated 230VAC, 50/60Hz, 18W, and the controller sets the drain duration from 0.5 to 10 seconds and the interval from 0.5 to 45 minutes. Features and benefits: - Timed draining: the controller dials in a drain duration of 0.5 to 10 SEC and an interval of 0.5 to 45 MIN, so the schedule can be matched to how hard the compressor works. - TEST button: press it to check the drain opens, with START WORK (ON) and STOP WORK (OFF) indicators on the controller. - 18W coil at 230VAC, 50/60Hz, rated 100% ED, with a 13mm coil opening and a 41mm wide, 42mm high body. - Two body styles: a separate type, where the controller and valve are fitted apart, and a conjoined type with the controller built onto the valve. - Blue ball-type manual valve handle, plus a drain knob and a flow direction arrow on the body, for manual draining and correct fitting. - Replacement parts are listed too: the timing controller alone, or the solenoid coil alone, for rebuilding an existing drain valve. Applications: - Automatic condensate draining on workshop air compressor tanks - Drain points on air receivers and storage tanks - Replacing a manual drain cock with a timed drain - Spares for an existing electronic drain valve (coil or controller) Note: The coil runs on 230VAC mains. Isolate the supply and drain the system pressure before fitting, and unscrew the controller to connect the power cord to its three-pin connector. Check which option you need before ordering, as the separate type, conjoined type, controller only and coil only listings differ.
