Air Compressor Automatic Drain Valve | 1/2" DN15 Brass | Timer Solenoid

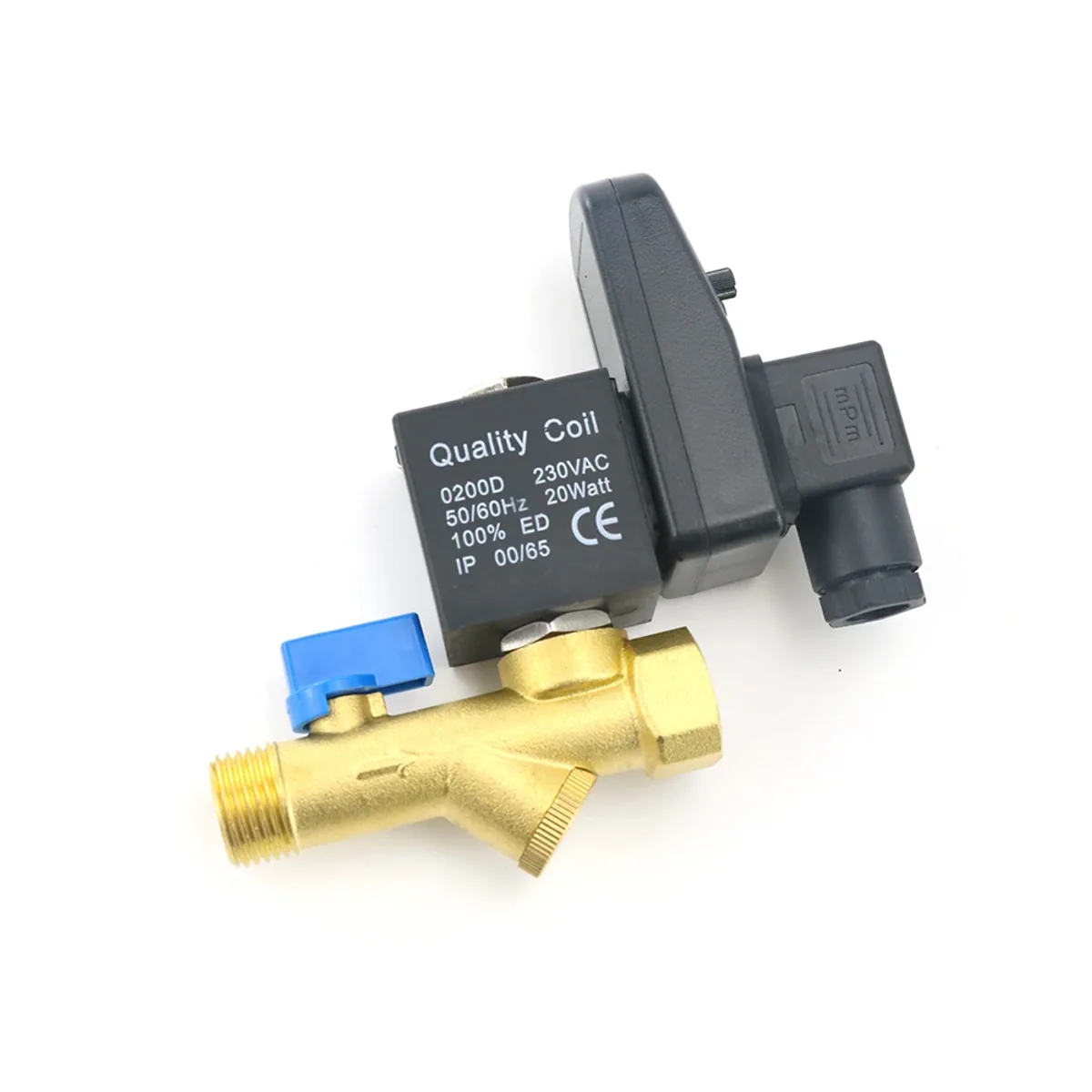

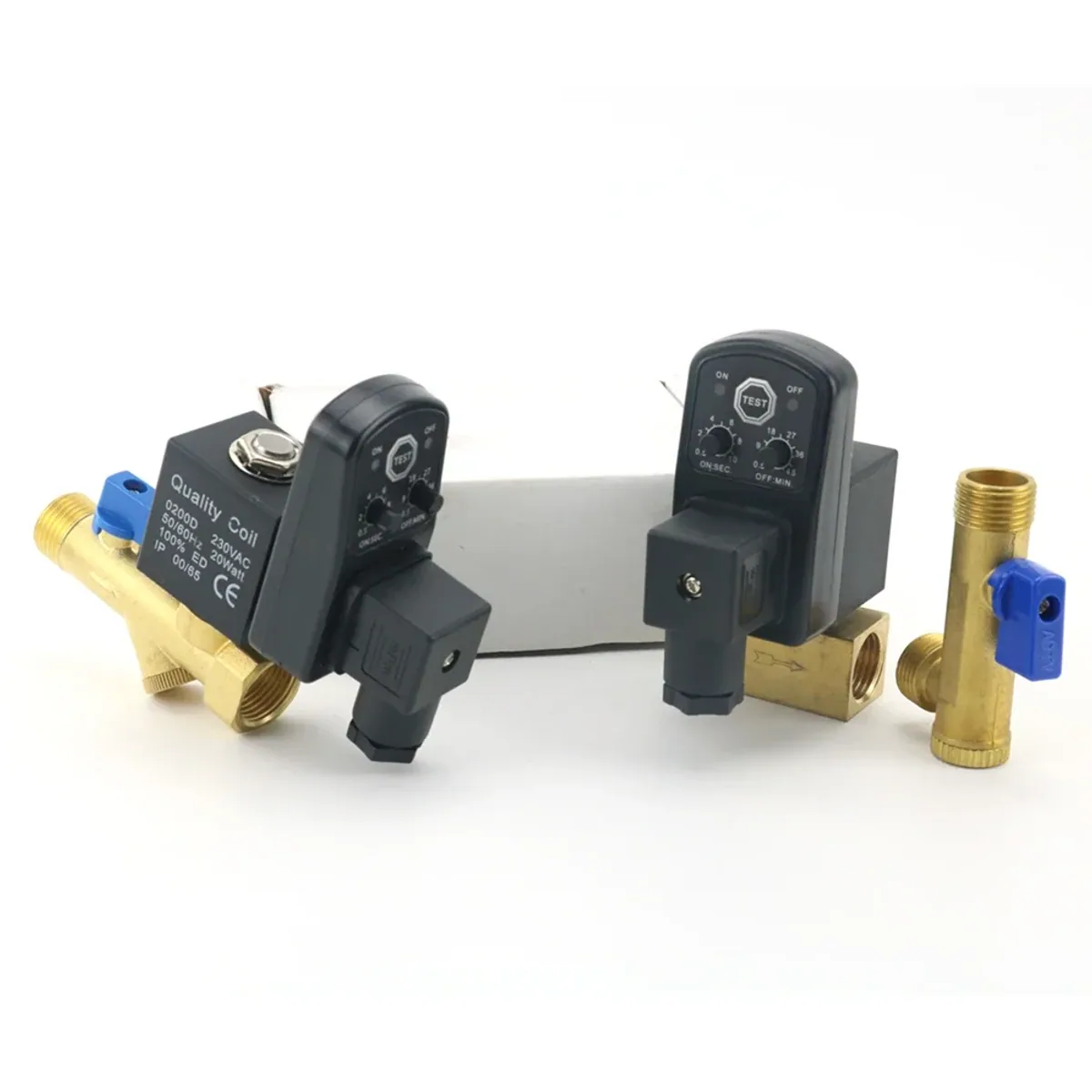

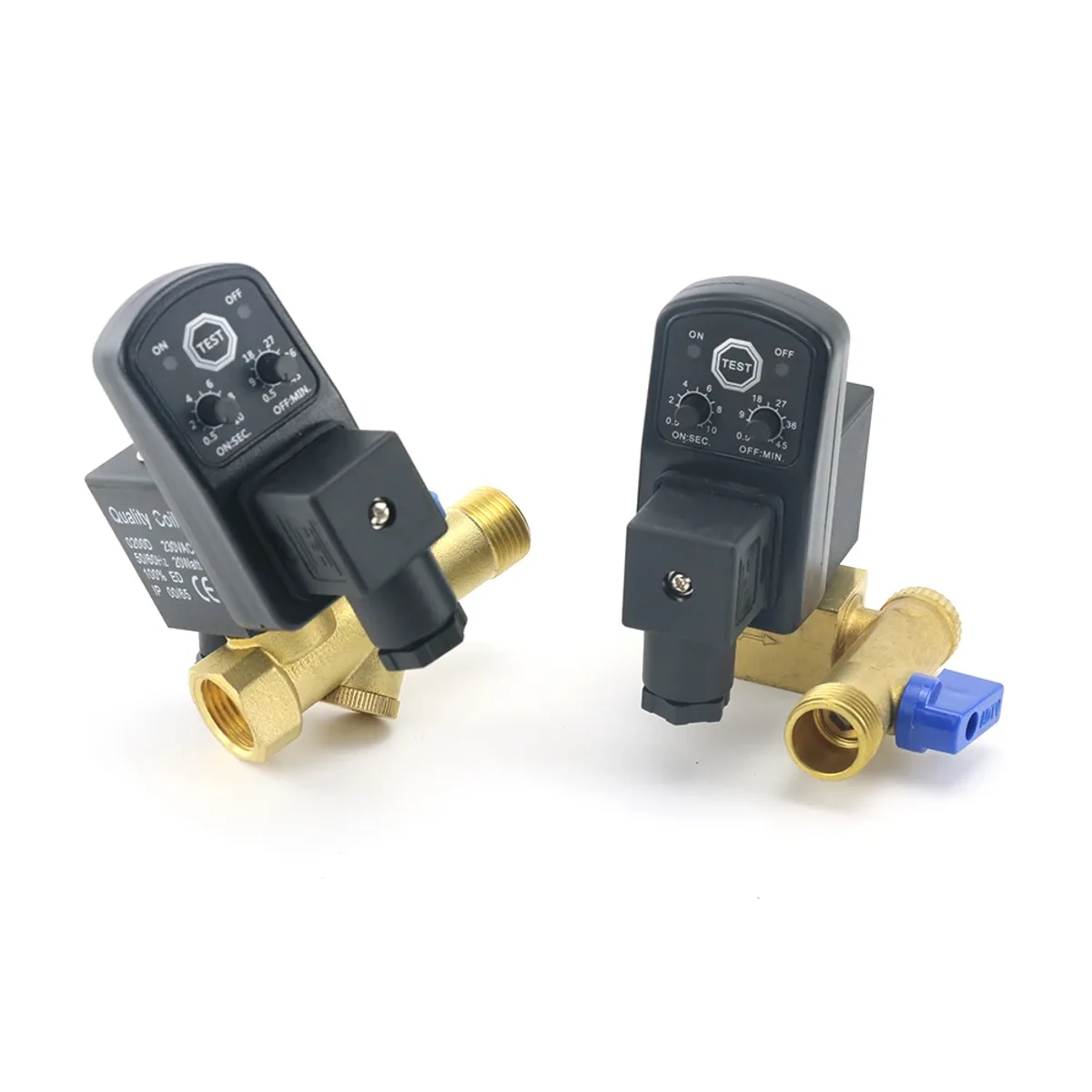

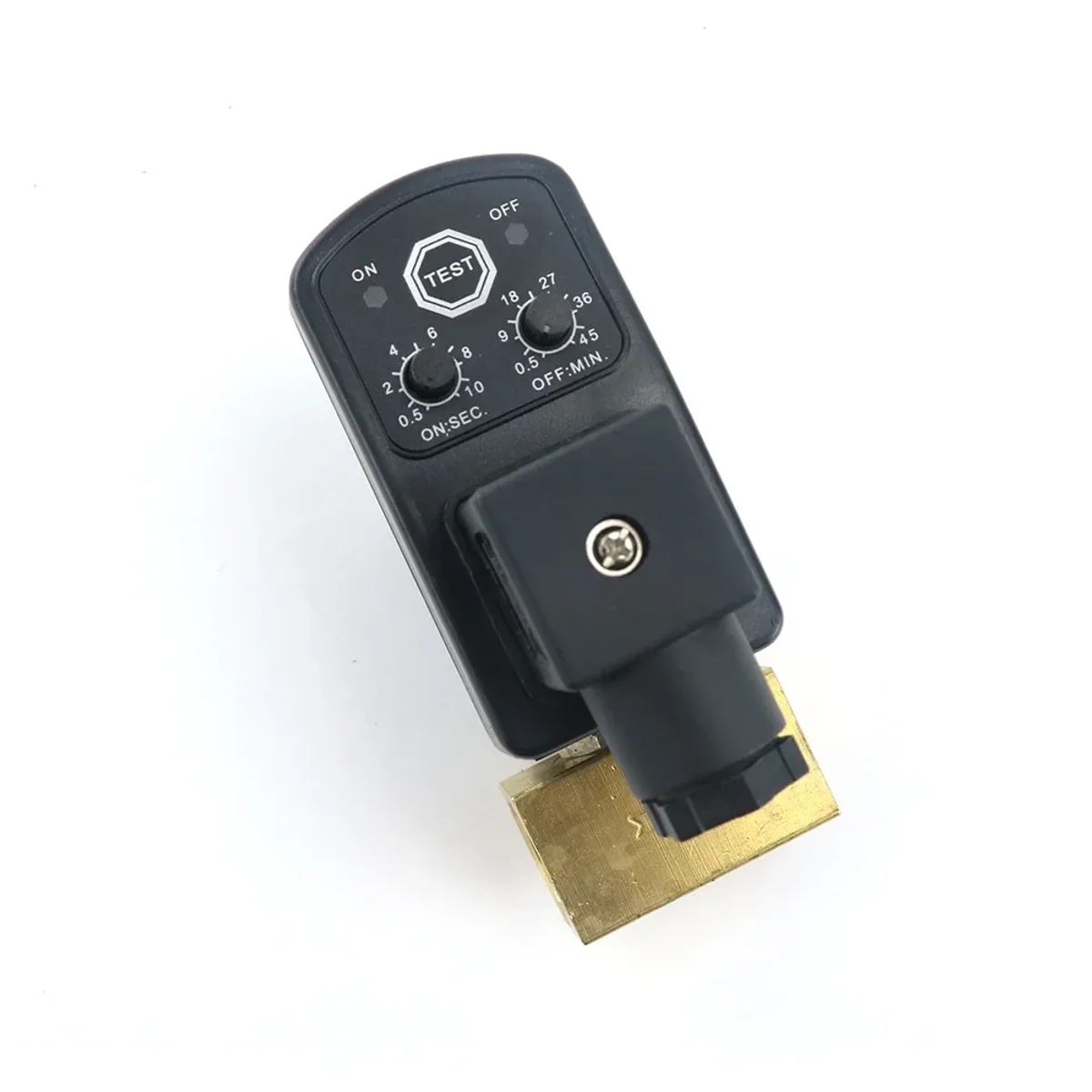

This electronic drain valve pairs a brass two-way solenoid valve with a solid-state timer, so condensate is dumped from a compressed air system automatically instead of by hand. It has 1/2 inch (DN15) connections, a normally closed body, a maximum working pressure of 1.6Mpa, and discharge and interval times you set yourself: ON for 0.5 to 10 seconds, OFF for 0.5 to 45 minutes. Features and benefits: - Adjustable timer: ON time 0.5 to 10 seconds and OFF time 0.5 to 45 minutes, set on the dials to suit how much condensate your system makes - TEST button plus ON and OFF indicator lamps: check the valve opens and see the timer state without guessing - Brass valve body with a filter screen inside: the screen can be cleaned regularly to extend service life - Manual blue ball valve fitted outside the body: a second shut-off that can stop water or air leaking if the solenoid needs servicing - IP65 protection and insulation class H: suited to damp compressor rooms and warm running - 1/2 inch (DN15) inlet and drain connections: standard universal pipe size, direct acting two-position two-way design - Choose 12V, 24V, 110V or 220V, and split-body or one-body layout: match the supply you already have and the space around the tank Applications: - Air receiver and compressor tank condensate draining - Compressed air filters and oil-water separators - Refrigerated and cold dryers - Air cylinders and drip legs in compressed air lines In the box: Valve body, solenoid coil, timer, plug connector and manual ball valve. Note: Connect the coil only to the voltage you selected (voltage tolerance is ±10%) and isolate the supply before wiring or fitting. Maximum working pressure is 1.6Mpa and ambient range is -40°C to 60°C. Fit it to a drain point that is safe for the discharge to run to.
