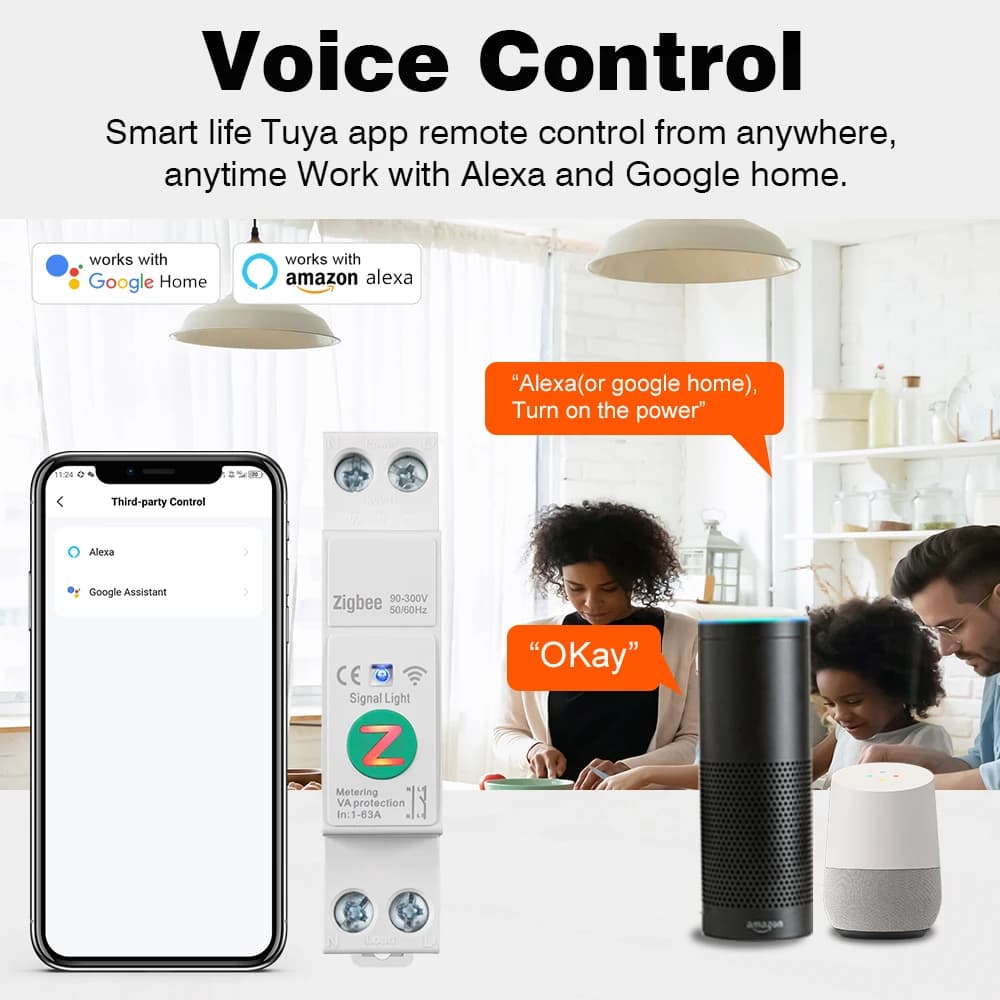

Take control of your electrical panel with the Tuya WiFi/Zigbee Smart Din Rail Circuit Breaker. This 1A-63A adjustable smart breaker provides remote power control and real-time energy metering via the Tuya app, integrating seamlessly with Alexa and Google Home for complete voice and automation control. Features and Benefits
- Dual WiFi/Zigbee Connectivity - Offers flexible integration with your existing smart home ecosystem, ensuring reliable communication without being locked into a single protocol.
- 1A to 63A Adjustable Current Rating - Provides precise protection for various circuits, from lighting to heavy appliances, by setting the exact trip threshold needed.

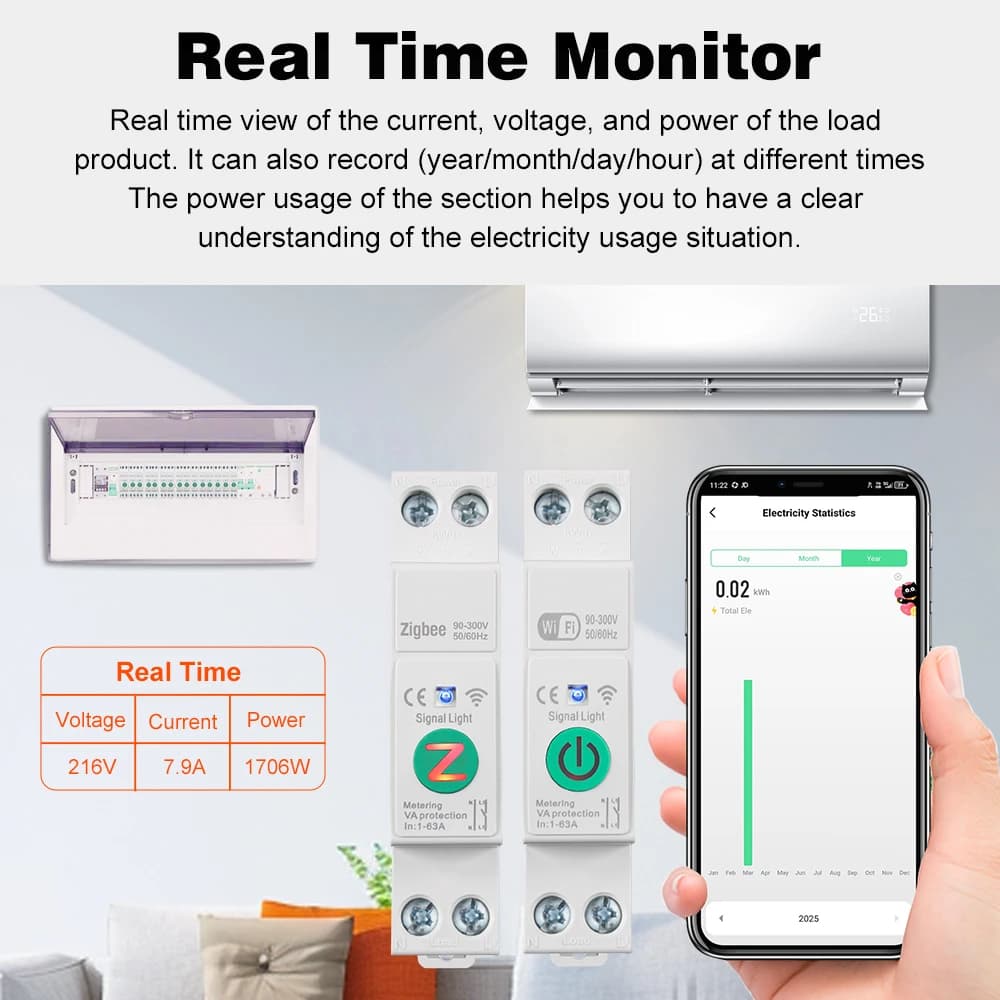

- Real-Time Energy Monitoring - Tracks voltage, current, power, and energy consumption directly in the app, enabling data-driven decisions to reduce electricity costs.

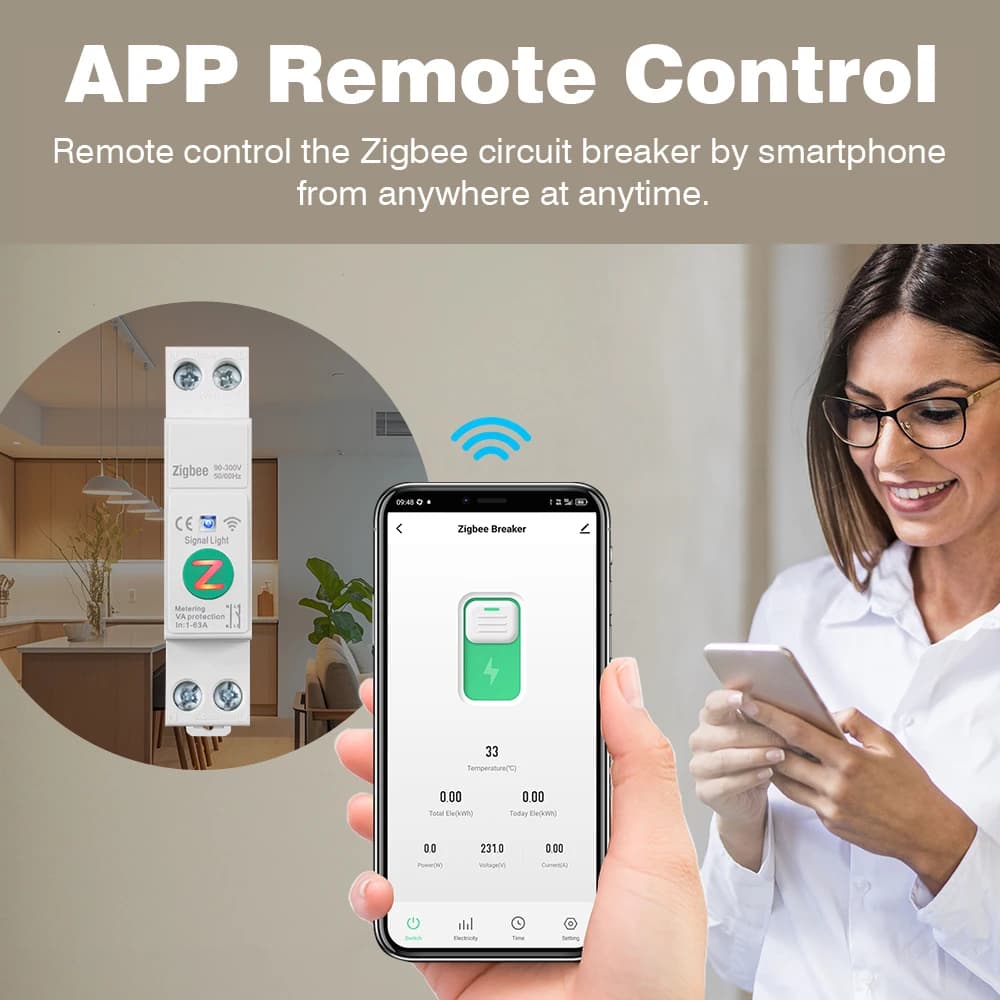

- Remote On/Off & Scheduling - Control any connected circuit from anywhere, and create automated schedules for lighting, HVAC, or equipment to enhance convenience and efficiency.
- DIN Rail Mounting & Standard Form Factor - Installs directly into any modern electrical panel or distribution board for a clean, professional integration. Applications
- Home Energy Management - Monitor and control high-consumption circuits like HVAC, water heaters, or pool pumps to identify waste and optimize usage.
- Smart Workshop or Garage - Remotely power down all tools and equipment with a single command, adding a layer of safety and convenience.
- Rental Property & Vacation Home Management - Enable or disable power for specific units or appliances remotely, providing control and security for property managers.
- DIY Smart Panel Upgrades - An excellent choice for enthusiasts and professionals seeking to add reliable, app-controlled circuit protection and metering without premium pricing. Note: Installation should be performed by a qualified electrician in accordance with all local electrical codes and regulations.
Voltage Rating: 230V AC, 50/60Hz. Communication Protocol: WiFi, Zigbee. Control Method: Remote via App, Manual On/Off Switch. Energy Monitoring: Yes (Voltage, Current, Power, Energy Consumption). Mounting Type: DIN Rail (EN 60715). Number of Poles: 1P. Rated Current: 1A to 63A (Adjustable). Smart Home Integration: Amazon Alexa, Google Home. Wire Connection: Screw Terminal. Certification: CE,RoHS. Width (Modules): 1 Module (18mm). Housing Material: Flame-Retardant Polycarbonate (Inferred). Energy Metering Function: Yes (Voltage, Current, Power, Energy Consumption). Rated Operational Voltage: 230V AC, 50/60Hz. Breaking Capacity: 6 kA (Inferred industry standard for residential). Operating Temperature Range: -25°C to +55°C (Inferred for electrical enclosures). Rated Current Range: 1 Ampere to 63 Amperes (Adjustable). Ingress Protection Rating: IP20 (Inferred for DIN rail devices). Mounting Standard: DIN Rail EN 60715 (35mm). Communication Protocols: IEEE 802.11 b/g/n (WiFi), Zigbee 3.0. Configuration Method: Smartphone Application. Electrical Connection: Screw Terminal. Electrical Endurance: ≥4,000 operations at rated current. Mechanical Endurance: ≥10,000 operations. Over-Current Protection: Yes (Magnetic & Thermal trip, adjustable). Pole Configuration: 1-Pole (1P). Product Type: DIN Rail Mountable Smart Circuit Breaker. Remote Control: Yes (via smartphone app). Scheduling Function: Yes (inferred from smart capabilities). Smart Home Integration: Amazon Alexa, Google Home (via Tuya/Smart Life ecosystem). Status Indication: LED indicator (inferred). Trip Curve Characteristic: Type C (Inferred for general residential use). Q: What are the specifications and dimensions of this Tuya smart circuit breaker? A: This smart din rail switch is a circuit breaker with an adjustable current rating from 1A to 63A. It is designed for standard din rail mounting, but specific physical dimensions are not provided in the available product information.. Q: How durable and reliable is this manhot smart breaker for regular use? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use.. Q: Can this Tuya Zigbee/WiFi smart breaker be used for home energy monitoring with Alexa? A: Yes, this smart breaker with metering is designed for integration with Alexa and Google Home via the Tuya or Smart Life app. It allows you to monitor energy consumption and control the circuit remotely through voice commands or your smartphone.. Q: What is the warranty or guarantee for this adjustable circuit breaker? A: The product listing does not specify a warranty period. For detailed information regarding warranty coverage, we recommend contacting the seller directly before purchase.. Q: Is this smart din rail switch a good value compared to traditional breakers? A: Yes, it provides significant added value by combining a standard circuit breaker's protection with smart metering and remote control capabilities. For the price, it is a cost-effective way to upgrade an electrical panel with smart home functionality..
