What does a cleaning bottom bit actually do?

It flattens and smooths the bottom of machined pockets, grooves, and dados. The flat-bottom, up-cut spiral design clears chips upward for a clean, level surface. Woodworkers use it for finishing inlays, mortises, and CNC pockets in cabinetry or signs.

Will this fit my router or CNC collet?

The bit has a 6mm shank, so you'll need a 6mm collet or a matching reducer. The cutting diameter is 8mm. Check your spindle's collet size before ordering so it seats properly.

What materials can it cut and how is it built?

It works on wood, MDF, and plastics. The carbide construction holds a sharp edge and resists wear through repeated cleaning passes. The solid shank stays rigid to limit deflection during heavier surfacing work.

Cleaning Bottom Router Bit Set | 6mm & 8mm Shank | Woodworking Milling Cutters

Name: Cleaning Bottom Router Bit Set | 6mm & 8mm Shank | Woodworking Milling Cutters
Brand: Compel
SKU: MANU-00213
Price: 24.99 USD
Availability: InStock

Stock #:TBS-05562

SKU:MANU-00213

Cleaning Bottom Router Bit Set | 6mm & 8mm Shank | Woodworking Milling Cutters - Image 1

1 / 5

$24.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Quantity

Cleaning Bottom Router Bit Set | 6mm & 8mm Shank | Woodworking Milling Cutters

$24.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What does a cleaning bottom bit actually do?: It flattens and smooths the bottom of machined pockets, grooves, and dados. The flat-bottom, up-cut spiral design clears chips upward for a clean, level surface. Woodworkers use it for finishing inlays, mortises, and CNC pockets in cabinetry or signs.
Will this fit my router or CNC collet?: The bit has a 6mm shank, so you'll need a 6mm collet or a matching reducer. The cutting diameter is 8mm. Check your spindle's collet size before ordering so it seats properly.
What materials can it cut and how is it built?: It works on wood, MDF, and plastics. The carbide construction holds a sharp edge and resists wear through repeated cleaning passes. The solid shank stays rigid to limit deflection during heavier surfacing work.

Manufacturing & CNC spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare manufacturing & cnc

This product

Router bit set with 6mm shanks designed for CNC cleaning and bottom milling, includes 8mm diameter bits for woodworking applications.

Cleaning Bottom Router Bit Set | 6mm & 8mm Shank | Woodworking Milling Cutters

Price$24.99

Rating4.9

Sold224+

Stock In stock

You're viewing this

Alternative

Lengthened cleaning bottom router bit with 12mm shank and 16-18mm spiral diameter for deep engraving and woodworking milling operations.

Cleaning Bottom Router Bit | 12mm Shank 16-18mm Spiral | Wood Milling Cutter

Price$27.95

Rating4.8

Sold35+

Stock In stock

View

Alternative

Solid carbide 12mm shank long cleaning bottom engraving bit for CNC woodworking, ideal for deep grooves and finishing.

Bottom Cleaning Router Bit | 12mm (1/2) Solid Carbide Shank | CNC Engraving Endmill

Price$42.95

Rating4.8

Sold60+

Stock In stock

View

Compare options

More Manufacturing & CNC

All Manufacturing & CNC

Thread Milling Cutter | Solid Carbide Single Tooth | M1-M14 CNC Machine Tool

5.0

$19.99

Carbide Taper Ball Nose Bit | Coated End Mill | CNC Milling Cutter for Wood & Metal

5.0

$19.99

Coating Carbide Router Bit | 2 Flute Spiral End Mill | Down Cut Milling for Wood & MDF

5.0

$24.95

Carbide Inserts | For APMT1135 Blades | DMIX BAP300R EAP300R Milling & Shoulder Cutting

5.0

$17.99

2 Flute Spiral Carbide Milling Cutter | 1/2 Inch Shank | HUHAO High-Performance CNC Router Bit

5.0

$49.99

Flute Spiral End Mill | 4-8mm Carbide CNC Router Bit | 3D Engraving for Woodworking

5.0

$59.99

CNC Touch Probe | 6.0mm Ruby Ceramic Stylus | A-5000-3709/3712 Measuring Needle

5.0

$21.95

Solid Carbide Roughing End Mill | 3-Flute Design for Steel, Aluminum & Hard Materials

5.0

$24.95

Carbide Rotary File | Heavy-Duty Metalworking Burr | CNC Engraving & Polishing Tool

5.0

$35.99

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

608ZZ Skateboard Bearings | Double Metal Shield | 8x22x7mm 10-Pack

4.9

$9.95

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

4.9(496)

$12.99

Solenoid Valve | 12V/24V/220V NC | 1/2 & 3/4 for Water & Air

4.9(1.2K)

$11.99

Hydraulic Valve | 1/2 Float for Tank Water Level Control

4.9(631)

$10.99

Temperature Sensor | 5-Pack DS18B20 Probes | 1M/2M/3M Waterproof

4.9(397)

$8.95

Pneumatic Fitting Push-In Connectors | Air Hose Quick Release | 4-14mm Tube

4.9(393)

$2.49

Flute End Mill | Solid Carbide with DLC Coating | For Aluminum CNC

4.9(214)

$13.99

Hose Fitting | Quick Release Push to Connect | 1/4 NPT Elbow

4.9(58)

$2.49

Empty Spray Bottles 200ml | Fine Mist Atomiser | Hair, Plant & Cleaning

4.9(682)

$14.99

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Fitting | 304 Stainless Steel Compression | 1/2 NPT Union

4.9(49)

$2.49

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

Achieve flawless surface finishing with this specialized CNC cleaning bottom bit set. Designed with a robust 6mm shank and an 8mm cutting diameter, these router bits excel at precise flattening, cleaning, and smoothing of machined pockets in wood, MDF, and plastics, leaving a perfect bottom finish. Features and Benefits - Flat Bottom & Up-Cut Spiral Design - Efficiently clears chips upward for a clean, smooth-bottomed finish in pockets and grooves. - Durable 6mm Solid Carbide Shank - Provides superior rigidity and reduces deflection during high-load cleaning passes. - 8mm Cutting Diameter - Ideal for efficient material removal and surface leveling over a wide area. - Premium Micro-Grain Carbide Tips - Deliver exceptional wear resistance and long-lasting sharpness for consistent results. Applications - Final surfacing and cleaning out of CNC-machined pockets in cabinetry and sign making. - Precise flattening of spoilboards and workpiece leveling after rough machining operations. - Smoothing and finishing the bottom of inlays, dados, and mortises in fine woodworking.

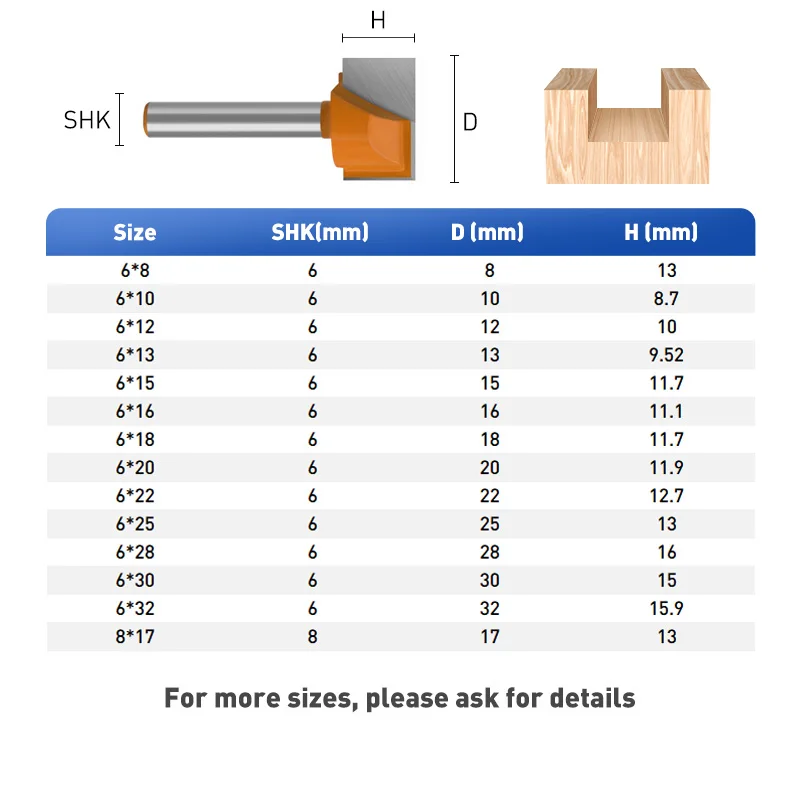

Application: CNC cleaning, wood routing, bottom milling. Bit Diameter: 8mm. Cutting Type: Bottom cleaning. Product Type: Router bit set. Shank Diameter: 6mm. Cutting Diameter: 8mm. Cutting Length: Approx. 20mm to 25mm. Overall Length: Approx. 60mm. Shank Diameter: 6mm. Material: Carbide-tipped or solid carbide. Application: CNC wood routing, surface cleaning. Bit Type: Bottom cleaning bit / flat end mill. Coating: Anti-friction coating (optional). Flute Count: 2 or 3 flutes. Helix Angle: 15° to 30° (for wood). Max Feed Rate: 2,000mm/min to 5,000mm/min (wood). Max RPM: 18,000 to 24,000 RPM. Packaging: Set in storage case. Product Type: Router Bit Set for CNC Cleaning. Tolerance: ±0.05mm. Q: What are the specifications of this router bit set? A: This set features router bits with a 6mm shank diameter, including cleaning bottom bits and milling cutters with 8mm cutting diameters. They are designed specifically for woodworking applications.. Q: How is the quality of these CNC router bits? A: The bits are constructed from durable materials suitable for wood routing, providing clean cuts and good edge retention. They are precision-ground for consistent performance in CNC operations.. Q: What machines are these router bits compatible with? A: These 6mm shank router bits are compatible with CNC machines, wood routers, and trim routers that accept 6mm collets. They work particularly well for detailed woodworking and cleaning passes.. Q: Is there a warranty on this router bit set? A: A standard manufacturer's warranty is typically included, covering defects in materials and craftsmanship. Exact warranty duration and terms may vary by seller.. Q: What makes this router bit set valuable? A: This set provides specialized cleaning bottom bits and milling cutters in one package, offering versatility for finishing and detailing work in wood routing projects. The 6mm shank ensures secure mounting in compatible machines..
