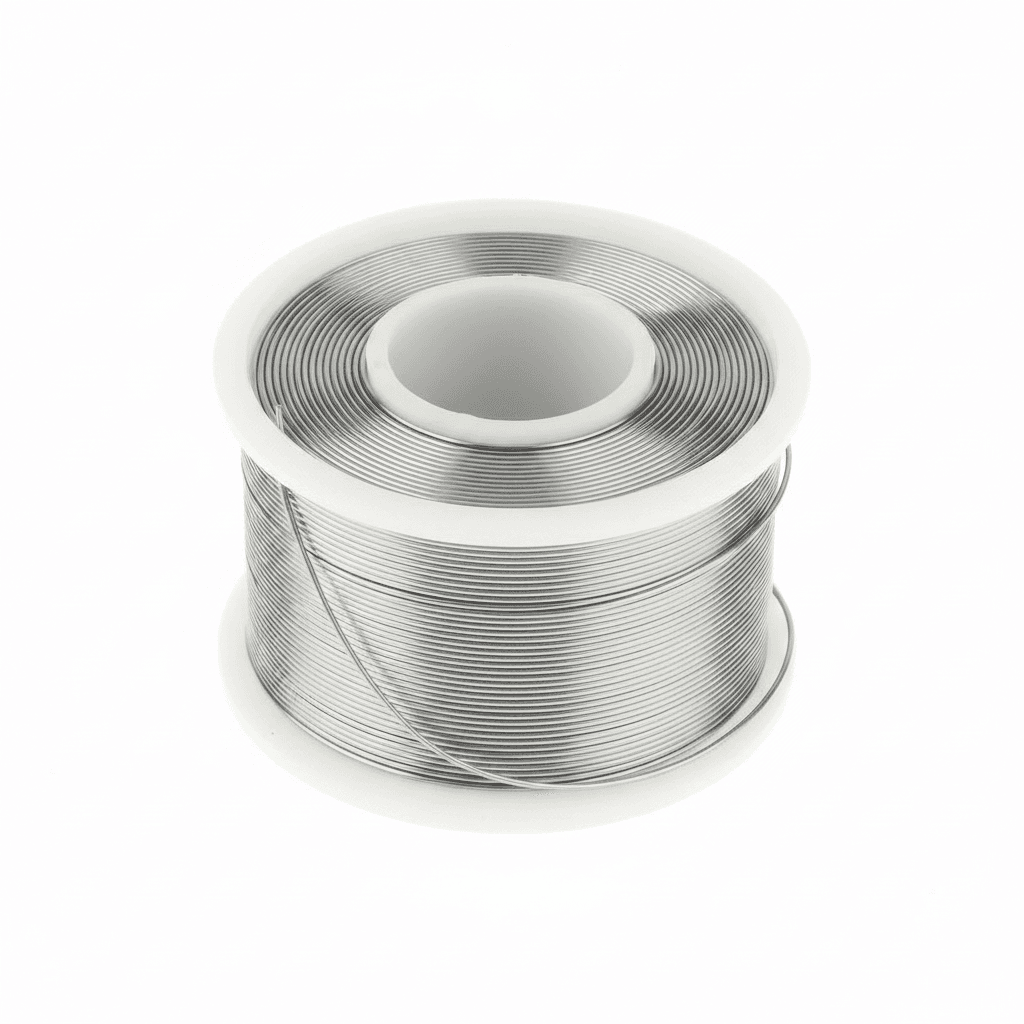

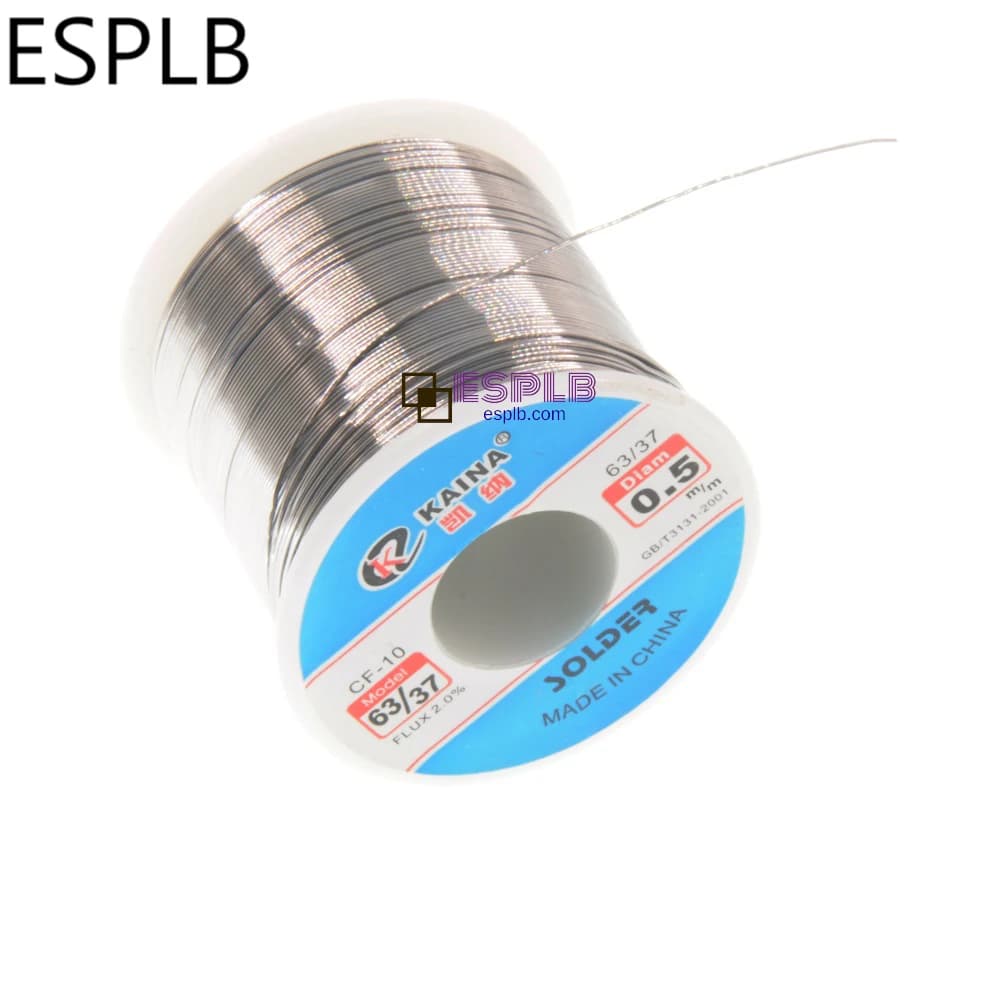

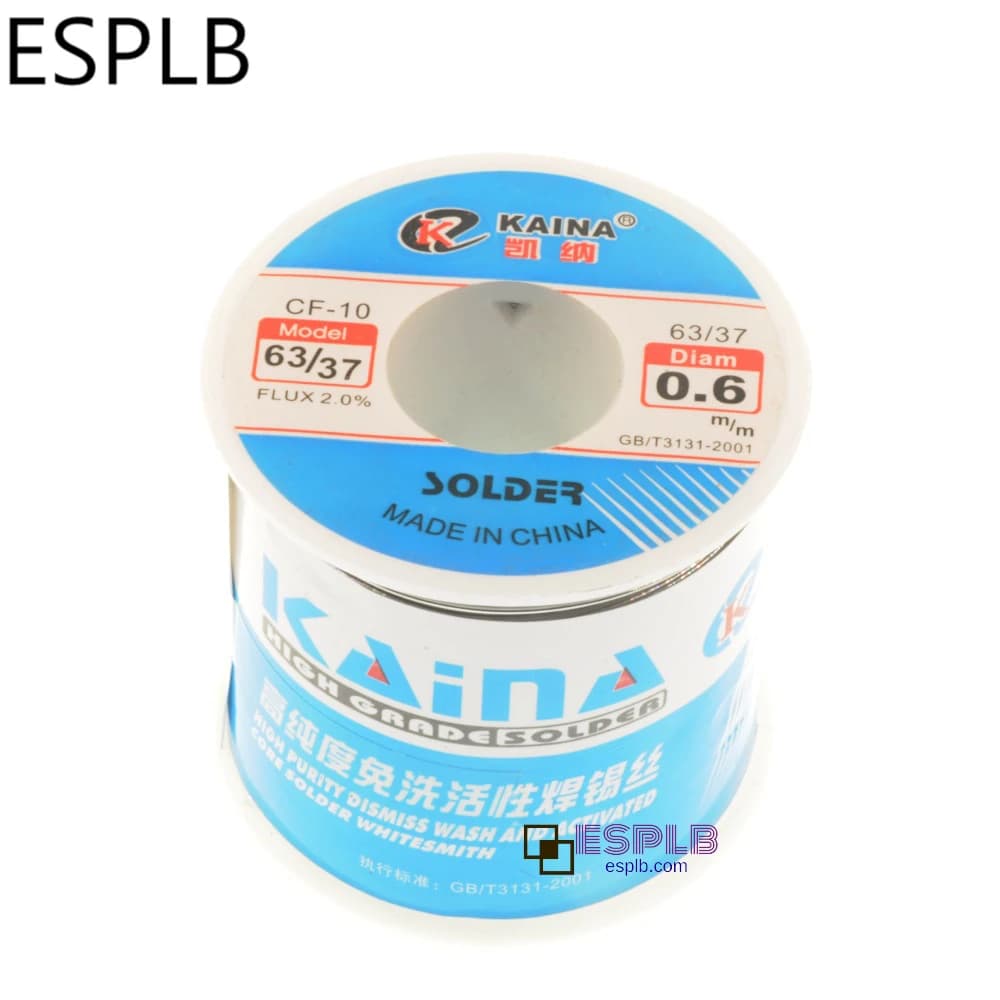

Achieve reliable, low-temperature soldering with the ESPLB 450G Solder Wire. This 63/37 tin-lead alloy features a eutectic composition that melts and solidifies at a precise 183°C, ensuring strong, shiny joints with minimal risk of cold solder connections. The 10% rosin core flux provides excellent wetting and cleaning action for clean, professional results across a wide range of diameters from 0.5mm to 2.0mm. Features and Benefits
- 63/37 Eutectic Tin-Lead Alloy - Melts and solidifies at a single, low temperature (183°C) for faster, stronger joints with a bright, shiny finish.
- 10% Rosin Core Flux (CF-10) - Provides active, no-clean flux action that removes oxidation and promotes superior solder flow and adhesion.

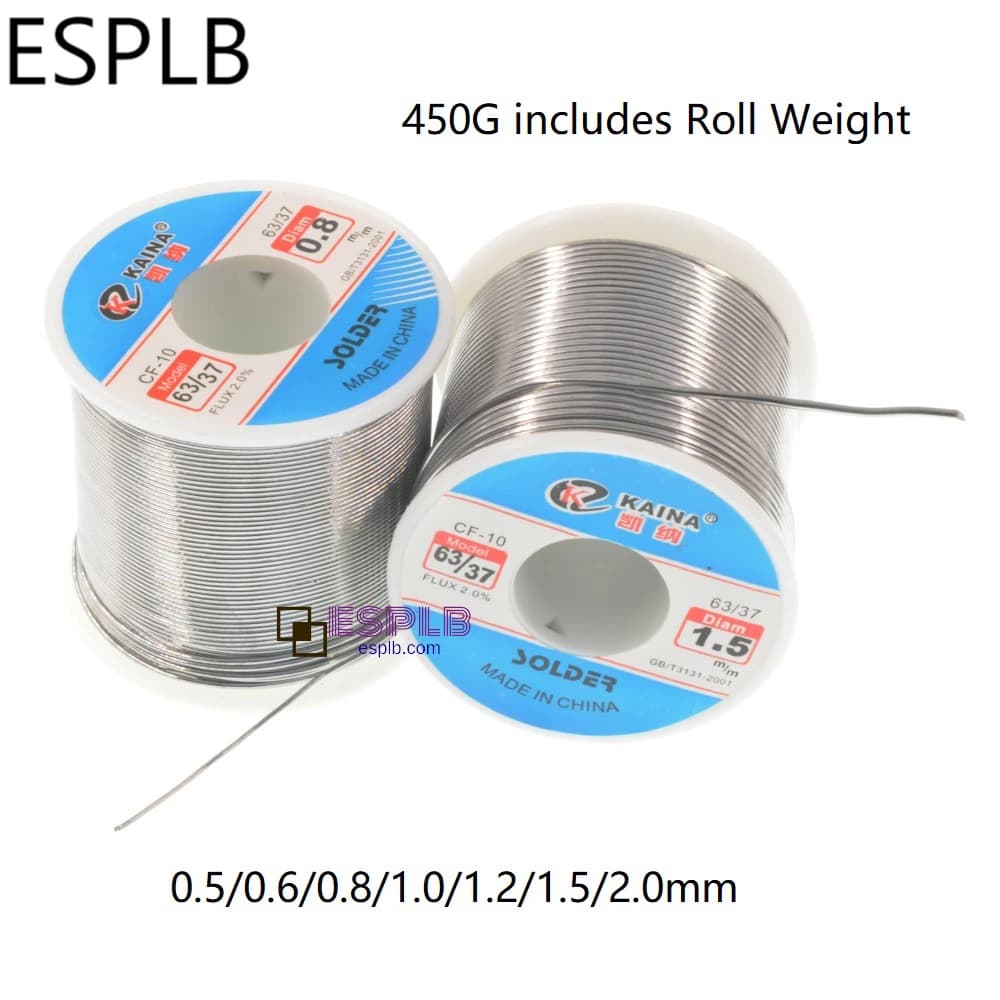

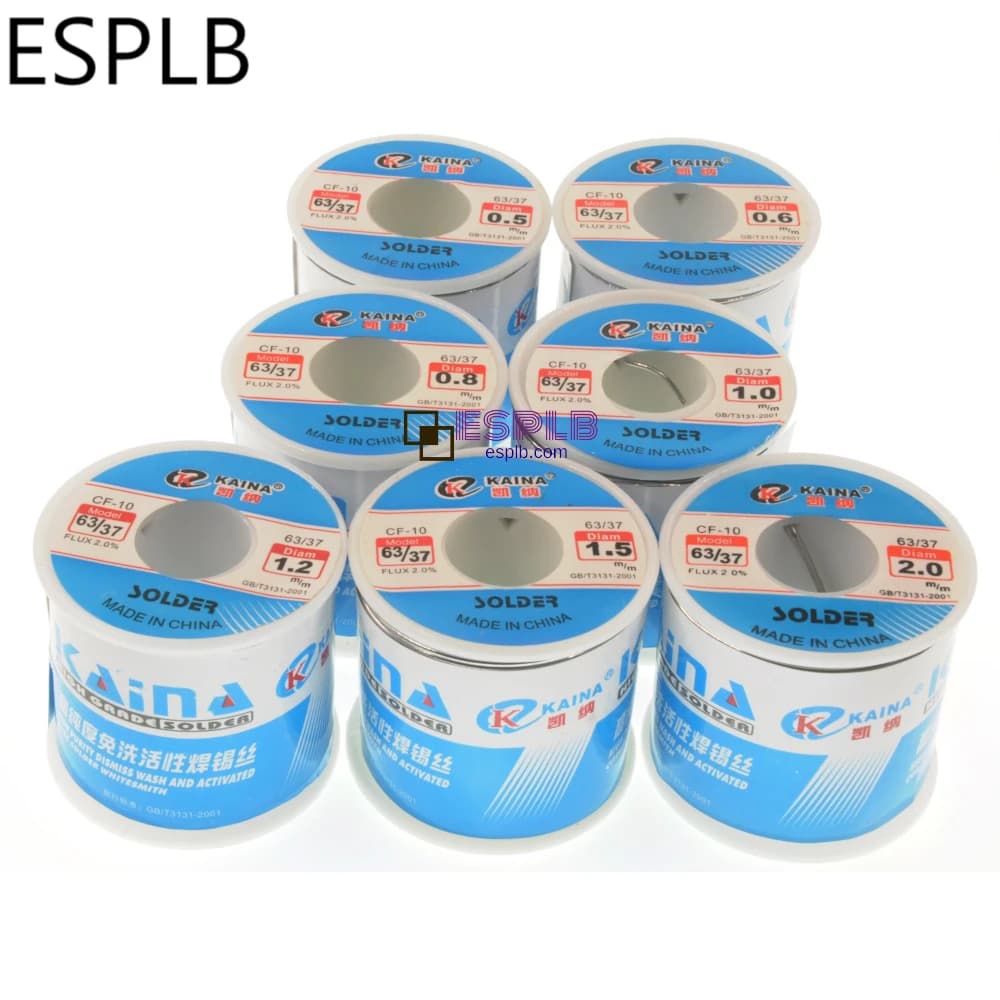

- Multiple Diameter Options (0.5mm to 2.0mm) - Choose the perfect gauge for precision PCB work (0.5mm) or larger electrical connections (2.0mm) from a single product.
- 450 Gram Spool - Substantial quantity reduces the need for frequent reordering, offering excellent value for workshops and frequent users.
- Consistent Wire Formulation - Reliable performance batch-to-batch ensures predictable melting and bonding behavior for both DIY and professional tasks. Applications
- Electronics Repair and Assembly - Ideal for PCB work, component soldering, and wiring harnesses, especially with the finer 0.5mm and 0.6mm diameters.
- General Electrical Work - Perfect for joining wires, installing outlets, and automotive electrical repairs using the 1.0mm to 2.0mm sizes.
- Hobbyist and DIY Projects - A versatile, reliable choice for model building, robotics, guitar wiring, and other craft or repair applications.
- Maintenance and Field Service - The robust 450g spool and consistent performance make it suitable for toolkits and on-site repair scenarios.
Net Weight: 450 g. Alloy Composition: Sn63Pb37 (63/37 Tin-Lead). Available Diameters: 0.5 mm, 0.6 mm, 0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm. Flux Activity: Type R (Rosin, mildly activated per IPC J-STD-004). Flux Core Percentage: 2.2% (Standard for CF-10 classification). Flux Type: Rosin (CF-10). Liquidus Temperature: 183 °C. Melting Point: 183 °C (Eutectic point for Sn63Pb37). Primary Application: Electronics repair and assembly (e.g., PCB, component soldering). Product Name: ESPLB 450G Solder Wire. Solidus Temperature: 183 °C. Wire Form: Continuous coil on spool. Available Diameters: 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm. Alloy Composition: 63% Tin, 37% Lead (Sn63Pb37). Working Temperature: ~190°C - 250°C (Typical iron tip temperature). Compliance: Likely conforms to common industry standards (e.g., J-STD-006, ISO 9453). Electrical Conductivity: High (Due to high Tin content). Flux Activity: Mildly Activated Rosin (RMA). Flux Core Percentage: 2.2% (Typical for CF-10 classification). Flux Core Type: Rosin (CF-10). Flux Fume Generation: Low to moderate (characteristic of rosin flux). Flux Residue: Non-corrosive, typically non-conductive. Mechanical Strength: Good tensile and shear strength. Melting Point: 183°C (Eutectic point for Sn63Pb37). Packaging Format: Spool or coil. Primary Application: Precision electronics repair (PCB, SMD components). Product Type: Solder Wire. Secondary Application: General electrical soldering and wiring. Shelf Life: Long-term when stored in cool, dry conditions. Solder Joint Appearance: Bright, shiny finish. Wettability: Excellent, due to eutectic alloy and rosin flux. Wire Core: Flux-filled, hollow core. Q: What diameters are available for the ESPLB 450G solder wire? A: This solder wire is available in six common diameters: 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, and 2.0mm. This range allows for precise work on small electronics like phone repair or larger connections.. Q: How is the quality of the 63/37 tin lead solder wire for electronics repair? A: The 63/37 tin-lead alloy is a classic eutectic blend known for its reliable, strong joints and a low melting point of 190°C. Combined with the CF-10 rosin core flux, it ensures good flow and adhesion, making it a dependable choice for electronics work.. Q: Can this solder wire be used for welding machine repair? A: Yes, the product specifications list welding machine repair as a primary application. The various diameters, especially the thicker 1.5mm and 2.0mm options, are suitable for the heavier electrical connections often found in such equipment.. Q: Does the ESPLB solder wire come with any warranty or guarantee? A: Product information does not specify a warranty. For details on any satisfaction guarantee or return policy, please check the seller's listing page or contact them directly before purchasing.. Q: Is this 450-gram roll of solder wire a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The 450g quantity and versatile diameter options deliver reliable performance for regular use in electronics and light welding repairs..
