Appliance Mini PC | Fanless Dual 2.5G 2xSATA | Intel N305 NAS Server

Name: Appliance Mini PC | Fanless Dual 2.5G 2xSATA | Intel N305 NAS Server
Brand: Compel Group
SKU: SING-00260
Price: 680.99 GBP
Availability: InStock
Rating: 5 (2 reviews)

Stock Nr:

SKU:

Appliance Mini PC | Fanless Dual 2.5G 2xSATA | Intel N305 NAS Server - Image 1

1 / 5

£680.99inc VAT

ColorSelect an option

BundleIntel N150

Quantity

Appliance Mini PC | Fanless Dual 2.5G 2xSATA | Intel N305 NAS Server

£680.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Is the Intel N100 or i3-N305 suitable for running pfSense or OPNsense?: Yes, both chips handle Gigabit and multi-gigabit routing without issue. The N100 draws just 6W TDP across 4 cores, while the 8-core i3-N305 runs at 15W TDP if you need extra headroom for heavy IDS/IPS packet inspection.
What internal storage and memory slots does this chassis have?: The board accepts standard laptop-size DDR5 SODIMM memory and has an M.2 slot for an NVMe solid state drive. You also get 2 onboard SATA interfaces for connecting extra 2.5-inch hard drives or SSDs.
How hot does this fanless unit run during continuous 24/7 use?: The ribbed metal outer case acts as the primary heatsink to cool internal parts silently. Under sustained loads it will feel warm to the touch, so keep it in an open area with decent passive airflow.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £680.99 · 5.0

This product

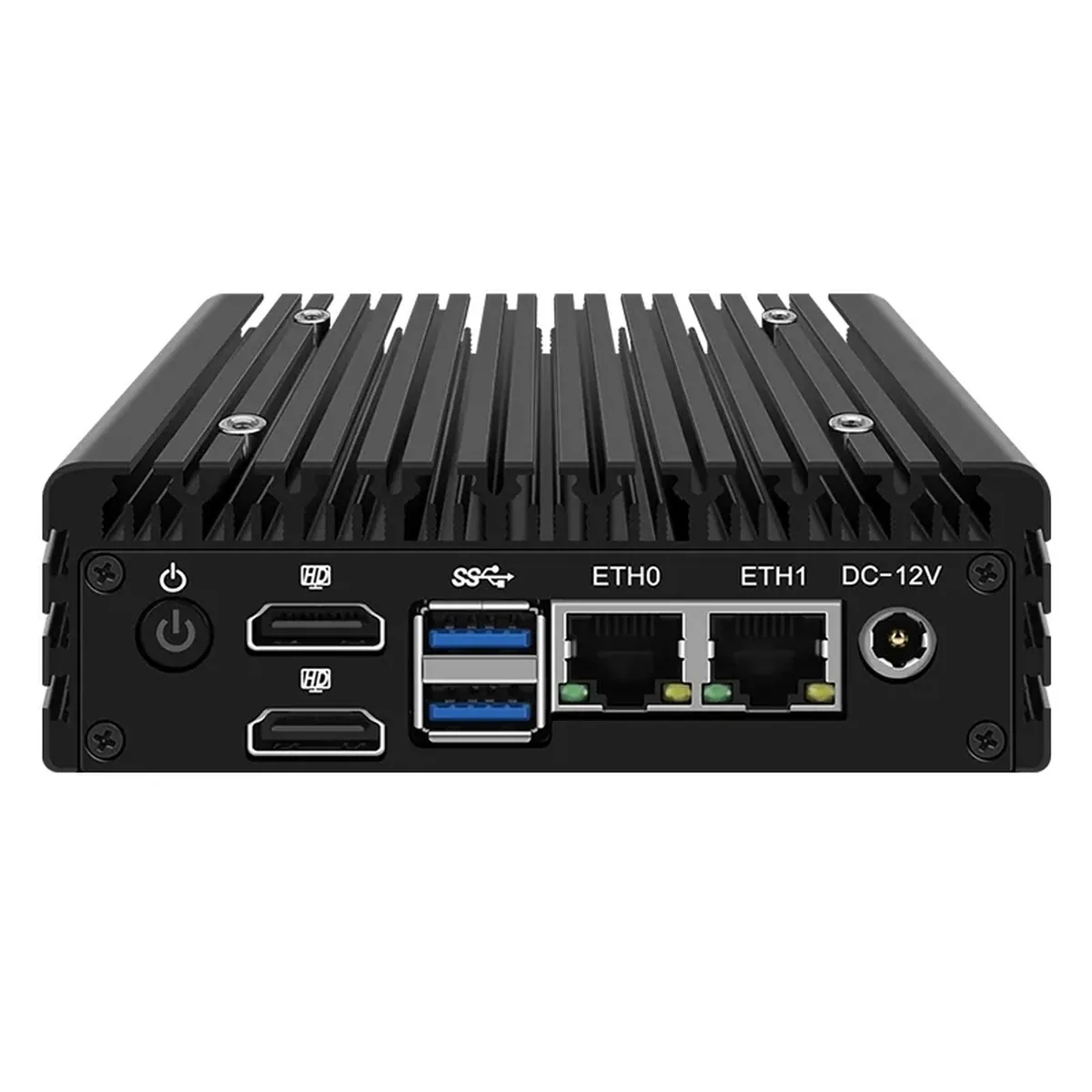

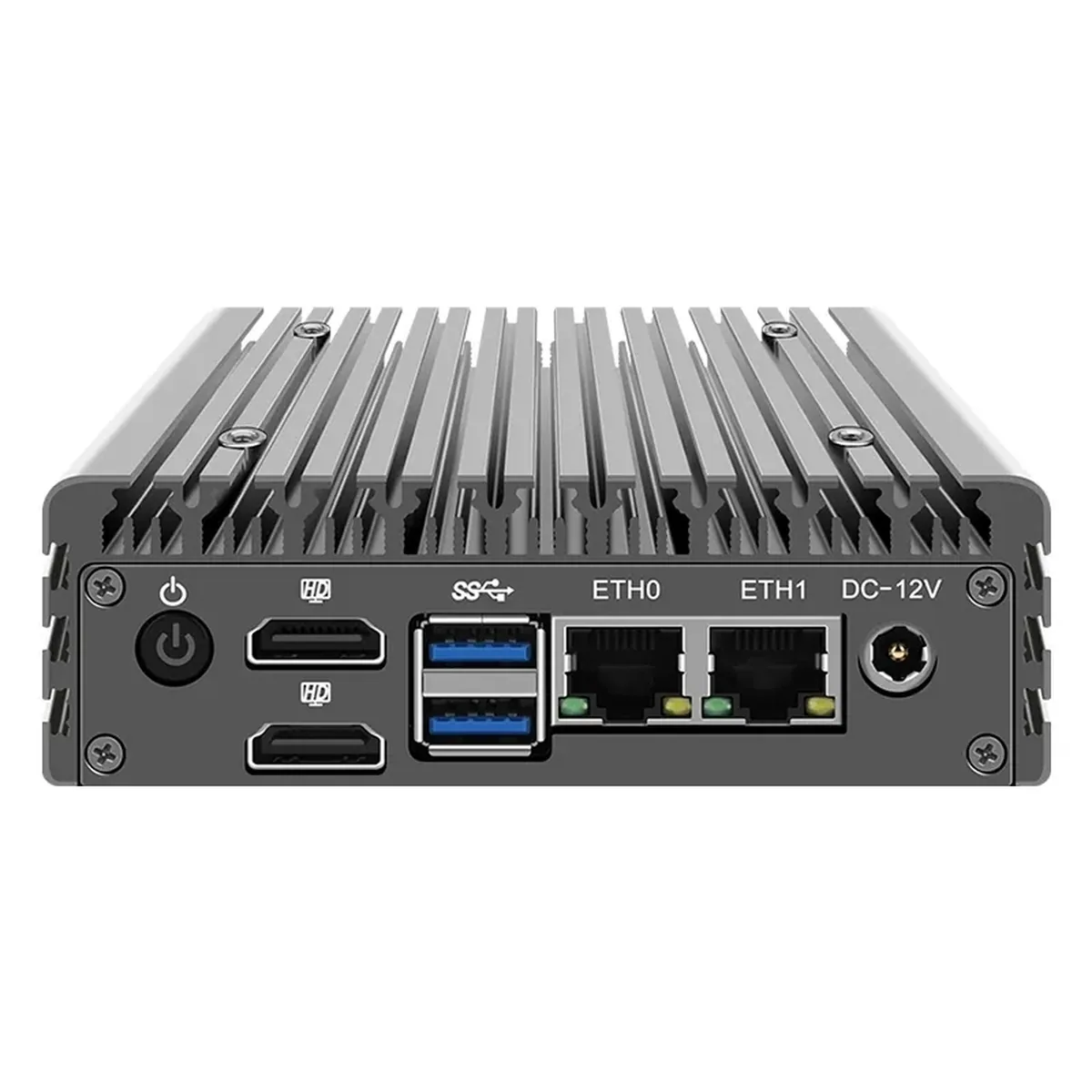

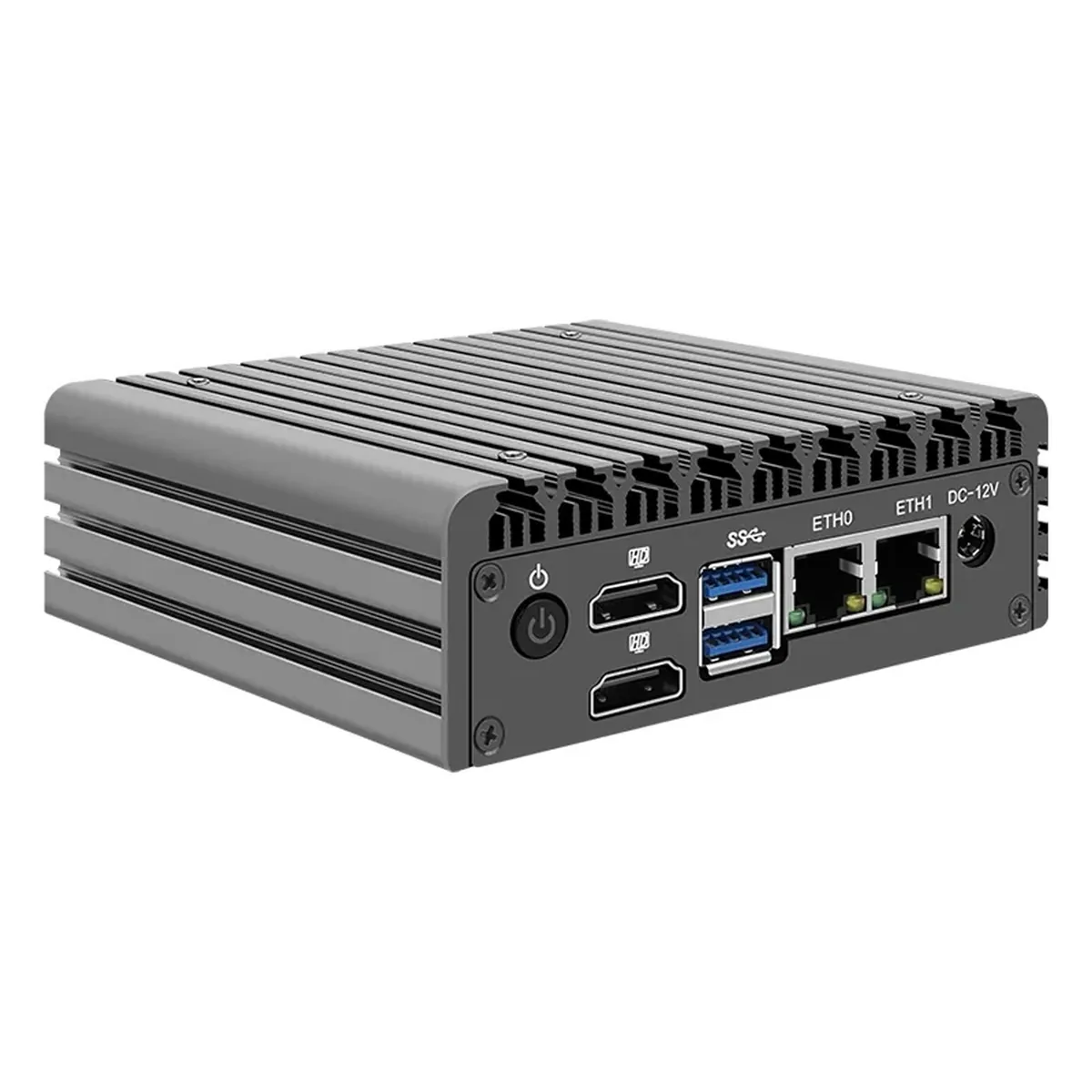

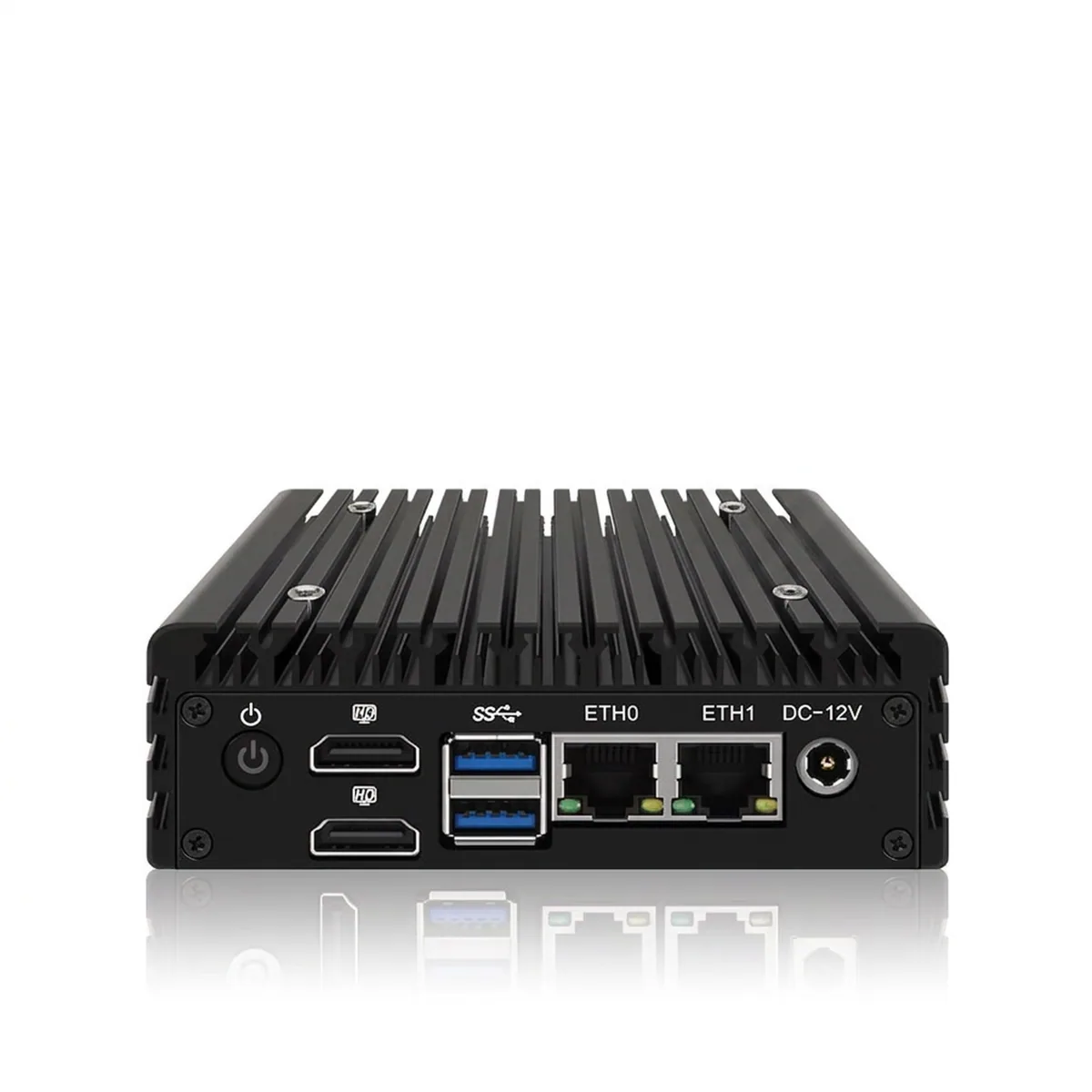

Front view of an Appliance Mini PC with dual HDMI, USB, and Ethernet ports.

Appliance Mini PC | Fanless Dual 2.5G 2xSATA | Intel N305 NAS Server

Price: £680.99
Rating: 5.0(2)
Sold: 4+
Stock: In stock

You're viewing this

Alternative

Top view of an Appliance Mini PC featuring black heatsink fins.

Appliance Mini PC | Fanless Intel N355 DDR5 | 4x2.5GbE Dual NVMe NAS

Price: £603.99
Rating: 5.0(4)
Sold: 15+
Stock: In stock

View

Alternative

Top finned heatsink and side connection ports on a black Appliance Mini PC.

Appliance Mini PC | Quad 2.5G LAN i226 | Fanless N100 pfSense Router

Price: £774.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Alternative

Appliance Mini PC | 6x 2.5GbE LAN N305 | Pfsense OPNsense Router

Price: £591.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Appliance Mini PC showing front panel with USB, video outputs, power button, and top heat sink fins.

Appliance Mini PC | Core i3-N305 DDR5 | 2.5G LAN Home Server

Price: £713.99
Rating: 4.9(13)
Sold: 144+
Stock: In stock

View

Alternative

Appliance Mini PC | 2x NVMe DDR5 3x4K Output | Proxmox NAS Router Box

Price: £532.99
Rating: 5.0(1)
Sold: 5+
Stock: In stock

View

Alternative

Appliance Mini PC | Dual RS232 Serial COM | N100 4-Port GbE Barebone Box

Price: £405.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Side panel of Appliance Mini PC showing DC power input jack and honeycomb ventilation holes.

Appliance Mini PC | 1U Rackmount 10x 1GbE | Core i7 10510U Router

Price: £563.99
Rating: Not rated
Sold: 12+
Stock: In stock

View

Alternative

Rear panel of Appliance Mini PC showing six Ethernet ports, two antenna connectors, and a DC power input.

Appliance Mini PC | Quad Core N100 NVMe SSD | Pfsense Linux Router

Price: £873.99
Rating: Not rated
Sold: 2+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This palm-sized firewall box runs on Intel Alder Lake chips with DDR5 memory, two 2.5GbE ports, and two SATA headers. The fanless case stays quiet while handling packet inspection, self-hosted network tools, and local storage on under 15 watts. Features and Benefits - Intel N100 and N305 chip options with DDR5 - Gives you four to eight cores for fast packet routing and clean virtualization. - Finned aluminum heatsink case - Keeps operating temperatures down during 24/7 routing without fan noise or dust buildup. - Two Intel i226-V 2.5G network ports - Handles multi-gigabit internet lines with built-in driver support in Linux and BSD. - M.2 NVMe slot with two SATA ports - Lets you pair a fast system drive with two storage disks in one small box. Applications - Dedicated pfSense or OPNsense router protecting home or small branch networks. - Low-wattage Proxmox VE host running lightweight containers and Pi-hole. - Silent local backup server using two 2.5-inch drives for shared network files.

Processor: Intel Core i3-N305 / N150 / N100. Memory Type: DDR5. Storage Interface: 1 x M.2 NVMe, 2 x SATA. Network Interfaces: 2 x 2.5GbE RJ45 LAN. Cooling: Fanless. Device Type: Firewall Appliance Mini PC. Form Factor: Palm Mini PC. Dimensions: 135 x 127 x 40 mm. Chassis Material: Anodized Aluminum Alloy. Power Input: DC 12V/5A (60W). Maximum Memory Capacity: Up to 32GB. Network Interface: 2x 2.5GbE RJ45 Intel i226-V LAN Ports. Firewall Software Compatibility: pfSense, OPNsense, Proxmox VE, OpenWrt, Linux, Windows 11. Operating Temperature: -10°C to 60°C. Cooling System: Passive Fanless Aluminum Alloy Heat Dissipation Chassis. Form Factor: Palm-sized Fanless Mini PC. Memory Type: DDR5 4800MHz SO-DIMM. Processor Base Frequency: 0.8 GHz - 1.8 GHz (Turbo up to 3.8 GHz). Processor Options: Intel Core i3-N305 / N150 / N100 (12th Gen Alder Lake-N). Storage - NVMe: 1x M.2 2280 NVMe PCIe 3.0 x2 SSD slot. Storage - SATA: 2x SATA 3.0 ports (supporting 2.5-inch drives). Q: What network ports and drive slots are built into this unit? A: This machine includes two 2.5 GbE Ethernet ports and one M.2 NVMe slot. It also features two SATA connectors, which lets you hook up standard 2.5-inch storage drives for local backups.. Q: How does the cooling system work without a fan? A: The unit uses an aluminum finned chassis that acts directly as a heat sink. It draws heat away from the Intel chip silently, keeping dust out of the internal boards.. Q: Can this unit run FreeBSD-based routers as a firewall appliance mini pc? A: Yes, it works well as a firewall appliance mini pc running pfSense, OPNsense, or OpenWrt. The dual 2.5G Intel controllers handle full line-rate packet routing across both ports.. Q: What warranty coverage comes with the Topton P5? A: The device includes a one-year hardware warranty covering the mainboard and power adapter. If a component fails under normal home lab use, the seller provides replacement parts or repair support.. Q: Is this system cost-effective for running a home media server? A: Yes, the Intel Alder Lake-N chips draw under 15 watts at idle, which keeps your electric bill low. You also get DDR5 memory support and dual-drive storage without buying an expensive rackmount unit..
