Appliance Mini PC | 6 Port Gigabit LAN AES-NI | pfSense Router Box

Name: Appliance Mini PC | 6 Port Gigabit LAN AES-NI | pfSense Router Box
Brand: Compel Group
SKU: SING-00225
Price: 653.99 GBP
Availability: InStock

Stock Nr:

SKU:

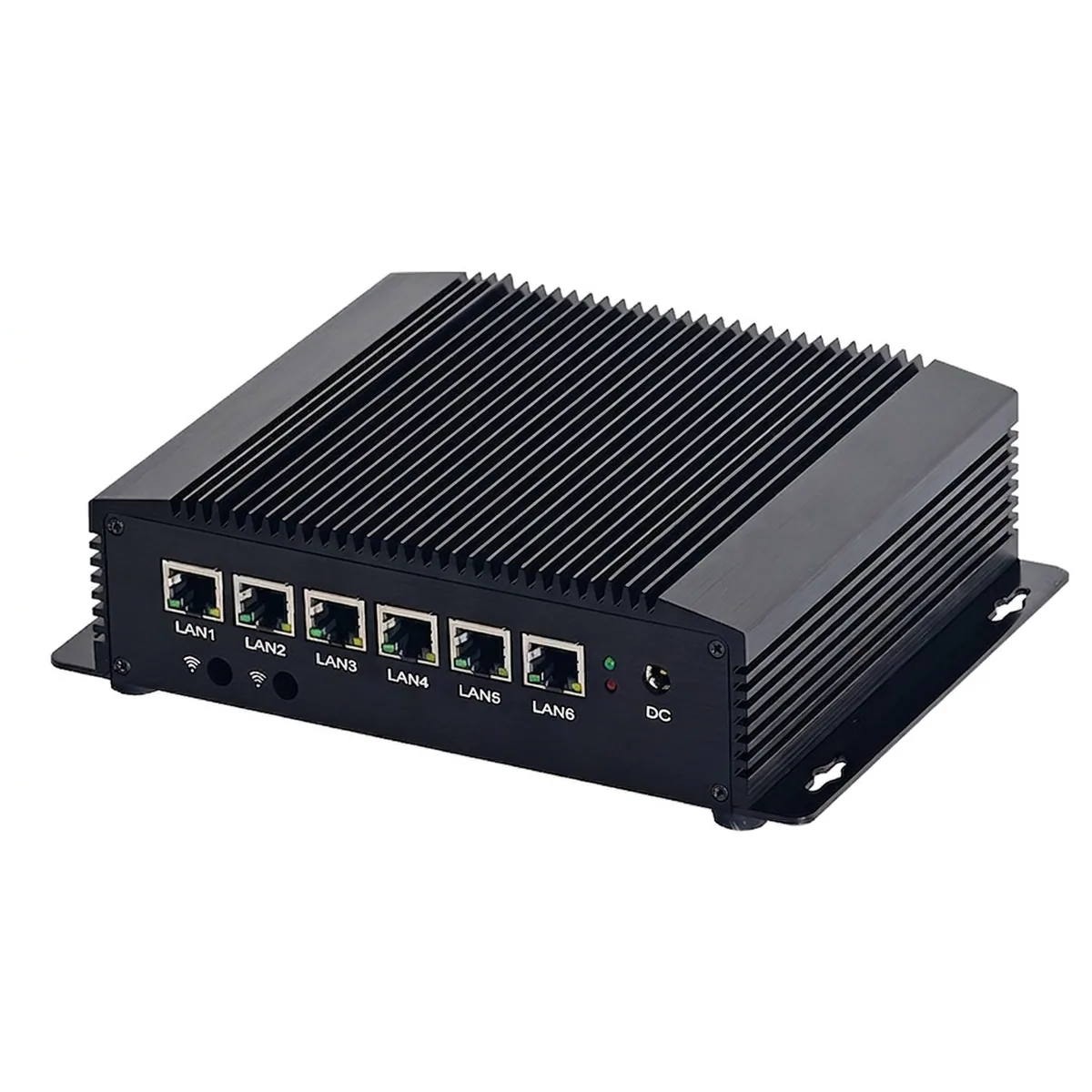

Appliance Mini PC | 6 Port Gigabit LAN AES-NI | pfSense Router Box - Image 1

1 / 5

£653.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

Appliance Mini PC | 6 Port Gigabit LAN AES-NI | pfSense Router Box

£653.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Does this unit support AES-NI hardware encryption for pfSense?: It depends on the processor you choose. The Core i3 and Core i5 options support Intel AES-NI for handling encrypted VPN traffic, but the Celeron 2955U chip does not.

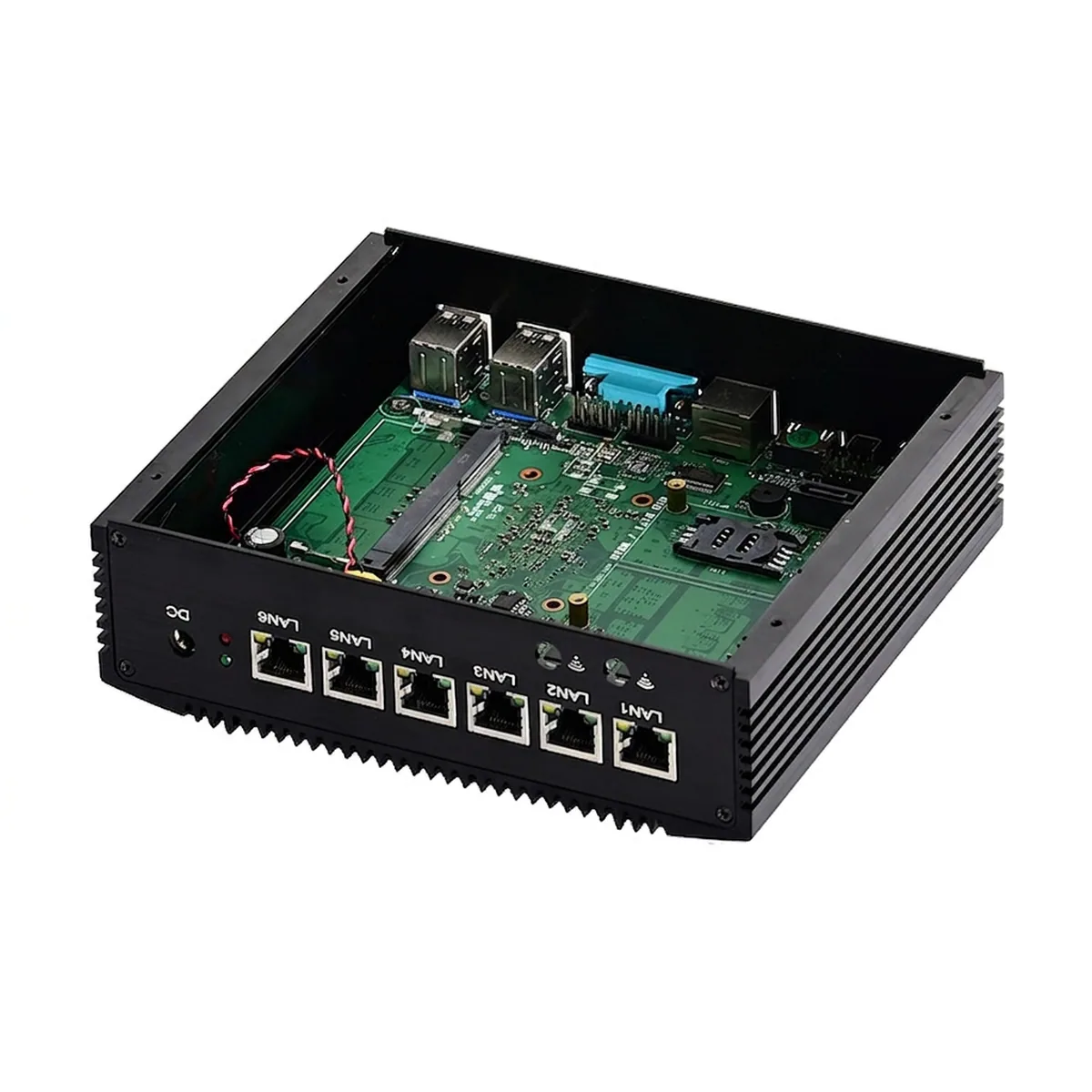

What memory and drive do I need to fit inside it?: The motherboard takes a single DDR3L low-voltage laptop memory stick up to 8GB. For internal storage, you can install an mSATA solid-state drive alongside a standard 2.5-inch SATA drive.
How does the unit stay cool running 24/7 without a fan?: The ribbed aluminium casing acts as a direct passive heat sink for the 15W TDP processor. It runs completely silent at 0dB, provided you leave clear airflow around the fins on all sides.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £653.99

This product

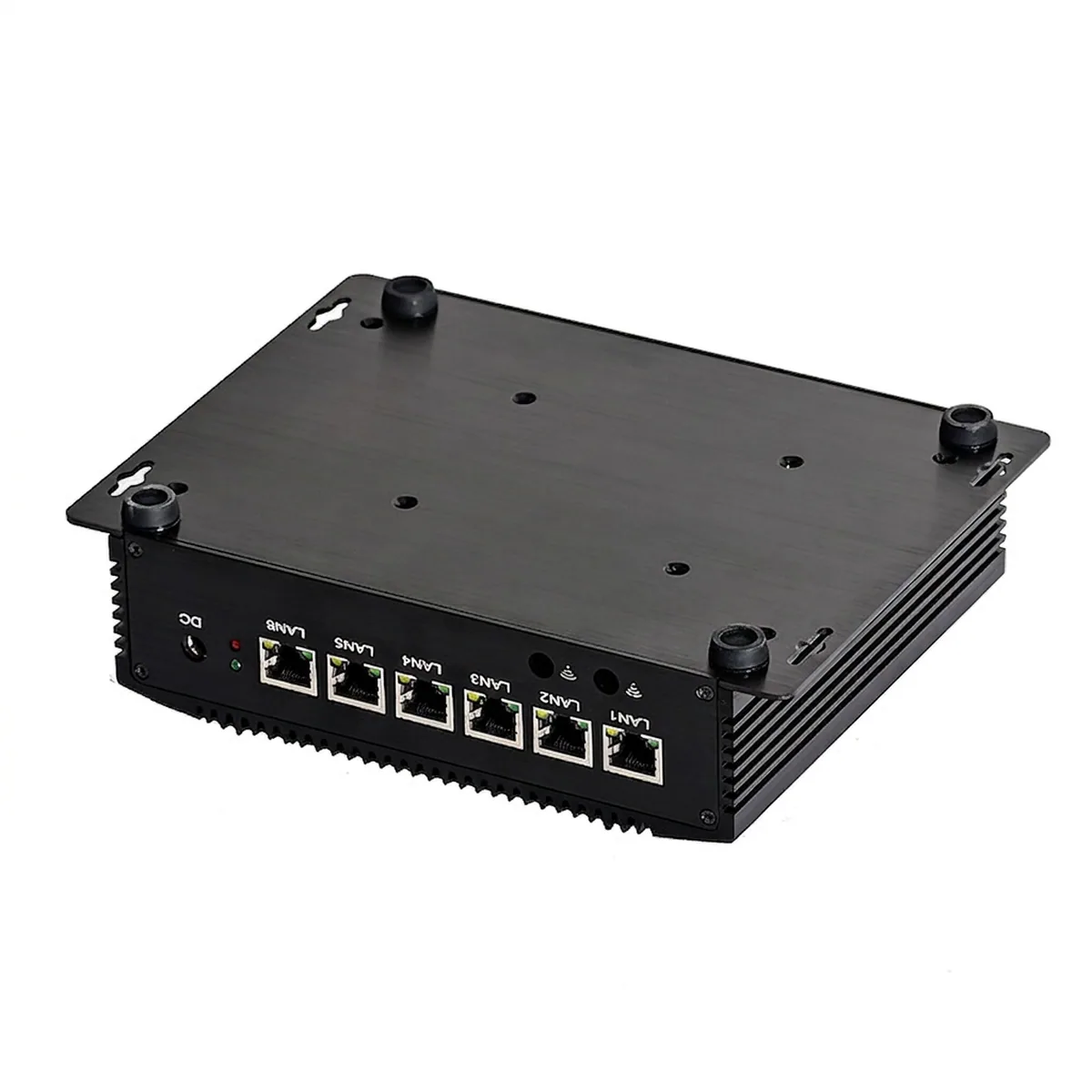

Appliance Mini PC showing six RJ45 LAN ports, antenna cutouts, and DC power jack on a ribbed metal chassis.

Appliance Mini PC | 6 Port Gigabit LAN AES-NI | pfSense Router Box

Price: £653.99
Rating: Not rated
Sold: 2+
Stock: In stock

You're viewing this

Alternative

Rear I/O panel of an Appliance Mini PC with four LAN ports, USB, display outputs, and power input.

Appliance Mini PC | PfSense Network Soft Router | 4x 2.5GbE RJ45 LAN

Price: £379.99
Rating: 5.0(4)
Sold: 109+
Stock: In stock

View

Alternative

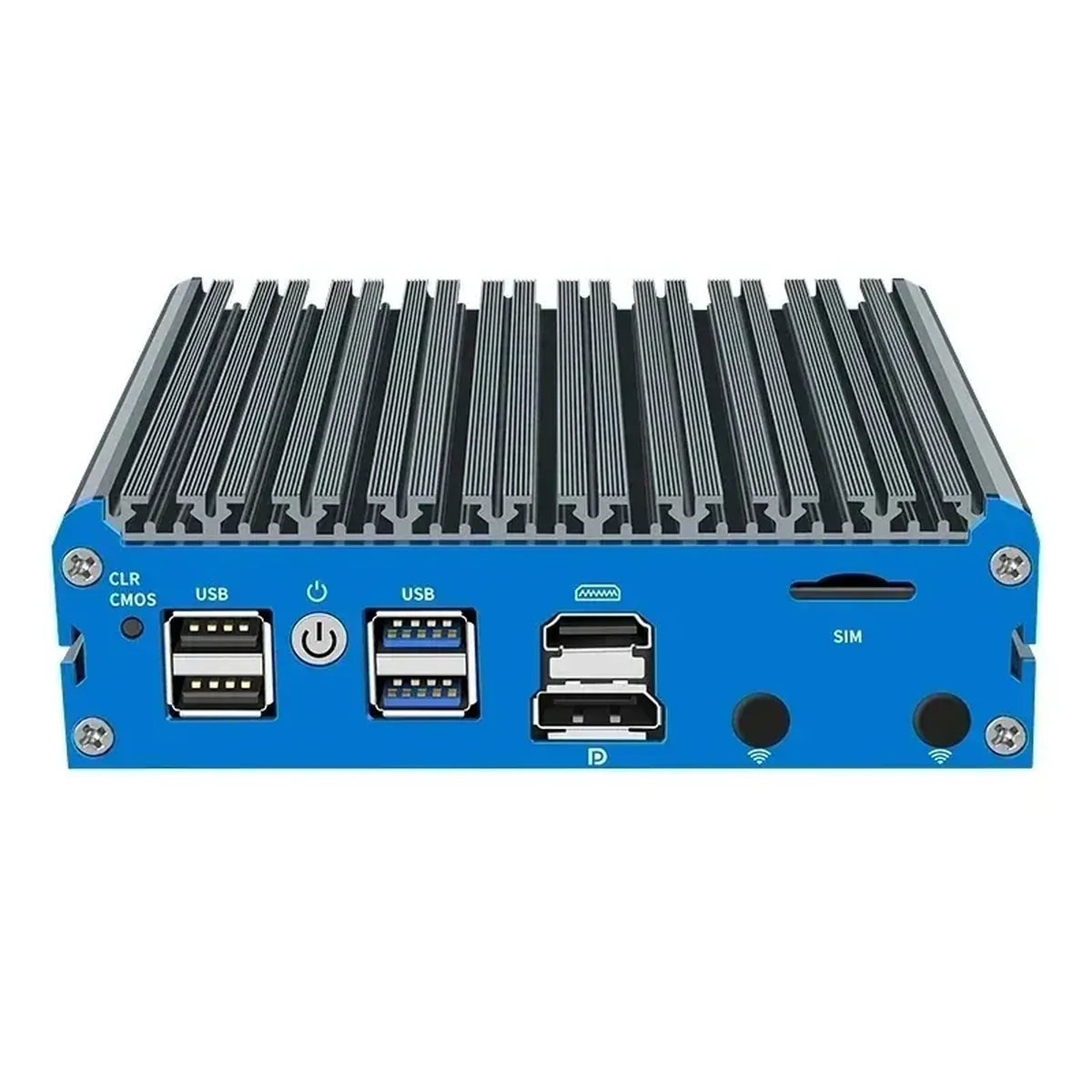

Appliance Mini PC | Intel i226-V Quad LAN | N100 8GB DDR5 128GB

Price: £473.99
Rating: Not rated
Sold: 7+
Stock: In stock

View

Alternative

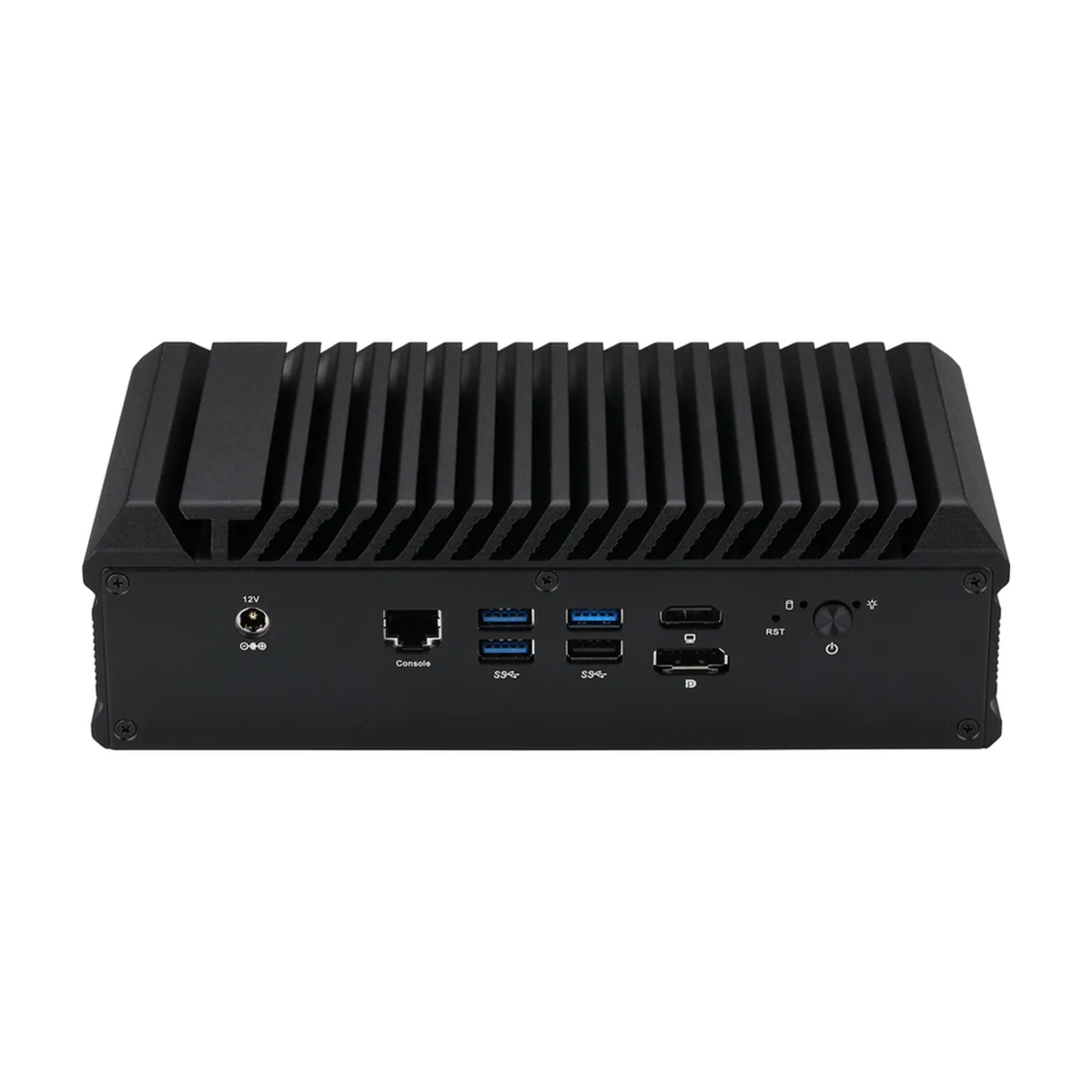

Appliance Mini PC rear panel showing DC jack, console port, USB ports, display outputs, and power button.

Appliance Mini PC | 16-Port LAN with 10G SFP+ | Fanless NAS Server

Price: £1,529.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Alternative

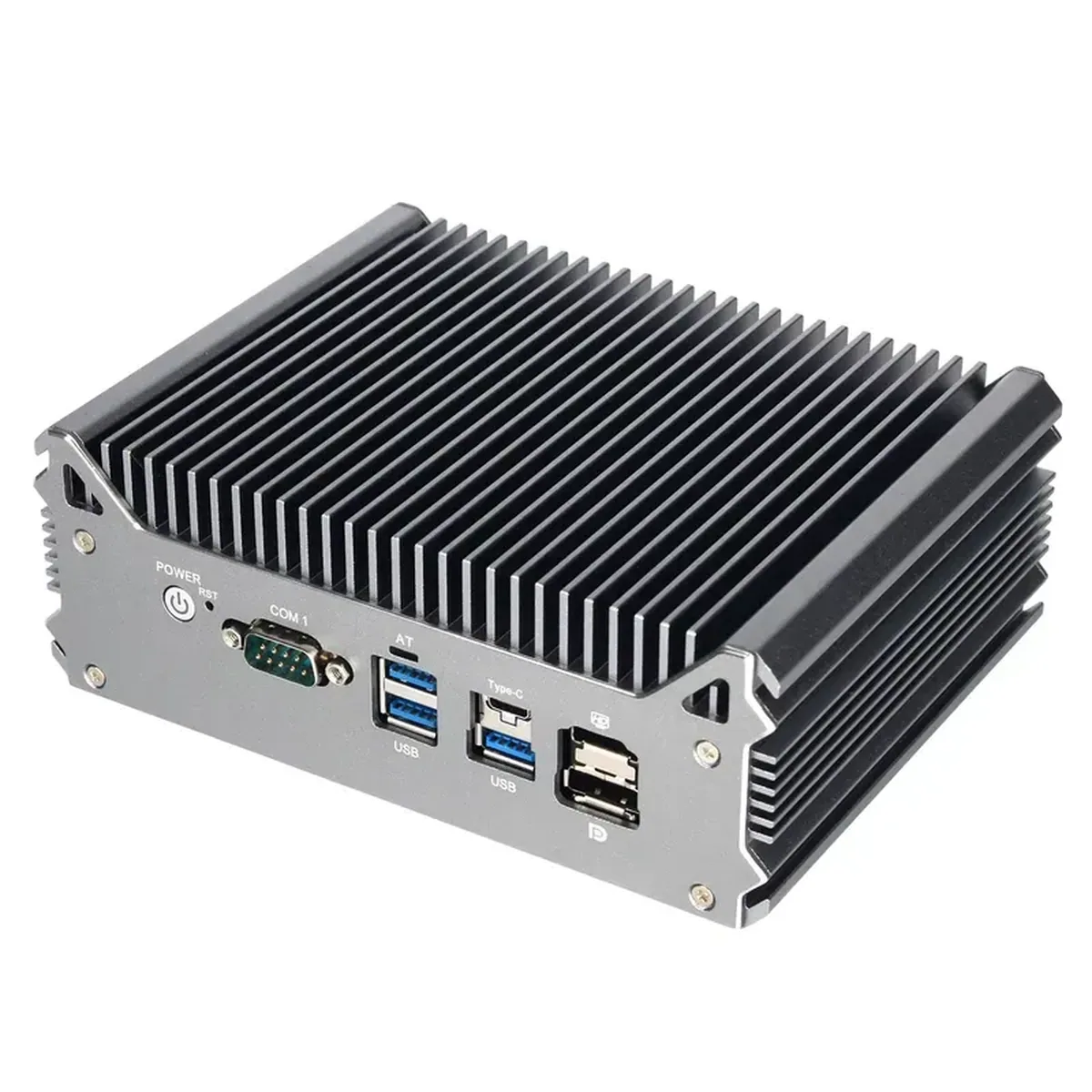

Appliance Mini PC | 4x RJ45 Network Security | N95 Soft Router IPC

Price: £1,393.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

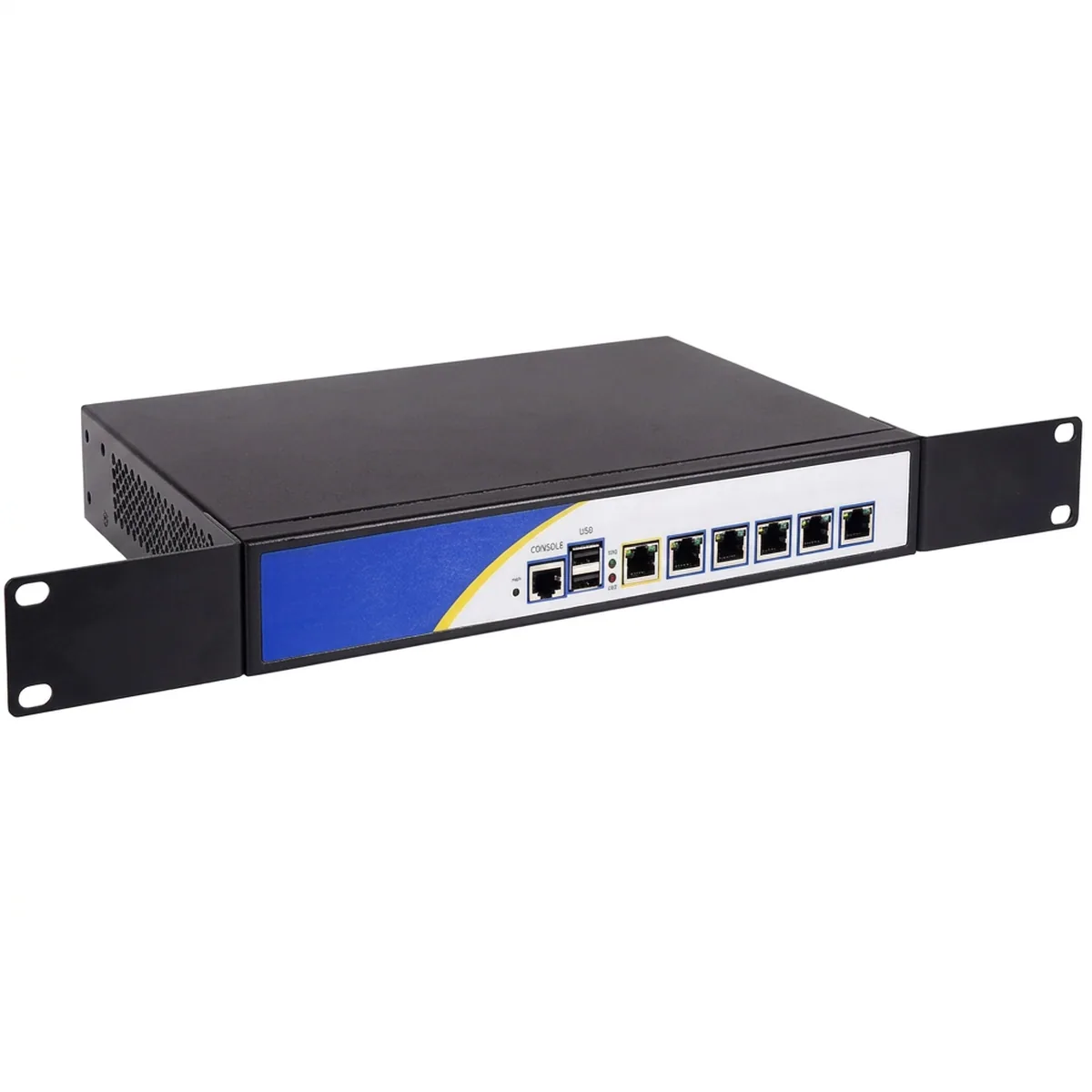

Appliance Mini PC | Core i7 1U Server | pfSense OPNsense Router

Price: £690.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

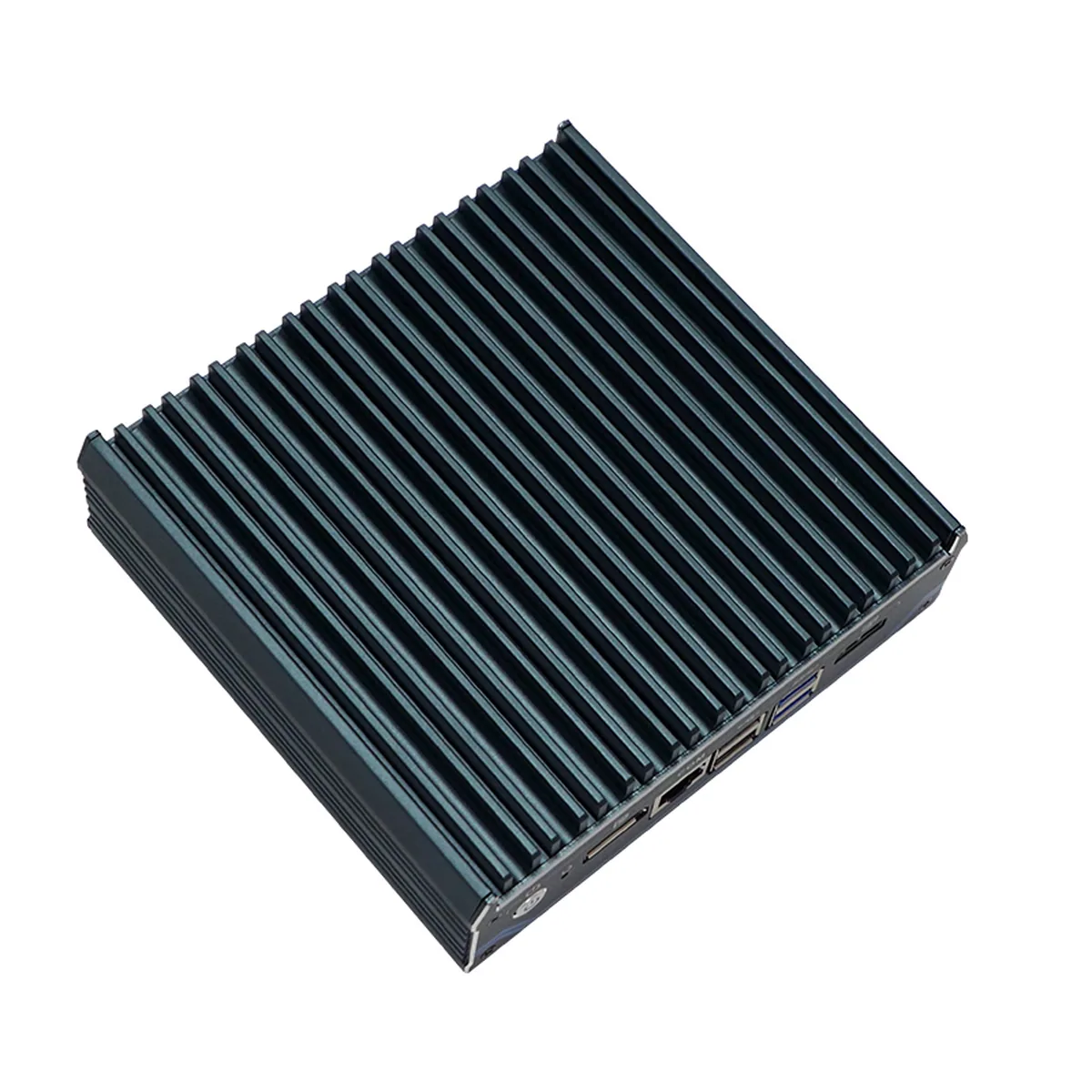

Top finned heatsink and side connection ports on a black Appliance Mini PC.

Appliance Mini PC | Quad 2.5G LAN i226 | Fanless N100 pfSense Router

Price: £774.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Alternative

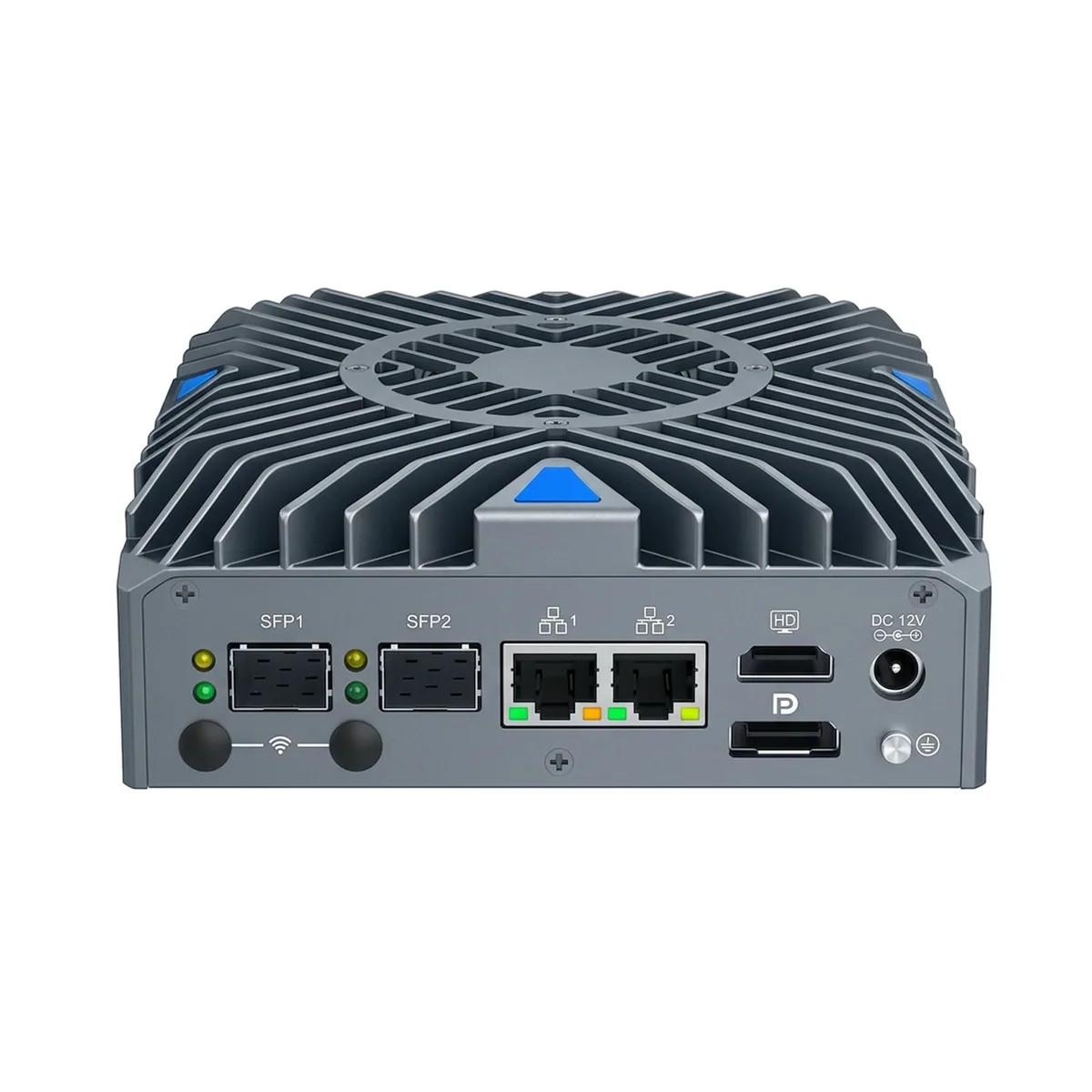

Rear panel of Appliance Mini PC featuring dual SFP, dual LAN, HDMI, DisplayPort, and DC power input.

Appliance Mini PC | Dual 10G SFP+ 2.5GbE | OPNsense Edge Gateway

Price: £977.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

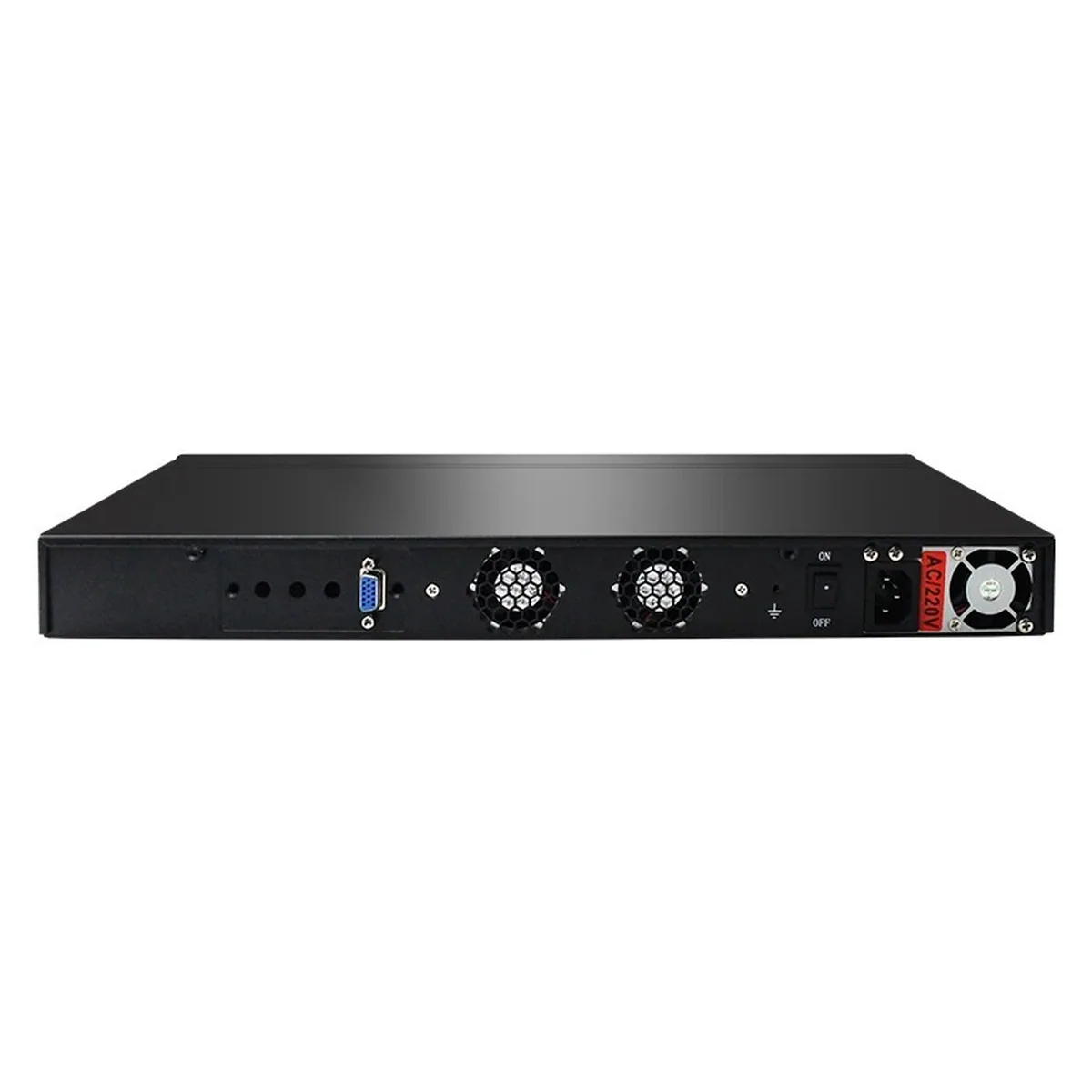

Rear panel of an Appliance Mini PC showing a VGA port, cooling fans, power switch, and AC power inlet.

Appliance Mini PC | Dual 10GB SFP 6 LAN | 1U Rackmount Core i7 OPNsense

Price: £1,304.99
Rating: Not rated
Sold: -
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This firewall appliance mini pc delivers silent continuous routing for home labs and small offices. Built around power-efficient Intel processors with native AES-NI acceleration, this fanless firewall mini pc handles gigabit throughput, VPN tunnels, and packet filtering on pfSense or OPNsense without thermal throttling. Features and Benefits - Six Intel gigabit LAN ports - Lets you assign dedicated WAN, LAN, DMZ, and isolated IoT subnets without extra switches. - Passive aluminium chassis - Dissipates heat quietly without moving parts, keeping dust out of internal components during 24/7 runtimes. - Hardware AES-NI encryption engine - Accelerates OpenVPN and WireGuard processing directly on the CPU so your line speed stays fast. - Broad x86 platform support - Boots pfSense, OPNsense, Proxmox VE, or Linux straight from an mSATA drive or internal SATA port. Applications - Dedicated edge gateway for homes needing multi-VLAN segmentation, ad-blocking, and guest network isolation. - Remote office VPN terminator that encrypts site-to-site data transfers without slowing down local network traffic. - Proxmox homelab node running an OPNsense virtual machine alongside lightweight background network monitoring utilities.

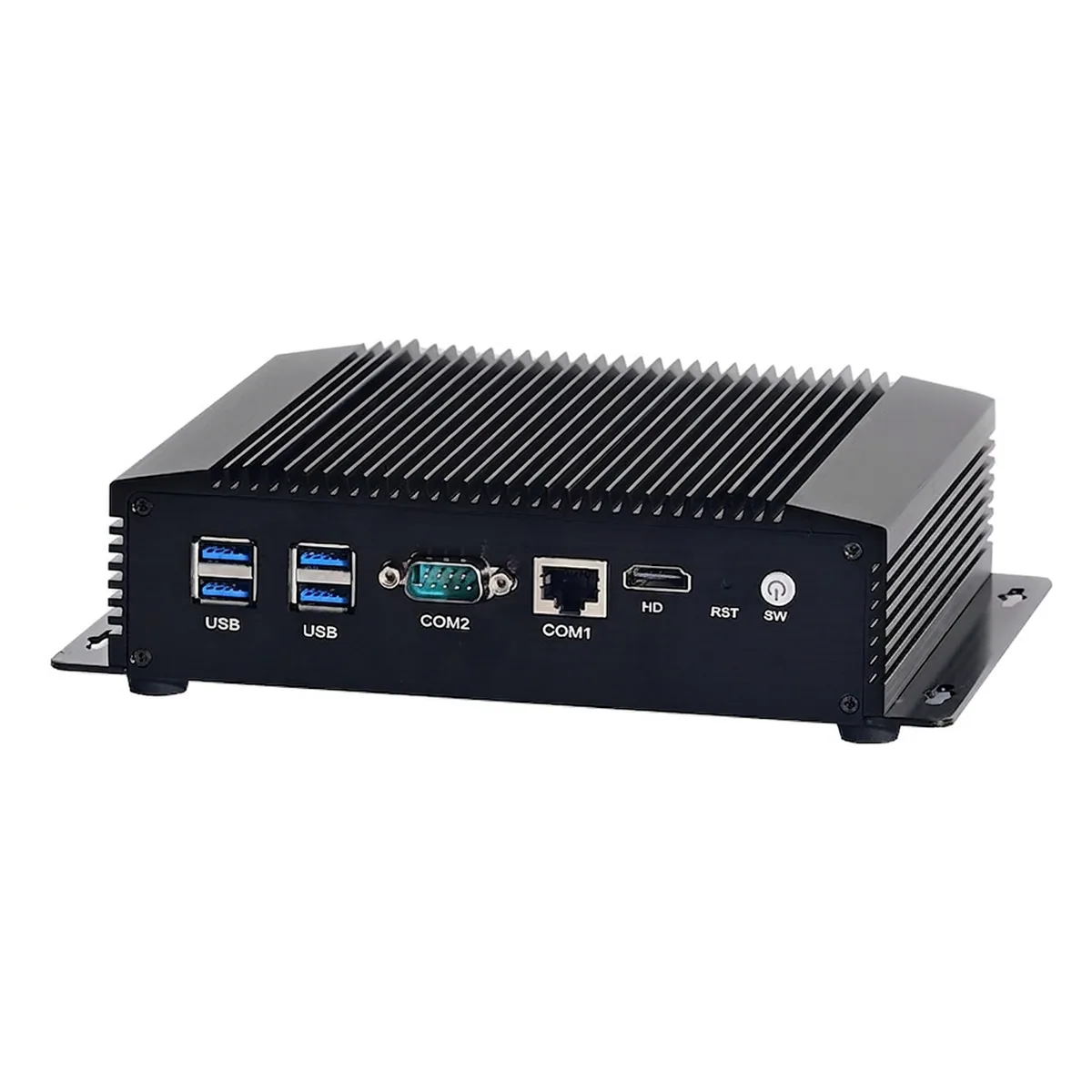

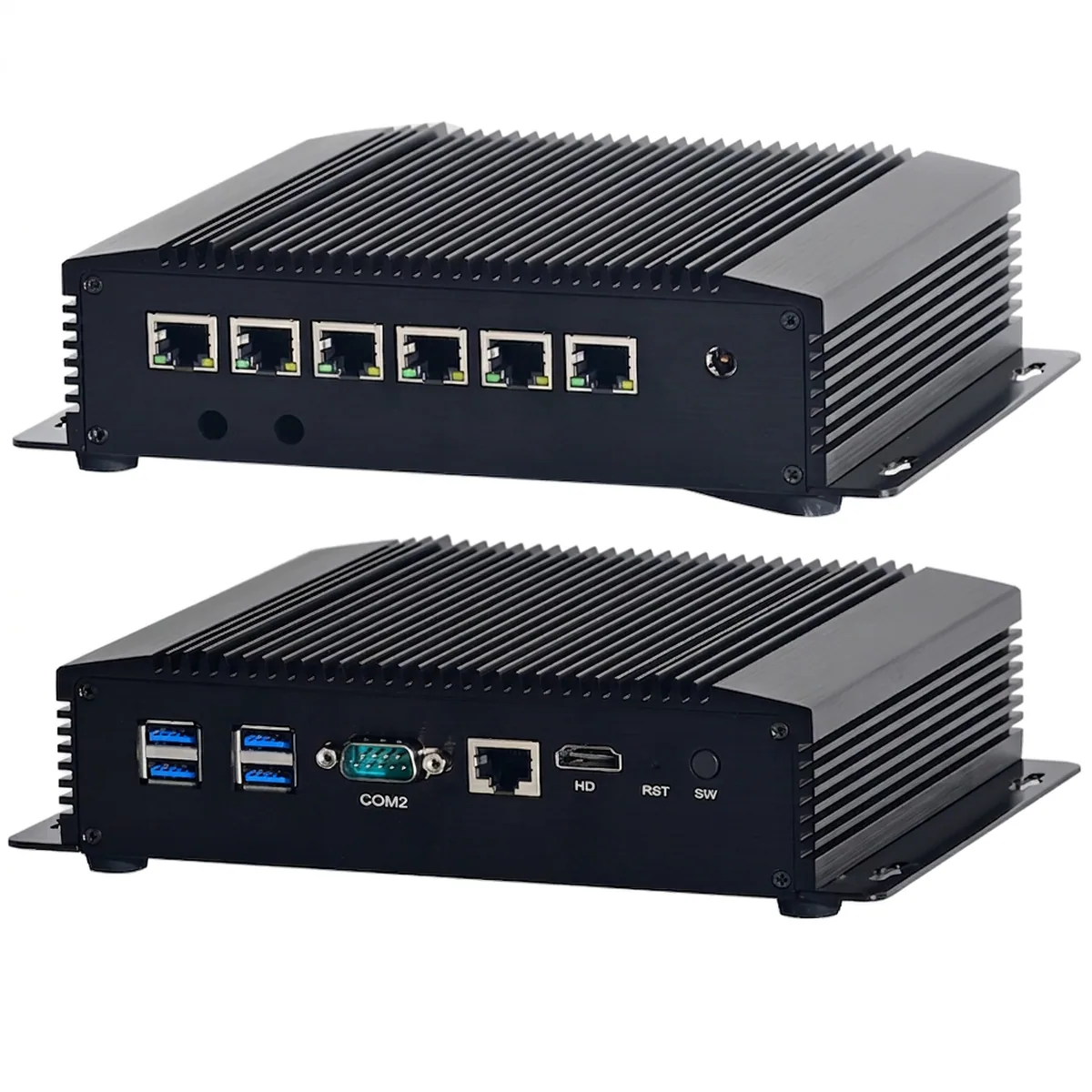

Processor Options: Intel Core i5-8265U, Core i3-8140U, Celeron 5205U. Operating System Compatibility: pfSense, OPNsense, Linux. Cooling Type: Passive Fanless. Device Type: Firewall Appliance Mini PC. Ethernet: 6 x GbE LAN. Hardware Encryption: AES-NI Support. Dimensions: 178 x 126 x 55 mm. Weight: 1.35 kg. Chassis Material: Heavy-Duty Extruded Aluminum Alloy. Power Input: DC 12V / 5A (60W Power Adapter). I/O Ports: 1x RJ45 Console, 4x USB 3.0, 1x HDMI, 1x DC-IN. Network Interfaces: 6x Intel I211-AT / I225-V Gigabit Ethernet RJ45. Storage Interface: 1x mSATA SSD, 1x 2.5-inch SATA HDD/SSD. Operating System Compatibility: pfSense, OPNsense, OpenWrt, Linux, Windows. Operating Temperature: -10°C to 60°C. Cooling System: Passive Aluminum Heatsink (Fanless 0dB). Form Factor: Fanless Mini PC Firewall Appliance. Hardware Encryption: Intel AES-NI Supported. Memory Support: 2x DDR4 SO-DIMM Slots, Up to 32GB 2400MHz. Processor Options: Intel Core i5-8265U / Core i3-8140U / Celeron 5205U. Q: What network ports and CPU options come on this firewall appliance mini pc? A: This unit has six Gigabit Intel i211 network ports. You can choose between Intel Celeron 5205U, Core i3-8140U, or Core i5-8265U processors depending on your routing needs.. Q: How does the fanless housing manage operating temperatures? A: The chassis is extruded aluminum that serves as a passive heatsink. It draws heat away from the board silently without moving parts, which keeps dust out.. Q: Which router operating systems can I install on this hardware? A: It runs pfSense, OPNsense, OpenWrt, and Linux distributions via a bootable USB drive. The CPU includes hardware AES-NI instructions, so it processes encrypted VPN tunnels quickly.. Q: What warranty coverage is included with the device? A: The manufacturer covers the hardware for three full years. If a memory slot, port, or board component fails, they repair or replace the unit.. Q: Does this mini PC save on ongoing operating costs? A: Yes, the 15-watt low-voltage processor draws very little electricity over 24/7 runtimes. You get multi-port routing capability without the energy draw or bulk of a standard server..
