Appliance Mini PC | Quad Core N100 NVMe SSD | Pfsense Linux Router

Name: Appliance Mini PC | Quad Core N100 NVMe SSD | Pfsense Linux Router
Brand: Compel Group
SKU: SING-00243
Price: 873.99 GBP
Availability: InStock

Stock Nr:

SKU:

Appliance Mini PC | Quad Core N100 NVMe SSD | Pfsense Linux Router - Image 1

1 / 4

£873.99inc VAT

Colori5-1135G7 DDR4

BundleSelect an option

Quantity

Appliance Mini PC | Quad Core N100 NVMe SSD | Pfsense Linux Router

£873.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Is this hardware compatible with pfSense and OPNsense?: Yes, the six network ports use Intel i225V or i226V 2.5GbE controllers that are recognised directly by pfSense, OPNsense, and OpenWrt. It boots from either the internal M.2 NVMe slot or a 2.5-inch SATA drive. The system supports standard UEFI and PXE network booting straight out of the box.

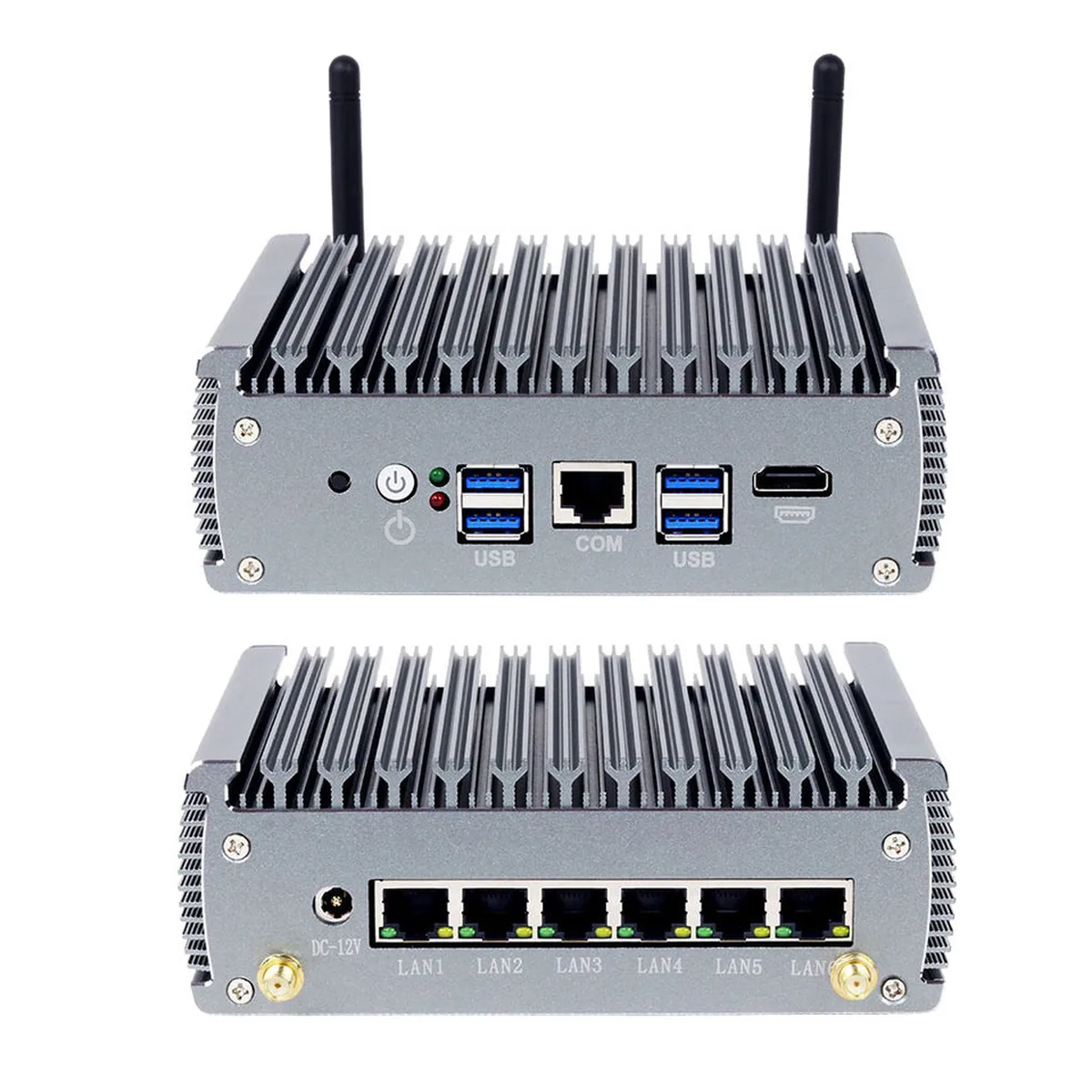

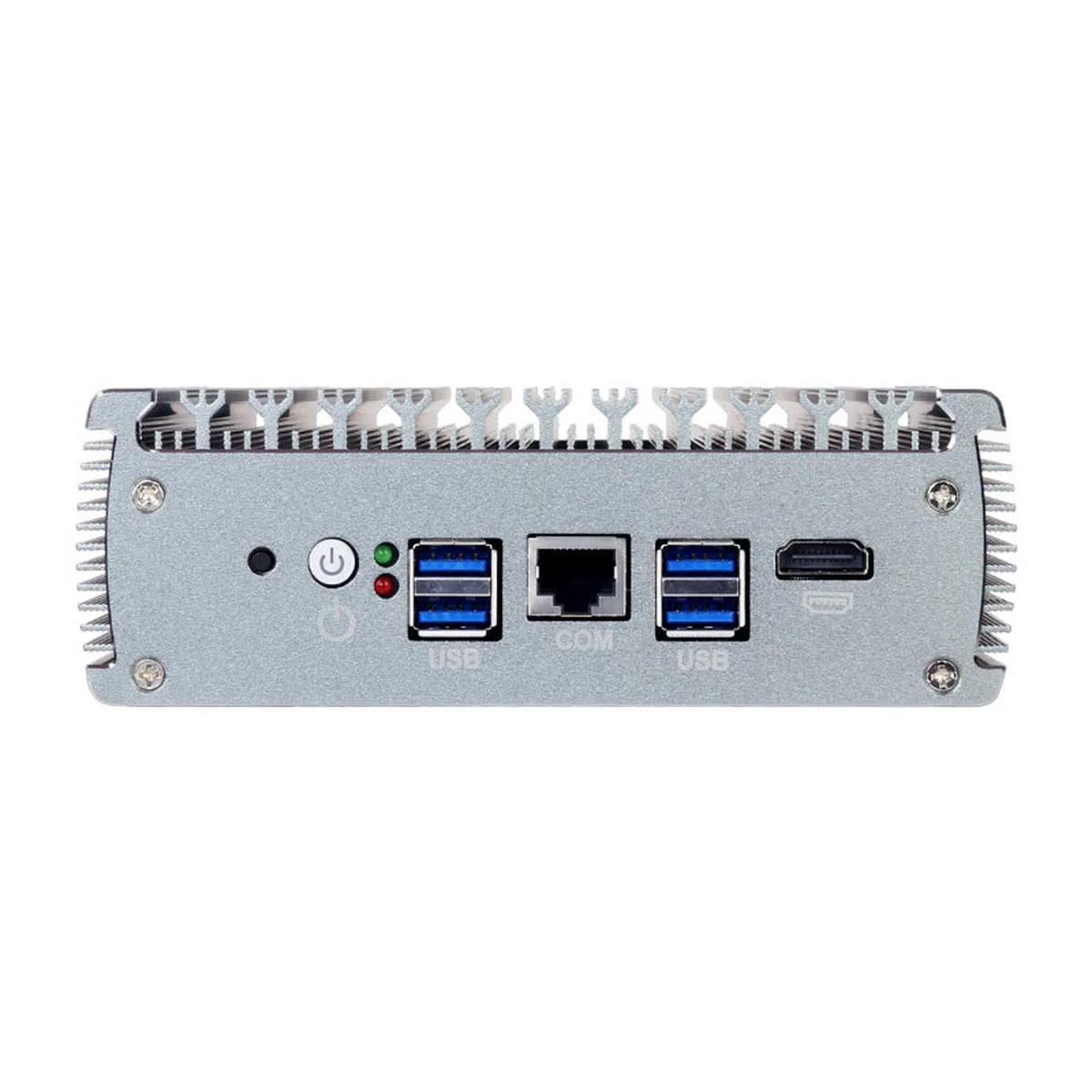

What network throughput and ports are fitted on the rear panel?: The rear panel carries 6 separate RJ45 Ethernet ports driven by Intel 2.5GbE chips alongside a 12V DC barrel power jack. The front panel adds 2 USB 3.0 sockets, an HDMI display port, and a COM serial connection for console management. It gives you dedicated physical interfaces for WAN, LAN, DMZ, and multiple isolated subnets.
Can this unit run Proxmox to host a virtual firewall alongside other network tools?: Yes, processors like the quad-core Intel N100 or Core i5 support hardware virtualisation (VT-x) and 64-bit Linux hypervisors like Proxmox VE. The dual SODIMM DDR4 slots let you add plenty of RAM to run a firewall alongside a separate DNS sinkhole or VPN server. The passive metal chassis keeps it cool while running silent in a server rack or cupboard.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £873.99

This product

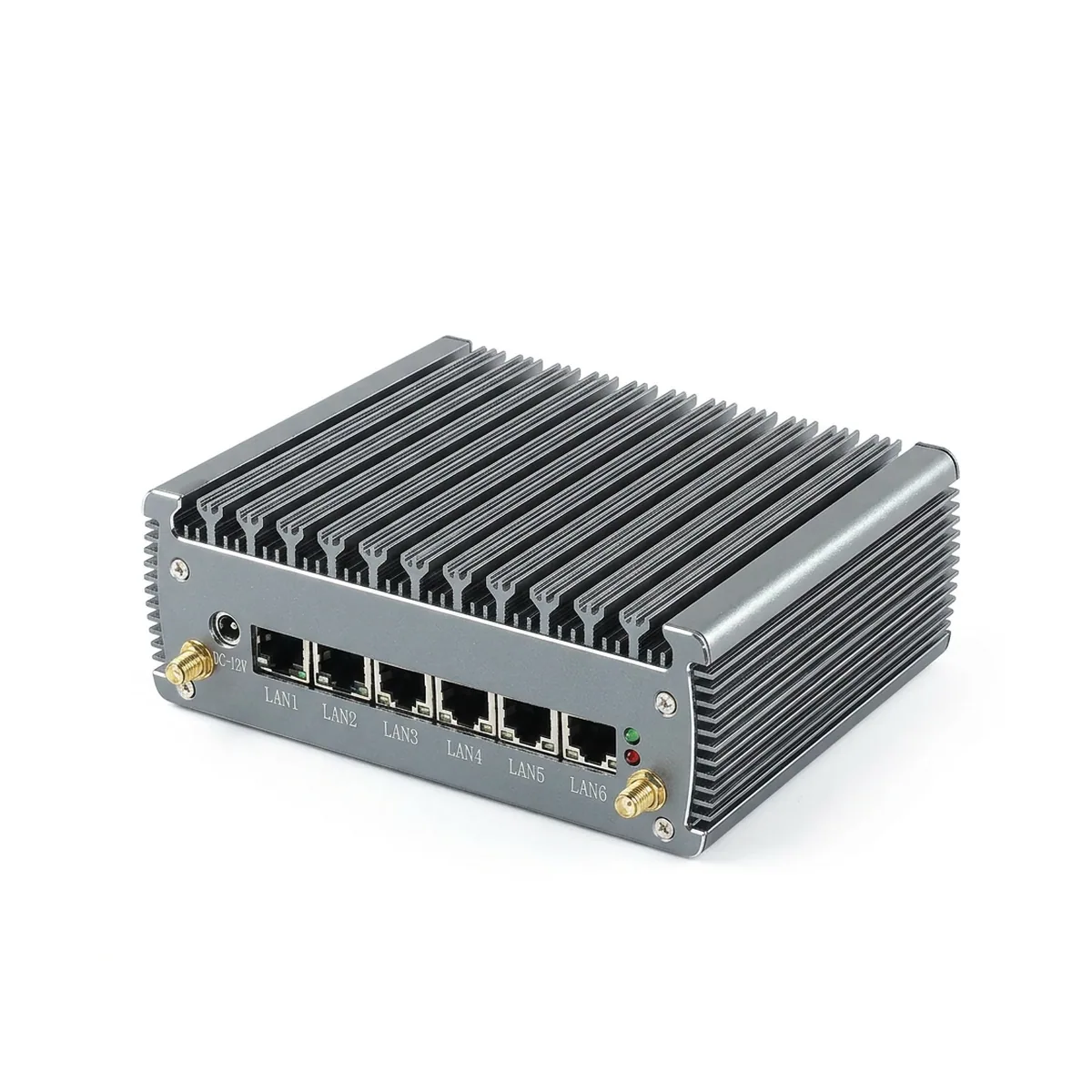

Rear panel of Appliance Mini PC showing six Ethernet ports, two antenna connectors, and a DC power input.

Appliance Mini PC | Quad Core N100 NVMe SSD | Pfsense Linux Router

Price: £873.99
Rating: Not rated
Sold: 2+
Stock: In stock

You're viewing this

Alternative

Top finned heatsink and side connection ports on a black Appliance Mini PC.

Appliance Mini PC | Quad 2.5G LAN i226 | Fanless N100 pfSense Router

Price: £774.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Alternative

Appliance Mini PC | 6x 2.5GbE LAN N305 | Pfsense OPNsense Router

Price: £591.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Appliance Mini PC | Dual RS232 Serial COM | N100 4-Port GbE Barebone Box

Price: £405.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Appliance Mini PC | Fanless Dual 2.5G 2xSATA | Intel N305 NAS Server

Price: £680.99
Rating: 5.0(2)
Sold: 4+
Stock: In stock

View

Alternative

Appliance Mini PC | Fanless Intel N355 DDR5 | 4x2.5GbE Dual NVMe NAS

Price: £603.99
Rating: 5.0(4)
Sold: 15+
Stock: In stock

View

Alternative

Appliance Mini PC | 2x NVMe DDR5 3x4K Output | Proxmox NAS Router Box

Price: £532.99
Rating: 5.0(1)
Sold: 5+
Stock: In stock

View

Alternative

Appliance Mini PC showing front panel with USB, video outputs, power button, and top heat sink fins.

Appliance Mini PC | Core i3-N305 DDR5 | 2.5G LAN Home Server

Price: £713.99
Rating: 4.9(13)
Sold: 144+
Stock: In stock

View

Alternative

Side panel of Appliance Mini PC showing DC power input jack and honeycomb ventilation holes.

Appliance Mini PC | 1U Rackmount 10x 1GbE | Core i7 10510U Router

Price: £563.99
Rating: Not rated
Sold: 12+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This firewall appliance mini pc packs processors from the Intel N100 up to Core i7 into a compact, passively cooled chassis. With multiple high-speed network interfaces, it acts as a silent router, perimeter gateway, or secure edge node for business networks and home labs. Features and Benefits - Aluminum ribbed enclosure with zero moving parts - Operates completely silent on your desk or rack while preventing mechanical fan breakdowns - Four 2.5GbE network ports on discrete Intel controllers - Assigns dedicated WAN, LAN, and isolated guest subnets without bottlenecking your fiber speeds - M.2 NVMe solid-state drive slot - Loads routing tables fast and keeps detailed traffic logs without slowdowns - Broad operating system compatibility - Runs pfSense, OPNsense, OpenWrt, and standard Linux distributions right out of the box Applications - Small office network security gateways handling VPN tunnels, content filtering, and intrusion prevention - Smart home network control centers isolating smart devices on dedicated virtual local networks - Remote branch offices needing a quiet, low-draw router that stays online through extended power spikes

RAM Capacity: 8 GB. Processor Options: Intel N100 / Core i3-1135G4 / Core i5-1135G7 / Core i7-1165G7. Storage Interface: M.2 NVMe SSD. Cooling System: Fanless Passive Cooling. Device Type: Firewall Appliance Mini PC. Supported Operating Systems: pfSense, OpenWrt, Linux, Windows 10, Windows 11. Dimensions: 178 x 126 x 55 mm. Weight: 1.2 kg. Power Input: DC 12V/5A External Power Adapter. Storage Capacity: 128GB M.2 NVMe PCIe SSD. Network Ports: 4x Intel I226-V 2.5GbE RJ45 Ports. OS & Software Compatibility: pfSense, OPNsense, OpenWrt, Linux, Windows 10/11. Throughput Rating: Up to 2.5 Gbps Firewall Routing Throughput. Console Port: 1x RJ45/Cisco Standard RS-232 Console. Device Type: Firewall Appliance Mini PC. Expansion: 1x Mini-PCIe for 4G/WiFi Module with SIM Slot. Installed Memory: 8GB DDR4 SO-DIMM. Processor Options: Intel N100 / Core i3-1135G4 / i5-1135G7 / i7-1165G7. Thermal Management: Fanless Aluminum Extrusion Chassis. Q: What processors and storage standards are used in this firewall appliance mini pc? A: Configuration options include the Intel N100 up through the 11th Gen Core i7-1165G7. Storage runs on an M.2 NVMe slot, which delivers read speeds up to 3500 MB/s for fast log writes.. Q: How does the hardware hold up under continuous 24/7 network routing? A: The thick finned aluminum case absorbs heat directly from the CPU without needing a noisy fan. Because no dust collects on heat sinks or blades, the system runs safely without thermal throttling.. Q: Which routing platforms and desktop operating systems can I install? A: The network interfaces work right out of the box with pfSense, OPNsense, and OpenWrt. It also boots standard Linux builds and Windows 10 or 11 for basic workstation use.. Q: What warranty terms back this network hardware? A: We back the unit with a three-year hardware warranty covering the chassis, ports, and logic board. If an internal part stops working, we fix or swap the hardware.. Q: Why choose this dedicated box instead of a commercial consumer router? A: You get full control over your firewall software with enough computing power to inspect packets and run VPN tunnels at multi-gigabit speeds. There are no software licensing fees or forced cloud accounts tied to the box..
