1U Firewall Appliance | 4x 10GbE SFP+ | 5x 2.5GbE LAN

Name: 1U Firewall Appliance | 4x 10GbE SFP+ | 5x 2.5GbE LAN
Brand: Compel Group
SKU: SING-00310
Price: 376.99 GBP
Availability: InStock

Stock Nr:

SKU:

1U Firewall Appliance | 4x 10GbE SFP+ | 5x 2.5GbE LAN - Image 1

1 / 6

£376.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

1U Firewall Appliance | 4x 10GbE SFP+ | 5x 2.5GbE LAN

£376.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What operating systems can I install on this 1U appliance?: The board runs standard x86-64 operating systems without proprietary drivers. It fully supports firewall platforms like OPNsense and pfSense, alongside Linux distributions such as Ubuntu Server, Debian, and Proxmox VE. You can install your chosen OS directly via a bootable USB drive.
What network ports are fitted on the front panel?: This unit features four 10GbE SFP+ optical cages alongside five 2.5GbE RJ45 ethernet ports. That gives you nine independent network interfaces for multi-WAN failover, dedicated LAN segments, and high-speed fibre uplinks. You also get integrated hardware support for fast packet handling across all ports.
What internal storage drive options does the chassis support?: You can fit up to four storage drives inside the 1U case. It has two M.2 NVMe slots (M-key) directly on the board and mounting points for two standard 2.5-inch SATA SSDs or hard drives. This setup lets you run your firewall OS from an M.2 drive while keeping 2.5-inch disks for system logs and caching.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £376.99

This product

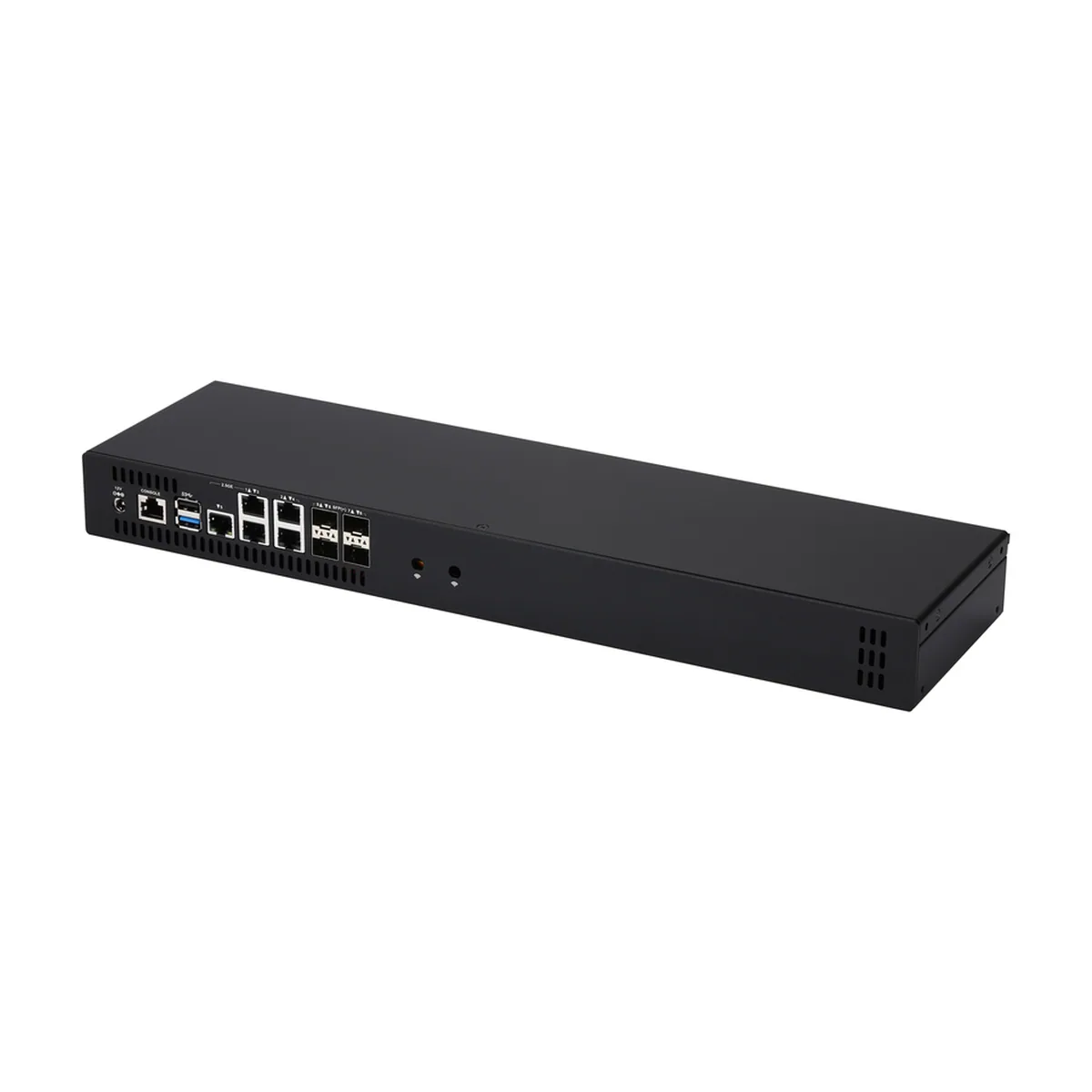

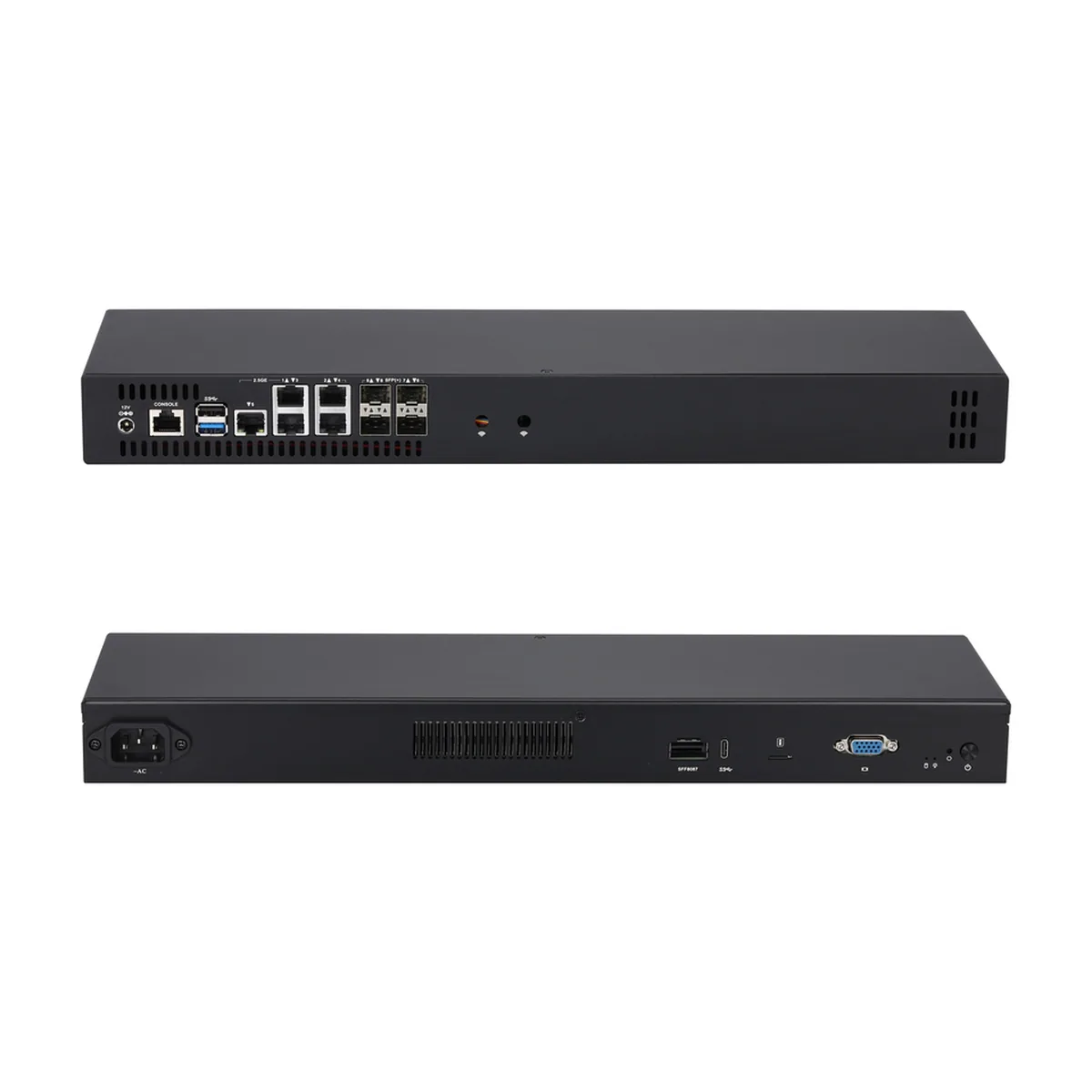

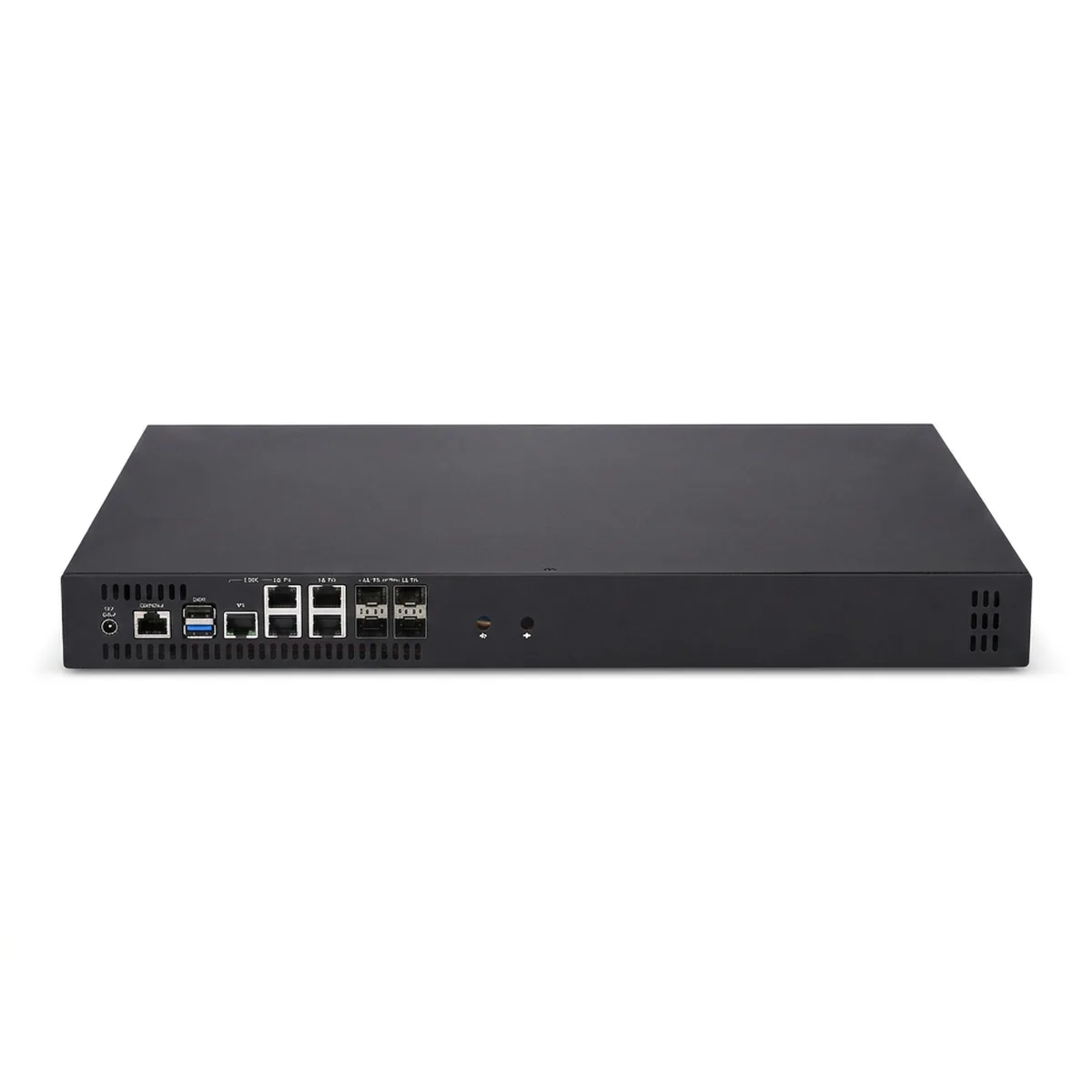

Front and rear views of a black 1U Firewall Appliance showing network ports, power input, and VGA connector.

1U Firewall Appliance | 4x 10GbE SFP+ | 5x 2.5GbE LAN

Price: £376.99
Rating: Not rated
Sold: 2+
Stock: In stock

You're viewing this

Alternative

Front and rear views of a rackmount Firewall Appliance with Ethernet ports, power input, and dual cooling fans.

Firewall Appliance | 1U 2U Rackmount Server | Intel Core Router PC

Price: £740.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | 6-LAN 2x 10GbE SFP+ | Core i3/i5/i7 Router

Price: £696.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Rear panel of a 1U Firewall Appliance showing VGA, SIM slots, dual USB ports, and DC power input.

1U Firewall Appliance | 4x 10G SFP+ 6x 1G LAN | Intel Atom

Price: £913.99
Rating: 3.7(3)
Sold: 28+
Stock: In stock

View

Alternative

1U Firewall Appliance | Up to 10 LAN Ports | Rackmount Network Server

Price: £379.99
Rating: Not rated
Sold: 8+
Stock: In stock

View

Alternative

1U Firewall Appliance | 9.5in Rackmount | Intel N150 Quad 4x 2.5GbE

Price: £728.99
Rating: 5.0(4)
Sold: 49+
Stock: In stock

View

Alternative

1U Firewall Appliance | Multi-Port Intel LAN | 1U Rackmount Server

Price: £379.99
Rating: 4.0(5)
Sold: 33+
Stock: In stock

View

Alternative

1U Firewall Appliance Mini PC | Intel Core & Celeron | 1U Rackmount Server

Price: £435.99
Rating: 1.0(1)
Sold: 4+
Stock: In stock

View

Alternative

1U Firewall Appliance Mini PC | Core i7-13700 10G SFP+ | 6 LAN pfSense Server

Price: £866.99
Rating: Not rated
Sold: -
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This 1U rack-mount firewall server runs on an Intel Denverton processor. It gives you four 10Gb SFP+ ports alongside five 2.5GbE LAN jacks to handle multi-gigabit routing, WAN failover, and local network distribution. Features and Benefits - Intel Denverton processor - Speeds up VPN throughput and network routing in pfSense or OPNsense. - Four 10G SFP+ cages and five 2.5G ports - Plugs straight into 10Gb fiber switches and connects high-bandwidth copper drops without extra transceivers. - Dual DDR4 ECC SODIMM slots - Catches and fixes memory errors while running 24/7 routing tasks and complex firewall rules. - 1U rack-mount metal case with built-in cooling - Mounts directly into standard server cabinets without shelf brackets. Applications - Main router and packet filtering firewall for office networks running OPNsense or pfSense. - WireGuard and IPsec VPN concentration for remote offices and field workers. - Hypervisor host running Proxmox VE to house network services, a pi-hole DNS container, and test networks.

Processor: Intel Atom C3758R / C3808 / C3908. Processor Base Frequency: 2.2 GHz / 2.4 GHz / 2.2 GHz. Operating System Compatibility: Ubuntu, OPNsense, pfSense, Linux. Device Type: Firewall Appliance. Ethernet Ports: 5 x 2.5 GbE RJ45. Form Factor: 1U Rackmount Mini PC. SFP Ports: 4 x 10 GbE SFP+. Chassis Dimensions: 430 x 250 x 44.5 mm (1U Standard). Case Material: Galvanized Steel and Aluminum Alloy. Power Supply: Internal 100-240V AC 50/60Hz, 150W PSU. 10GbE Network Ports: 4x 10GbE SFP+. 2.5GbE Network Ports: 5x 2.5GbE RJ45 LAN (Intel i225-V/i226-V). Console Interface: 1x RJ45 / RS-232 Serial Console Port. Storage Interface: 1x M.2 NVMe SSD slot, 2x 2.5-inch SATA SSD/HDD bays. USB Ports: 2x USB 3.0, 2x USB 2.0. Operating System Compatibility: OPNsense, pfSense, Ubuntu Linux, VyOS, OpenWrt. Operating Temperature: 0°C to 50°C. Cooling System: Active Cooling with Internal Dual PWM Fans. Form Factor: 1U Rackmount Firewall Appliance Mini PC. Memory Support: Up to 64GB DDR4 ECC/Non-ECC SODIMM. Processor Base Frequency: 2.0 GHz - 2.4 GHz. Processor Options: Intel Atom Denverton C3758R / C3808 / C3908. Q: What are the key features of the QOTOM Intel Denverton C3758R C3808 C3908 1U Firewall Appliance Router 4x10GbE SFP+ 5x2.5GbE LAN Ubuntu OPNsense VPN Server? A: The QOTOM Intel Denverton C3758R C3808 C3908 1U Firewall Appliance Router 4x10GbE SFP+ 5x2.5GbE LAN Ubuntu OPNsense VPN Server offers professional-grade performance with premium construction, designed for reliability and ease of use.. Q: What material is this product made from? A: This product features high-quality materials designed for durability and long-lasting performance.. Q: Is this product suitable for professional use? A: Yes, this product is designed for both professional and home use, meeting high standards for performance.. Q: Does this product come with a warranty? A: Yes, this product includes a manufacturer warranty. Check product documentation for specific terms.. Q: What is included in the package? A: The package includes the QOTOM Intel Denverton C3758R C3808 C3908 1U Firewall Appliance Router 4x10GbE SFP+ 5x2.5GbE LAN Ubuntu OPNsense VPN Server along with any standard accessories. See specifications for complete list..
