1U Firewall Appliance Mini PC | Core i7-13700 10G SFP+ | 6 LAN pfSense Server

Name: 1U Firewall Appliance Mini PC | Core i7-13700 10G SFP+ | 6 LAN pfSense Server
Brand: Compel Group
SKU: SING-00300
Price: 866.99 GBP
Availability: InStock

Stock Nr:

SKU:

1U Firewall Appliance Mini PC | Core i7-13700 10G SFP+ | 6 LAN pfSense Server - Image 1

1 / 6

£866.99inc VAT

Quantity

1U Firewall Appliance Mini PC | Core i7-13700 10G SFP+ | 6 LAN pfSense Server

£866.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Will this 1U rackmount appliance run pfSense or OPNsense?: Yes, the 13th Gen Intel Core i7-13700 processor fully supports BSD and Linux firewall systems like pfSense and OPNsense. It has 16 processing cores and a 65W TDP base, providing ample headroom for heavy packet filtering, traffic shaping, and encrypted VPN tunnels.
What network interfaces and ports come built into this unit?: You get 6 Intel i226-V 2.5G Ethernet ports alongside 2 10G SFP+ optical cage slots for high-speed fiber or DAC connections. The front panel also includes an RJ45 Cisco-style serial console port and 2 USB 3.2 ports for local terminal management.
How do you mount this unit into a standard server cabinet?: The appliance uses a standard 1U metal rackmount chassis designed to fit into any standard 19-inch server rack. Simply attach the included rack ears to the sides and secure the unit to your cabinet rails using standard M6 cage nuts and bolts.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £866.99

This product

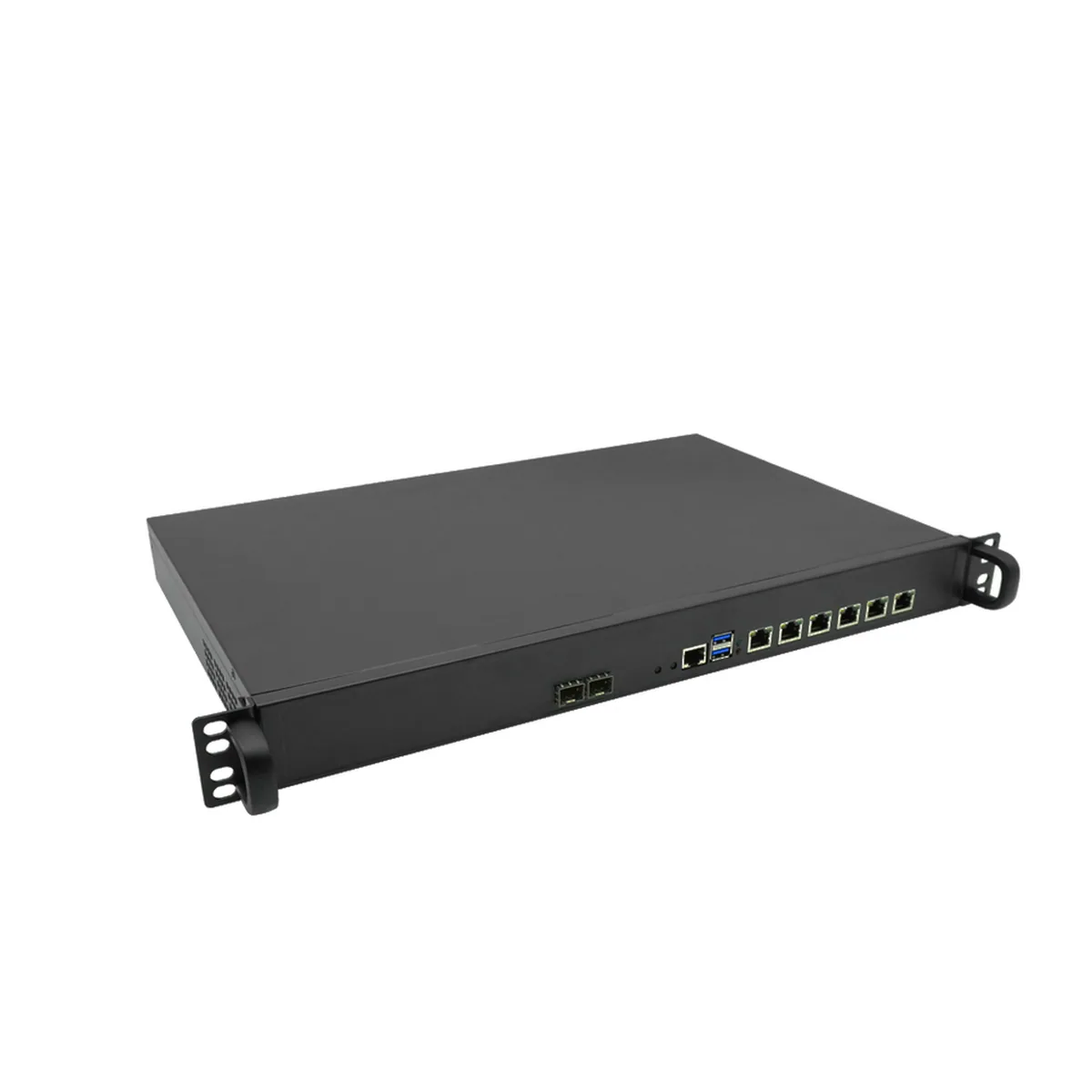

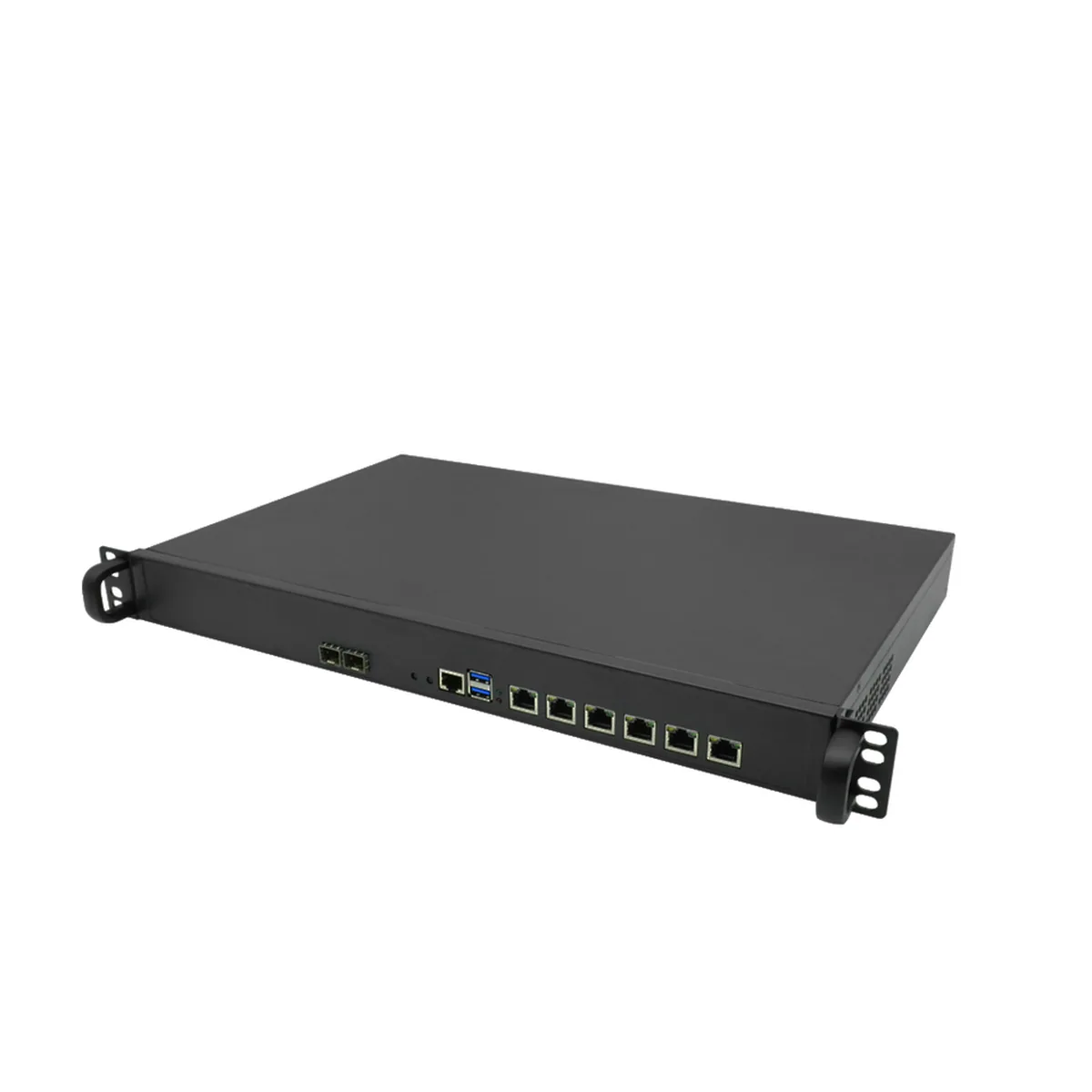

Front view of a 1U Firewall Appliance Mini PC with Ethernet, SFP, and USB ports.

1U Firewall Appliance Mini PC | Core i7-13700 10G SFP+ | 6 LAN pfSense Server

Price: £866.99
Rating: Not rated
Sold: -
Stock: In stock

You're viewing this

Alternative

Front view of a 1U Firewall Appliance showing Ethernet, SFP, USB, and console ports.

1U Firewall Appliance | 9.5in Rackmount | Intel N150 Quad 4x 2.5GbE

Price: £728.99
Rating: 5.0(4)
Sold: 49+
Stock: In stock

View

Alternative

1U Firewall Appliance Mini PC | Intel Core & Celeron | 1U Rackmount Server

Price: £435.99
Rating: 1.0(1)
Sold: 4+
Stock: In stock

View

Alternative

Rear perspective of a black 1U Firewall Appliance showing cooling fans, power socket, and side ventilation.

1U Firewall Appliance | Intel N100 / Core 3-N350 | DDR5 Network Server

Price: £1,153.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | 6-LAN 2x 10GbE SFP+ | Core i3/i5/i7 Router

Price: £696.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | 2x 10G SFP+ 6x GbE | Rackmount VPN Router

Price: £1,147.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | 4x 10GbE SFP+ | 5x 2.5GbE LAN

Price: £376.99
Rating: Not rated
Sold: 2+
Stock: In stock

View

Alternative

Firewall Appliance | 1U 2U Rackmount Server | Intel Core Router PC

Price: £740.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Front and side perspective of a black 1U Firewall Appliance showing network ports and cooling vents.

1U Firewall Appliance | Intel N97/N150 | 4x 2.5GbE LAN

Price: £718.99
Rating: 5.0(2)
Sold: 3+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

Built for standard server cabinets, this 1U network appliance pairs dual 10G optical uplinks with 12th and 13th Gen desktop processors. Two SFP+ cages and six gigabit ports supply the physical connections needed for packet inspection and routing. Features and Benefits - Dual 10G SFP+ ports - Connects directly to fiber modules or DAC cables for fast multi-gigabit data transfers. - Six Intel gigabit LAN controllers - Gives you separate physical ports to divide guest lines, office machines, and DMZ devices. - 19-inch 1U steel chassis - Mounts directly into standard server racks and houses an integrated internal power supply. - Core i7 desktop processor - Maintains full speeds through live packet filters, Suricata rules, and encrypted VPN tunnels. Applications - Edge router running OPNsense or pfSense for branch offices and small businesses. - Central rack router managing VLAN boundaries, surveillance feeds, and managed switches. - Dedicated VPN gateway handling concurrent WireGuard or OpenVPN tunnels for remote staff.

Processor: Intel Core i7-13700. Processor Generation: 13th Gen Intel Core. Compatible Operating Systems: pfSense, OPNsense, Linux. Device Type: Firewall Appliance. Ethernet Ports: 6x RJ45 Gigabit LAN. Form Factor: 1U Rackmount / Mini PC. SFP Ports: 2x 10G SFP+. Dimensions: 440 x 250 x 44.5 mm (Standard 19-inch 1U). Weight: 4.2 kg. Chassis Material: Electro-galvanized Steel. Power Supply: Internal 100-240V AC 50/60Hz, 250W 1U Flex ATX PSU. Memory Capacity: 2x DDR4/DDR5 SO-DIMM slots, up to 64GB. Network Interfaces: 6x 1G/2.5G RJ45 LAN + 2x 10G SFP+ Ports. USB Interfaces: 2x USB 3.0, 2x USB 2.0. Firewall Software Compatibility: pfSense, OPNsense, Untangle, Sophos UTM, VyOS, Linux IPtables. Console Port: 1x RJ45/RS-232 Console Port. Cooling System: Redundant Dual Internal PWM Fans. Form Factor: 1U Rackmount Mini PC Appliance. Processor: Intel Core i7-13700 (16 Cores, 24 Threads, up to 5.2GHz). Storage Support: 1x M.2 NVMe 2280 SSD, 2x 2.5-inch SATA HDD/SSD bays. Q: What network interface configuration does this rack unit have? A: The front panel holds six gigabit Ethernet ports and two 10G SFP+ cages for fiber or DAC cables. It is powered by an Intel Core i7-13700 desktop-class processor with 16 cores.. Q: How well does this machine hold up in a standard server rack? A: It uses a 1U steel chassis that fits standard 19-inch server cabinets and includes mount ears. Dual ball-bearing internal fans provide direct airflow over the CPU heatsink to prevent throttling.. Q: Is this system compatible with standard open-source routing software? A: Yes, it boots directly from USB to run pfSense, OPNsense, VyOS, or Linux network stacks. The Intel network cards have native driver support in FreeBSD and modern Linux kernels.. Q: What does the warranty cover for this rackmount firewall? A: You get a full one-year warranty on the chassis, motherboard, and internal power supply. The support team handles board-level troubleshooting and sends replacements for defective hardware.. Q: Does this offer better throughput than a standard firewall appliance mini pc? A: Yes, standard mini units top out at 2.5GbE, while this rack system provides dual 10G SFP+ lanes for heavy inter-VLAN routing. The desktop i7-13700 CPU also handles multi-gigabit IDS/IPS packet inspection without slowing down your connection..
