1U Firewall Appliance | 4x 10G SFP+ 6x 1G LAN | Intel Atom

Name: 1U Firewall Appliance | 4x 10G SFP+ 6x 1G LAN | Intel Atom
Brand: Compel Group
SKU: SING-00237
Price: 913.99 GBP
Availability: InStock
Rating: 3.7 (3 reviews)

Stock Nr:

SKU:

1U Firewall Appliance | 4x 10G SFP+ 6x 1G LAN | Intel Atom - Image 1

1 / 2

£913.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

1U Firewall Appliance | 4x 10G SFP+ 6x 1G LAN | Intel Atom

£913.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Is the Intel Atom C3000 series suitable for pfSense or OPNsense?: Yes, these processors handle firewall tasks and VPN traffic very well. They include built-in hardware AES-NI instructions for line-rate IPsec and OpenVPN encryption. Even with multi-gigabit routing, the 8-to-16-core options keep CPU usage low.

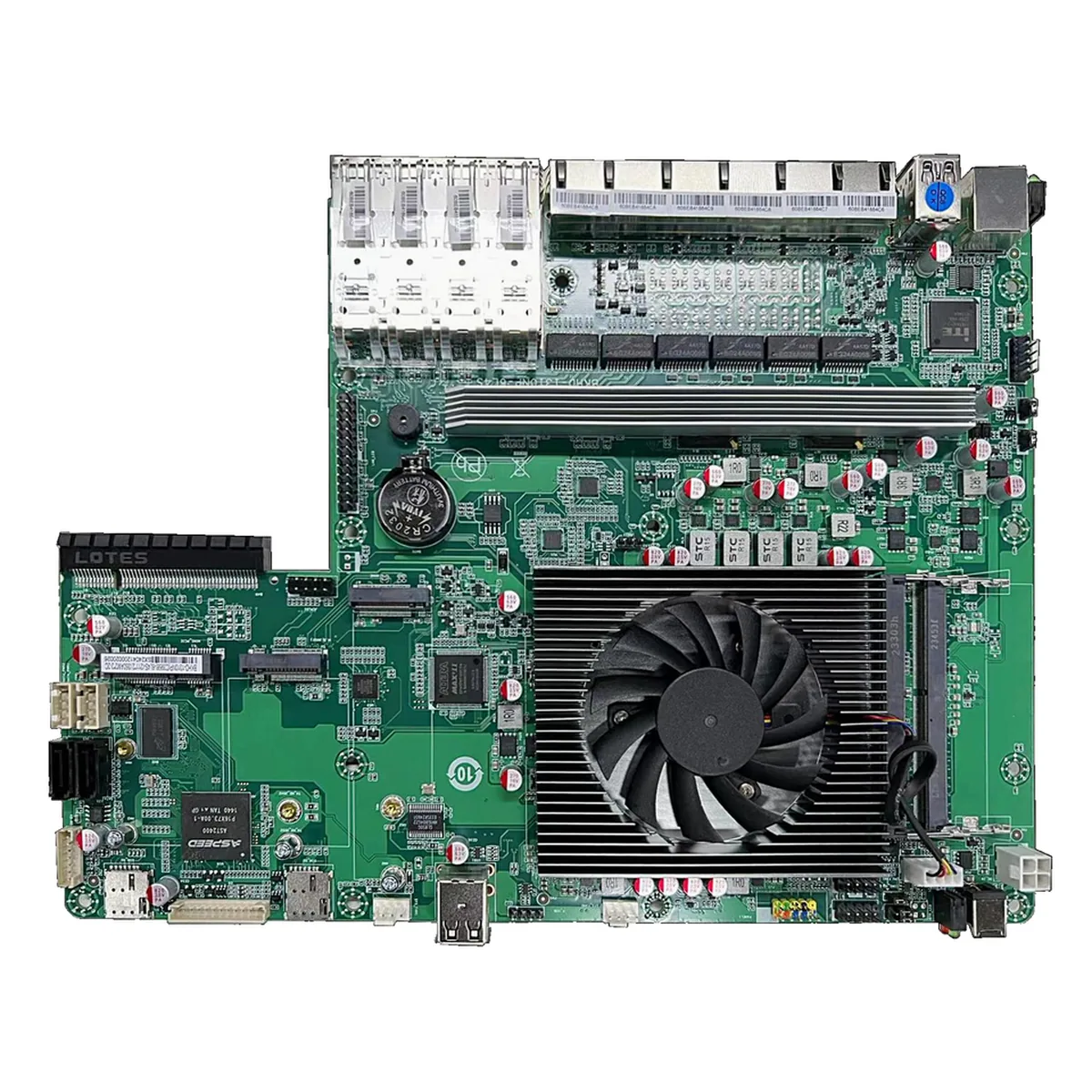

What network interface chips are onboard this unit?: It features an Intel X553 controller running 4 dedicated 10G SFP+ ports. Copper networking includes 4 Gigabit ports on an Intel i350 controller and 2 Gigabit ports on Intel i211 chips. That gives you 10 network interfaces total alongside a front RJ45 console port.
Can I run Proxmox VE or ESXi on this firewall appliance?: Yes, you can install both hypervisors directly onto this machine. The Atom C3000 chips support full Intel VT-x and VT-d virtualisation for clean network port pass-through. You can run a virtualised firewall alongside lightweight Linux containers or a secondary NAS operating system.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £913.99 · 3.7

This product

Rear panel of a 1U Firewall Appliance showing VGA, SIM slots, dual USB ports, and DC power input.

1U Firewall Appliance | 4x 10G SFP+ 6x 1G LAN | Intel Atom

Price: £913.99
Rating: 3.7(3)
Sold: 28+
Stock: In stock

You're viewing this

Alternative

Front and side view of a black 1U Firewall Appliance showing console, dual USB, and eight Ethernet ports.

1U Firewall Appliance | Up to 10 LAN Ports | Rackmount Network Server

Price: £379.99
Rating: Not rated
Sold: 8+
Stock: In stock

View

Alternative

Front and side perspective of a black 1U Firewall Appliance showing network ports and cooling vents.

1U Firewall Appliance | Intel N97/N150 | 4x 2.5GbE LAN

Price: £718.99
Rating: 5.0(2)
Sold: 3+
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel N150 4x 2.5GbE | 10G SFP+ Options

Price: £861.99
Rating: 4.7(3)
Sold: 17+
Stock: In stock

View

Alternative

1U Firewall Appliance | 6-LAN 2x 10GbE SFP+ | Core i3/i5/i7 Router

Price: £696.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Firewall Appliance | 1U 2U Rackmount Server | Intel Core Router PC

Price: £740.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | 2x 10G SFP+ 6x GbE | Rackmount VPN Router

Price: £1,147.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Rear perspective of a black 1U Firewall Appliance showing cooling fans, power socket, and side ventilation.

1U Firewall Appliance | Intel N100 / Core 3-N350 | DDR5 Network Server

Price: £1,153.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

1U Firewall Appliance | Intel Core i5/i7 | 6x 2.5GbE & Up to 4x 10G SFP+

Price: £1,222.99
Rating: Not rated
Sold: 3+
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

Powered by multi-core Intel Atom C3000 processors, this 1U rackmount firewall mini PC runs around the clock without drawing much power. It houses four 10G SFP+ fiber ports and six gigabit Ethernet jacks to handle local routing, traffic separation, and hardware-accelerated encryption. Features and Benefits - Intel Atom C-series CPU with hardware AES-NI - Powers through encrypted VPN tunnels and packet filtering without lowering your line speeds. - Four onboard 10G SFP+ slots - Moves multi-gigabit data directly between quick local subnets and storage servers. - Six gigabit LAN ports - Gives you separate physical ports for your guest networks, office gear, and smart devices. - Low-wattage hardware with two internal fans - Cuts electric use on 24/7 loads while keeping fan pitch quiet enough for studio racks. Applications - Main security router running OPNsense or pfSense for offices handling several site-to-site VPN links. - Homelab router handling high-speed data transfers between desktop workstations and 10Gbps local storage pools. - Branch-office router splitting tenant data across isolated Ethernet jacks and dedicated fiber runs.

Processor: Intel Atom C3758 / C3808 / C3958. Memory Type: DDR4. Storage Support: NVMe SSD. Network Interfaces: 4x 10GbE SFP+, 6x 1GbE RJ45. OS Compatibility: pfSense, OPNsense, Linux. Device Type: Firewall Appliance Mini PC. Form Factor: 1U Rackmount Mini PC. Dimensions: 440 x 300 x 44.5 mm. Chassis Material: Cold-rolled Steel (1U 19-inch Rack-mountable). Power Delivery: 100-240V AC Internal ATX Power Supply, 150W. Management Ports: 1 x RJ45 Console Port, 2 x USB 2.0, 1 x VGA. Network Interfaces: 4 x 10GbE SFP+, 6 x 1GbE Intel i210-AT RJ45. Software Compatibility: pfSense, OPNsense, OpenWrt, Proxmox, VMware ESXi, TrueNAS. Cooling Architecture: 3 x 4020 High-Speed Internal Cooling Fans. Form Factor: 1U Rack-mount Firewall Appliance Mini PC. Hardware Acceleration: Intel QuickAssist Technology (QAT), AES-NI. Internal Storage: 1 x M.2 2280 NVMe/SATA SSD, 2 x 2.5"/3.5" SATA3.0 Bays. Memory Slots & Type: 2 x DDR4 ECC/Non-ECC SODIMM/UDIMM, up to 64GB 2400MHz. Processor Options: Intel Atom C3758 / C3808 / C3958 (8 to 16 Cores, up to 2.0 GHz). Q: What storage and memory configurations does this system take? A: It features standard DDR4 memory slots that support ECC RAM, depending on your CPU choice between the Atom C3758, C3808, or C3958. For drive storage, you can fit an M.2 NVMe drive alongside 2.5-inch SATA disks.. Q: Can this unit act as a firewall appliance mini pc and a storage host at the same time? A: Yes, the multi-core Intel Denverton CPU and ten network interfaces easily handle virtual machines. You can run a dedicated OPNsense firewall in one VM while hosting TrueNAS on another.. Q: What kind of build materials make up the exterior? A: The housing is made from cold-rolled steel designed to bolt into standard 19-inch server racks. The front panel holds clear LED activity indicators, network jacks, and power buttons for fast maintenance.. Q: What happens if a part stops working during the warranty period? A: It comes with a standard 12-month hardware warranty that covers internal hardware defects. Technical support assists with diagnosing the fault and arranges replacement parts or unit servicing.. Q: Why choose this Atom-based build over a desktop computer for network tasks? A: This box pairs four 10G SFP+ ports with six dedicated 1GbE ports on a single board, removing the need for separate expansion cards. That integrated layout saves chassis space and gives you reliable throughput without card fitment issues..
