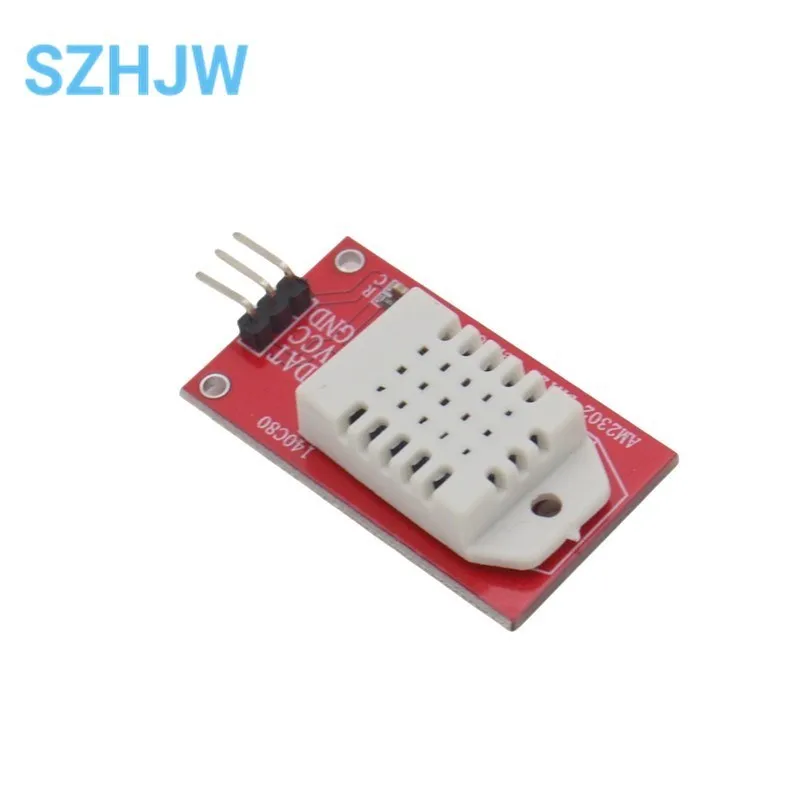

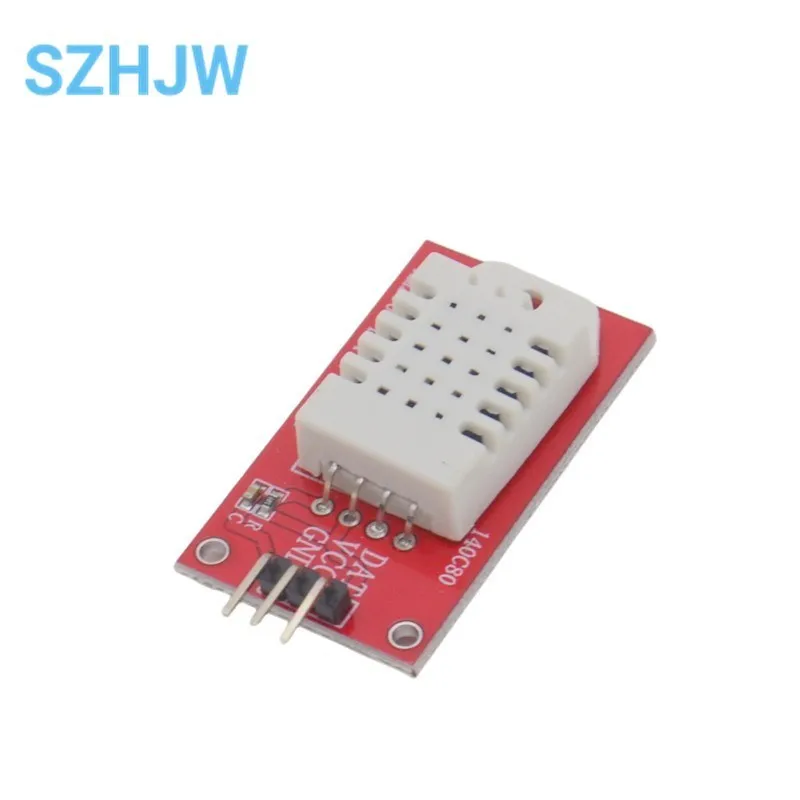

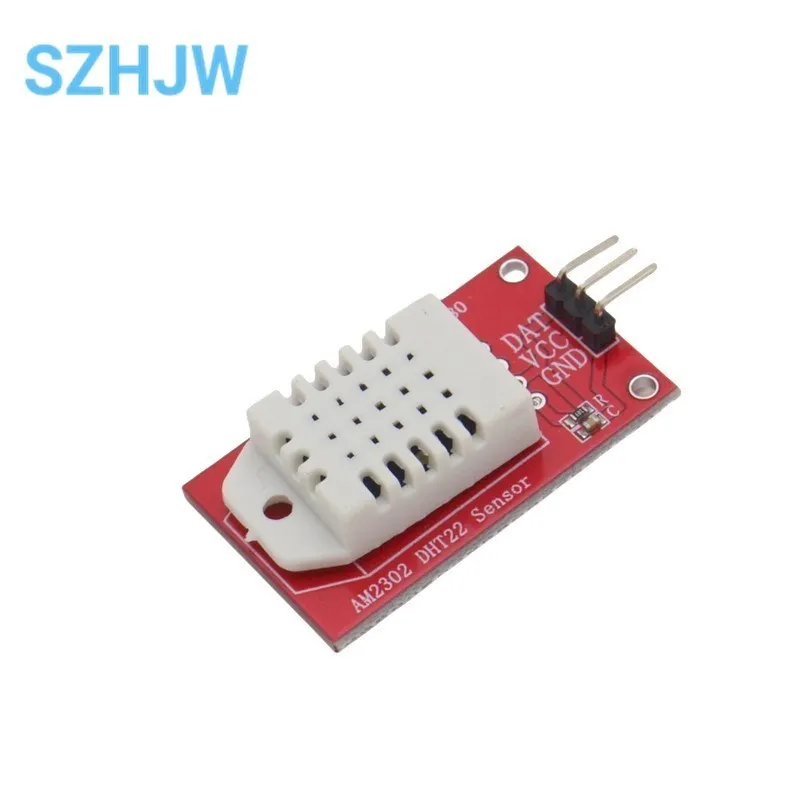

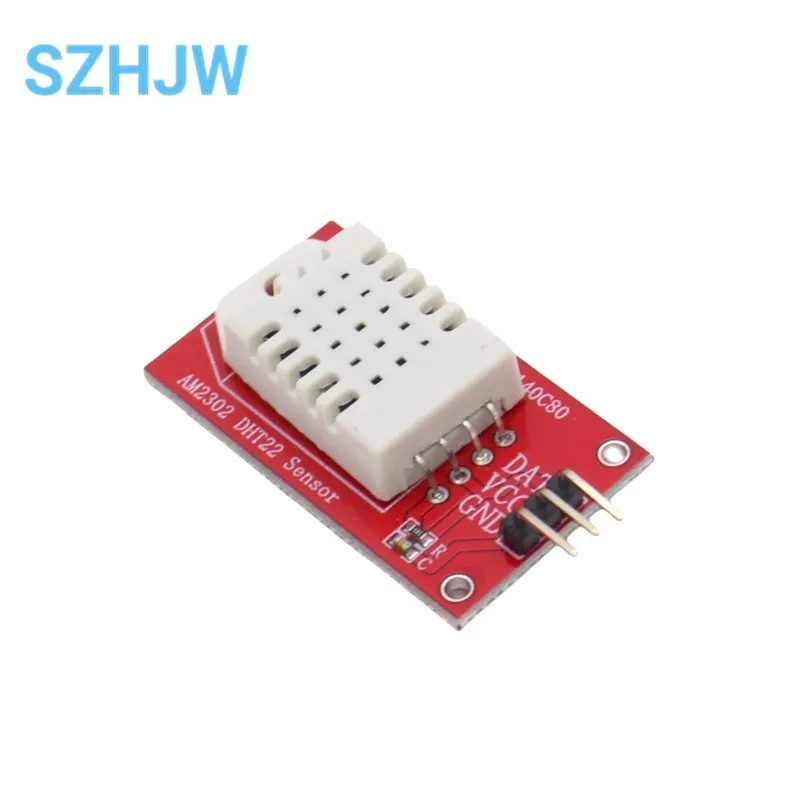

The AM2302 DHT22 digital temperature and humidity sensor module delivers precise environmental monitoring for your Arduino projects. It features a wide measurement range of -40°C to 80°C with ±0.5°C accuracy and 0-100% RH humidity sensing with ±2% accuracy, providing reliable data for demanding applications. Features and Benefits
- Digital Signal Output - Ensures stable, high-accuracy readings with strong anti-interference capabilities, superior to analog sensors.
- Wide Operating Range (-40°C to 80°C) - Enables reliable performance in extreme environments, from freezers to greenhouses.
- Integrated Capacitive Humidity Sensor - Provides fast response times and long-term stability for consistent humidity measurement.
- Pre-calibrated and Easy to Use - Comes ready to connect with a simple 3-pin interface, saving you setup and calibration time.
- Excellent Long-Term Stability - Maintains measurement accuracy over time, making it suitable for permanent installations. Applications
- Home Automation Systems - Monitor and control HVAC, dehumidifiers, or smart fans based on precise room conditions.
- Weather Stations and Environmental Loggers - Build professional-grade devices for tracking climate data with high accuracy.
- Greenhouse and Grow Room Management - Precisely regulate temperature and humidity levels for optimal plant health.
- Industrial Monitoring and Prototyping - Integrate into control systems for machinery, storage facilities, or product development.

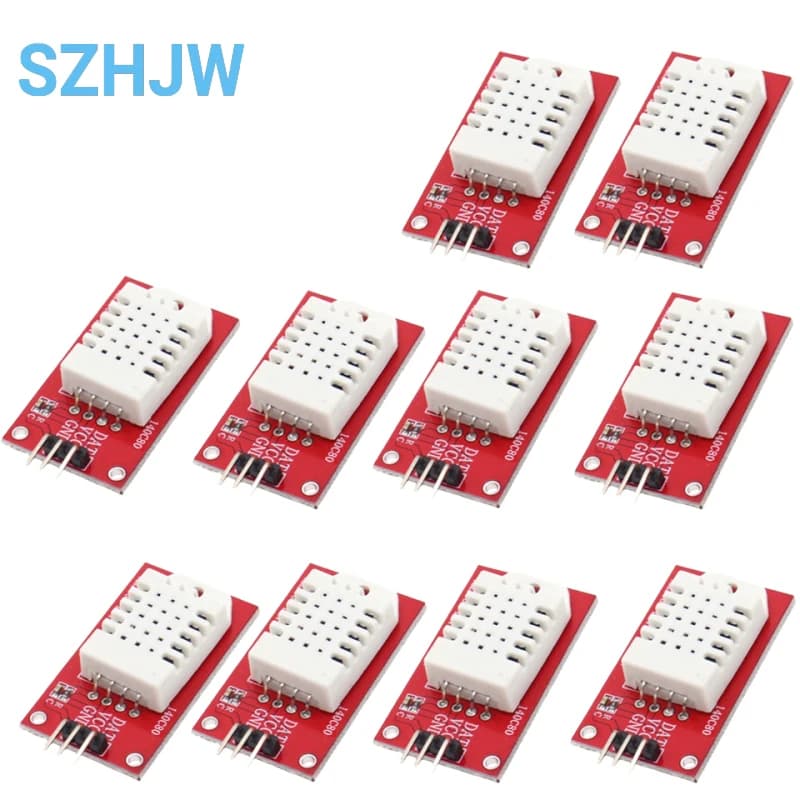

Module Dimensions: 27mm x 15mm x 7mm (approx.). Supply Voltage: 3.3V to 5.5V DC. Temperature Resolution: 0.1°C. Humidity Resolution: 0.1% RH. Connector Type: 2.54mm pitch pin header. Current Consumption: 1.5mA (measuring), 40µA (standby). Humidity Accuracy: ±2% RH (0% to 100% RH). Humidity Measurement Range: 0% to 100% RH. Interface: Digital Single-Bus. Package Quantity Options: 1, 5, 10 pieces. Pin Configuration: VCC, DATA, GND. Pin Count: 3. Sampling Period: ≥2 seconds. Sensor Model: AM2302 (DHT22). Sensor Type: Digital Temperature and Humidity. Temperature Accuracy: ±0.5°C. Temperature Measurement Range: -40°C to +80°C. Cable Length: Not integrated; requires external connection to host board. Module Dimensions: Approximately 22mm x 28mm x 8mm (excluding pins). Supply Voltage: 3.3V to 5.5V DC. Humidity Measurement Range: 0% to 100% RH. Temperature Measurement Range: -40°C to +80°C. Interface: Single-wire digital serial interface. Compatibility: Arduino, Raspberry Pi, ESP8266, ESP32, and other microcontrollers. Humidity Measurement Accuracy: ±2% RH (typical, 0-100% RH). Humidity Resolution: 0.1% RH. Temperature Measurement Accuracy: ±0.5°C (typical). Temperature Resolution: 0.1°C. Operating Environment: Non-condensing. Current Consumption: 1.5mA (measuring), 40µA (standby). Data Format: 40-bit digital output. Long-term Stability: < ±1% RH / year (humidity sensor). Pin Count: 3-pin (VCC, DATA, GND). Pin Spacing: 2.54mm (0.1 inch) standard breadboard spacing. Sampling Period: 2 seconds (minimum). Sensor Model: AM2302 (DHT22). Sensor Type: Digital Temperature and Humidity Sensor. Q: What are the specifications of the AM2302 DHT22 sensor module? A: The AM2302 DHT22 is a digital temperature and humidity sensor with a temperature range of -40°C to 80°C and an accuracy of ±0.5°C. It measures humidity from 0% to 100% RH with ±2-5% accuracy and provides a digital signal output for easy integration with microcontrollers like Arduino.. Q: How durable is the DHT22 sensor module for long-term projects? A: The DHT22 sensor module is built with a robust AM2302 sensor element, offering good long-term stability and reliability for indoor environmental monitoring. Its digital output is resistant to noise, making it suitable for continuous use in DIY electronics and IoT projects.. Q: Can I use this DHT22 sensor module with an Arduino Uno? A: Yes, this DHT22 sensor module is fully compatible with Arduino Uno and other popular development boards. It uses a simple single-wire digital interface, and numerous open-source libraries are available to get you started with temperature and humidity logging quickly.. Q: Does this product come with a warranty or guarantee? A: This product is backed by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty duration and terms, please refer to the seller's policy at the time of purchase.. Q: Is this AM2302 DHT22 sensor module a good value for the price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, and purchasing a multi-pack provides cost savings for multiple projects or replacements..
