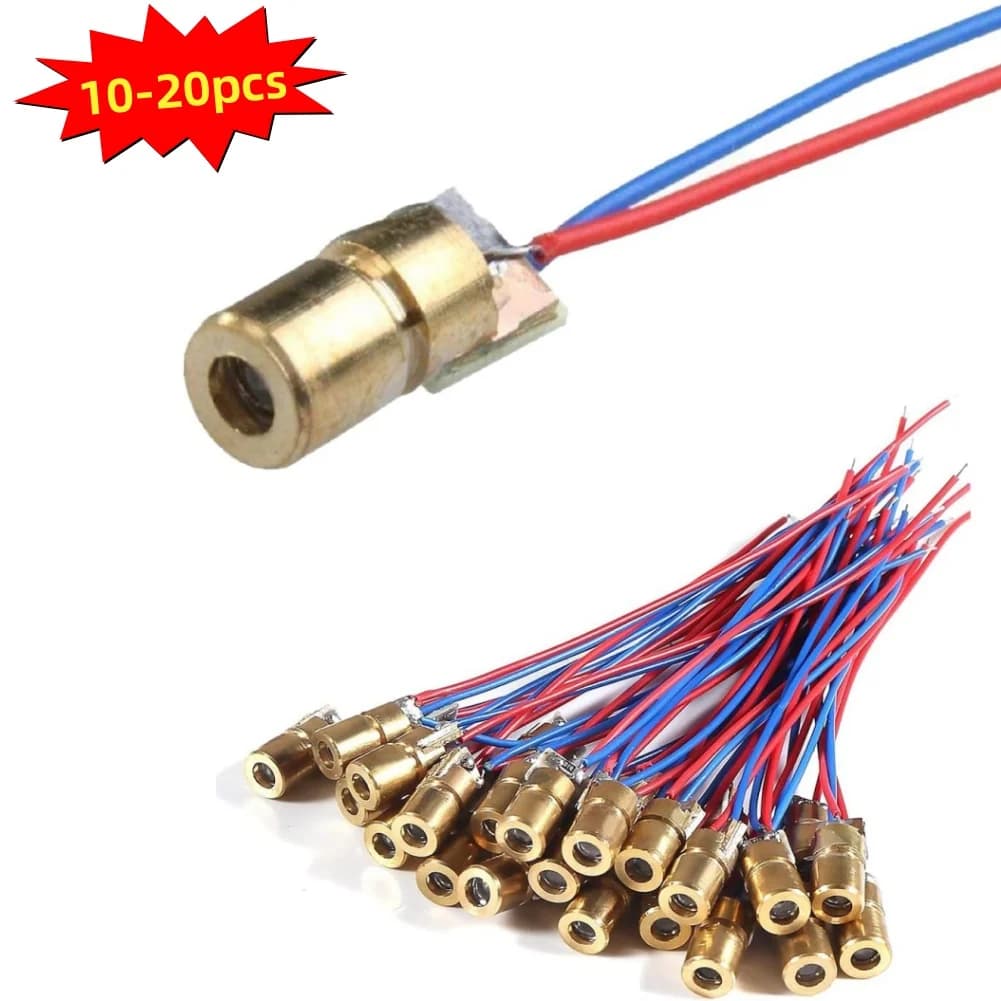

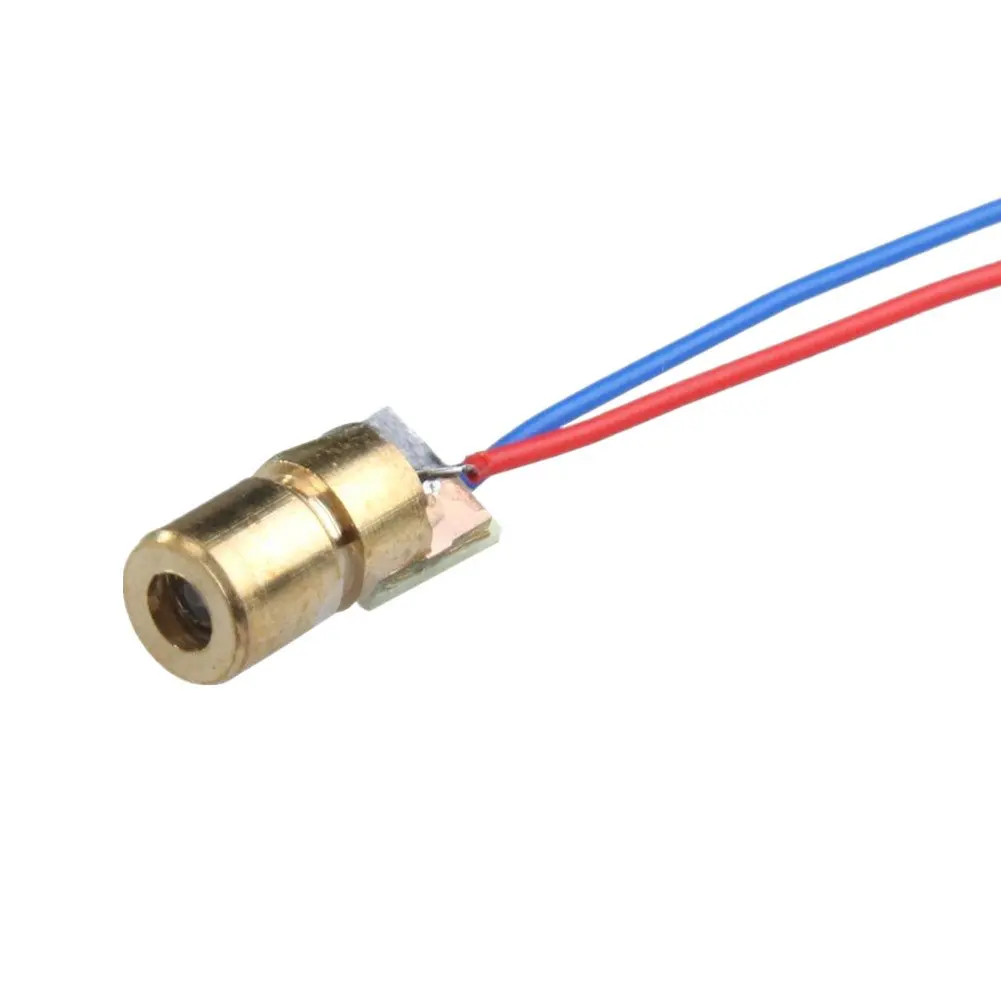

This 10/20pcs Adjustable Mini Laser Pointer Diode set delivers a precise 650nm red dot with a 5mW output, powered by a stable 3V/5V circuit. The copper head ensures superior heat dissipation for consistent performance and extended diode life, making it a reliable core component for various optical projects. Features and Benefits
- Adjustable Focus Copper Head - Provides precise beam control from a sharp point to a wider line and superior thermal management for stable, long-term operation.
- 650nm Wavelength 5mW Output - Emits a highly visible red laser dot ideal for alignment and targeting applications in various lighting conditions.
- Compact 3V/5V Circuit Module - Offers flexible power integration for easy installation into existing electronics, DIY projects, or custom housings.
- Durable Diode Construction - Ensures reliable performance as a drop-in replacement or primary laser source for technical and hobbyist use.
- Multi-Pack Value (10 or 20 pcs) - Provides excellent value for prototyping, batch production, or maintaining a ready inventory of spares. Applications
- Precision Alignment Tools - Integrate into custom jigs, levels, or machinery for accurate positioning in woodworking, machining, or construction.
- DIY Electronics and Robotics - Create laser sights for projects, enhance educational kits, or build custom pointing devices and sensors.
- Presentation and Educational Aids - Construct professional-grade laser pointers for lectures or integrate into interactive science demonstrations.
- Optic and Hobbyist Projects - Serve as the core component in laser engravers, light shows, or other creative technical builds. Note
Handle with care. Laser products are intended for responsible use by knowledgeable individuals. Avoid direct eye exposure.
Dimensions (Module): ~12 x 8 mm (diameter x length, typical). Module Head Material: Copper. Laser Color: Red. Optical Output Power: ≤5 mW. Operating Voltage: 3 V to 5 V DC. Storage Temperature: -20°C to +60°C. Beam Adjustment: Yes. Beam Divergence: <1.5 mrad (typical for module). Laser Wavelength: 650 nm. Lens Diameter: 5 mm (standard for module). Operating Current: ~20 mA (typical at 3V). Operating Temperature: -10°C to +40°C. Package Quantity: 10 or 20 pcs. Pin Configuration: 3-pin (VCC, GND, Signal). Beam Diameter at Aperture: ~2.0 mm (typical for 5mW 650nm). Laser Wavelength: 650 nm (Red). Module Diameter: ~12 mm (inferred from "copper head" description). Module Length: ~30 - 45 mm (inferred for integrated module). Wavelength Tolerance: ±10 nm (typical for 650nm diode). Housing Material: Copper (Head/Module Body). Forward Voltage (Vf): ~2.2V - 3.0V (typical for 650nm diode). Operating Voltage: 3V DC to 5V DC. Optical Output Power: ≤5 mW (Class 2 Laser Product). Module Interface: Electrical pins for soldering. Operating Temperature: 0°C to +40°C (inferred). Storage Temperature: -10°C to +60°C (inferred). Operating Current: 20 - 40 mA (typical for 5mW 650nm). Beam Divergence: Typically 1.0 - 1.5 mrad (inferred for module). Beam Type: Fixed-focus dot projection. Expected Lifetime: >5,000 hours (typical for diode at rated current). Laser Classification: Class II / 2 (Eye Safe for incidental exposure). Laser Diode Type: Semiconductor Laser Diode. Lens Type: Collimating glass lens (inferred). Product Type: Laser Diode Module with Pointer Sight. Quantity per Package: 10 or 20 pieces. Recommended Drive Circuit: Constant current driver (inferred). Q: What are the exact specifications for this adjustable mini laser pointer diode module? A: This module features a 650nm red laser diode with a 5mW output power. It operates on a 3V to 5V DC power supply and includes an adjustable copper head for focusing the laser dot.. Q: How durable is the copper head on this laser diode module? A: The copper head is designed for durability and provides effective heat dissipation for the laser diode. Its adjustable mechanism is built to withstand repeated focusing adjustments without wearing out quickly.. Q: Can I use this 3V/5V laser diode module with an Arduino or Raspberry Pi? A: Yes, this module is perfectly compatible with common microcontrollers like Arduino and Raspberry Pi. Its 3V-5V operating range makes it easy to integrate into DIY electronics, robotics, or IoT projects requiring a precise laser pointer.. Q: Does this product come with any warranty or guarantee? A: Warranty details are typically provided by the seller at the point of purchase. For specific warranty information regarding this laser diode module, please check the seller's listing or contact them directly.. Q: Is this a good value for a pack of 10-20 laser diode modules? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. The multi-pack provides reliable performance for regular use across multiple projects at a very competitive cost per module..
