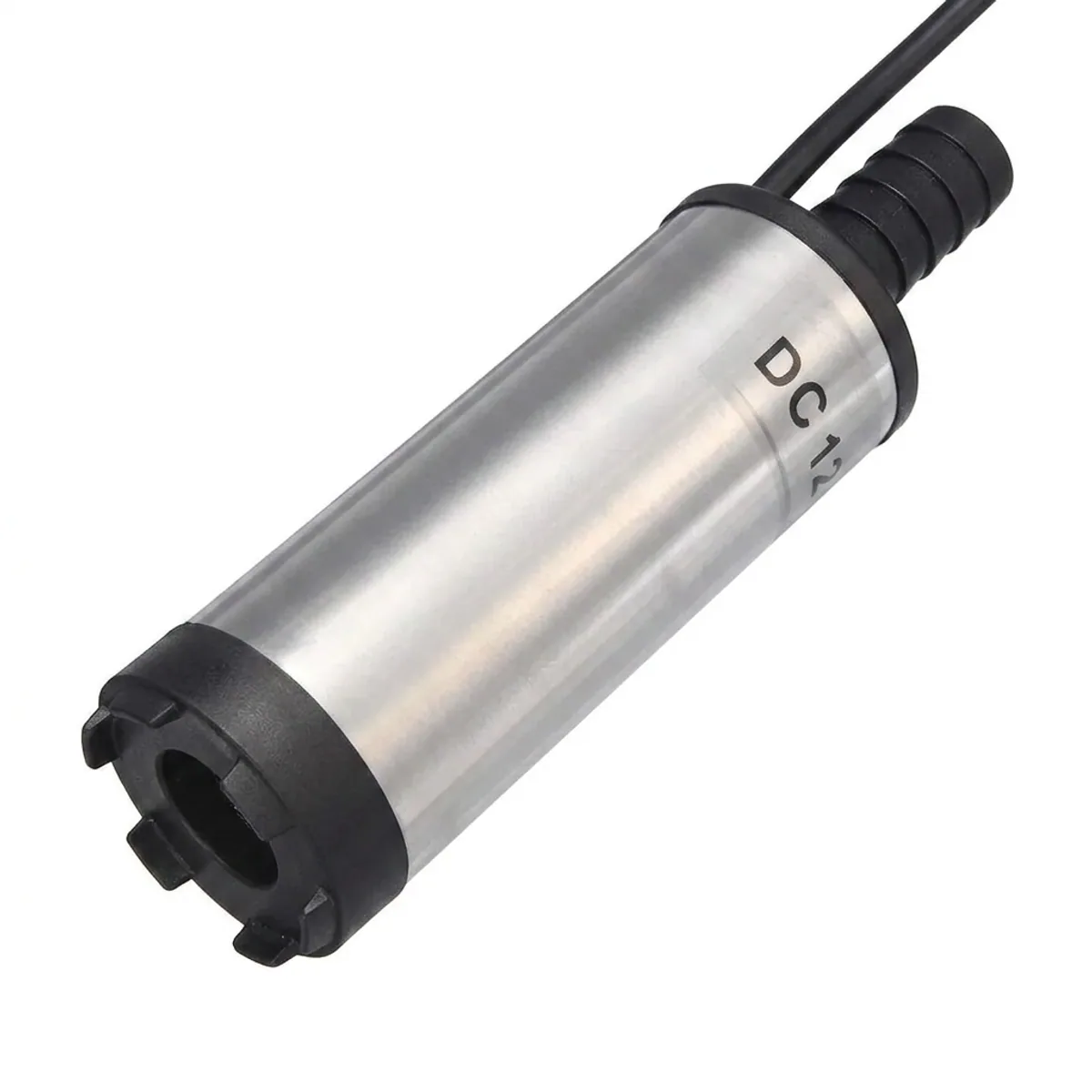

Built for remote refueling, this portable 12v diesel fuel transfer pump moves fluid at 12 liters per minute. The 38mm stainless steel shell resists corrosion from diesel fuel and fresh water, giving you a steady submersible fuel transfer pump powered by standard vehicle battery clamps. Features and Benefits
- Stainless steel pump housing - Resists rust and chemical wear when submerged in diesel tanks and water
- Detachable bottom strainer - Unscrews easily so you can wipe away dirt and clean out debris
- In-line cord switch - Lets you shut the motor off instantly without sparking at the battery terminals
- Compact 38mm barrel width - Slips into standard fuel containers, water jugs, and tight tank openings Applications
- Refueling camper vans, 4x4 overland rigs, and touring vehicles from spare jerry cans
- Pumping fresh water into washdown tanks and camp showers while off the grid
- Transferring diesel between storage drums and small commercial fishing boats at the dock
Key Compatibility Differences
A common question is whether you can use a diesel transfer pump for gasoline. The answer is strictly no. Petrol has a low flash point below 43°C (and well below 45°F), producing volatile vapours that can ignite from minor electrical arcing or heat generated by internal motor brushes. This submersible unit is engineered solely for diesel, light oil, and clean water. Pumping petrol, alcohol, or other flammable liquids with this unit creates a severe fire hazard and will degrade the internal seals. Always reserve this pump for heavier, non-explosive fuels and utility water tasks.
What It Is
What is a diesel transfer pump? It is a compact, submersible electric fluid pump built inside a corrosion-resistant stainless steel shell. Operating from a 12V or 24V DC power source, it is designed to be lowered directly into a container, drum, or tank to extract fluid from the bottom up. The stainless steel body protects internal components from knocks, debris, and fluid corrosion on site. Because it runs directly from low-voltage vehicle batteries or mobile power packs, it provides reliable off-grid fluid dispensing without the need for manual priming or mains electricity.
Key Uses & Applications
This unit handles liquid management across automotive, marine, and camping settings:
- Decanting diesel into plant, tractors, or commercial vehicles from standard storage barrels
- Transferring light oils between storage containers in a workshop
- Emptying bilge areas, ballast containers, or onboard holding tanks on marine craft
- Pumping fresh water for site clean-ups, off-grid washing setups, and remote camping facilities
- Draining settled water from outdoor sumps or secondary storage vessels
Always submerge the pump body in the fluid before engaging power to maintain steady priming and prevent the motor from running dry.
Housing Material: Stainless Steel. Voltage: 12V / 24V DC. Application: Automotive, Marine, Camping. Compatible Fluids: Diesel, Light Oil, Water. Product Type: Diesel Transfer Pump. Pump Type: Submersible Electric. Hose Outlet Outer Diameter: 19 mm. Pump Body Diameter: 51 mm. Housing Material: Stainless Steel. Operating Voltage: 12V / 24V DC. Motor Racing Speed: 8500 RPM. Fluid Compatibility: Diesel, Kerosene, Water. Operating Current: 1.8 A (12V) / 0.9 A (24V). Connection Type: Alligator Battery Clamps. Diesel Transfer Pump Type: Submersible Electric Motor Pump. Duty Cycle: Intermittent (Max 20 min continuous). Filter Mesh Type: Bottom Detachable Stainless Steel Strainer. Maximum Discharge Lift: 3.0 m. Product Category: Fuel Transfer Pumps. Rated Flow Rate: 12-15 L/min. Q: What are the core technical specs of this submersible pump? A: It runs on 12V or 24V direct current, drawing around 1.5 to 2.5 amps. The motor turns fast enough to empty standard fuel canisters or bilges within a few minutes.. Q: How well does the stainless steel body resist rust and wear? A: The stainless steel housing prevents rust from exposure to fresh water, outdoor dampness, and diesel fuel. It protects the sealed internal motor from impacts when dropped into tanks.. Q: Can I use this diesel transfer pump for camping or boat maintenance? A: Yes, this diesel transfer pump connects directly to a vehicle battery using the attached clips. It works well for refilling off-road machinery, draining livewells, or moving water around a campsite.. Q: Does the manufacturer provide a warranty for this model? A: The unit includes a one-year replacement warranty covering electrical faults and assembly defects. If the switch or motor stops working during regular fluid transfers, support will issue a replacement.. Q: What makes this pump a practical purchase for field use? A: It weighs under a pound and fits inside tight container openings down to 38 millimeters. You get quick fluid movement on the go without buying bulky, expensive hand pumps..
