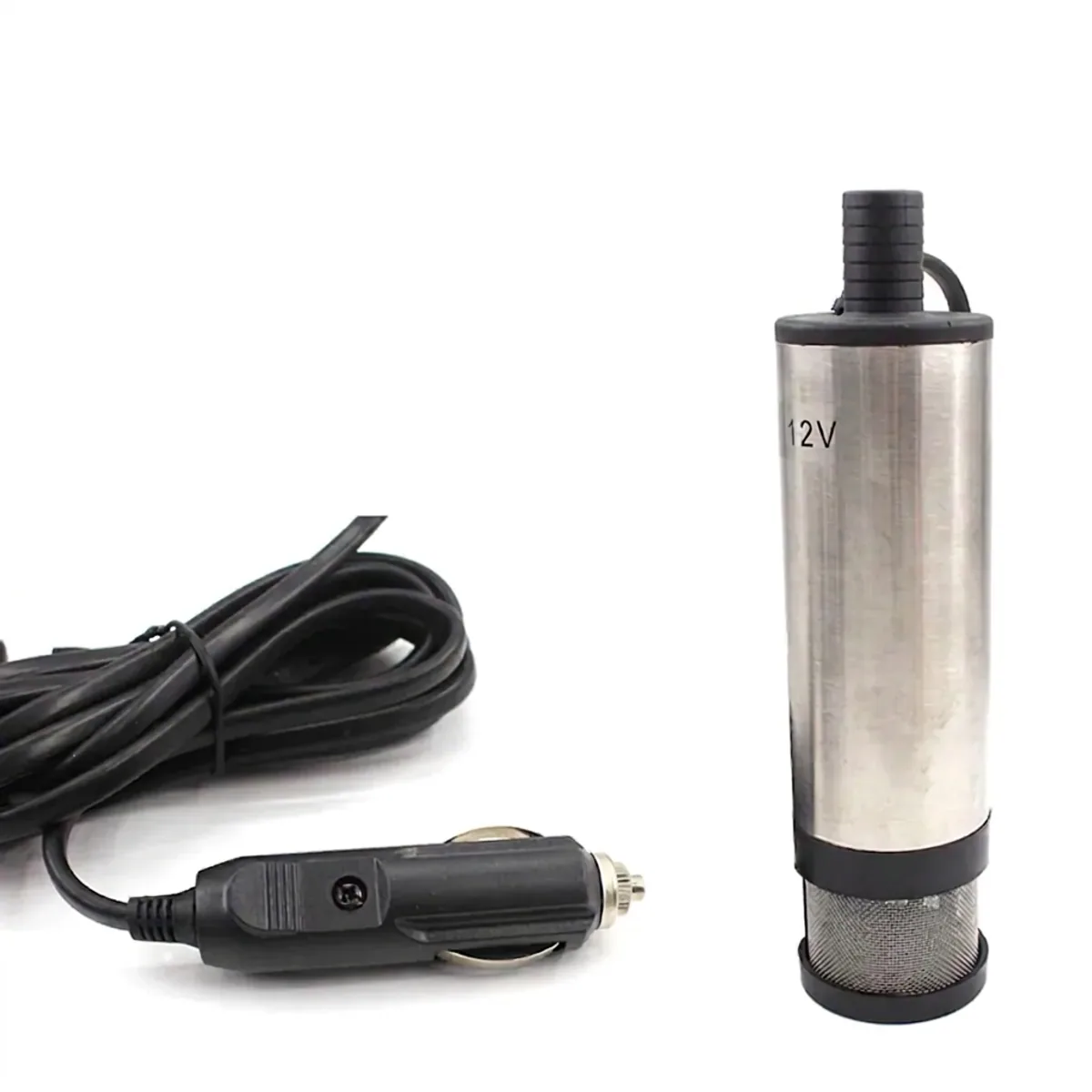

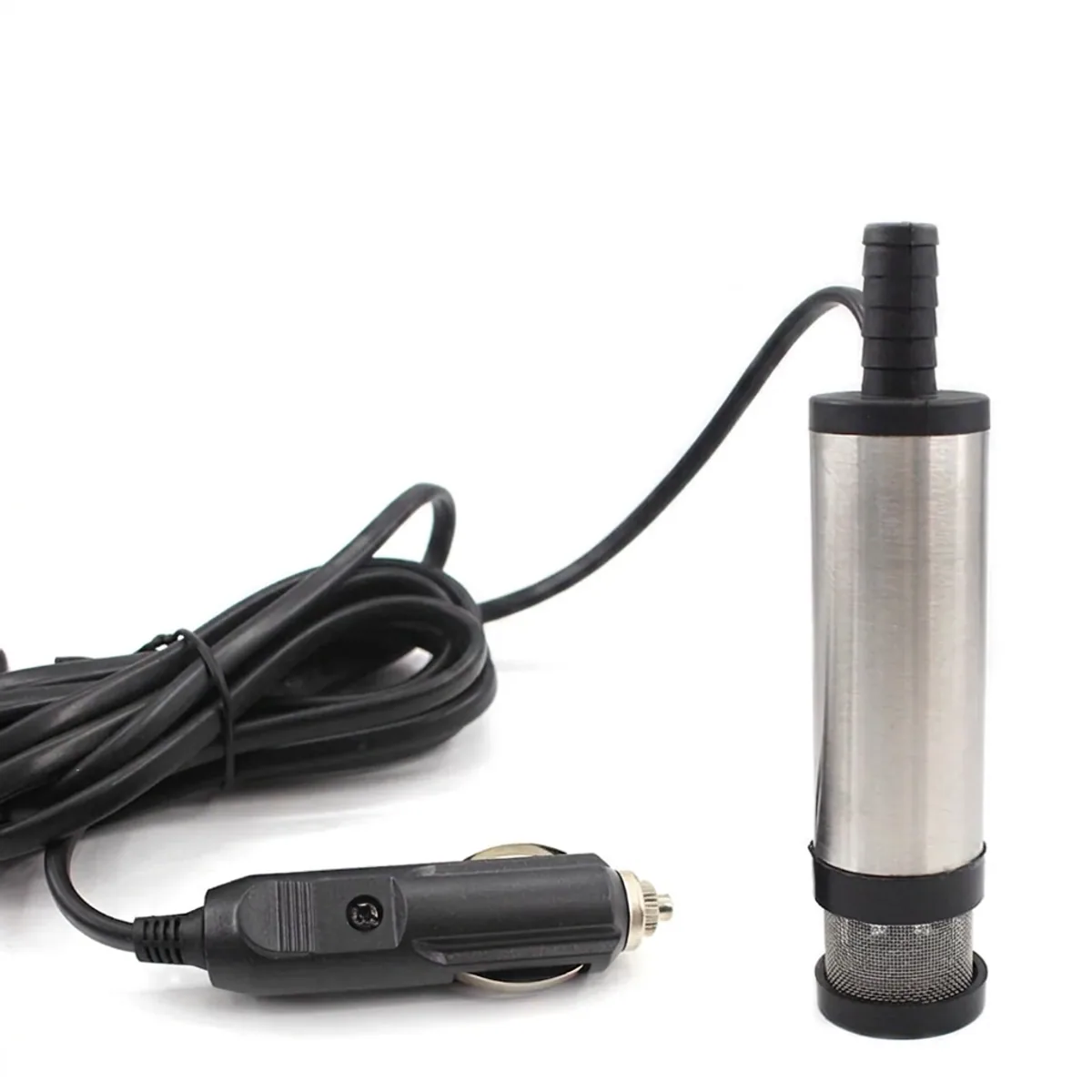

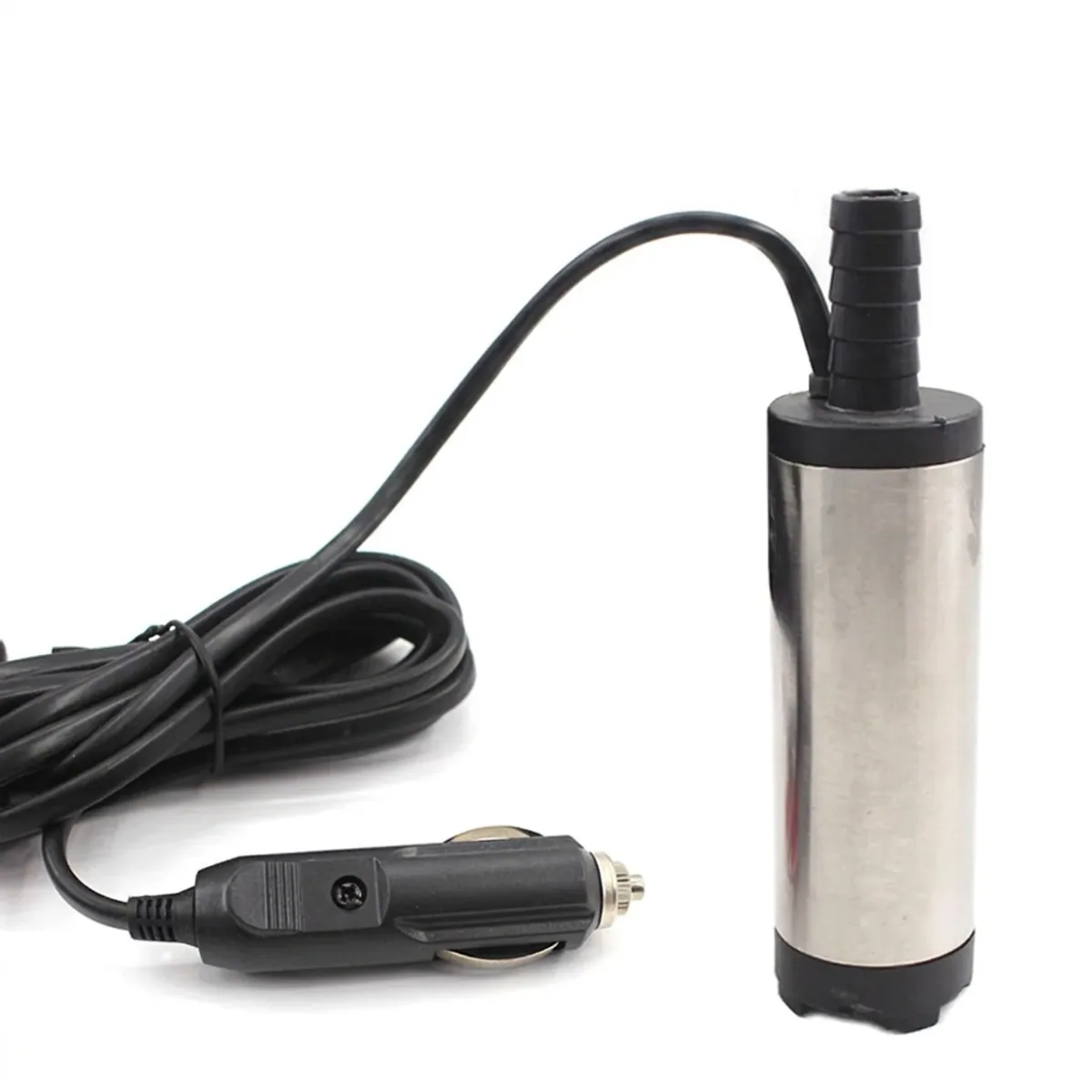

This submersible diesel transfer pump moves fluids at up to 30 liters per minute. Powered by standard 12V or 24V vehicle batteries, the stainless steel body resists corrosion while draining storage drums or refueling equipment quickly. It handles diesel, light kerosene, and water without priming hassles. Features and Benefits
- Stainless steel casing - Protects internal motor parts against rust and accidental drop damage.
- Removable bottom filter screen - Keeps dirt and particulates out of your machine tanks.

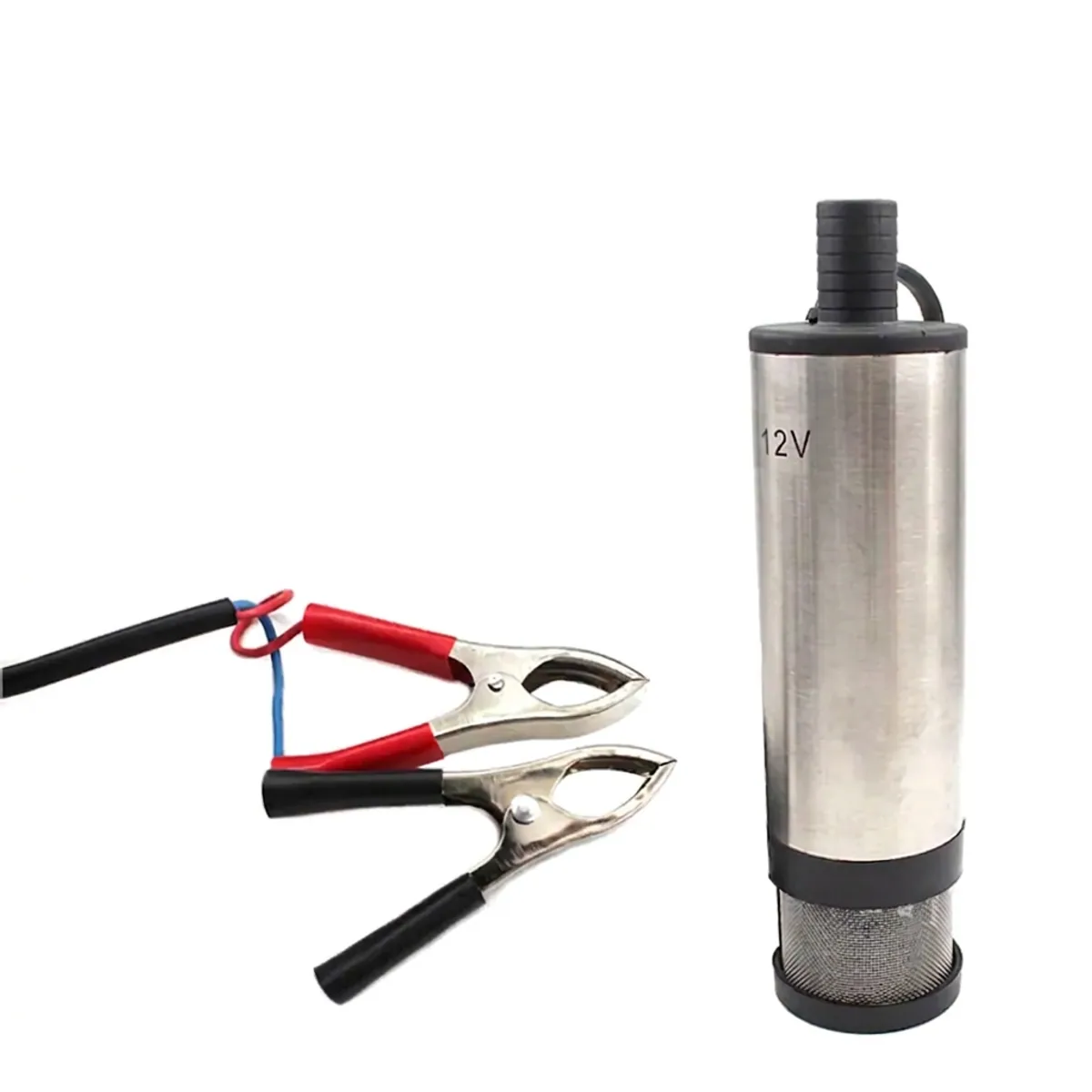

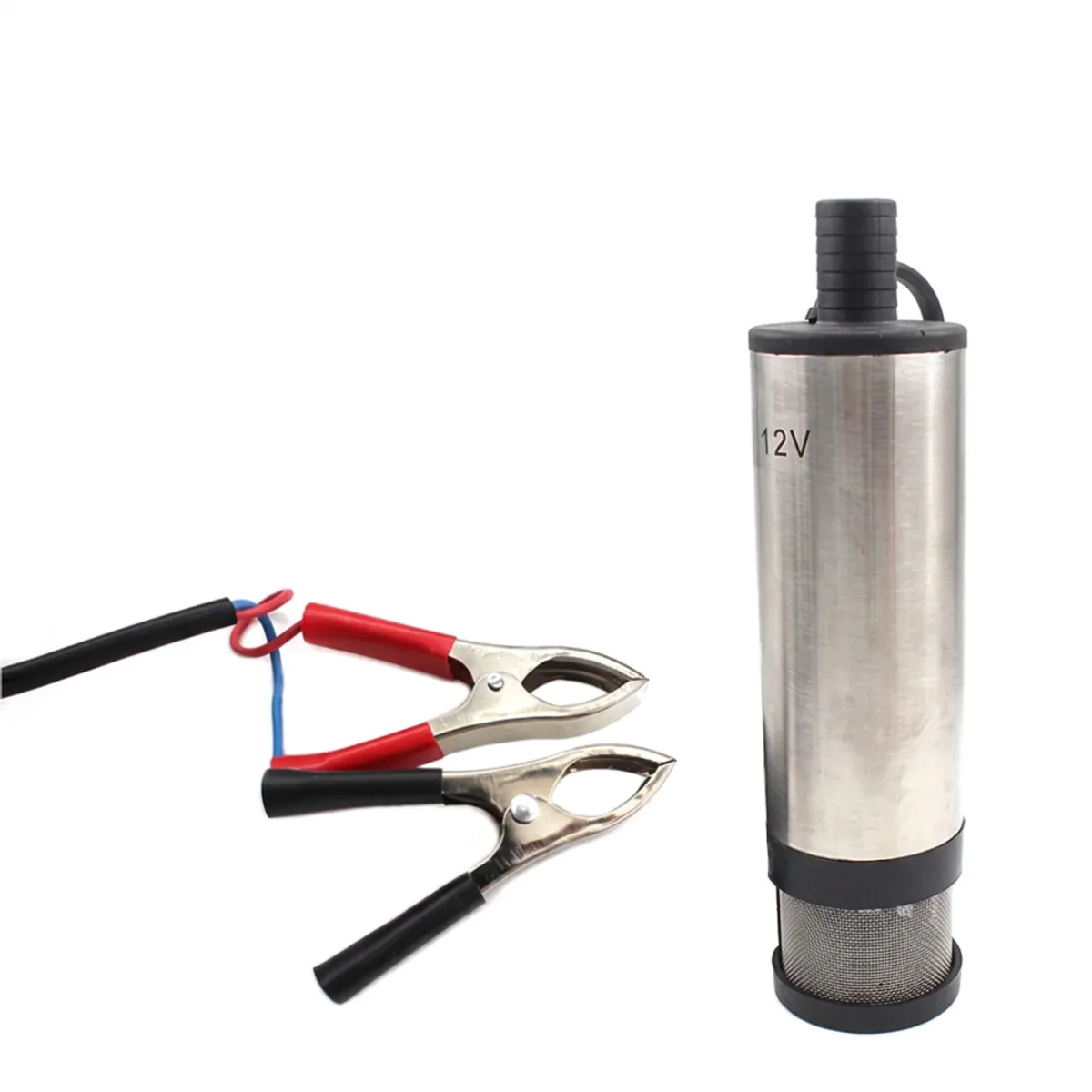

- Battery alligator clips with power switch - Connects directly to vehicle batteries for fast roadside use.
- High-flow 30L per minute motor - Empties a 200-liter drum in about seven minutes. Applications
- Refueling tractors, excavators, and agricultural equipment directly from fuel barrels on site.
- Emptying kerosene heaters or bulk heating fuel storage containers before seasonal maintenance.
- Pumping fresh water out of flooded utility sumps, bilges, or outdoor holding tanks.
Key Compatibility Differences
A diesel transfer pump is engineered strictly for heavier, oily liquids such as standard road diesel, kerosene, and general machinery oils. A frequent site query is: can you use a diesel transfer pump for gasoline? The answer is no. You must never run petrol through this unit. Petrol ignites at a very low flash point, whereas standard diesel requires higher compression or temperatures above 43°C (around 110°F) to produce hazardous vapour. Submersible 12V and 24V DC electric motors lack the internal spark isolation needed for volatile fuels, explaining why are fuel transfer pump not suitable gasoline without specialist explosion-proof certification.
What It Is
Asking what is a diesel transfer pump on site simply refers to a dedicated fluid-scavenging unit designed to move fuel safely between storage and machinery. This specific model is a fully submersible electric tool, built with a durable stainless steel outer casing to resist corrosion and site wear. Powered by a standard 12V or 24V DC battery supply, the motor drives an internal impeller capable of delivering a steady flow rate of up to 30 L/min. Because the unit drops directly into the fluid, it pushes fuel out rather than pulling it, minimising air locks and priming delays.
Key Uses & Applications
This unit is designed for rapid fluid handling around plant yards, agricultural workshops, and mobile service vans:
- Transferring diesel directly from storage drums, IBCs, or barrels straight into diggers, tractors, and site generators.
- Decanting bulk kerosene supplies into site space heaters during cold weather, well below 45°F.
- Draining engine oil, hydraulic oil, or machinery fuel tanks during workshop servicing and repairs.
- Moving fuel from static holding tanks into vehicle tanks without manual siphoning.
Drop the stainless steel body directly to the bottom of the container before connecting power, ensuring continuous fluid coverage to maintain the 30 L/min flow.
Material: Stainless Steel. Power Source: Electric. Voltage: 12V / 24V DC. Compatible Fluids: Diesel, Kerosene, Oil. Flow Rate: 30 L/min. Product Type: Diesel Transfer Pump. Pump Type: Submersible. Cable Length: 3.0 m. Outlet Diameter: 19 mm. Pump Diameter: 51 mm. Housing Material: Stainless Steel. Input Voltage: DC 12V / 24V. Power Source: Electric (Battery Clamp Cable). Motor Speed: 8500 rpm. Compatible Media: Diesel, Kerosene, Water. Max Current Draw: 6.4A (12V) / 4A (24V). Maximum Flow Rate: 30 L/min. Product Category: Diesel Transfer Pump. Pump Theory: Vacuum Pump. Submersible Depth Limit: 3 m. Q: What is the flow rate and voltage requirement for this diesel transfer pump? A: This diesel transfer pump moves up to 30 liters per minute. It runs on either DC 12V or 24V power, depending on the model you pick, and connects directly to a vehicle battery using alligator clips.. Q: What materials make up the pump housing and filter? A: The outer body uses stainless steel to prevent rust and handle garage drops. The base houses a stainless steel mesh filter that stops dirt and debris from entering the motor.. Q: Can I use this submersible pump to move gasoline or engine oil? A: No, you should only use it for diesel, kerosene, and water. It does not pump gasoline, alcohol, or thick motor oil, because volatile fuels create a fire hazard and thick fluids burn out the motor.. Q: What kind of warranty coverage comes with the pump? A: It includes a 12-month replacement warranty against electrical and mechanical faults. If the internal motor fails or leaks occur under normal use, we replace the unit.. Q: Why is this pump a cost-effective choice for equipment owners? A: It empties a 55-gallon drum in under seven minutes without needing expensive shop air lines. The compact size fits into narrow drum openings, saving you money on dedicated station equipment..
