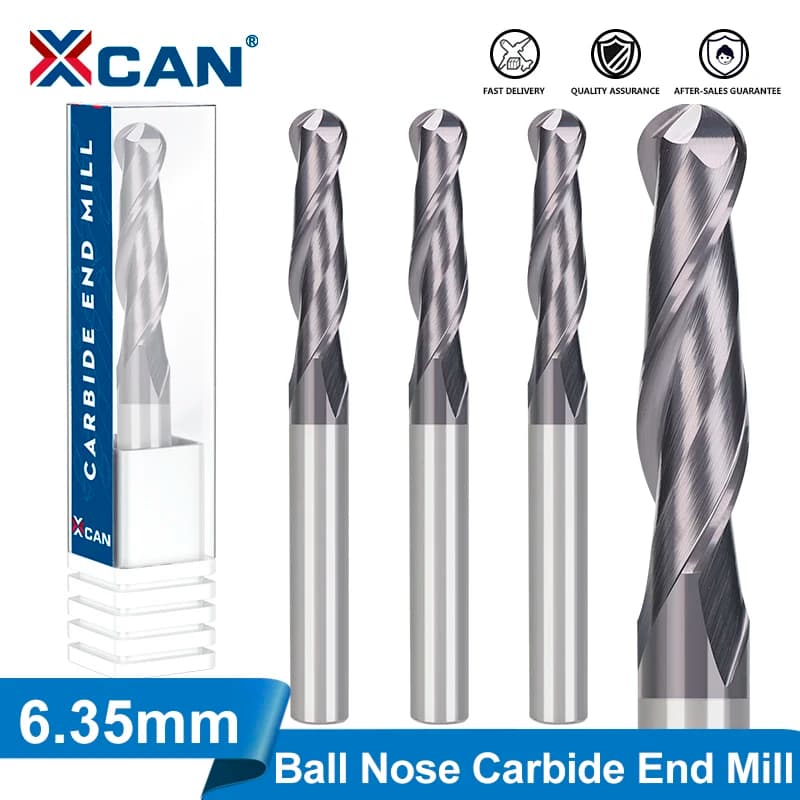

Nose End Mill | 2 Flute Tungsten Carbide | 6.35mm CNC Router Bit for Milling

Stock Nr:

SKU:

Nose End Mill | 2 Flute Tungsten Carbide | 6.35mm CNC Router Bit for Milling - Image 1

1 / 6

£4.99inc VAT

Engineered for precision and durability, the XCAN 2 Flutes Ball Nose End Mill delivers superior performance in 3D contouring and finishing. Its 6.35mm tungsten carbide construction ensures exceptional...

Cutting Edge Length6.35mm

Quantity

Nose End Mill | 2 Flute Tungsten Carbide | 6.35mm CNC Router Bit for Milling

£4.99

£4.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What is this 2-flute ball nose end mill best used for?: This end mill is ideal for 3D contour milling and finishing, especially for molds, dies, and complex shapes. It's also suitable for detailed engraving and carving in wood, plastics, and machining aluminum and other non-ferrous metals.
What materials can I machine with this tungsten carbide router bit?: You can use this end mill on a wide range of materials including steel, stainless steel, alloy steel, and cast iron. It also performs well on wood, plastics, aluminum, and other non-ferrous metals for complex profiling.
What are the key dimensions of this end mill?: This end mill has a 6.35mm (1/4 inch) cutting diameter and a matching 6.35mm shank diameter. The flute length is 19mm, and the overall length is 75mm. It features two flutes for efficient cutting.

Manufacturing & CNC spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare manufacturing & cnc

This product

XCAN 2 Flutes Ball Nose End Mill 6.35mm Tungsten Carbide Cut - Premium Industrial & Machinery > Manufacturing & CNC with professional quality and features

Nose End Mill | 2 Flute Tungsten Carbide | 6.35mm CNC Router Bit for Milling

Price£4.99

RatingNot rated

Sold8+

Stock In stock

You're viewing this

Alternative

BB HSS Ball Nose End Mill with 2 or 4 flutes and straight shank for CNC metal machining, radius sizes from 0.5 to R16.

Ball Nose End Mill Set | 2 & 4 Flute CNC Milling Cutters | R0.5-R16 Radius for Metal Machining

Price£4.99

Rating4.9

Sold115+

Stock In stock

Alternative

Tooleye carbide end mill with alloy coating for CNC machining, featuring tungsten steel construction and 2 or 4 flutes for flat metal milling.

CNC End Mill Set | Tungsten Carbide 2 & 4 Flute Cutters | Alloy Coating for Metal & Alloy Milling

Price£10.99

Rating4.7

Sold223+

Stock In stock

Alternative

Solid carbide end mill with 2-flute design for straight slot milling, engraving, and general milling applications.

Carbide End Mill | 3.175-8mm Shank Engraving Bit | Straight Slot Milling Cutter

Price£12.99

Rating5.0

Sold800+

Stock In stock

Alternative

1pc AAAAA Single Flute Carbide Spiral End Mill 3.175 ,4,5,6m - Premium Industrial & Machinery > Manufacturing & CNC with professional quality and features

Flute Carbide End Mill | 3.175-6mm | DLC Coating for Aluminum & Acrylic

Price£7.99

Rating4.9

Sold1,000+

Stock In stock

Alternative

Tooleye HRC45 carbide flat end mill with alloy coating for CNC metal machining, featuring 2 flutes and multiple shank sizes.

2-Flute End Mill Set | HRC45 Carbide Cutter | 1-12mm Sizes for Metal CNC Machining

Price£10.99

Rating5.0

Sold15+

Stock In stock

Alternative

Four-flute carbide end mill for milling hardened steel up to HRC50, available in diameters from 4mm to 16mm for metal cutting applications.

4 Flute End Mill | HRC50 Alloy Carbide Steel | 4mm-16mm CNC Milling Cutter

Price£10.99

Rating4.8

Sold1,000+

Stock In stock

Compare options

More Manufacturing & CNC

All Manufacturing & CNC

Spiral CNC Router Bits | Single Flute End Mill | 3.175-8mm Shank Woodworking Cutter

Spiral CNC Router Bits | Single Flute End Mill | 3.175-8mm Shank Woodworking Cutter

6mm Shank Router Bit | 1/4 Cutting Diameter | For Detail Woodworking & CNC

6mm Shank Router Bit | 1/4 Cutting Diameter | For Detail Woodworking & CNC

Brass Threaded Ball Knob | CNC Lathe & Milling Machine Upgrade

Brass Threaded Ball Knob | CNC Lathe & Milling Machine Upgrade

Carbide Rotary Burr Set | 3x6mm Metal Drawing Cutter | Engraving & Polishing Tools

Carbide Rotary Burr Set | 3x6mm Metal Drawing Cutter | Engraving & Polishing Tools

Heavy-Duty T-Slot Milling Cutter | YG8 Alloy Carbide Groove Tool | For Metal CNC Machining

Heavy-Duty T-Slot Milling Cutter | YG8 Alloy Carbide Groove Tool | For Metal CNC Machining

Industrial Presser Foot Set | Precision Steel Construction | 0.1-0.5 Inch Sizes

Industrial Presser Foot Set | Precision Steel Construction | 0.1-0.5 Inch Sizes

Milling Cutter Set | 4 Flute End Mills 1/16-5/8 | CNC Router Bits for Metal

Milling Cutter Set | 4 Flute End Mills 1/16-5/8 | CNC Router Bits for Metal

CNC Motion Controller | 100kHz USB Interface | MACH3 Compatible Stepper Motor Driver

CNC Motion Controller | 100kHz USB Interface | MACH3 Compatible Stepper Motor Driver

Bottom Cleaning Router Bit | 10mm Screw Thread Lock | CNC Woodworking Milling Cutter

Bottom Cleaning Router Bit | 10mm Screw Thread Lock | CNC Woodworking Milling Cutter

Delrin V-Wheel Kit for V-Slot Linear Rails | High-Performance 3D Printer Components

Delrin V-Wheel Kit for V-Slot Linear Rails | High-Performance 3D Printer Components

Laser Cutting Nozzle | 32mm Dia. | 0.8-8.0mm Caliber | CNC Machine Compatible

Laser Cutting Nozzle | 32mm Dia. | 0.8-8.0mm Caliber | CNC Machine Compatible

Heat Shrink Film Transfer Paper | 20-Pack for Sublimation & Tumbler Decor

Heat Shrink Film Transfer Paper | 20-Pack for Sublimation & Tumbler Decor

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

Door & Window Magnetic Sensor | Zigbee Wireless | App Alert Security Alarm

608ZZ Skateboard Bearings | Double Metal Shield | 8x22x7mm 10-Pack

608ZZ Skateboard Bearings | Double Metal Shield | 8x22x7mm 10-Pack

Solenoid Valve | 12V/24V/220V NC | 1/2 & 3/4 for Water & Air

Solenoid Valve | 12V/24V/220V NC | 1/2 & 3/4 for Water & Air

Empty Spray Bottles 200ml | Fine Mist Atomiser | Hair, Plant & Cleaning

Empty Spray Bottles 200ml | Fine Mist Atomiser | Hair, Plant & Cleaning

Air Hose Fitting | Quick Release Connector | 1/4 BSPT Thread

Air Hose Fitting | Quick Release Connector | 1/4 BSPT Thread

Sensor | Waterproof 304 Stainless Steel Probe | 6x30mm 1M Cable

Sensor | Waterproof 304 Stainless Steel Probe | 6x30mm 1M Cable

Pneumatic Fitting Push-In Connectors | Air Hose Quick Release | 4-14mm Tube

Pneumatic Fitting Push-In Connectors | Air Hose Quick Release | 4-14mm Tube

Hydraulic Valve | 1/2 Float for Tank Water Level Control

Hydraulic Valve | 1/2 Float for Tank Water Level Control

Flute End Mill | Solid Carbide with DLC Coating | For Aluminum CNC

Flute End Mill | Solid Carbide with DLC Coating | For Aluminum CNC

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

Reflector Plate | Photoelectric Sensor Accessory | TD Series

Reflector Plate | Photoelectric Sensor Accessory | TD Series

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

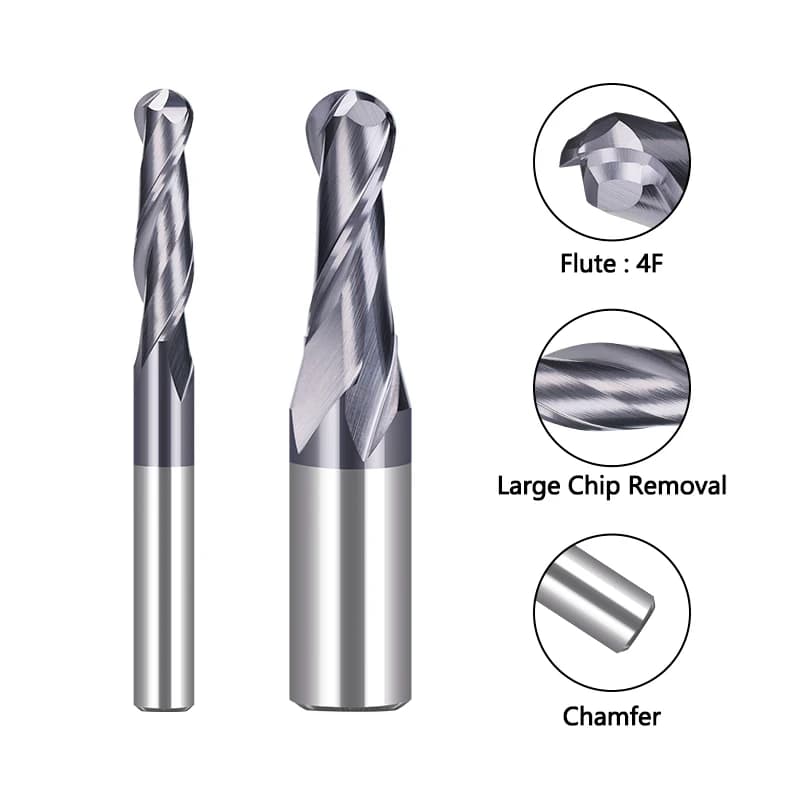

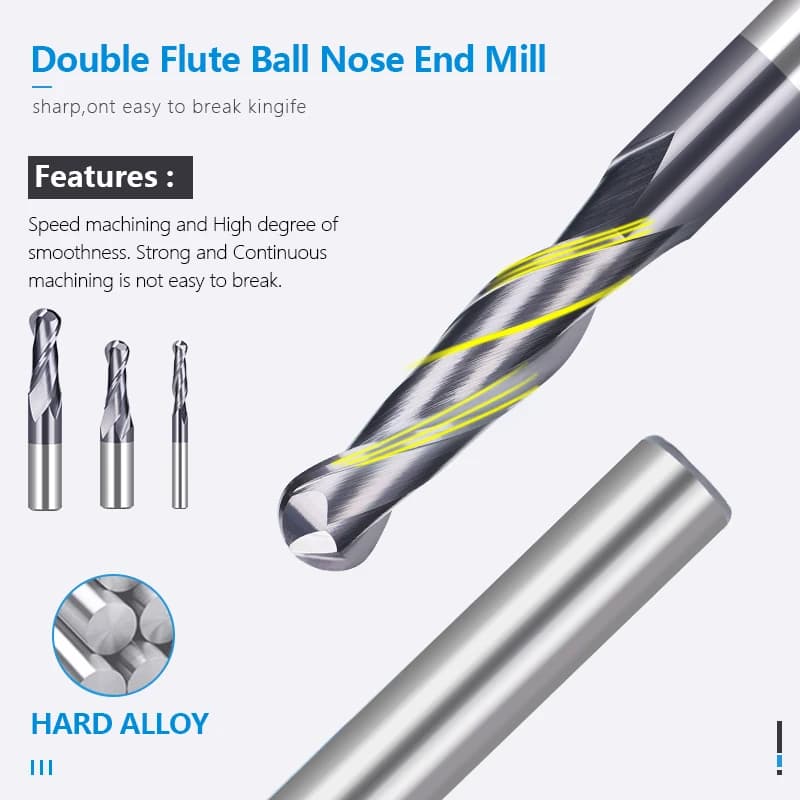

Engineered for precision and durability, the XCAN 2 Flutes Ball Nose End Mill delivers superior performance in 3D contouring and finishing. Its 6.35mm tungsten carbide construction ensures exceptional rigidity and wear resistance for smooth, high-quality surface finishes on a wide range of materials. Features and Benefits - Two-flute ball nose design - Provides efficient chip evacuation and reduces cutting forces for smoother 3D profiling. - Premium tungsten carbide body - Offers extreme hardness and heat resistance for extended tool life and consistent performance. - 6.35mm (1/4 inch) shank diameter - Ensures a secure fit in standard collets for reduced vibration and enhanced stability. - Precision-ground cutting edges - Guarantees accurate dimensions and fine surface finishes on molds, dies, and complex shapes. Applications - 3D contour milling and finishing of molds and dies. - Detailed engraving and artistic carving in wood and plastics. - Machining of complex profiles in aluminum and non-ferrous metals.

Material: Tungsten Carbide. Application: 3D contour milling, CNC routing. Coating: TiAlN. Cutting Diameter: 6.35 mm (1/4"). Flute Count: 2. Flute Length: 19 mm. Helix Angle: 30°. Overall Length: 75 mm. Product Type: Ball Nose End Mill. Shank Diameter: 6.35 mm (1/4"). Cutting Diameter: 6.35 mm. Flute Length: Approx. 12-20 mm. Overall Length: Approx. 50-75 mm (typical for this diameter). Shank Diameter: 6.35 mm. Material: Tungsten Carbide (Solid Carbide). Suitable Materials: Steel, Stainless Steel, Alloy Steel, Cast Iron. Coolant Compatibility: Suitable for dry or MQL machining. Coating: TiAlN (Titanium Aluminum Nitride). Helix Angle: 30-45 degrees (typical for ball nose). Max RPM (Recommended): 18,000-25,000 RPM. Number of Flutes: 2. Primary Application: 3D contour milling, mold making, finishing. Product Type: Ball Nose End Mill. Tool Geometry: Ball Nose (Radius = 3.175 mm). Q: What are the key specifications of the XCAN 2 Flutes Ball Nose End Mill? A: This end mill features a 6.35mm (1/4 inch) diameter with a ball nose profile and two flutes. It is constructed from solid tungsten carbide, designed for CNC routing and milling operations requiring smooth contours and 3D profiling.. Q: How is the quality and durability of this tungsten carbide cutter? A: The tool is made from high-grade tungsten carbide, offering excellent wear resistance and hardness for prolonged tool life. The 2-flute design provides efficient chip evacuation and is suitable for machining a variety of materials, including plastics, wood, and non-ferrous metals.. Q: What types of CNC machines and materials is this router bit compatible with? A: It is compatible with standard CNC routers, milling machines, and engraving machines that accept 6.35mm shank tools. The ball nose end mill is ideal for 3D contouring, finishing, and detailed work on materials like wood, plastics, composites, and soft metals.. Q: Is there any warranty or guarantee provided with this milling tool? A: Warranty details are typically provided by the seller or manufacturer. It is advisable to check the specific product listing or contact customer support for information regarding any warranty against manufacturing defects.. Q: Does this end mill offer good value for its price? A: Given its solid carbide construction and precision design for detailed milling, it represents solid value for hobbyists and professionals needing reliable performance for contouring and finishing operations without frequent tool changes..
