Air Compressor Safety Relief Valve | 120PSI | 1/8 or 1/4 BSP Brass

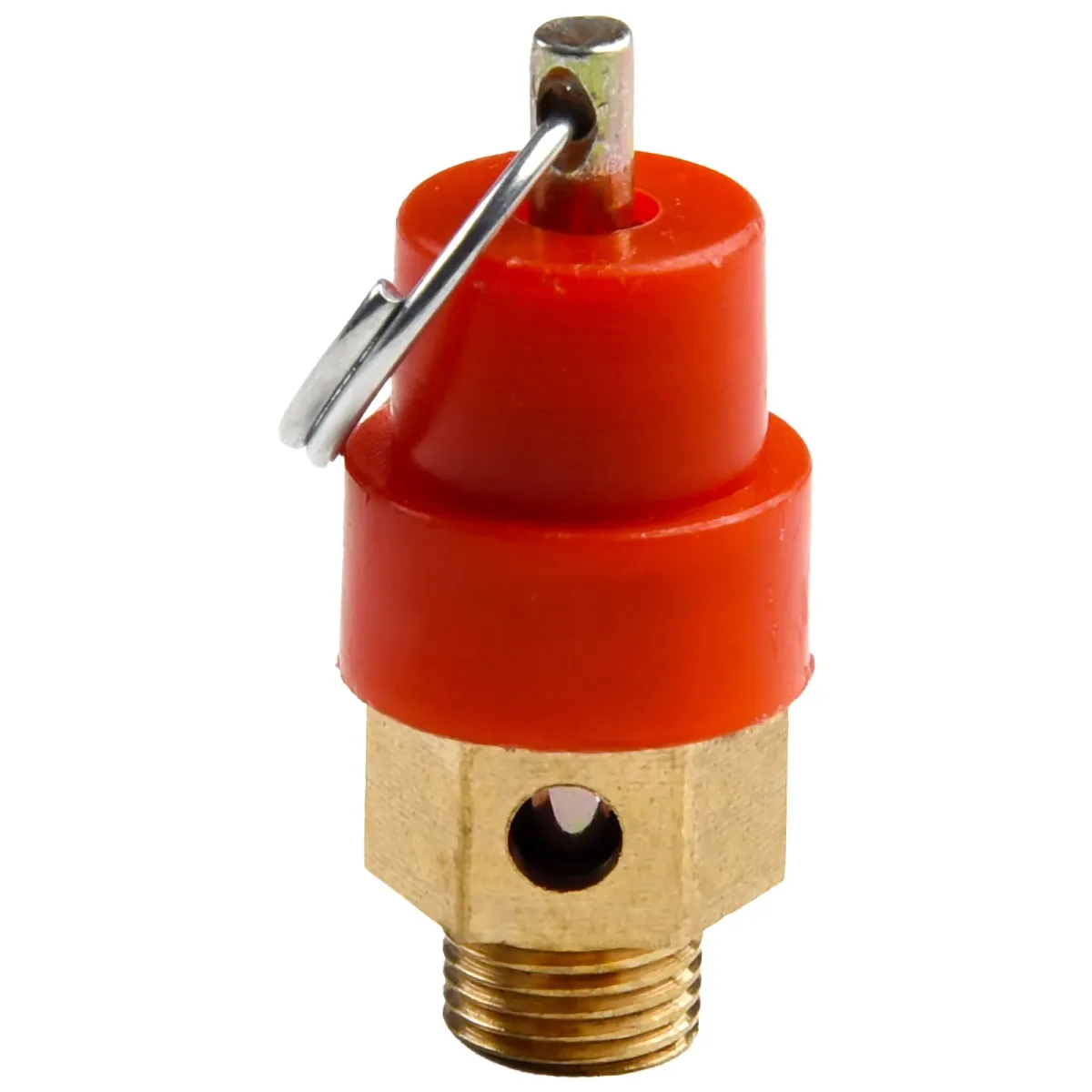

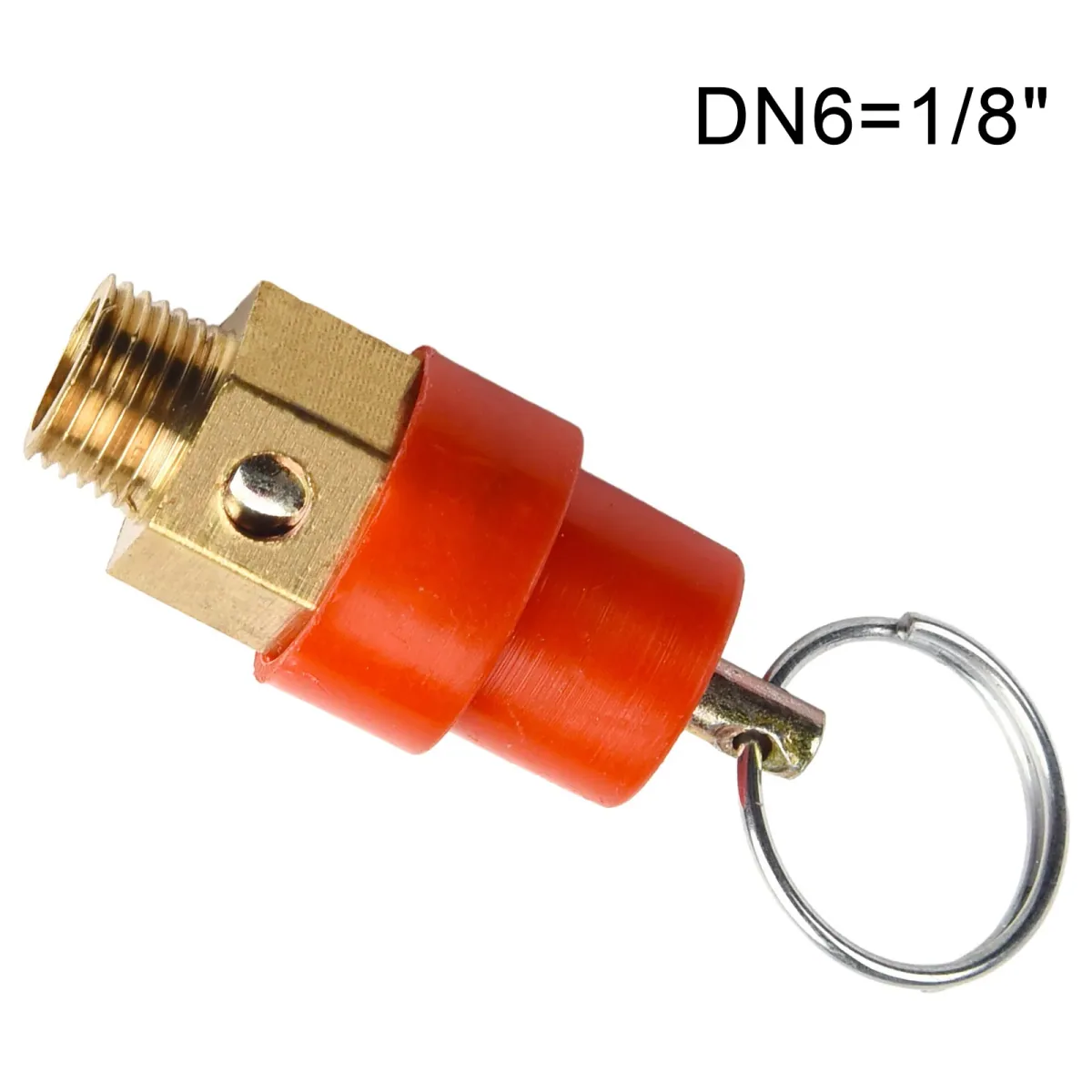

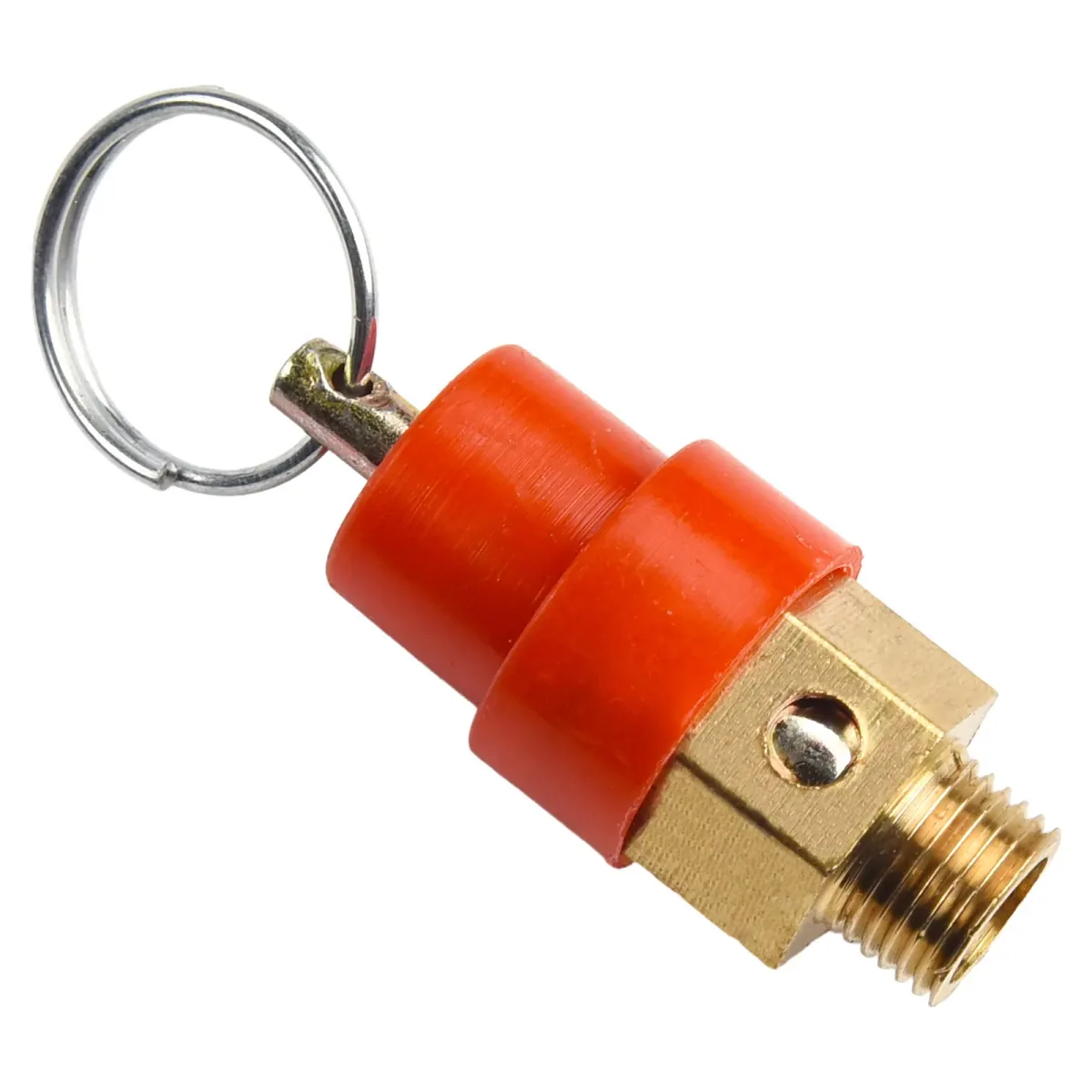

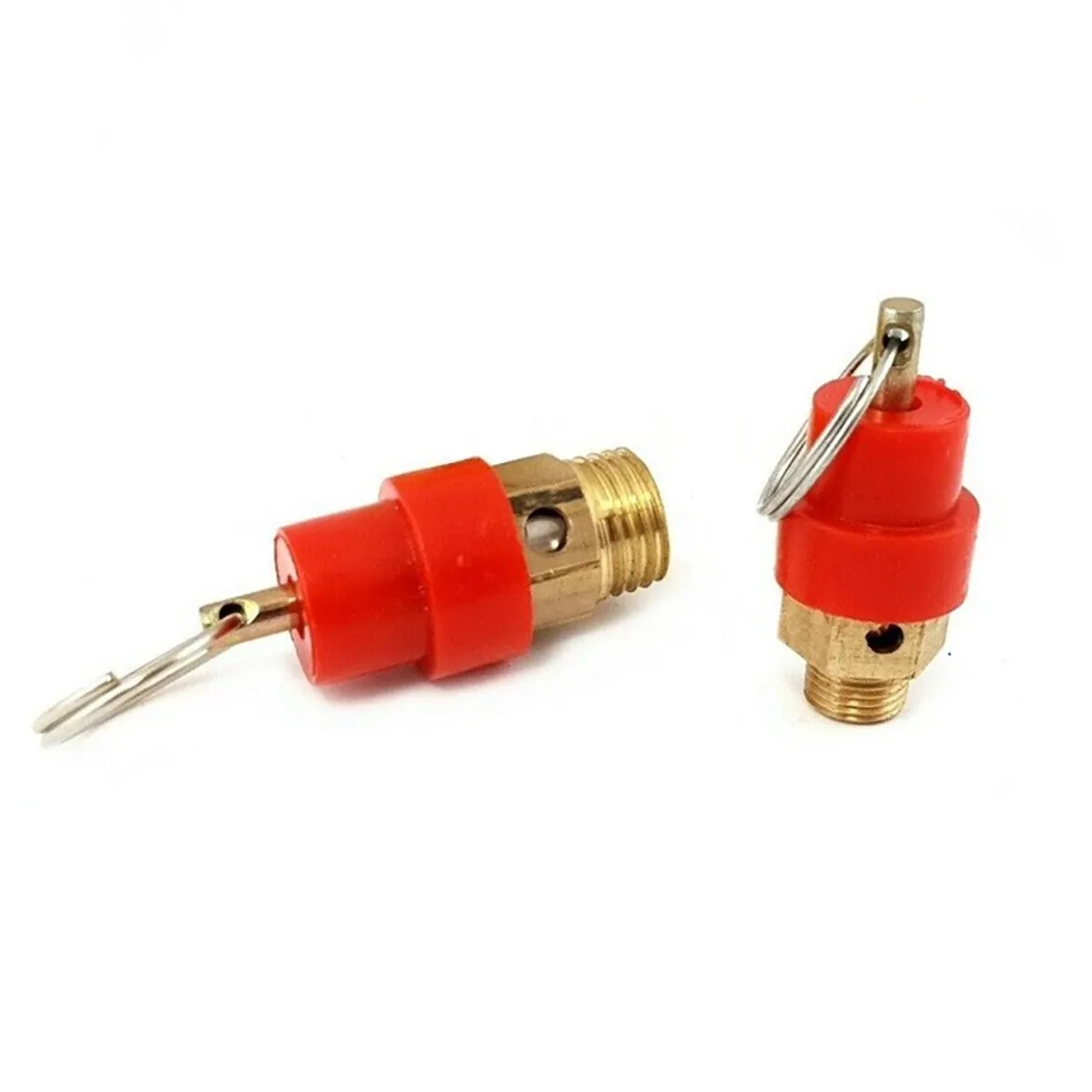

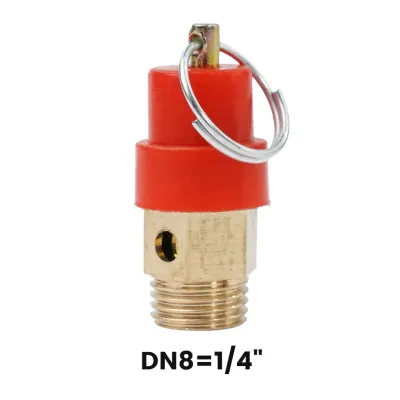

This air compressor safety relief valve is a spring type pressure relief valve for air pumps and compressors, rated at 120PSI (8kg) and supplied with a male BSP thread in either 1/8" or 1/4". The brass valve is made to help protect pressure piping and pressure vessels, and it comes as a compact 38mm long unit with a ring on the end. Features and benefits: - Spring type relief valve rated at 120PSI (8kg) - made to protect air compressors, pressure piping and pressure vessels - Two thread options, 1/8" (DN6) and 1/4" (DN8) male BSP - choose the size that matches your tank or manifold port - Brass body - suits compressed air fittings on small compressors and air pumps - Small 38mm overall length - fits in tight spaces on a tank or pipework - Ring on the valve, 16mm across - shown in the product photos - Sold singly - one valve per pack Applications: - Replacing a relief valve on a small air compressor or air pump - Fitting protection to an air receiver or pressure vessel with a matching BSP port - Adding a relief point to compressed air pipework - Workshop and home DIY compressor repairs In the box: 1 x air compressor safety relief valve (thread size as selected in the options). Note: A relief valve must be fitted where it is not blocked or isolated, and the outlet must not point at anyone. Check the 120PSI rating is suitable for your system, and never use a valve rated above the maximum pressure of the tank.
