Air Compressor Safety Relief Valve | 1/4 BSP | 1MPa Brass

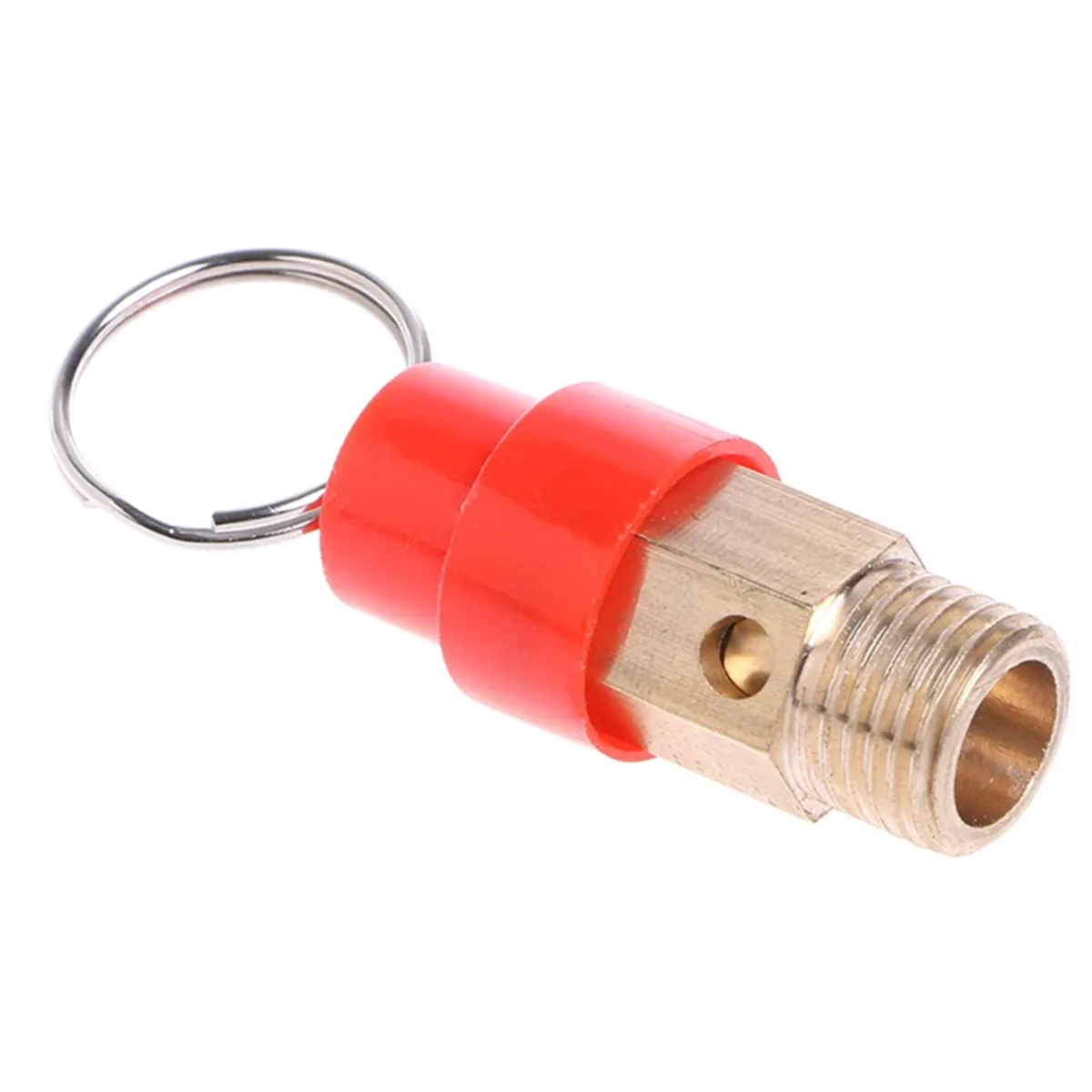

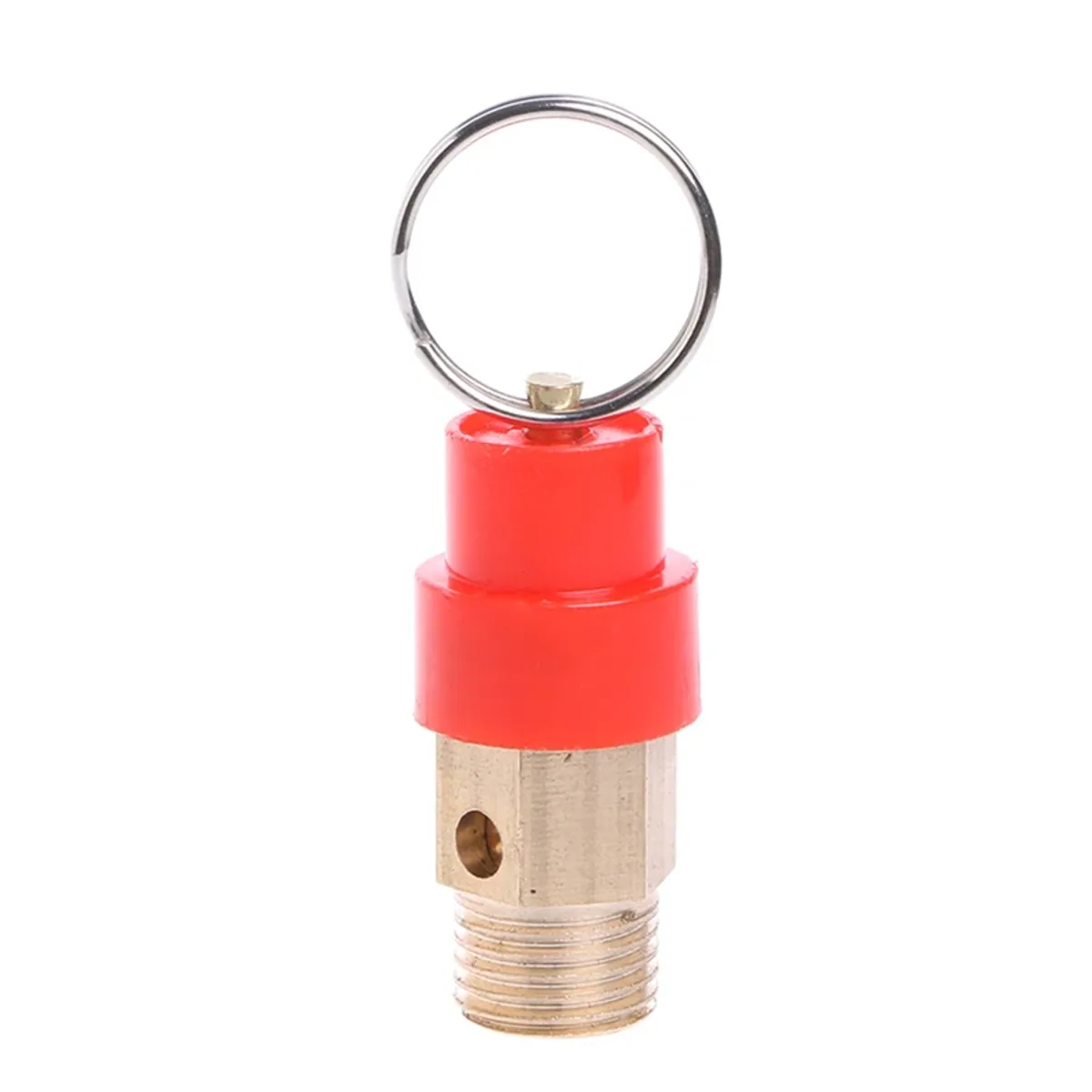

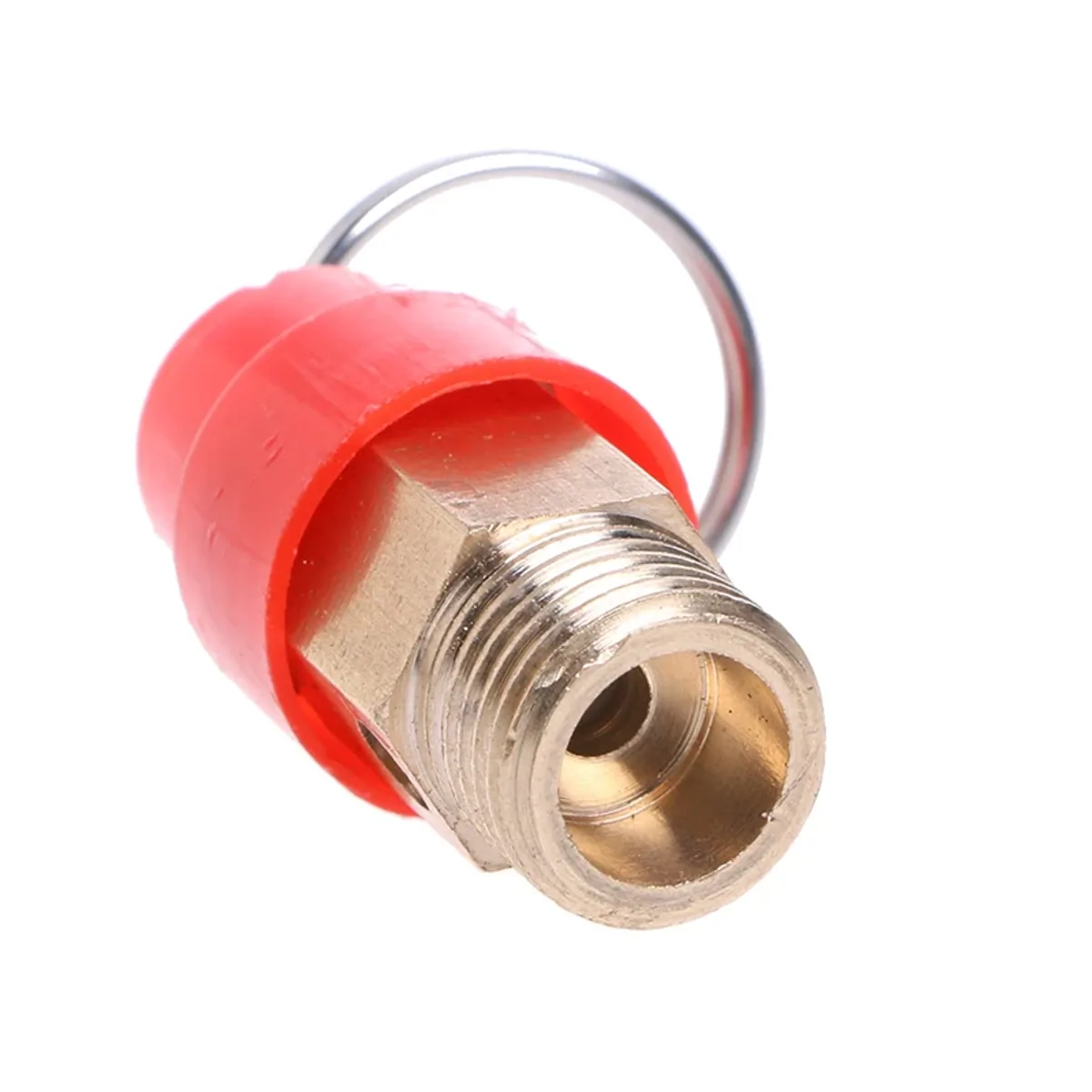

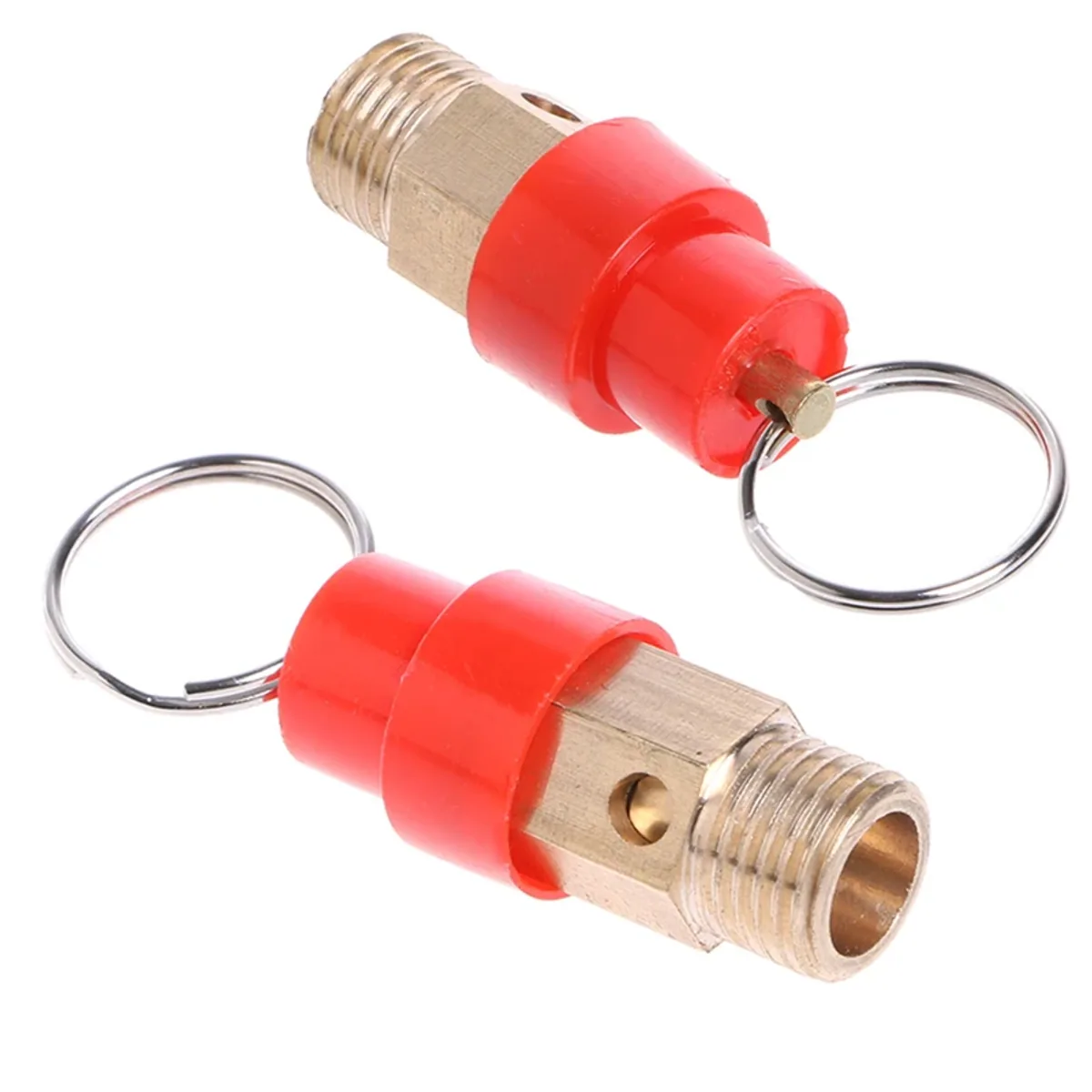

This air compressor safety relief valve is a brass pressure relief valve with a 1/4 inch BSP thread, rated at 1MPa (10KG), made to help protect an air compressor and pressure piping or vessels. It is a small fitting, about 43mm long. Features and benefits: - Brass body with a 1/4 inch BSP thread - fits compressor tanks and pipework with a matching 1/4 BSP port - 1MPa (10KG) pressure rating - a clear figure to match against the working pressure of your system - Approx. 43mm (1.7 inch) length - compact enough for tight spaces around the tank or manifold - Suited to two-stage compressor protection - fitted as a safeguard on pressure piping and vessels - Single valve per order - one safety relief valve, ready to fit Applications: - Replacing a worn or missing relief valve on a workshop air compressor - Adding overpressure protection to a small air receiver - Pressure piping and pressure vessel protection - Spares for maintenance and repair benches In the box: - 1 x air compressor safety relief valve Note: Fit the valve in line with the general conditions for pipe installation. Valves installed outdoors need protection from rain, fog, dust, rust and dirt getting into the valve and discharge pipe. Where temperatures fall below freezing, take antifreeze measures so the valve stays reliable. Check the 1MPa rating suits your system before fitting.
