Which CNC software does this controller work with?

This 6-axis CNC motion controller is specifically designed for use with Mach3 CNC software. It is compatible with Windows XP, 7, 8, 10, and 11 (both 32 and 64-bit versions for Mach3).

What is the maximum pulse frequency of this NVUM V2 controller?

This NVUM V2 controller has a maximum output pulse frequency of 200kHz. This high frequency allows for precise and smooth motion control, essential for detailed engraving and processing tasks.

What kind of machines is this controller best for?

This controller is ideal for CNC engraving machines and general CNC processing applications. Its 6-axis capability and Mach3 compatibility make it suitable for various precision tasks.

6-Axis CNC Motion Controller | Mach3-Compatible USB System | Engraving & Processing Support

Name: 6-Axis CNC Motion Controller | Mach3-Compatible USB System | Engraving & Processing Support
Brand: Compel
SKU: MANU-00108
Price: 44.95 USD
Availability: InStock

Stock #:TBS-00961

SKU:MANU-00108

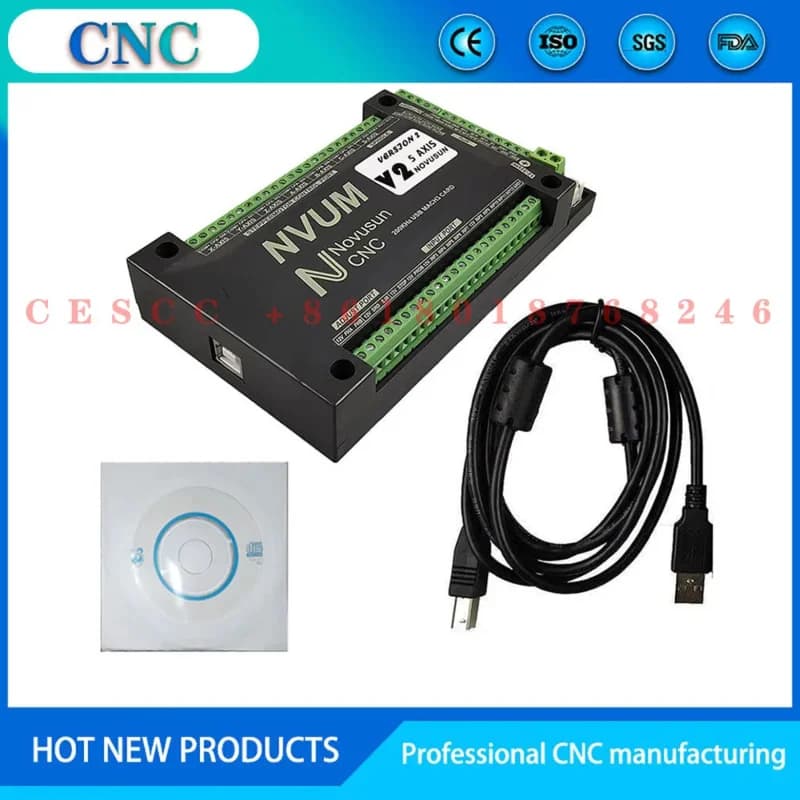

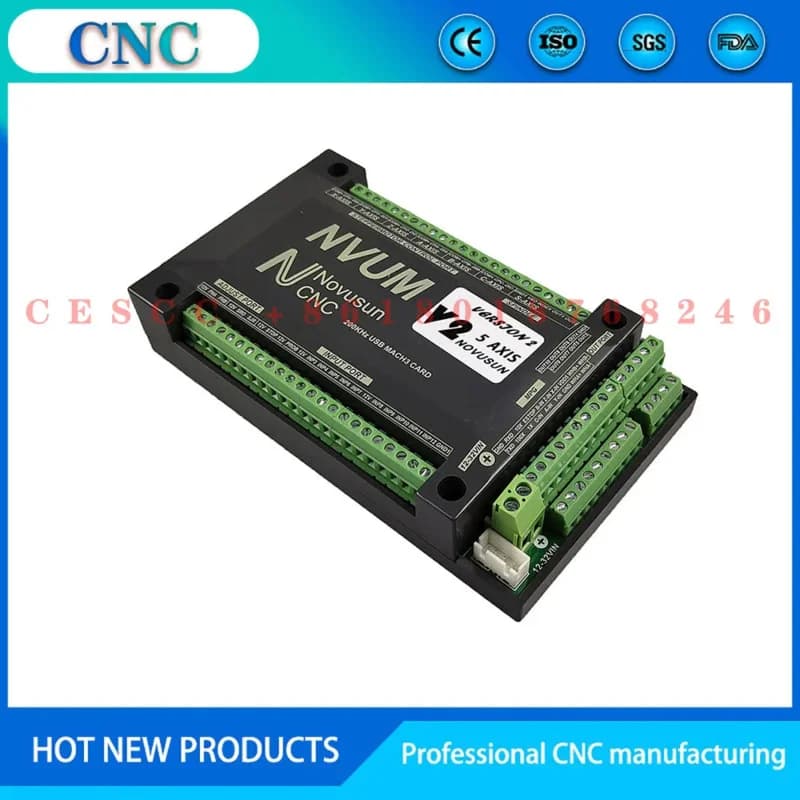

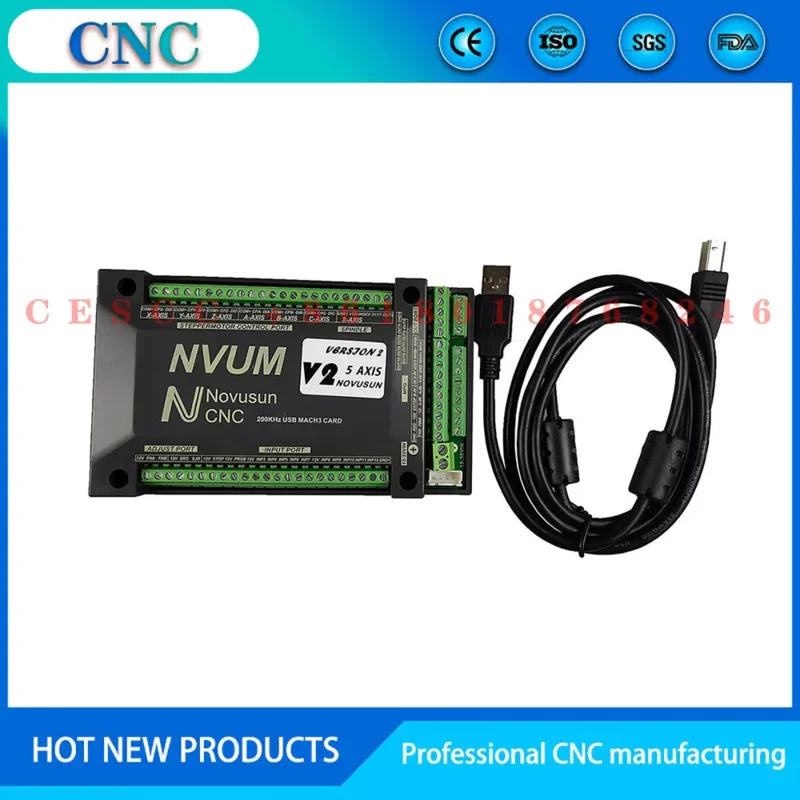

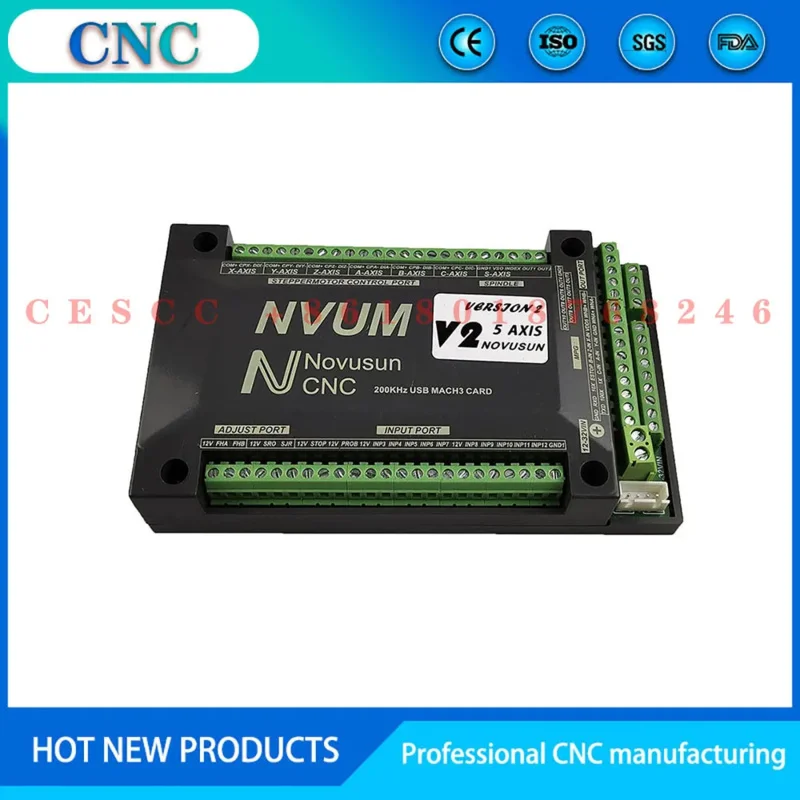

6-Axis CNC Motion Controller | Mach3-Compatible USB System | Engraving & Processing Support - Image 1

1 / 5

$44.95

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Premium 6-axis USB CNC controller mach3 NVUM V2 200KMz 3/4/5 motion control system engraving machine processing supports slave functions. Quality construction with reliable performance for professiona...

VoltageSelect an option

Quantity

6-Axis CNC Motion Controller | Mach3-Compatible USB System | Engraving & Processing Support

$44.95

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Which CNC software does this controller work with?: This 6-axis CNC motion controller is specifically designed for use with Mach3 CNC software. It is compatible with Windows XP, 7, 8, 10, and 11 (both 32 and 64-bit versions for Mach3).
What is the maximum pulse frequency of this NVUM V2 controller?: This NVUM V2 controller has a maximum output pulse frequency of 200kHz. This high frequency allows for precise and smooth motion control, essential for detailed engraving and processing tasks.
What kind of machines is this controller best for?: This controller is ideal for CNC engraving machines and general CNC processing applications. Its 6-axis capability and Mach3 compatibility make it suitable for various precision tasks.

Manufacturing & CNC spec sheet (PDF)
