What kind of milling operations is this router bit best for?

This 2-flute carbide router bit is designed for CNC milling, especially for materials up to HRC50 hardness. It's ideal for semi-finishing and finishing passes on aluminum, alloy steel, and other metals. You can use it for creating pockets, slots, and contours.

What size shanks are available for this end mill?

This end mill is available with a range of shank diameters from 4mm to 18mm. This wide range ensures it will fit various CNC collets and milling machine holders. You can choose the specific shank size needed for your setup.

What materials is this router bit made from and coated with?

This router bit is made from high-quality carbide, rated to handle materials up to HRC50 hardness. It features a TiAlN (Titanium Aluminum Nitride) coating. This coating helps maintain the cutting edge and provides heat resistance during milling.

2 Flute Carbide Spiral Router Bit | 4-18mm Shank HRC50 | CNC Milling for Aluminum & Steel

Name: 2 Flute Carbide Spiral Router Bit | 4-18mm Shank HRC50 | CNC Milling for Aluminum & Steel
Brand: Compel
SKU: MANU-00211
Price: 39.99 USD
Availability: InStock

Stock #:TBS-05560

SKU:MANU-00211

2 Flute Carbide Spiral Router Bit | 4-18mm Shank HRC50 | CNC Milling for Aluminum & Steel - Image 1

1 / 6

$39.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

Dimensions33 optionsSelect an option

Quantity

2 Flute Carbide Spiral Router Bit | 4-18mm Shank HRC50 | CNC Milling for Aluminum & Steel

$39.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What kind of milling operations is this router bit best for?: This 2-flute carbide router bit is designed for CNC milling, especially for materials up to HRC50 hardness. It's ideal for semi-finishing and finishing passes on aluminum, alloy steel, and other metals. You can use it for creating pockets, slots, and contours.
What size shanks are available for this end mill?: This end mill is available with a range of shank diameters from 4mm to 18mm. This wide range ensures it will fit various CNC collets and milling machine holders. You can choose the specific shank size needed for your setup.
What materials is this router bit made from and coated with?: This router bit is made from high-quality carbide, rated to handle materials up to HRC50 hardness. It features a TiAlN (Titanium Aluminum Nitride) coating. This coating helps maintain the cutting edge and provides heat resistance during milling.

Manufacturing & CNC spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare manufacturing & cnc

This product

Single 2-flute milling cutter with 4-18mm shank, made from HRC50 carbide for machining aluminum, metal alloys, and steel on CNC equipment.

2 Flute Carbide Spiral Router Bit | 4-18mm Shank HRC50 | CNC Milling for Aluminum & Steel

Price$39.99

RatingNot rated

Sold4+

Stock In stock

You're viewing this

Alternative

HUHAO two-flute spiral carbide end mill with 1/2-inch shank for general milling operations on various materials.

2 Flute Spiral Carbide Milling Cutter | 1/2 Inch Shank | HUHAO High-Performance CNC Router Bit

Price$49.99

Rating5.0

Sold132+

Stock In stock

View

Alternative

Single flute spiral end mill with 4-8mm shank options, carbide construction for 3D engraving and carving in woodworking CNC applications.

Flute Spiral End Mill | 4-8mm Carbide CNC Router Bit | 3D Engraving for Woodworking

Price$59.99

Rating5.0

Sold110+

Stock In stock

View

Alternative

Three-flute tungsten carbide end mill with 3.175mm shank, optimized for CNC machining of aluminum, plastics, wood, and composite materials.

3 Flute Carbide End Mill | For Aluminum & Plastic CNC Cutting | 3.175mm Tungsten Milling Tool

Price$79.99

RatingNot rated

Sold4+

Stock In stock

View

Alternative

Set of four carbide end mills with 4 flutes, diameters ranging from 6mm to 12mm, featuring straight shanks for CNC milling applications.

4 Flute Carbide End Mill Set | 4Pcs 6-12mm Diameter | CNC Milling Cutter Tools

Price$17.99

Rating5.0

Sold43+

Stock In stock

View

Compare options

More Manufacturing & CNC

All Manufacturing & CNC

Thread Milling Cutter | Solid Carbide Single Tooth | M1-M14 CNC Machine Tool

5.0

$19.99

Carbide Taper Ball Nose Bit | Coated End Mill | CNC Milling Cutter for Wood & Metal

5.0

$19.99

Coating Carbide Router Bit | 2 Flute Spiral End Mill | Down Cut Milling for Wood & MDF

5.0

$24.95

Carbide Inserts | For APMT1135 Blades | DMIX BAP300R EAP300R Milling & Shoulder Cutting

5.0

$17.99

CNC Touch Probe | 6.0mm Ruby Ceramic Stylus | A-5000-3709/3712 Measuring Needle

5.0

$21.95

Solid Carbide Roughing End Mill | 3-Flute Design for Steel, Aluminum & Hard Materials

5.0

$24.95

Carbide Rotary File | Heavy-Duty Metalworking Burr | CNC Engraving & Polishing Tool

5.0

$35.99

Steel CNC End Mill | 4 Flute HRC60 Metal Milling Cutter | 4mm-20mm Sizes

5.0

$22.95

Shockproof Bar Cutter Sleeve | WTD Series | Fixed Bore Turning Tool

5.0

$42.95

4NTE90 High Feed Milling Cutter | 7-17mm Full Series | CNC Metal Milling Tool Holder

5.0

$88.99

CNC Motion Controller | 4-Axis Board with 2.4 Touch Screen | DIY Laser Engraver & Router Upgrade

5.0

$61.99

Plasma Torch Clamp Holder | 25-50mm Anti-Collision CNC Fixture | Secure Cutting Machine Mount

5.0

$98.99

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

Fitting | 304 Stainless Steel Compression | 1/2 NPT Union

4.9(49)

$2.49

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

Designed for demanding metalworking, this 2-flute carbide end mill excels in machining aluminum, alloy steel, and other metals up to HRC50. Its robust spiral geometry and high-quality substrate ensure efficient chip evacuation, reduced vibration, and a superior surface finish in CNC milling operations. Features and Benefits - HRC50 Rated Carbide - Maintains cutting edge integrity and hardness when machining tough materials like steel and alloys. - Optimized 2-Flute Spiral Design - Balances material removal rate with fine finish capabilities, ideal for semi-finishing and finishing passes. - Precision Ground Flutes - Ensure consistent cutting performance, accurate dimensions, and extended tool life. - 4-18mm Shank Range - Offers compatibility with a wide array of CNC collets and milling machine holders for versatile setup. Applications - Precision milling of aluminum components for automotive or aerospace prototypes. - Creating pockets, slots, and contours in alloy steel parts for industrial machinery. - Semi-finishing operations on hardened metal workpieces requiring a smooth surface finish.

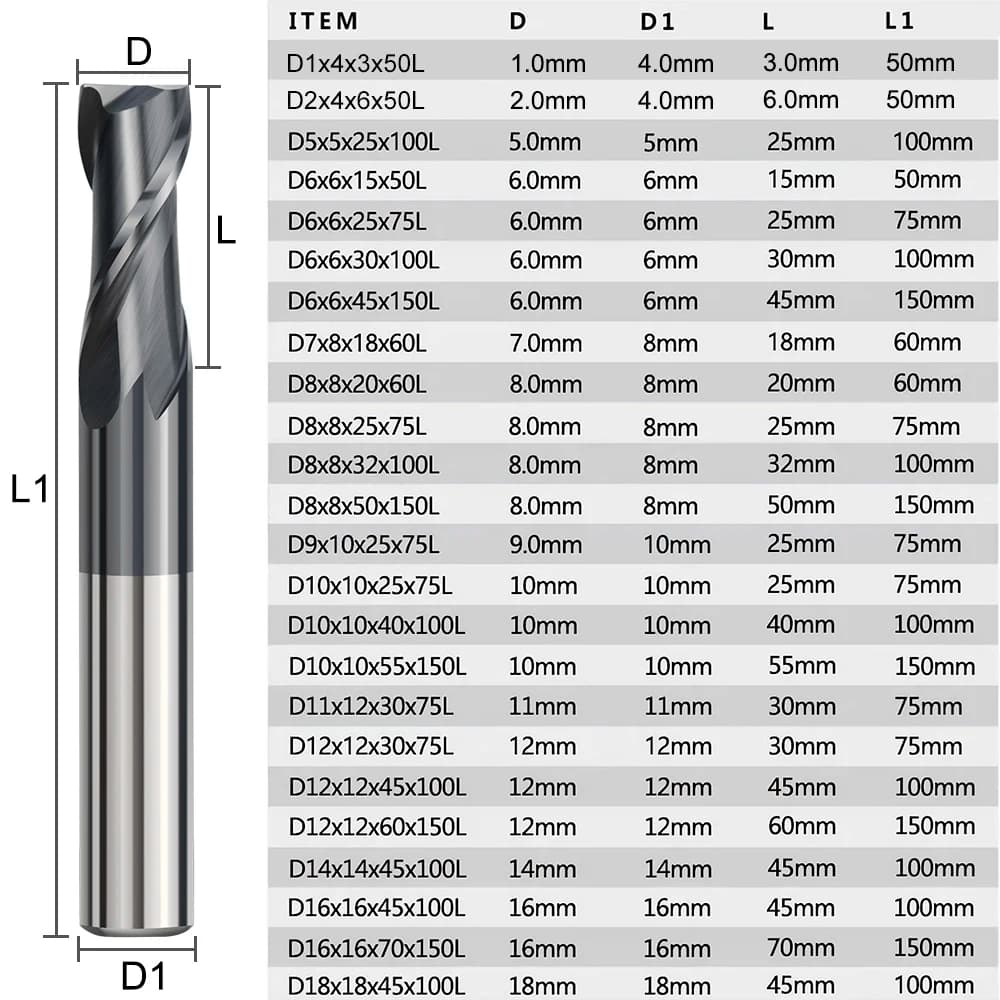

Material: Carbide. Suitable Materials: Aluminum, Metal Alloy, Steel. Application: CNC Milling. Coating: TiAlN. Flute Count: 2. Hardness: HRC50. Product Type: Milling Cutter. Shank Diameter: 4-18mm. Cutting Diameter: Matches shank diameter or slightly smaller (specific per shank size). Flute Length: Not specified (varies with shank diameter). Overall Length: Not specified (standard length for CNC milling). Shank Diameter Options: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm (as per '4-18mm' range). Cutting Material: Carbide (Hardness: HRC50). Primary Application Materials: Aluminum, Metal Alloy, Steel. Coating: TiAlN (Titanium Aluminum Nitride). Coolant Use: Recommended for steel, optional for aluminum (coating aids heat resistance). Flute Count: 2 Flutes. Helix Angle: Not specified (optimized for metal cutting). Max Recommended RPM: Not specified (depends on material and diameter; lower for steel, higher for aluminum). Product Type: Spiral Router Bit / End Mill. Quantity: 1 piece. Radial Depth of Cut: Not specified (up to full diameter for aluminum, less for steel). Recommended Feed Rate: Not specified (material and diameter dependent). Q: What are the specifications of this 2-flute milling cutter? A: This is a single 2-flute spiral router bit with a shank diameter ranging from 4mm to 18mm, designed for machining hard materials. It is made from carbide rated for materials up to HRC50, such as aluminum, metal alloys, and steel.. Q: How does the quality perform on metals like aluminum and steel? A: The carbide composition and HRC50 rating indicate it is engineered for hardness and heat resistance. The 2-flute spiral design is intended for efficient chip evacuation and smoother finishes on non-ferrous metals and alloys.. Q: Will this bit fit my CNC machine for metalworking? A: You must verify the exact shank diameter of the bit matches your CNC machine's collet. Its design is specifically for machining metals, so ensure your machine's rigidity and RPM capabilities are suitable for such operations.. Q: Is there a warranty for this carbide milling cutter? A: The applicable warranty or guarantee policy is set by the seller or manufacturer. Check the product documentation or listing details for specific warranty information related to this tool.. Q: Is this a good value for machining metal? A: For a single, purpose-built carbide cutter rated for hard materials, it can offer value to users needing a bit for aluminum, alloy, or steel. Its performance in reducing wear compared to standard bits is a key consideration..
