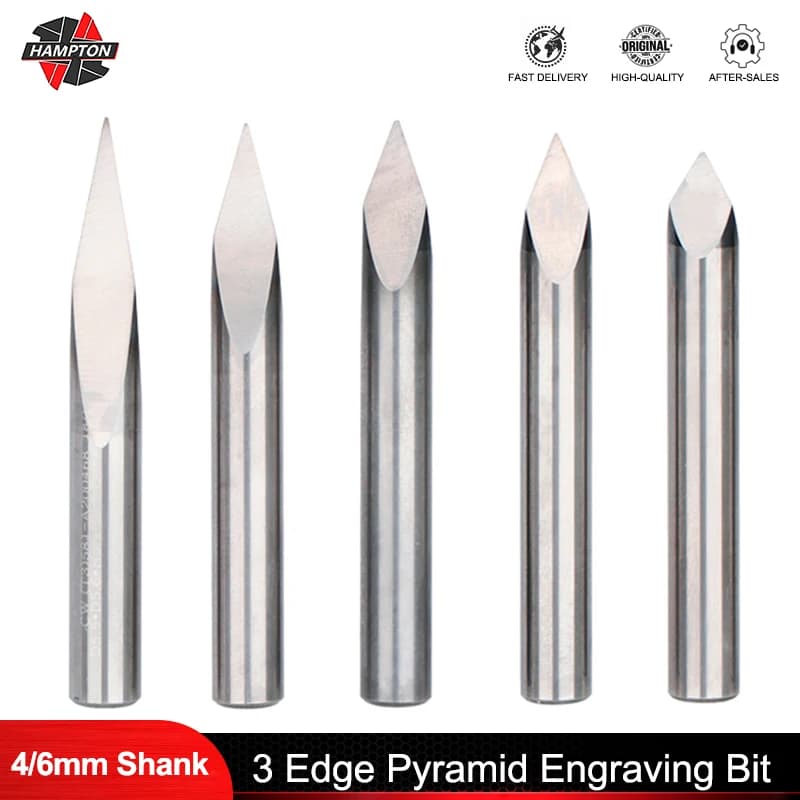

Achieve intricate 3D carving and precise detailing with this versatile set of pyramid engraving bits. Designed for CNC milling, these cutters feature a robust 6mm shank for superior stability and a selection of tip angles from 20 to 90 degrees for exceptional control over your design's depth and geometry. Features and Benefits
- 6mm Shank Design - Ensures maximum grip and minimal vibration in the collet for smooth, chatter-free operation and extended tool life.
- Multiple Tip Angles (20/30/40/45/60/90°) - Provides unmatched versatility for creating varied textures, sharp V-grooves, and complex 3D contours in a single tool set.
- Ultra-Fine 0.1-0.3mm Carving Tip - Enables the execution of highly detailed engraving work, fine line work, and delicate lettering on wood, plastics, and soft metals.

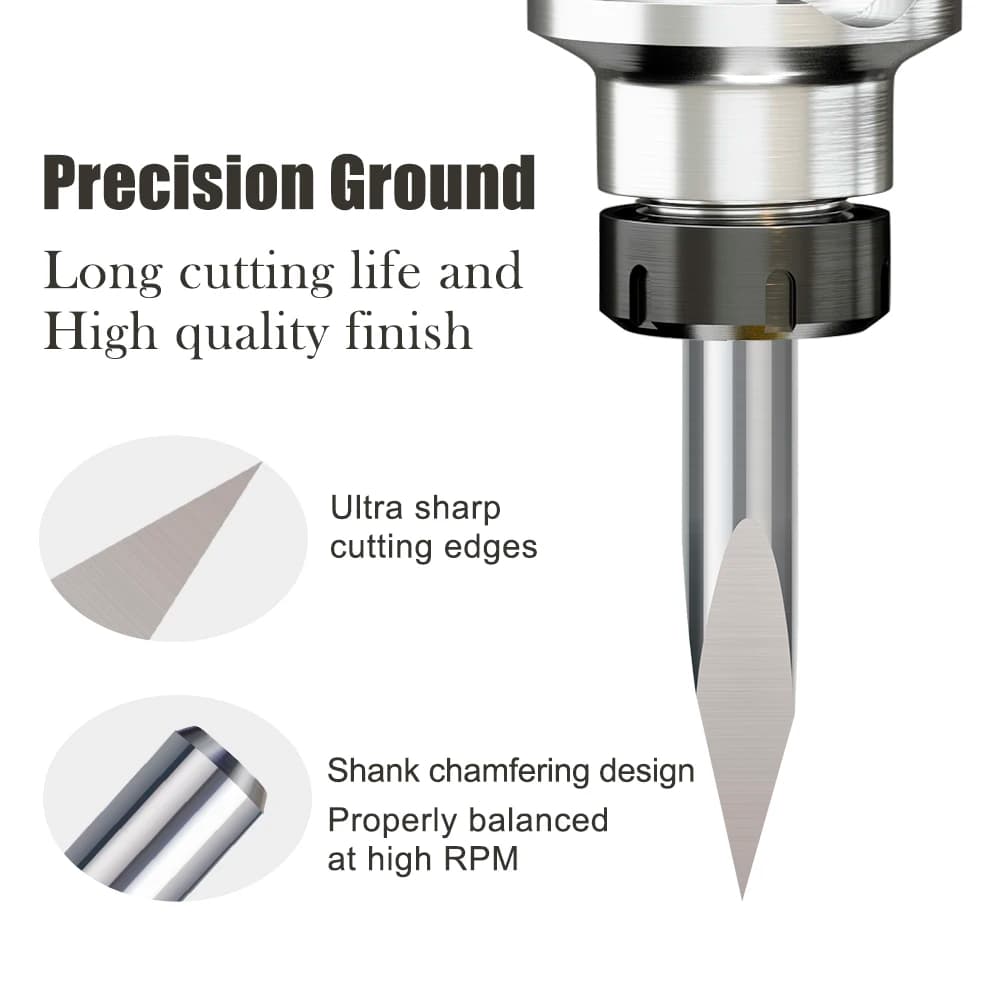

- Pyramid Geometry with 3 Cutting Edges - Delivers efficient chip evacuation and a superior surface finish, reducing post-processing time and material tear-out. Applications
- Detailed 3D relief carving and artistic sign-making on wood and acrylic.
- Precision engraving of serial numbers, logos, and decorative patterns on aluminum and brass plates.
- Creating intricate inlays, decorative moldings, and custom jewelry prototypes.

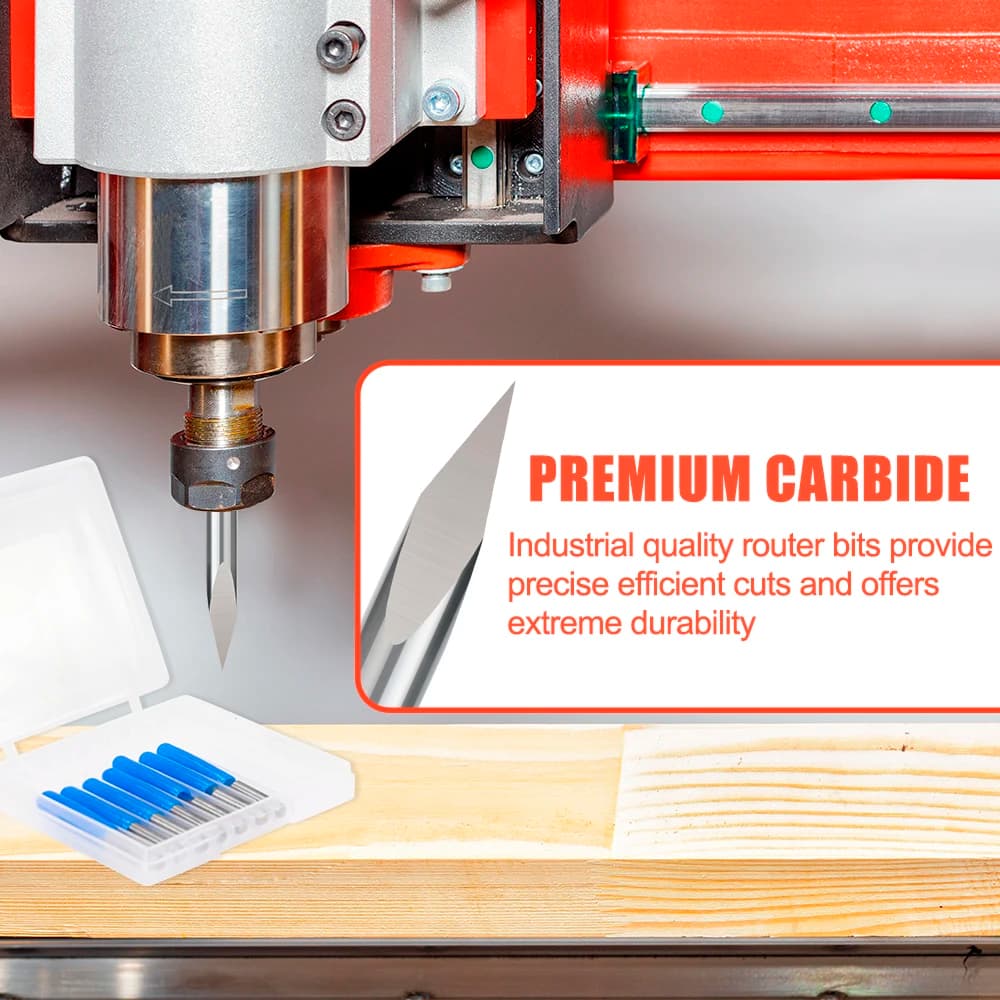

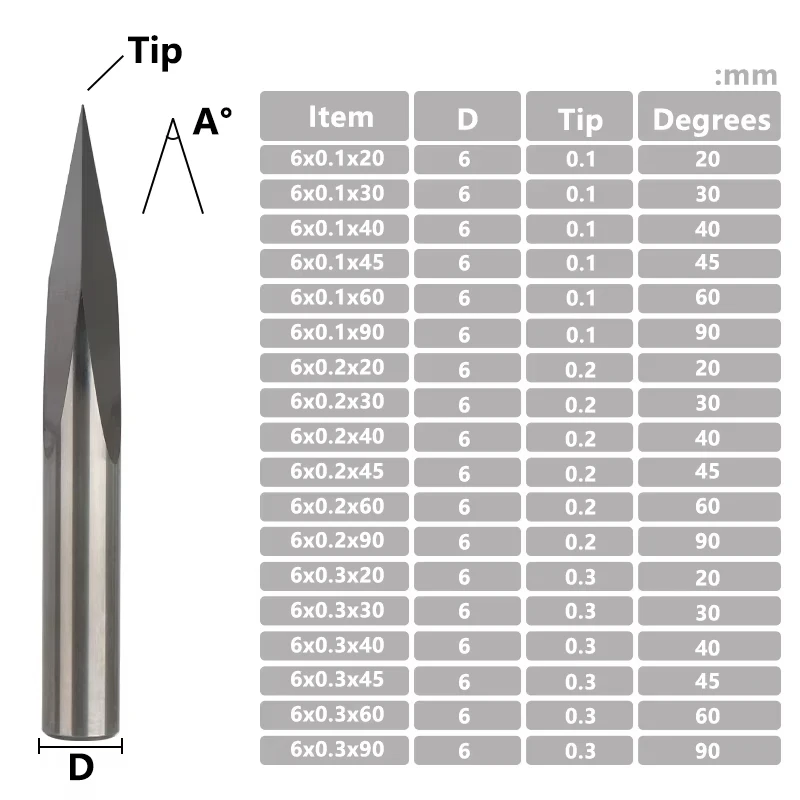

Product Type: Pyramid Engraving Bit. Shank Diameter: 6 mm. Tip Angles: 20, 30, 40, 45, 60, 90 degrees. Tip Radius: 0.1-0.3 mm. Coating: AlTiN. Flute Count: 3. Certification: CE. Cutting Length (Typical): Approx. 10-15mm. Overall Length (Typical): Approx. 38-50mm. Shank Diameter: 6mm. Tip Radius/Cutting Edge Width: 0.1-0.3mm. Material (Substrate): Micro-grain Tungsten Carbide. Primary Workpiece Materials: Wood, Plastics, Acrylic, Soft Metals (e.g., aluminum), PCB. Maximum Recommended Spindle Speed: Up to 30,000 RPM. Certification: CE. Application Type: 3D Milling, Engraving, Carving. Coating: AlTiN (Aluminum Titanium Nitride). Compatible Machine Type: CNC Router, CNC Milling Machine. Cutting Direction: Down-cut or Up-cut (depending on helix). Flute Count: 3. Flute/Engraving Profile: Pyramid (V-shaped). Tip Angles Available: 20°, 30°, 40°, 45°, 60°, 90°. Q: What are the key specifications of these engraving bits? A: These bits feature a 6mm shank and come in a set with 20, 30, 40, 45, 60, and 90-degree tip angles. They are designed for fine carving with a tip width range of 0.1-0.3mm, suitable for detailed 3D milling and engraving work.. Q: What is the build quality and durability of these CNC milling cutters? A: The cutters are manufactured from high-grade carbide materials for hardness and wear resistance. The 3-edge pyramid design provides stability and efficient chip removal, ensuring consistent performance and a long tool life during precision carving operations.. Q: What types of CNC machines are these bits compatible with? A: These engraving bits are compatible with most CNC routers and milling machines that accept a 6mm collet. They are ideal for machining materials like wood, plastics, acrylics, and soft metals, where fine detail and a smooth finish are required.. Q: Is there a warranty or guarantee provided with these bits? A: The product typically comes with a standard manufacturer's warranty against defects in materials and workmanship. It is recommended to check the specific seller's policy for the exact warranty duration and coverage details at the time of purchase.. Q: What makes this set a good value compared to individual bits? A: This set offers excellent value by providing six different tip angles in one package, allowing for versatile engraving and carving applications without needing multiple separate purchases. The inclusion of fine-tip sizes enables both broad and highly detailed work efficiently..
