This stainless steel pressure washer hose connector is an M22 swivel joint that sits between the washer gun and the hose, letting the hose turn freely through 360 degrees so it twists and kinks less. It is rated to a maximum of 5000 PSI and is sold in two bore sizes, 14mm or 15mm, to match your hose.
Features and benefits:
- 360 degree swivel: the hose can rotate at the joint, which cuts down on tangling and twisting while you move around the job.
- Stainless steel body: a solid metal fitting for a connector that carries high pressure water.
- 5000 PSI maximum pressure: suited to high pressure washer guns and hoses used within that rating.

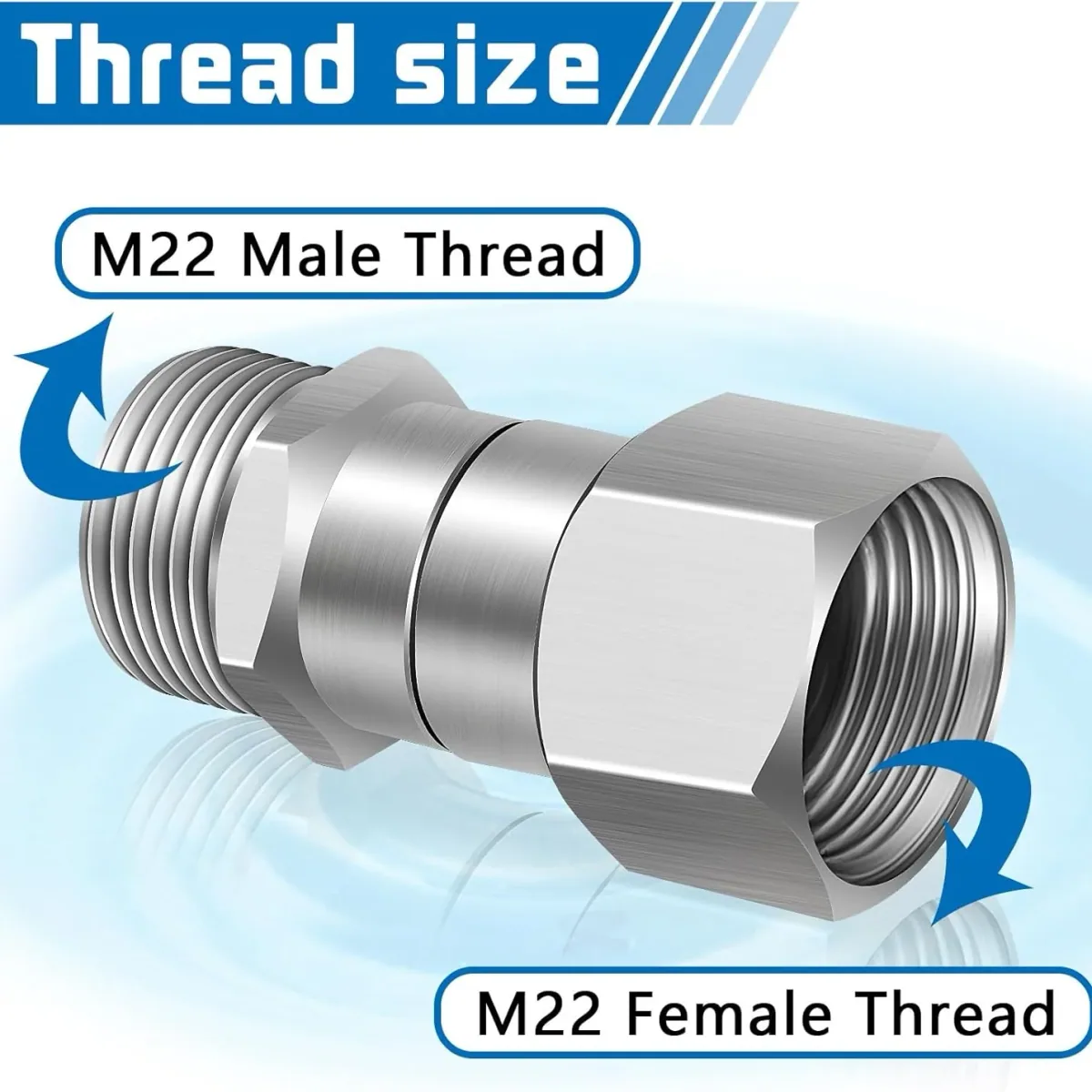

- M22 male and M22 female ends: the male end has a 22mm outer diameter and the female end a 22mm inner diameter, so it fits M22 gun inlets and M22 hose ends.
- Two bore options: choose the 14mm or the 15mm bore to suit the diameter of your hose.
- Short 2 inch (50.8mm) body: adds very little length between the gun and the hose.
Applications:

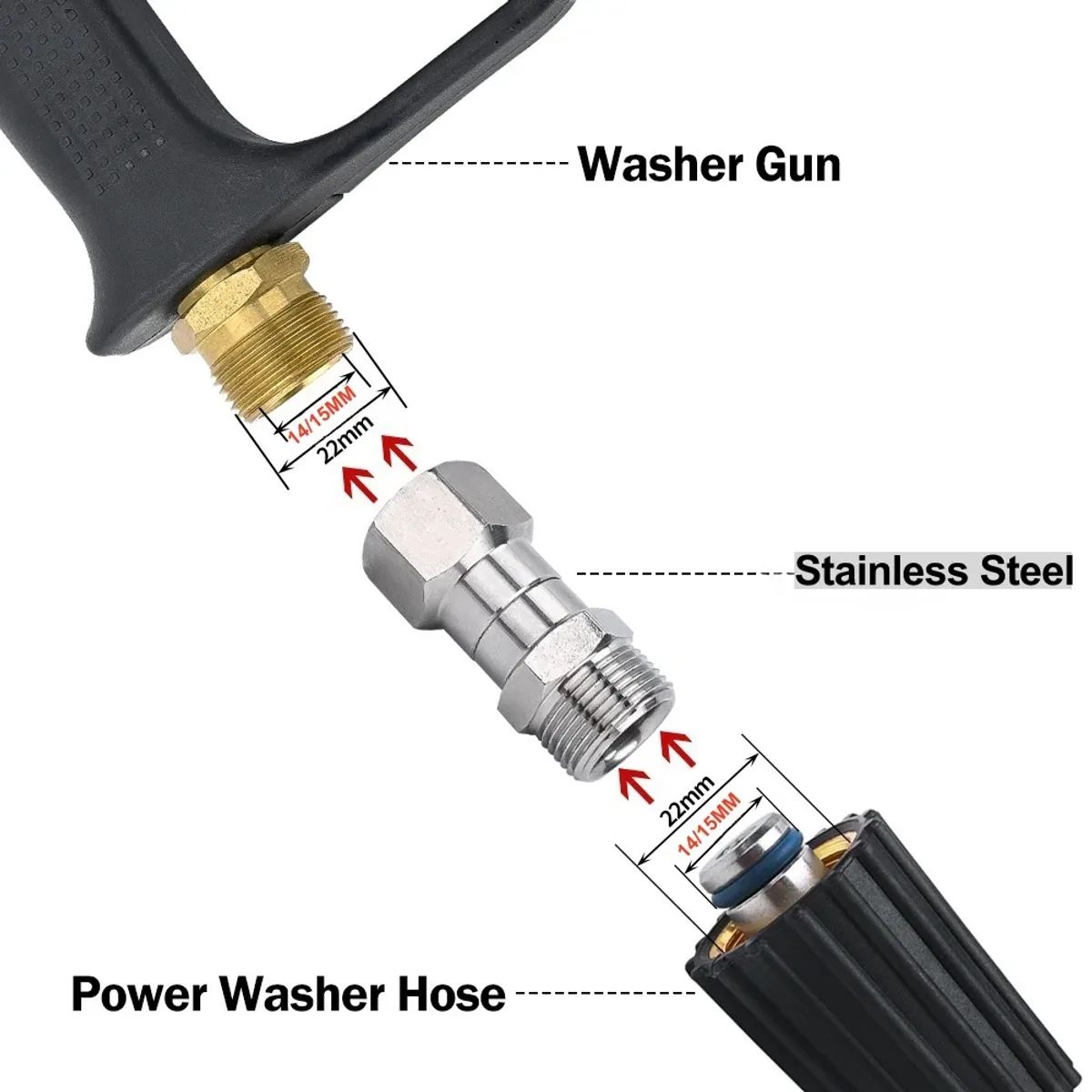

- Fitting between a pressure washer gun and the hose to stop the hose twisting
- Replacing a worn or seized swivel on a washer gun with an M22 male water inlet
- Workshop, yard and vehicle cleaning where the hose is dragged around while working
- Cleaning contractors who want smoother hose movement on site
Note: Two versions are sold: one for a 14mm hole and one for a 15mm hole. Measure your hose and pick the matching size before ordering. This connector is for washer guns that have an M22 male fitting on the water inlet. Do not use it above its 5000 PSI maximum, and check the fitting is tight and the hose is undamaged before each use.
Product type: Swivel hose connector. Thread: M22 male to M22 female. Swivel: 360 degrees. Maximum pressure: 5000 PSI. Material: Stainless steel. Bore options: 14mm or 15mm (choose in options). Length: 2 inch (50.8mm). Male end outer diameter: 0.86 inch (22mm). Female end inner diameter: 0.86 inch (22mm). Fits: Pressure washer guns with an M22 male water inlet. Position in line: Between the washer gun and the hose. Length: 50.8mm. Male end outer diameter: 22mm. Bore, M22-14MM version: 14mm. Bore, M22-15MM version: 15mm. Body material: Stainless steel. Gun side connection: Marked 14/15MM and 22mm. Hose side connection: Marked 14/15MM and 22mm. Q: What does an anti twist swivel connector do on a pressure washer? A: It lets the hose rotate freely at the joint, so the hose can turn as you move instead of twisting up. This reduces tangling and kinking during use.. Q: Where does the swivel connector go on a pressure washer? A: It is fitted between the washer gun and the pressure washer hose. It is made for washer guns that have an M22 male fitting on the water inlet.. Q: What is the maximum pressure for this hose connector? A: It is rated to a maximum of 5000 PSI. Keep the whole line, including the hose and gun, within that rating.. Q: How do I choose between the 14mm and 15mm version? A: Measure the diameter of your hose and pick the option that matches. The two versions differ only in bore size, 14mm or 15mm.. Q: Is this connector made of stainless steel? A: Yes, the body is stainless steel, with a 360 degree swivel and M22 thread ends..
