Mini ITX NAS Motherboard | N100/N150 6x SATA 3.0 | Dual 2.5GbE Intel I226

Name: Mini ITX NAS Motherboard | N100/N150 6x SATA 3.0 | Dual 2.5GbE Intel I226
Brand: Compel Group
SKU: SING-00253
Price: 673.99 GBP
Availability: InStock
Rating: 5 (5 reviews)

Stock Nr:

SKU:

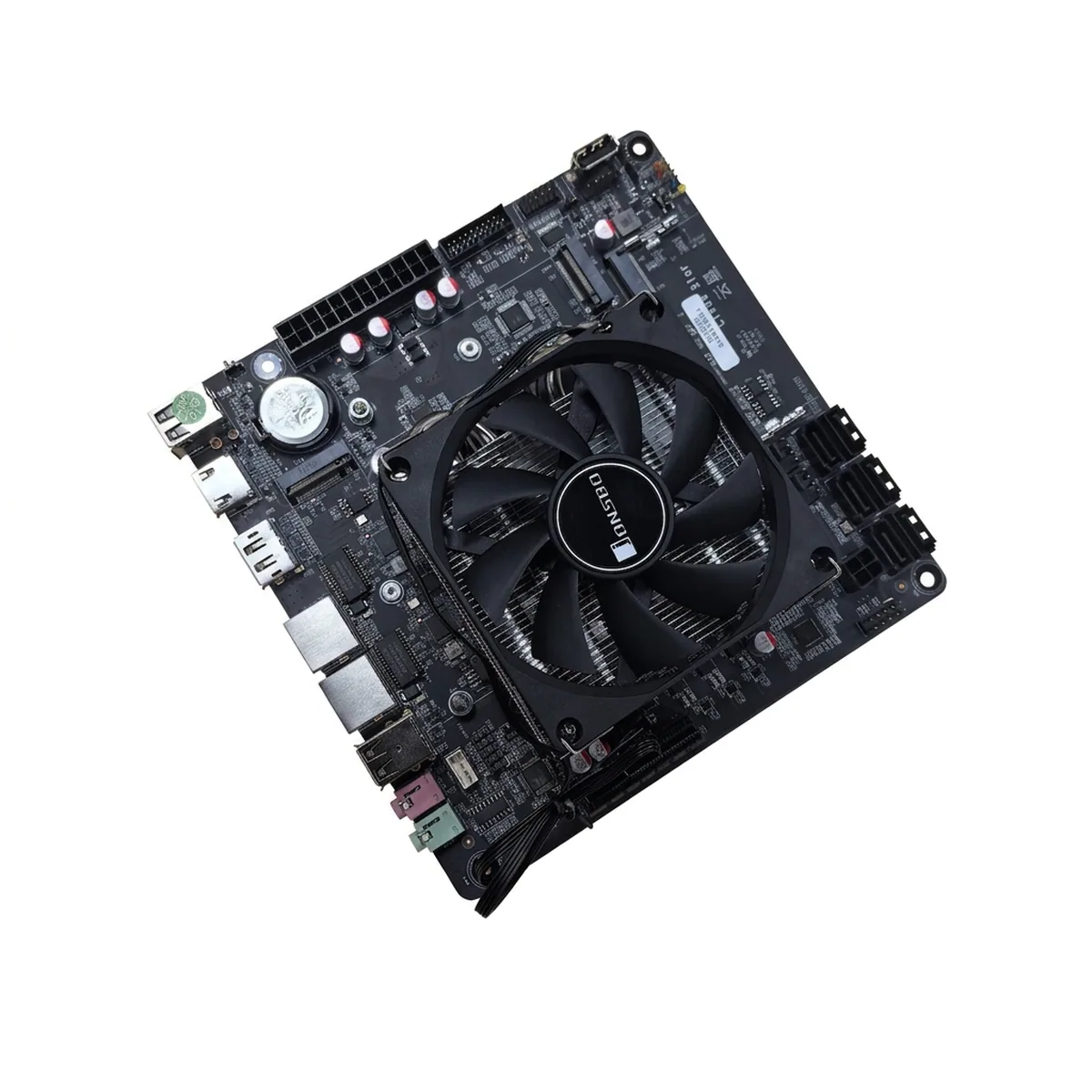

Mini ITX NAS Motherboard | N100/N150 6x SATA 3.0 | Dual 2.5GbE Intel I226 - Image 1

1 / 2

£673.99inc VAT

+RAMsSelect an option

+CPU14 optionsSelect an option

Quantity

Mini ITX NAS Motherboard | N100/N150 6x SATA 3.0 | Dual 2.5GbE Intel I226

£673.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

Are the Intel i226 2.5G network ports compatible with pfSense and OPNsense for a firewall appliance mini pc build?: Yes, both ports run on the Intel i226-V chipset and work out of the box with current releases of OPNsense and pfSense CE 2.7 or later. They handle full 2.5Gbps line speeds for routing and firewall duties. You won't need to load external drivers during setup.
How many storage drives can I connect to this board for a DIY NAS?: You can wire up to six SATA 3.0 hard drives or SSDs directly to the onboard ports, with support for RAID 0, 1, 5, and 10. The board also features two M.2 2280 slots for fast NVMe storage or SSD caching. That gives you eight physical drives in total before adding any PCIe expansion cards.
What type of power supply does this Mini-ITX motherboard take?: The board powers via a standard 24-pin ATX main power connector, so it works with typical ATX, SFX, or Flex-ATX power supplies. It fits standard Mini-ITX cases with standard mounting holes. Make sure your chosen case has enough physical bays and power leads for your planned SATA drives.

Single Board Computers & Modules spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £673.99 · 5.0

This product

Top-down view of a Mini ITX NAS Motherboard featuring an integrated round cooler, RAM slot, and rear I/O ports.

Mini ITX NAS Motherboard | N100/N150 6x SATA 3.0 | Dual 2.5GbE Intel I226

Price: £673.99
Rating: 5.0(5)
Sold: 62+
Stock: In stock

You're viewing this

Alternative

Rear view of white Mini ITX NAS Motherboard showing mounting hardware and solder points.

Mini ITX NAS Motherboard | N150 / i3-N300 | 10GbE Dual 2.5GbE 8x SATA

Price: £774.99
Rating: 5.0(6)
Sold: 46+
Stock: In stock

View

Alternative

Mini ITX NAS Motherboard with integrated cooling fan, heatsinks, Ethernet ports, and USB connectors.

Mini ITX NAS Motherboard | 6-Bay SATA DDR5 | 10G & Dual 2.5GbE

Price: £753.99
Rating: Not rated
Sold: 2+
Stock: In stock

View

Alternative

Rear I/O ports of a Mini ITX NAS Motherboard showing USB, HDMI, and dual LAN ports.

Mini ITX NAS Motherboard | Intel N150 Dual 2.5G LAN | 6x SATA DDR5

Price: £659.99
Rating: 5.0(2)
Sold: 19+
Stock: In stock

View

Alternative

Mini ITX NAS Motherboard | 6x SATA 2x M.2 NVMe | N150/N300 DDR5

Price: £1,188.99
Rating: Not rated
Sold: 6+
Stock: In stock

View

Alternative

Mini ITX NAS Motherboard | AMD Ryzen | 8x SATA 3x NVMe 2x 2.5GbE

Price: £690.99
Rating: 4.7(6)
Sold: 85+
Stock: In stock

View

Alternative

Rear I/O panel of a Mini ITX NAS Motherboard showing DC jack, HDMI, dual LAN, and USB ports below a top fan.

Mini ITX NAS Motherboard | DDR5 7x M.2 NVMe or 6x SATA | Dual 2.5GbE LAN

Price: £652.99
Rating: Not rated
Sold: 3+
Stock: In stock

View

Compare options

More Single Board Computers & Modules

All Single Board Computers & Modules

1U Rackmount Firewall Server | 12th Gen LGA 1700 | 4-Port 10G SFP+ & 6-LAN Network Security Appliance

£1,427.99

8-Bay Hot-Swap Rackmount NAS Server | SAS Storage Solution for Business

£545.99

N100 Mini PC Server | 6-Port 2.5G Firewall Appliance | Proxmox & pfSense Ready

£767.99

Soft Router PC Motherboard | Dual 2.5GbE | 2x M.2 NVMe & DDR5

£682.99

12-Bay NAS Server Case | High-Capacity Data Storage | Full Tower Chassis

£676.99

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

USB-C Hub 8-in-1 Adapter | 4K HDMI, RJ45 & PD | SD/TF Card Reader

4.9(4.2K)

£44.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

UGREEN CAT 8 Ethernet Cable | 40Gbps 2000MHz Shielded | Router PC PS5 Xbox

4.9(2.8K)

£35.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

SD Card 256GB | A2 Rated for Faster Apps | Android Phone Game Storage

4.8(11.1K)

£29.99

M.2 SSD NVMe PCIe 3.0 Drive | 3500MB/s Read Speed | 2280 Internal Form Factor

4.8(3.1K)

£145.99

USB-C & USB 3.0 2.5" SATA HDD/SSD Enclosure | 5Gbps Clear Case

4.8(2.9K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

Build your own firewall appliance mini pc or home server using this compact n100 nas motherboard. It includes six native SATA ports, twin 2.5G network jacks, and DDR4 memory support on a standard 17x17 cm layout. The board runs on low wattage while managing multi-drive pools and heavy local network traffic without heating up. Features and Benefits - Intel N100 quad-core processor with 6-watt TDP - Keeps electric costs low during 24/7 operation and handles hardware-accelerated 4K Plex transcoding through onboard UHD graphics. - Six SATA 3.0 ports and two M.2 NVMe slots - Lets you attach a large mechanical drive array alongside fast solid-state cache drives on an intel n100 mini itx motherboard 6 sata setup. - Dual Intel i226-V 2.5GbE network controllers - Delivers steady multi-gigabit throughput for routing duties, file transfers, and clean network bridge setups. - Standard DDR4 SO-DIMM slot accepting up to 32GB RAM - Provides broad hardware compatibility and plenty of memory headroom for TrueNAS, unRAID, and multiple background containers. Applications - Dedicated firewall appliance mini pc running pfSense, OPNsense, or OpenWrt across separate high-speed LAN and WAN connections. - Low-draw home storage server running TrueNAS SCALE or unRAID to back up family PCs, run Docker stacks, and stream 4K media. - Compact office virtualization node for hosting local DNS sinkholes, personal cloud sync tools, and remote VPN gateways.

Processor Compatibility: Intel N100 / N150 Onboard. Memory Type: DDR4 SO-DIMM. Operating System Compatibility: pfSense, OPNsense, OpenWrt, TrueNAS, Linux. Application: Firewall Appliance, Soft Router, NAS Server. Ethernet Ports: 2x 2.5 GbE (Intel I226-V). Form Factor: Mini-ITX. M.2 Slots: 2x M.2 NVMe. PCIe Expansion: 1x PCIe Slot. SATA Ports: 6x SATA 3.0 (6 Gbps). Power Input: Standard 24-Pin ATX or 4-Pin 12V DC-IN. Thermal Design Power (TDP): 6W - 10W. Display Outputs: 1x HDMI 2.0, 1x DP (up to 4K @ 60Hz). SATA Interfaces: 6x SATA 3.0 (6Gb/s). USB Ports: 2x USB 3.0, 2x USB 2.0, onboard USB pin headers. Processor Compatibility: Intel Processor N100 / N150 (Quad-Core, up to 3.4 GHz). Operating Temperature: -10°C to 60°C. Ethernet Controller: 2x Intel I226-V 2.5GbE RJ45 Ports. Firewall Appliance Application: Optimized for pfSense, OPNsense, OpenWrt, Proxmox VE. Form Factor: Mini-ITX (170 x 170 mm). M.2 Slots: 2x M.2 2280 NVMe (PCIe 3.0 x1 / x2 signal). Memory Support: 1x DDR4 SO-DIMM, up to 32GB 3200MHz. PCIe Expansion: 1x PCIe x1 / x4 slot (open-ended). RAID Support: RAID 0, 1, 5, 10 via OS/software. Q: What network and drive connections come on this motherboard? A: You get six native SATA 3.0 ports for hard drives and two M.2 NVMe slots for solid-state storage. For networking, it includes two Intel I226-V ports that run at 2.5 Gbps each. There is also a PCIe slot open for an extra expansion card.. Q: Can I use this board to build a firewall appliance mini pc? A: Yes, it works well as a firewall appliance mini pc because the dual Intel 2.5G LAN ports support separate WAN and LAN routing. The low-power N100 or N150 processor handles packet filtering and VPN traffic without pulling much electricity. It fits standard Mini-ITX cases, so you can keep the build compact.. Q: How well does the board handle continuous 24/7 operation? A: The board uses solid capacitors and low-TDP Intel Alder Lake-N chips that run around 6 to 10 watts under typical loads. This low power draw keeps heat output minimal inside small enclosures. That low thermal footprint prevents component fatigue during nonstop server use.. Q: What operating systems and memory types run on this hardware? A: It accepts standard DDR4 SODIMM laptop memory modules up to 32GB at 3200MHz. For software, it runs standard x86 systems including TrueNAS Scale, unRAID, Proxmox VE, pfSense, and Debian Linux. The BIOS includes UEFI support for direct boot drives.. Q: What warranty and replacement support does this unit include? A: The motherboard comes with a standard one-year hardware warranty against factory defects and dead-on-arrival components. If a port or controller fails under normal use, you can contact customer support for a replacement or repair. Retain your order receipt to verify the purchase date..
