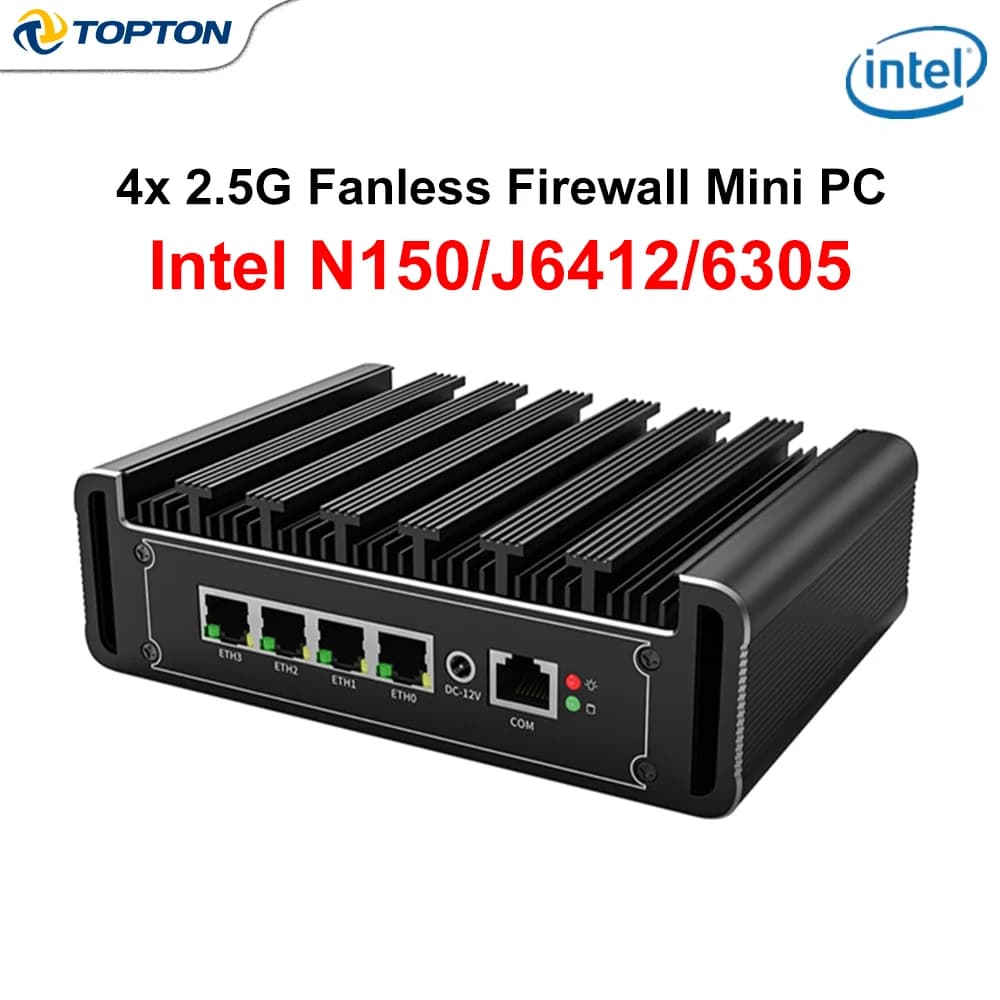

Fanless Mini PC Firewall | Intel N100 / N150 | 4x 2.5G i226-V LAN | 2x RS232 COM | pfSense & OPNsense

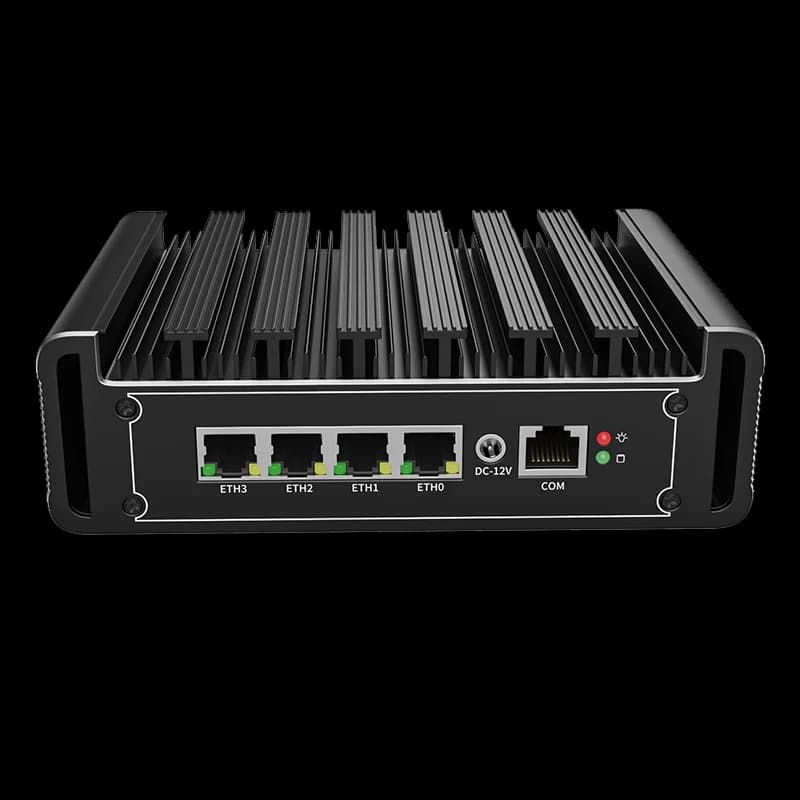

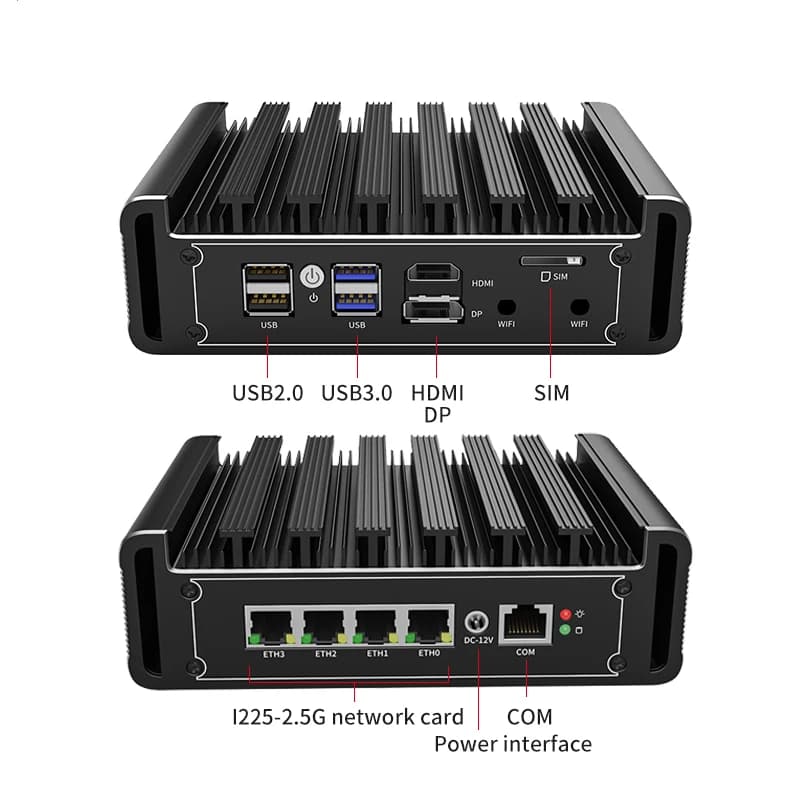

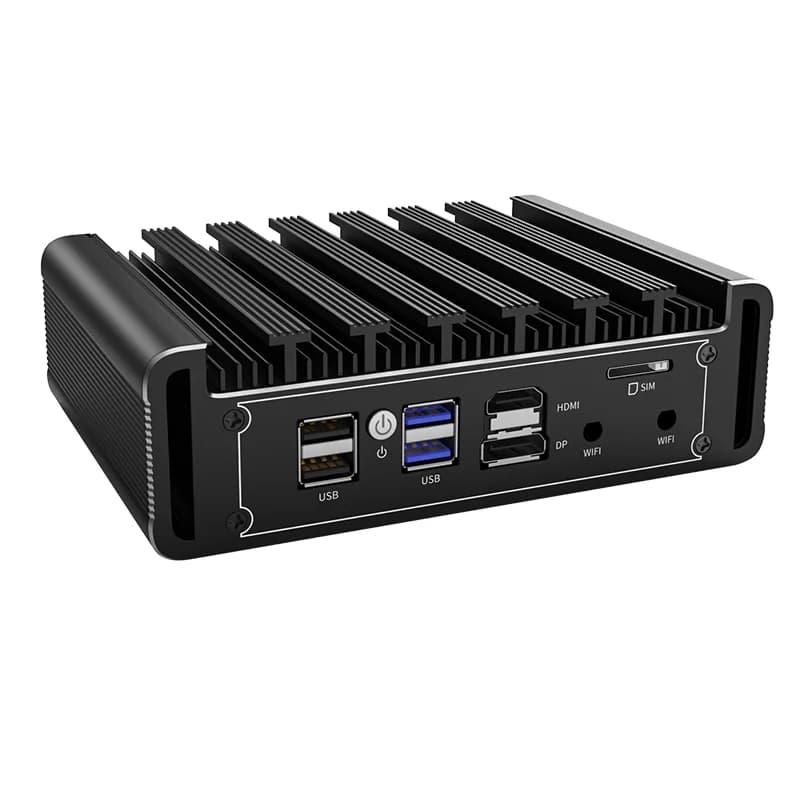

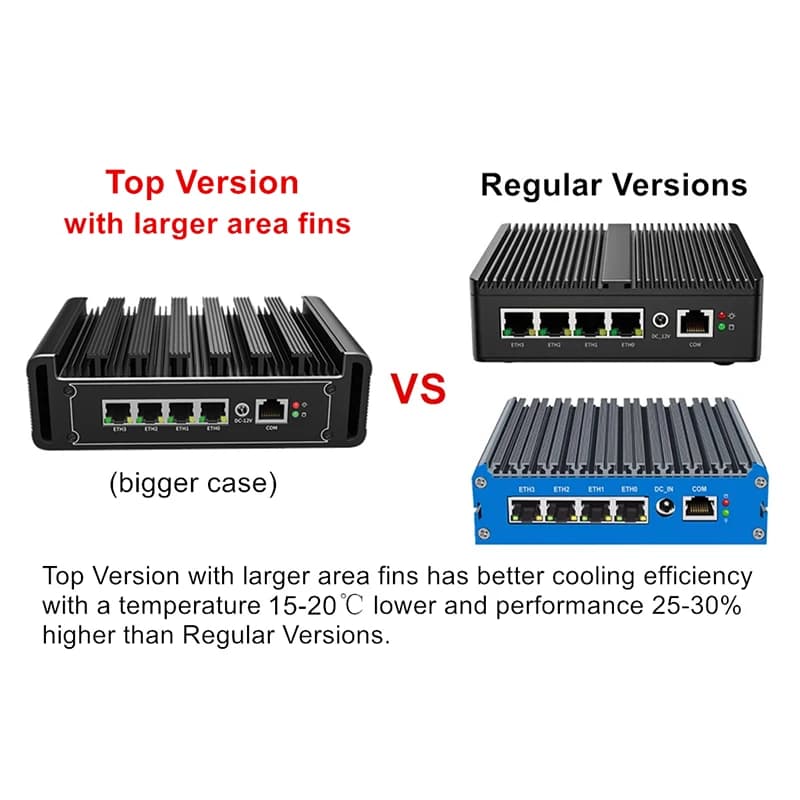

This fanless mini PC is built to run pfSense or OPNsense as a small firewall or router. It has four Intel i226-V 2.5G Ethernet ports, an Intel N100 or N150 processor and a finned aluminium case that cools without a fan. Buy it as a barebone and fit your own RAM and SSD, or pick a ready-fitted memory and storage combination from the options above. Features and Benefits - Four Intel i226-V 2.5G ports: one WAN and three LAN, or trunk VLANs across all four. Enough for multi-gigabit internet and fast transfers inside the network. - Intel N100 or N150: 4 cores, 4 threads, 6 MB cache, 6 W TDP. The N100 turbos to 3.4 GHz, the N150 to 3.6 GHz. Both have AES-NI, so VPN traffic does not drag the CPU down. - One DDR4 SO-DIMM slot, up to 32 GB at 2666 or 3200 MHz. - Two drive bays: an M.2 NVMe PCIe 3.0 x1 slot (2280 or 2242) and a 2.5-inch SATA 3.0 bay for a 7 mm SSD or HDD. The SATA cable is in the box. - Two RS232 COM ports for serial consoles, industrial controllers or a UPS link. - HDMI and DisplayPort with dual 4K output if you use it as a small desktop or media box. - Mini PCIe slot and SIM slot for a Wi-Fi or 4G LTE module (not included). - Hardware watchdog, auto power-on, RTC wake, PXE boot and Wake-on-LAN for unattended sites. - No fan. A solid aluminium body with long cooling fins and copper thermal pads. Silent, and made for 24/7 running. - VESA mount holes for wall or behind-monitor fitting (bracket sold separately). Applications - Dedicated pfSense or OPNsense firewall for a home or small office on a gigabit or faster line. - Small home server running Proxmox, Docker, Pi-hole or a light NAS on the SATA bay. - Edge router for a branch office with site-to-site VPN and VLAN segmentation. - Industrial gateway where the two COM ports talk to PLCs, meters or a serial console. Package Contents - 1 x fanless mini PC - 1 x DC power adapter - 1 x power cord (UK, EU, US or AU plug matched to the delivery country) - 1 x SATA cable Note - No operating system is installed. The barebone option ships without RAM or SSD. Fitted options ship with the DDR4 module and NVMe drive installed.
