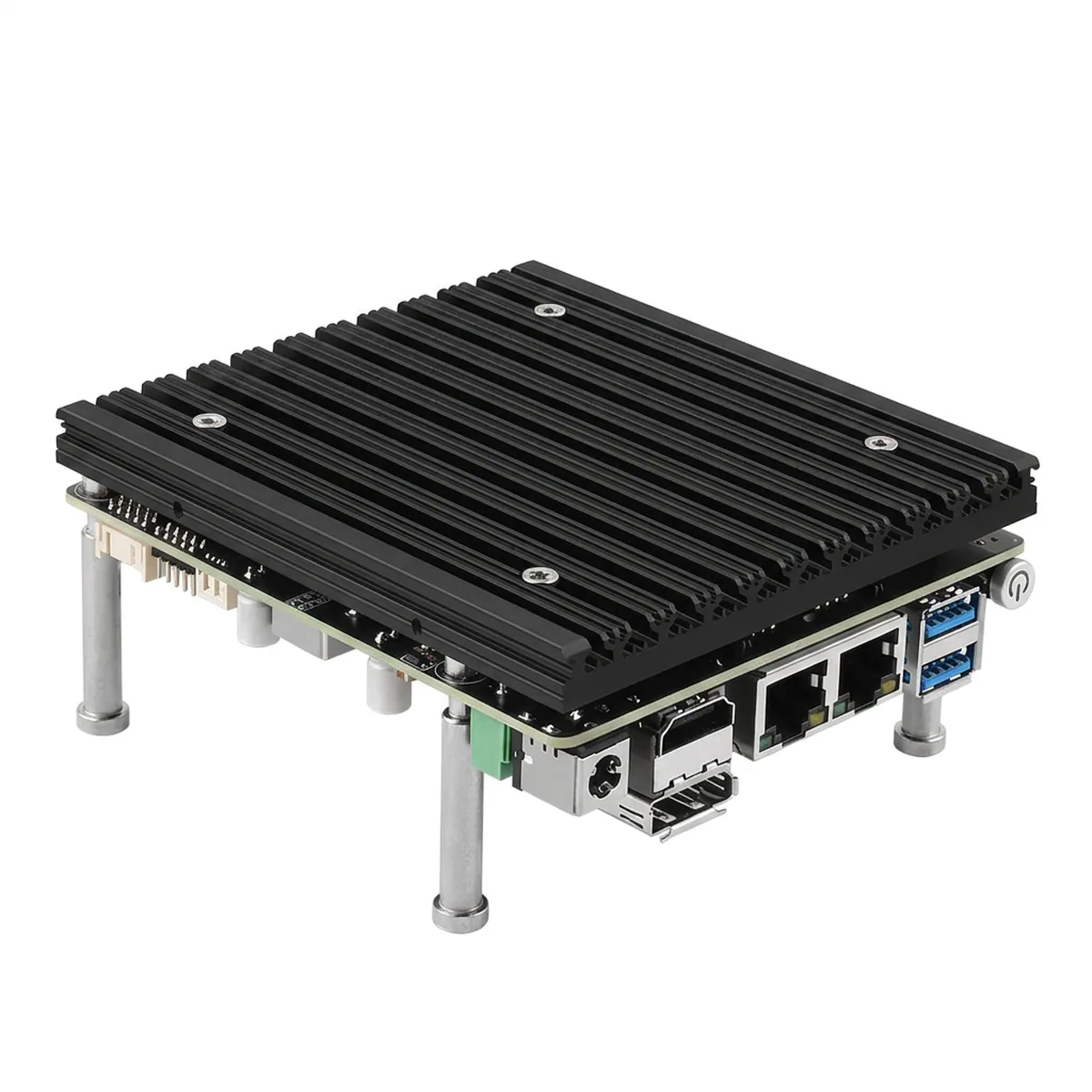

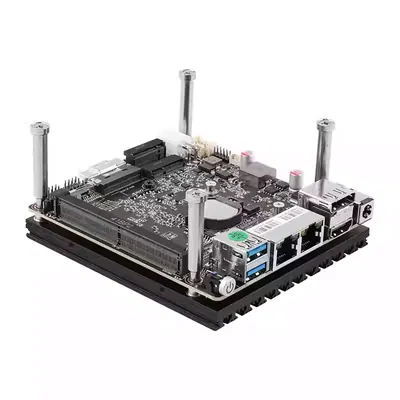

Mini ITX NAS Motherboard | DDR5 7x M.2 NVMe or 6x SATA | Dual 2.5GbE LAN

Stock Nr:
SKU:
Mini ITX NAS Motherboard | DDR5 7x M.2 NVMe or 6x SATA | Dual 2.5GbE LAN - Image 1
1 / 3
£652.99inc VAT

Build a compact storage hub with this Intel NAS motherboard, designed to manage high-speed networks and local drives. While smaller than a 6 port 2.5g firewall, it features dual 2.5GbE ports, single-c...

Select an option
Intel N150
£652.99
Fast Shipping
Secure Payment
Easy Returns

Good to know

Questions about this product

Can I run TrueNAS, Unraid, or Proxmox on this board?
Yes, this x86 board works with standard Linux-based operating systems including TrueNAS, Unraid, and Proxmox VE. The onboard dual Intel i226-V 2.5GbE network controllers are natively supported by modern Linux kernels. You can boot directly from an internal NVMe drive or a USB installer.
How many storage drives can I connect at the same time?

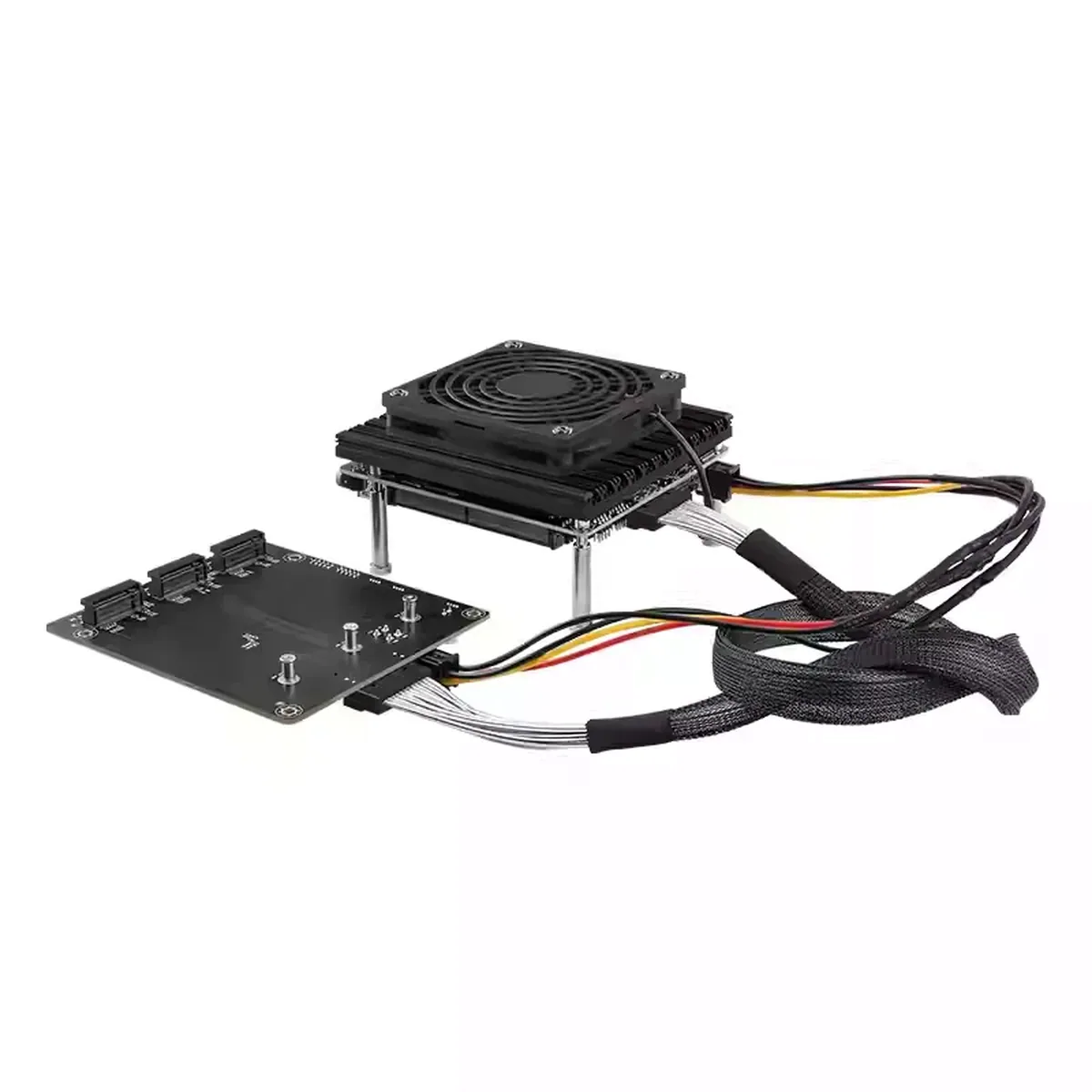

The motherboard layout supports up to 7 M.2 NVMe solid-state drives, or 6 SATA drives using the included breakout kit. Because storage lanes share PCIe bandwidth, using all slots at once will distribute available lanes across the drives. It fits standard 2280 form-factor NVMe storage.
What power draw should I expect for continuous 24/7 operation?
The installed Intel Core 3 N355 processor has a low 15W TDP rating with 8 cores running up to 3.90 GHz. At idle with minimal drives active, total power draw typically settles around 10W to 15W at the wall. Under full write loads with multiple drives spinning, expect draw to sit between 25W and 40W.

Single Board Computers & Modules spec sheet (PDF)

Get a one-page sheet with full description, specifications, FAQs, price & SKU - handy to save, print, or share.
