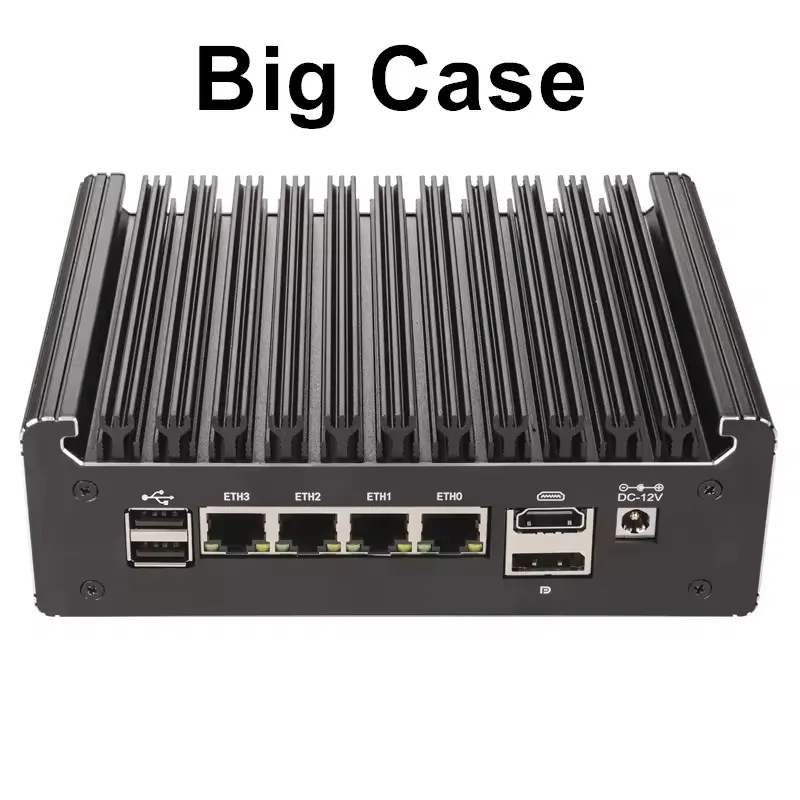

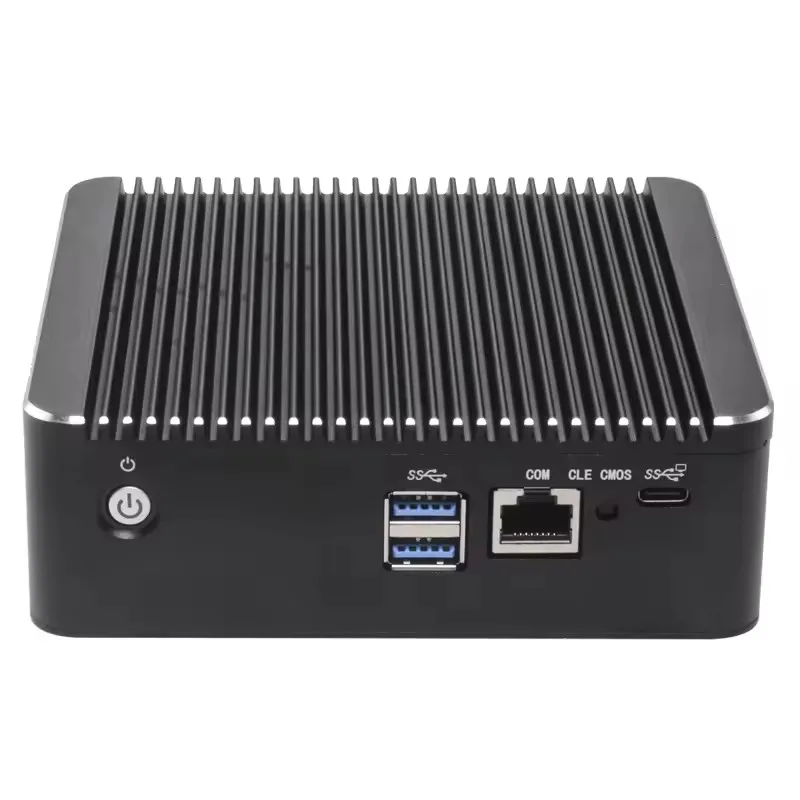

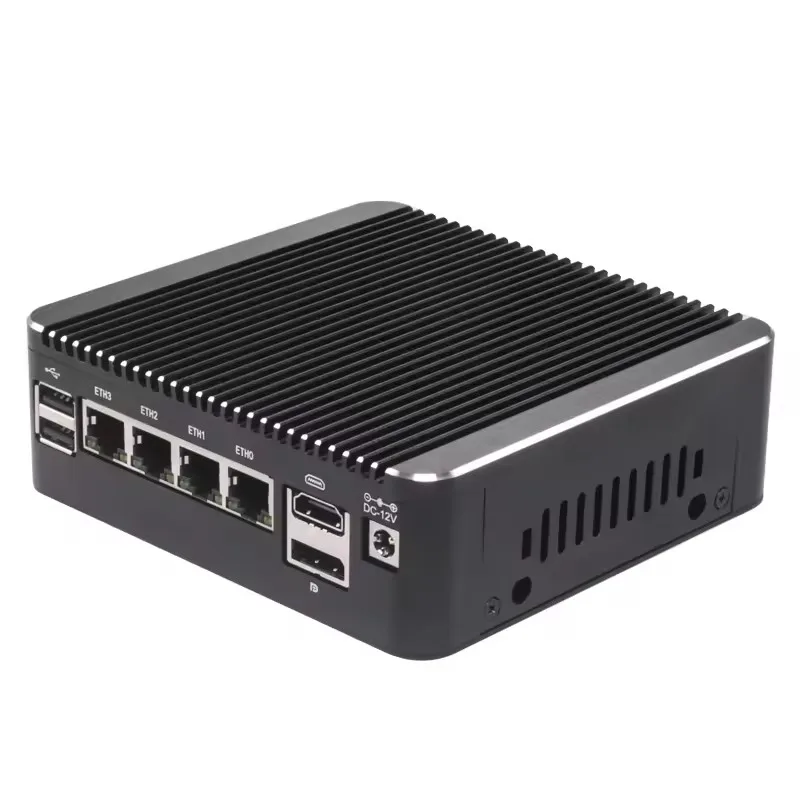

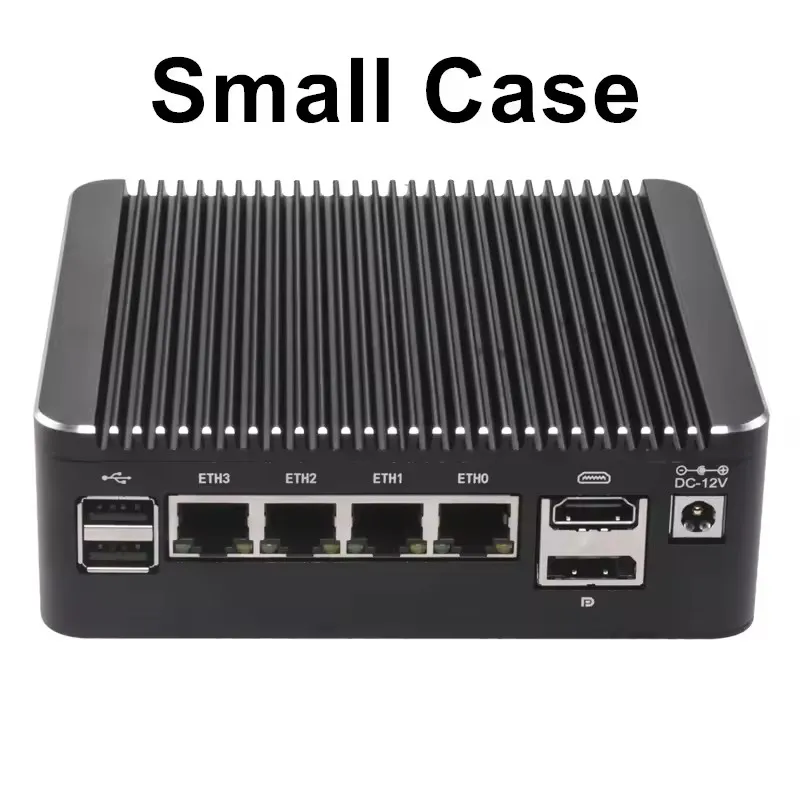

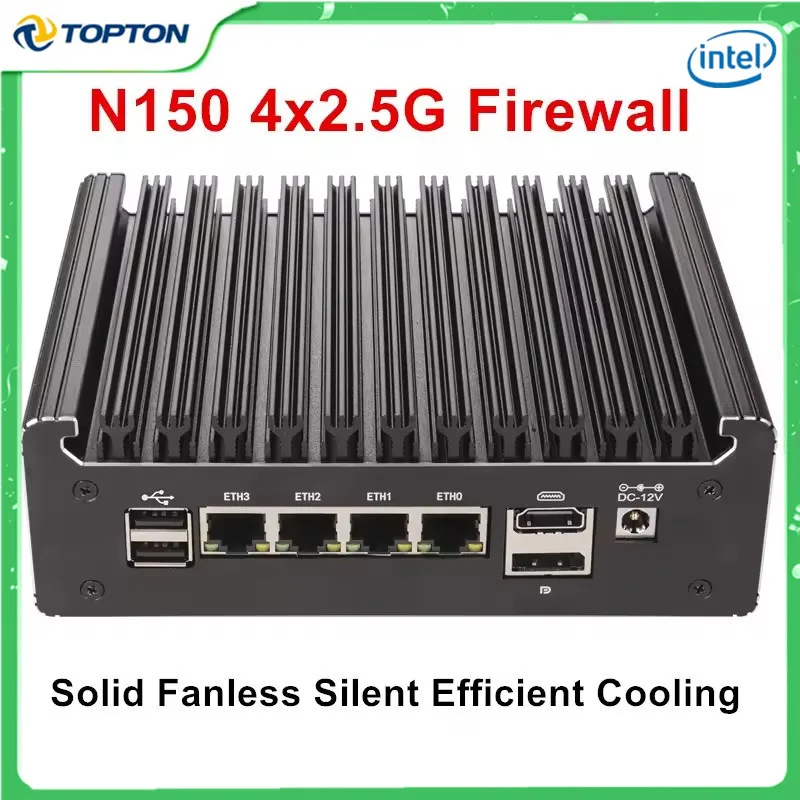

Engineer a high-performance, silent network with this solid fanless firewall mini PC. Featuring four 2.5 Gigabit Ethernet ports and a choice of efficient Intel processors, it delivers enterprise-grade routing, VPN throughput, and security without moving parts or noise. Its compact, all-metal chassis ensures reliable 24/7 operation for demanding network applications. Features and Benefits
- Four 2.5G Multi-Gigabit LAN Ports - Achieve wired speeds up to 2.5 Gbps per port for high-bandwidth routing, inter-VLAN traffic, and fast NAS connections, eliminating network bottlenecks.
- Fanless, Solid Metal Design - Enables completely silent operation with zero dust intake, ideal for home offices or media centers, while providing robust passive cooling for 24/7 reliability.
- Selectable Intel Processors (N150 to i5-8250U) - Choose the perfect balance of power efficiency and performance for your needs, from basic firewall rules to running multiple virtual machines or high-speed VPNs.
- Dual DDR4 & NVMe M.2 Support - Offers flexible memory and high-speed storage expansion for the firewall OS, caching, or hosting additional services, ensuring responsive system performance.
- Compact, VESA-Mountable Form Factor - Discreetly installs behind a monitor or under a desk, saving valuable space while providing a professional, clean setup. Applications
- Prosumer/Home Lab Firewall & Router - Run pfSense, OPNsense, or IPFire to create a secure, customizable network with VLANs, intrusion detection, and traffic shaping.
- Small Business Network Security Appliance - Deploy as a dedicated VPN gateway, content filter, or firewall to protect office networks without the cost and noise of rack-mounted gear.
- High-Speed Network Bridge or Tester - Utilize the four 2.5G ports to segment networks, test multi-gig equipment, or act as a transparent bridge for monitoring and filtering.
- Lightweight Home Server - Host a local DNS server (like Pi-hole), network storage controller, or other lightweight, always-on services in a low-power, silent package.
Processor Options: Intel N150, N95, N6005, 6405U, 4417U, i3-8145U, i5-8250U. Memory Type: DDR4. Storage Interface: NVMe M.2. Network Ports: 4 x 2.5 Gigabit Ethernet. Cooling: Fanless. Form Factor: Mini PC. Intended OS: pfSense, OPNsense. USB Ports: Type-C (quantity unspecified). Use Case: Firewall, Home Server. Certifications: CE, FCC, RoHS. Dimensions (Estimated): 180 x 140 x 40 mm (based on common 4-port mini PC form factor). Weight (Estimated): 1.0 kg. Chassis Material: Aluminum Alloy (inferred for passive cooling). Power Input: DC Barrel Jack (inferred for compact form factor). Memory Capacity (Inferred Base): 8 GB DDR4 RAM (minimum for intended use). Network Interface Speed: 2.5 Gigabit Ethernet (2500BASE-T). Operating Temperature Range: 0°C to 40°C (typical for fanless commercial devices). Storage Capacity (Inferred Base): 128 GB NVMe SSD (minimum for OS). Network Interface Controller (NIC) Count: 4. Storage Interface: Non-Volatile Memory Express (NVMe) via M.2 slot. Operating System Compatibility: FreeBSD-based (for pfSense/OPNsense), Linux distributions. Cooling Solution: Passive (Fanless) heatsink design. Expansion/Data Port: USB Type-C. Form Factor: Fanless Mini PC / Network Appliance. Memory Type: DDR4 Synchronous Dynamic Random-Access Memory (SDRAM). Network Function: Firewall, Router, VPN Gateway, Home Server. Primary Intended Software: pfSense, OPNsense (firewall and routing software distributions). Processor Options: Intel Celeron N150, Intel Processor N95, Intel Core i5-8250U, Intel Celeron N6005, Intel Celeron 4417U. Product Title: NEW Solid Fanless Firewall Mini PC 4x2.5G LANs Intel N150 N95 i5-8250U N6005 4417U Home Server DDR4 NVMe Type-C pfSense OPNsense. Q: What are the key specifications and dimensions of this fanless firewall mini PC? A: This mini PC features a compact, fanless metal chassis and offers multiple CPU options including the Intel N150, N95, N6005, i5-8250U, and 4417U. It is equipped with 4x 2.5 Gigabit LAN ports, supports DDR4 RAM and NVMe storage, and includes a USB Type-C port, making it a versatile hardware platform for networking projects.. Q: How durable and reliable is this fanless mini PC for 24/7 operation as a home server? A: The solid metal chassis and completely fanless design ensure silent operation and excellent heat dissipation, which is crucial for long-term reliability. This robust construction makes it highly suitable for continuous 24/7 operation as a firewall, router, or home server without moving parts that can fail.. Q: Is this mini PC compatible with pfSense and OPNsense firewall software? A: Yes, this mini PC is explicitly designed for and compatible with popular firewall/router software like pfSense and OPNsense. Its Intel-based processors and four 2.5G Ethernet ports provide the ideal hardware foundation for building a powerful, high-speed network security appliance.. Q: Does this product come with a warranty or guarantee? A: Yes, this product includes a standard manufacturer's warranty. For specific warranty duration and coverage details, please check the product listing page or contact the seller directly, as terms can vary.. Q: Is this fanless firewall mini PC a good value compared to branded alternatives? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing high-end features like multiple 2.5G ports and fanless design at a competitive price point for a custom network build..
