Industrial Mini PC | DIN Rail Mount | Core i5-10210U 10-30V TPM2.0

Name: Industrial Mini PC | DIN Rail Mount | Core i5-10210U 10-30V TPM2.0
Brand: Compel Group
SKU: SING-00263
Price: 838.99 GBP
Availability: InStock

Stock Nr:

SKU:

Industrial Mini PC | DIN Rail Mount | Core i5-10210U 10-30V TPM2.0 - Image 1

£838.99inc VAT

Quantity

Industrial Mini PC | DIN Rail Mount | Core i5-10210U 10-30V TPM2.0

£838.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What power supply does this DIN rail mini PC need?: It runs on a DC input range of 12V to 24V, making it easy to wire straight into standard industrial control cabinet supplies. You won't need an external mains brick if you already have a 12V or 24V rail in your panel.
What drive options and storage can I install inside the unit?: The chassis accepts both an mSATA module and a standard 2.5-inch SATA hard drive or SSD. You can boot your operating system from the mSATA slot and use the 2.5-inch bay for primary logging or data storage.
How do you mount this computer inside a cabinet?: The unit clips directly onto a standard 35mm DIN rail inside your electrical enclosure. Because it uses a fanless design, you should mount it with sufficient clearance around the fins to let warm air rise naturally.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £838.99

This product

Industrial Mini PC showing rear I/O panel with LAN, HDMI, USB, COM ports, and power terminal.

Industrial Mini PC | DIN Rail Mount | Core i5-10210U 10-30V TPM2.0

Price: £838.99
Rating: Not rated
Sold: -
Stock: In stock

You're viewing this

Alternative

Front view of an Industrial Mini PC showing audio jacks, terminal blocks, USB ports, and finned metal chassis.

Industrial Mini PC | Dual PoE 4 COM Ports | 9-36V Wide Voltage i7

Price: £1,124.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

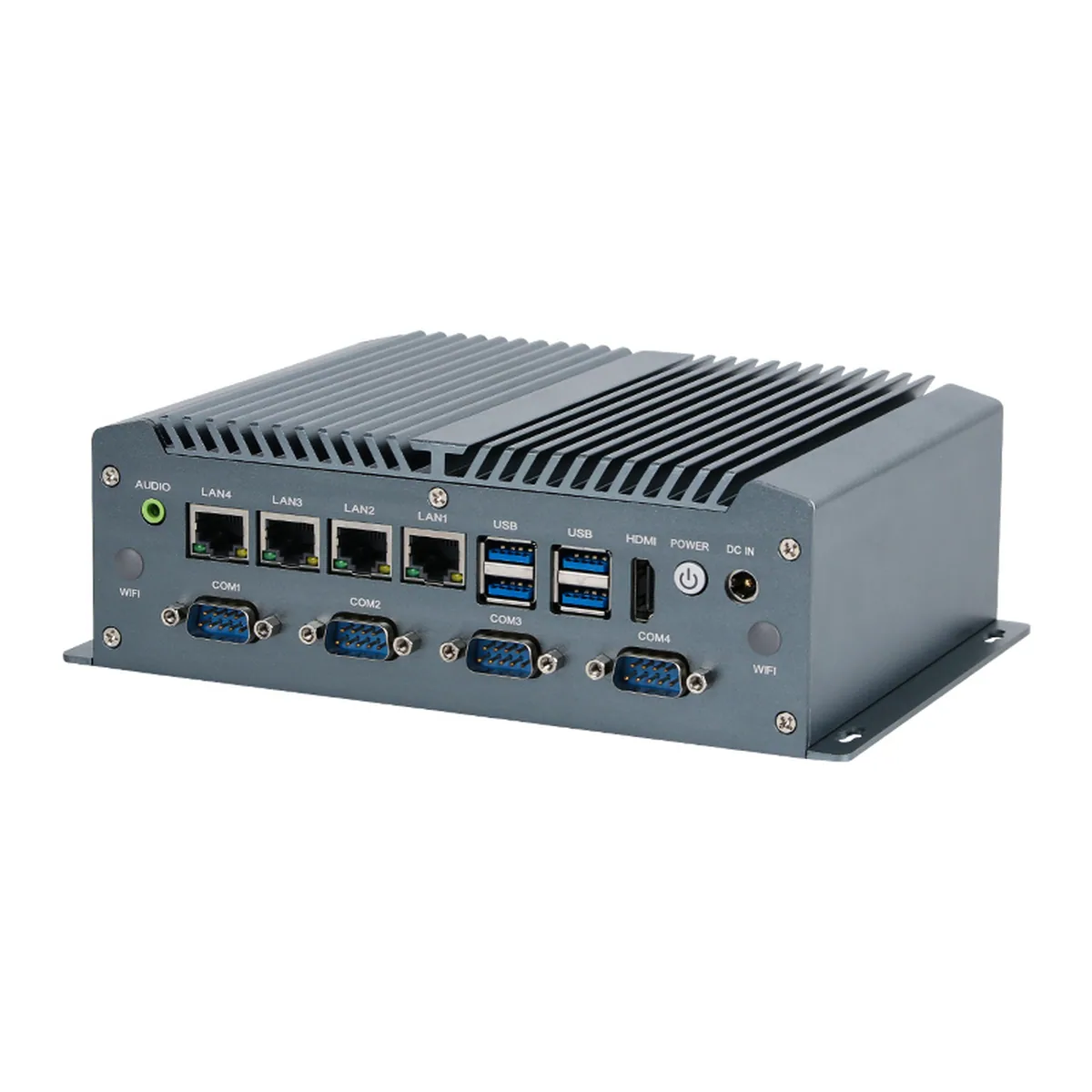

Industrial Mini PC displaying front interface with COM, LAN, USB, and HDMI ports.

Industrial Mini PC | 9V-36V Wide Voltage | 6x COM 16x GPIO 4x LAN

Price: £650.99
Rating: Not rated
Sold: 1+
Stock: In stock

View

Alternative

Rear panel of an Industrial Mini PC with audio, dual LAN, HDMI, VGA, power, and antenna connectors.

Industrial Mini PC | Dual GbE LAN 2x RS232 COM | Intel Core 8x USB Box

Price: £907.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC | Factory Automation Rig | Core i5 Dual LAN VGA

Price: £659.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC showing rear I/O ports including LAN, USB, HDMI, and VGA connectors.

Industrial Mini PC | Fanless Passive Cooling | IoT Data Collection

Price: £534.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC | DIN Rail Mount | EtherCAT Automation Box PC

Price: £1,084.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC | Dual LAN RS232 RS485 | Intel 6th/7th Gen Core

Price: £821.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Rear panel of an Industrial Mini PC featuring HDMI, VGA, dual LAN, USB, audio jacks, and four COM ports.

Industrial Mini PC | Core i5 Quad Core Dual LAN | 6 COM RS232 RS485

Price: £718.99
Rating: Not rated
Sold: -
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This din rail fanless industrial pc runs on 10th generation Intel Celeron 5205U or Core i5-10210U processors. It handles constant automation tasks inside crowded electrical cabinets. The passive aluminum chassis eliminates moving parts, while the 10V to 30V DC input prevents sudden power drops from interrupting production. Features and Benefits - Intel 10th Gen Core i5 or Celeron CPU options - Supplies steady processing power for real-time edge computing and PLC data logging. - Fanless extruded aluminum chassis - Dissipates heat through fins so airborne dust cannot enter the enclosure or cause thermal throttles. - 10V to 30V wide DC voltage input with 24V support - Tolerates standard factory power supply swings without needing separate voltage step-down converters. - Integrated TPM 2.0 hardware chip - Locks down firmware security and encrypts sensitive field data right at the hardware level. Applications - PLC automation panels running continuous industrial monitoring and motor control scripts - Edge data collection gateways connecting legacy serial RS-485 sensors to local ethernet networks - Remote pump stations and water treatment utilities requiring unattended continuous operation

Input Voltage: DC 10V - 30V (Nominal 24V). Processor: Intel Core i5-10210U / Celeron 5205U (10th Gen). Cooling System: Fanless Passive Cooling. Form Factor: Mini Box PC. Mounting Type: DIN Rail. Product Type: Fanless Industrial Mini PC. Security: TPM 2.0. Dimensions: 178 x 125 x 55 mm. Chassis Material: Heavy-duty Aluminum Alloy. Input Voltage Range: DC 10V - 30V (Wide-range, 24V nominal). Serial Interfaces: 2x RS232/RS422/RS485 (BIOS-selectable). Storage Interface: 1x M.2 2280 NVMe/SATA SSD, 1x 2.5-inch SATA HDD/SSD. USB Ports: 4x USB 3.0, 2x USB 2.0. Operating Temperature: -20°C to 60°C. Cooling System: Passive Aluminum Heatsink (Fanless). Ethernet: 2x Gigabit RJ45 LAN (Intel I211-AT). Form Factor: DIN-Rail Fanless Embedded Box PC. Memory Support: Up to 32GB DDR4 SO-DIMM. Mounting Options: Standard 35mm DIN-Rail, Wall Mount. Processor: Intel Core i5-10210U (4C/8T, up to 4.20 GHz) / Celeron 5205U. Security Module: Onboard TPM 2.0. Q: What processors and input voltages does this unit support? A: You can choose between an Intel 10th Gen Core i5-10210U or a Celeron 5205U processor. The power input accepts a wide DC range from 10V up to 30V, so it runs on standard 12V or 24V factory power rails.. Q: How does this fanless industrial mini pc handle heat dissipation in an electrical cabinet? A: It uses an aluminum chassis with external cooling fins that draw heat away without moving parts. Because this fanless industrial mini pc has no vents or internal fans, dust won't build up inside the housing.. Q: Is this machine compatible with modern operating systems and security standards? A: Yes, it includes hardware-level TPM 2.0 on the board. That makes it fully compatible with Windows 11, Windows 10 IoT, and common 64-bit Linux distributions like Ubuntu.. Q: What warranty coverage is included with the hardware? A: We provide a standard two-year hardware warranty that covers the motherboard and internal components against defects. If a component fails under normal operating conditions, our support team will repair or swap the unit.. Q: Why is this box PC a cost-effective choice for automation lines? A: The integrated DIN rail mount clips straight into existing cabinets without extra brackets. You also avoid downtime and maintenance costs since there are no fan bearings to replace over the computer's life..
