Industrial Mini PC | 9V-36V Wide Voltage | 6x COM 16x GPIO 4x LAN

Name: Industrial Mini PC | 9V-36V Wide Voltage | 6x COM 16x GPIO 4x LAN
Brand: Compel Group
SKU: SING-00250
Price: 650.99 GBP
Availability: InStock

Stock Nr:

SKU:

Industrial Mini PC | 9V-36V Wide Voltage | 6x COM 16x GPIO 4x LAN - Image 1

1 / 4

£650.99inc VAT

ColorSelect an option

BundleSelect an option

Quantity

Industrial Mini PC | 9V-36V Wide Voltage | 6x COM 16x GPIO 4x LAN

£650.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What power supply does this fanless industrial mini PC require?: The board accepts a wide DC input between 9V and 36V through a standard terminal or DC jack. This range lets you wire it directly to 12V or 24V plant power and vehicle systems without needing a separate step-down transformer. It tolerates typical supply dips and spikes common in plant environments.
Can this unit run 24/7 in dusty workshop environments?: Yes, it uses an enclosed aluminium fin chassis to dissipate heat without any fans or moving parts. This passive setup stops dust, swarf, and dirt from getting pulled inside the machine. It is built to run continuous workloads in industrial settings where standard desktop fans would clog and overheat.
What expansion options are available for internal storage?: The motherboard has one M.2 NVME 2280 slot alongside a dedicated 2.5-inch SATA bay for an SSD or hard drive. This allows you to fit high-speed boot storage on the M.2 stick and keep high-capacity secondary storage on a SATA drive.

Computers & Tablets spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £650.99

This product

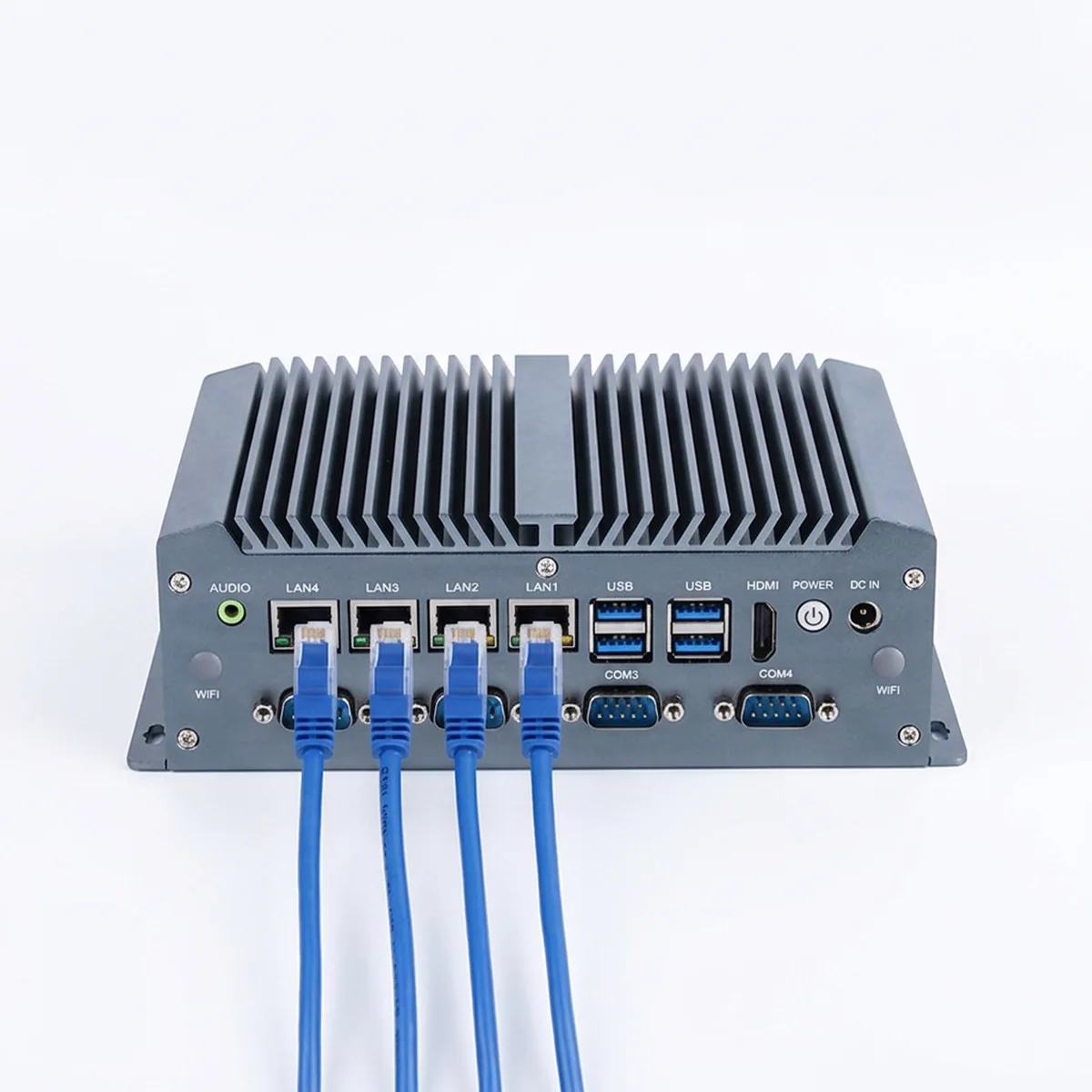

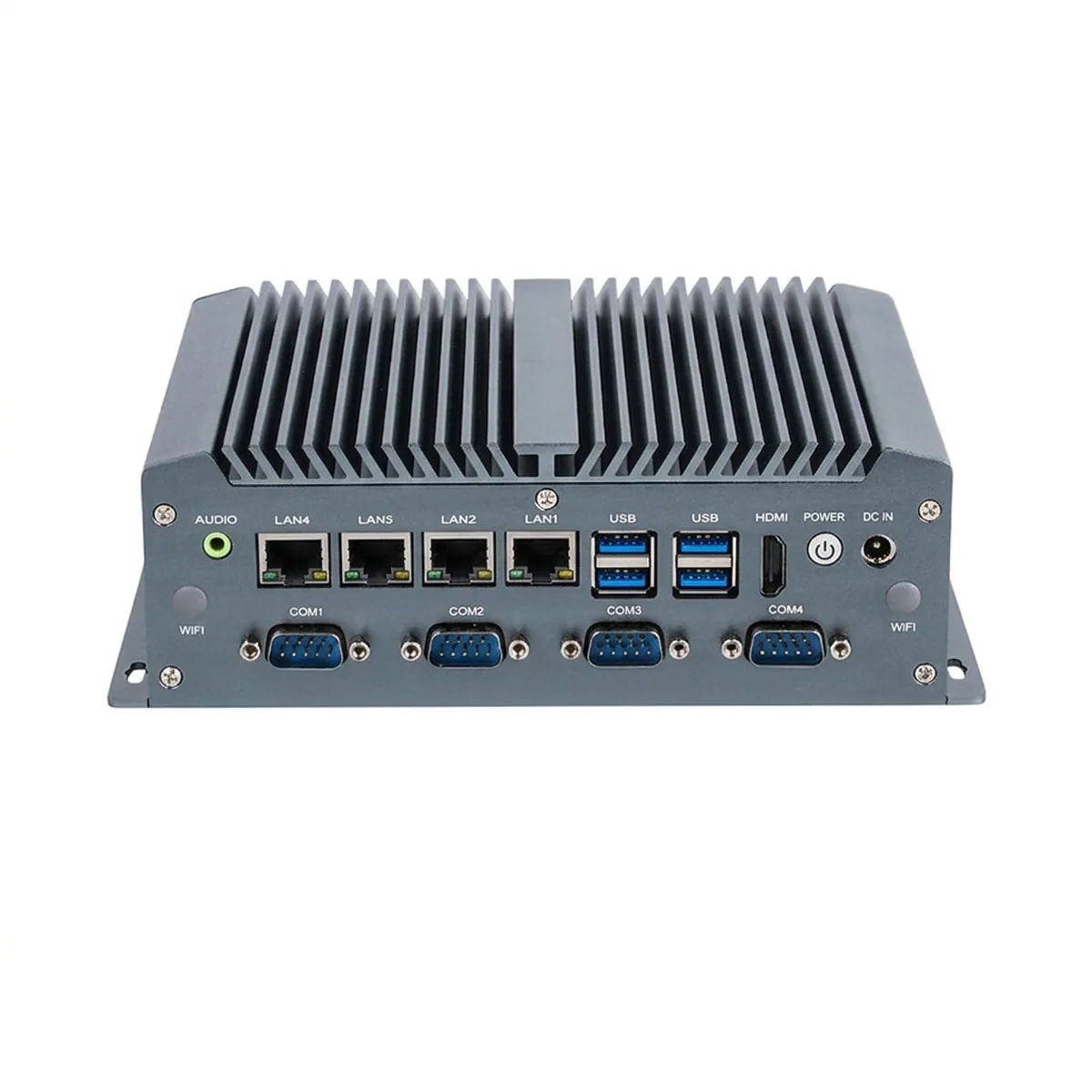

Industrial Mini PC displaying front interface with COM, LAN, USB, and HDMI ports.

Industrial Mini PC | 9V-36V Wide Voltage | 6x COM 16x GPIO 4x LAN

Price: £650.99
Rating: Not rated
Sold: 1+
Stock: In stock

You're viewing this

Alternative

Rear view of an Industrial Mini PC showing dual LAN, USB, HDMI, and VGA ports on a finned chassis.

Industrial Mini PC | Factory Automation Rig | Core i5 Dual LAN VGA

Price: £659.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC | Dual PoE 4 COM Ports | 9-36V Wide Voltage i7

Price: £1,124.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Rear panel of an Industrial Mini PC with audio, dual LAN, HDMI, VGA, power, and antenna connectors.

Industrial Mini PC | Dual GbE LAN 2x RS232 COM | Intel Core 8x USB Box

Price: £907.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC showing rear I/O panel with LAN, HDMI, USB, COM ports, and power terminal.

Industrial Mini PC | DIN Rail Mount | Core i5-10210U 10-30V TPM2.0

Price: £838.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC front panel with Ethernet and USB ports, and sides with serial and antenna connectors.

Industrial Mini PC | 9-36V Wide Voltage | Dual LAN RS232 COM

Price: £686.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Rear panel of an Industrial Mini PC featuring HDMI, VGA, dual LAN, USB, audio jacks, and four COM ports.

Industrial Mini PC | Core i5 Quad Core Dual LAN | 6 COM RS232 RS485

Price: £718.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Side panel of an Industrial Mini PC displaying USB, Ethernet, HDMI, and serial COM ports.

Industrial Mini PC | RK3568 Fanless Gateway | Gigabit LAN RS232

Price: £735.99
Rating: Not rated
Sold: -
Stock: In stock

View

Alternative

Industrial Mini PC | Dual LAN RS232 RS485 | Intel 6th/7th Gen Core

Price: £821.99
Rating: Not rated
Sold: -
Stock: In stock

View

Compare options

More Computers & Tablets

All Computers & Tablets

Explore the range

Popular in Electronics & Components

Browse Electronics & Components

Heat Shrink Tubing Kit | 2:1 Shrink Ratio | 164-328 Pieces, 5 Colors, 8 Sizes

4.9

£25.99

Double-Sided Prototype PCB | 5x7cm Universal Board | DIY Electronics

4.9

£31.99

Hard Drive for PS4 & Xbox | 1TB USB 3.0 Storage | 2.5-Inch HDD

4.9(4.2K)

£89.99

Cat8 Ethernet Cable | SFTP 40Gbps 2000MHz | Router Modem Patch Lead

4.9(2.0K)

£31.99

Heat Shrink Tubing | PVC Flat Battery Wrap for 18650 Cells | 100-Piece Assortment

4.9

£27.99

RCBO Circuit Breaker | 230V 1P+N | Overcurrent & Leakage Protection

4.9

£52.99

M.2 NVMe SSD to PCIe Adapter | 16Gbps PCIe 4.0 x1 Expansion Card

4.9(2.1K)

£36.99

Flash Drive | 64GB Wooden Bamboo Memory Stick | Custom Logo Wedding Gift

4.9(353)

£38.99

SATA III Cable | 50cm SATA 3.0 6Gbps | SSD & HDD Desktop PC Build

4.9(1.3K)

£30.99

12V 5A AC/DC Power Adapter | Universal Regulated Switching Power Supply for LED & CCTV Systems

4.9

£47.99

Micro SD Card 256GB | UHS-1 Class 10 Speed | For Smartphone & PC

4.8(9.9K)

£91.99

2.5-inch USB 3.0 HDD/SSD Enclosure | 5Gbps SATA Drive Case

4.8(6.4K)

£52.99

Complete the set

Accessories & add-ons

SATA Cable 8-Pack | 6Gbps Right-Angle | 0.5M for RAID & Bitcoin Rigs

5.0(81)

£35.99

Professional-Grade Cable Management Kit | 500-Piece Nylon Zip Ties | Heavy-Duty Self-Locking Straps

5.0

£37.99

Push-In Wire Connectors | 5-Pack | Fast, Secure Electrical Splicing Terminal Blocks

4.9

£24.99

M.2 SSD Hard Drive Caddy Heatsink | NVMe 2280 Aluminum Cooler | For PS5 & PC

4.9(1.6K)

£33.99

90-Degree SATA Cable | Locking Latch Connectors | SATA III 6.0 Gbps 12-Pack

4.9(555)

£45.99

Drive Caddy | 2.5 to 3.5 inch SSD Mounting Bracket | For Desktop PC Bay

4.9(292)

£30.99

Professional-Grade Solder Wire | 40g Rosin Core | 183°C Melting Point for Precision Electronics Work

4.9

£25.99

Drive Caddy | 2.5 to 3.5 Inch Bay Adapter | For SSD & HDD Mounting

4.9(311)

£41.99

JST SM 2-Pin Connector Kit | 10-Pair Set for LED Strip & Tape Lighting

4.9

£30.99

2.8mm Electrical Connector Kit | 2-9 Pin Automotive Terminals | Waterproof Wire Harness Plug Set

4.9

£25.99

Dell Hard Drive Caddy | 2.5-inch SAS/SATA Tray | For PowerEdge R730 R630

4.9(63)

£43.99

SATA Cable with Locking Latch | 6Gbps SATA III Data | For Secure HDD SSD Builds

4.9(239)

£52.99

This fanless industrial mini pc delivers dependable computing for harsh environments with Intel Core 8th or 10th Gen processors. It features sealed passive cooling, four network ports with POE support, six serial ports, and wide 9V to 36V DC power input built for continuous operation. Features and Benefits - Fanless cast aluminum chassis - Keeps dust out and runs silently during 24/7 continuous operation without moving parts to fail - Six RS232 and RS485 serial ports - Connects directly to legacy factory machinery, barcode scanners, and programmable logic controllers - Four gigabit ethernet ports with POE support - Powers and communicates with IP cameras and field sensors through a single cable run - Triple display outputs via HDMI, LVDS, and EDP - Drives modern monitors and internal touch panel screens at the same time Applications - Factory automation control units wired directly to assembly line sensors and PLCs - Outdoor kiosk terminals requiring a wide voltage input range and resistance to temperature swings - Warehouse surveillance setups managing four POE security cameras on a local network

Chassis Material: Industrial-Grade Aluminum Alloy. Memory Capacity: 16 GB. Input Voltage: DC 9V - 36V. Display Interfaces: 1 x HDMI, 1 x LVDS, 1 x eDP. Processor: Intel Core 8th/10th Gen Series. Application: Industrial Automation. Cooling System: Fanless Passive Cooling. Device Type: Fanless Industrial Mini PC. Ethernet Ports: 4 x Gigabit RJ45 (PoE Supported). GPIO Ports: 16-bit GPIO. Serial Ports: 6 x COM (RS232/RS422/RS485). USB Ports: 8 x USB. Enclosure Material: Heavy-Duty Aluminum Alloy. Input Voltage: DC 9V - 36V Wide Voltage. Storage Capacity: 512 GB M.2 NVMe SSD. Video Output: 1x HDMI, 1x LVDS, 1x eDP. Ethernet Ports: 4x Gigabit RJ45 LAN (PoE Supported). GPIO Interface: 16-Bit Programmable GPIO. Serial Interfaces: 6x COM (RS232/RS485). USB Ports: 8x USB Ports (USB 3.0 / USB 2.0). Operating Temperature: -20°C to 70°C. Cooling System: Passive Fanless Aluminum Chassis. Form Factor: Fanless Industrial Mini PC. Mounting Options: Wall Mount / DIN-Rail Mount. Processor: Intel Core 8th/10th Gen Processor. RAM Installed: 16 GB DDR4. Q: What power input and serial port options does this unit have? A: The PC accepts DC voltage between 9V and 36V through a terminal block or standard DC jack. It features six RS-232/485 COM ports alongside 16 GPIO pins, four Gigabit LAN ports, and eight USB ports for automation hardware.. Q: How does this fanless industrial mini pc handle heat dissipation in dusty environments? A: This fanless industrial mini pc uses a finned aluminum chassis that pulls heat directly from the CPU. Because it has no vents or spinning fans, dust and airborne debris cannot enter and settle on internal components.. Q: What operating systems and display standards work with the motherboard? A: The motherboard runs 64-bit Windows 10, Windows 11, and modern Linux kernels such as Ubuntu or Debian. For video output, it includes standard HDMI alongside internal LVDS and eDP headers to connect flat panels directly.. Q: What warranty coverage is included with the X77 system? A: The hardware includes a standard one-year replacement and repair warranty covering manufacturer defects. Technical support assists with BIOS setup, driver packages, and component troubleshooting during this period.. Q: Why select this industrial model over a typical desktop tower? A: This computer eliminates moving parts, reducing mechanical failure rates during continuous 24/7 operation. It also combines legacy serial ports with wide-voltage DC power inputs, saving you from buying separate add-on adapters..
