The SER series external thread turning tool holder provides reliable, high-precision threading for CNC lathes and manual machines. Engineered for stability, it minimizes vibration to deliver clean, accurate threads across various materials. This tool holder is an excellent value for professionals and serious hobbyists seeking consistent performance without a premium price tag. Features and Benefits
- Rigid steel construction - Ensures maximum stability during high-speed threading operations, reducing chatter and improving surface finish.
- Precision ground seating surfaces - Guarantees accurate tool positioning and repeatability for consistent thread profiles every time.
- Multiple series availability (SER1010H11, SER1212H16/11, etc.) - Offers a solution for different machine tool sizes and shank requirements.
- Dedicated external threading design - Optimizes chip flow and tool geometry specifically for creating external threads, enhancing efficiency.
- Value-focused engineering - Delivers reliable, professional-grade performance at an accessible price point for regular workshop use. Applications
- Production threading operations - Ideal for manufacturing environments requiring consistent, repeatable external threads on shafts, bolts, and fittings.
- Maintenance and repair shops - Perfect for machining replacement parts or creating custom threaded components on manual lathes or CNC setups.
- Prototyping and small-batch jobs - Provides the precision needed for one-off projects or low-volume production runs with tight tolerances.

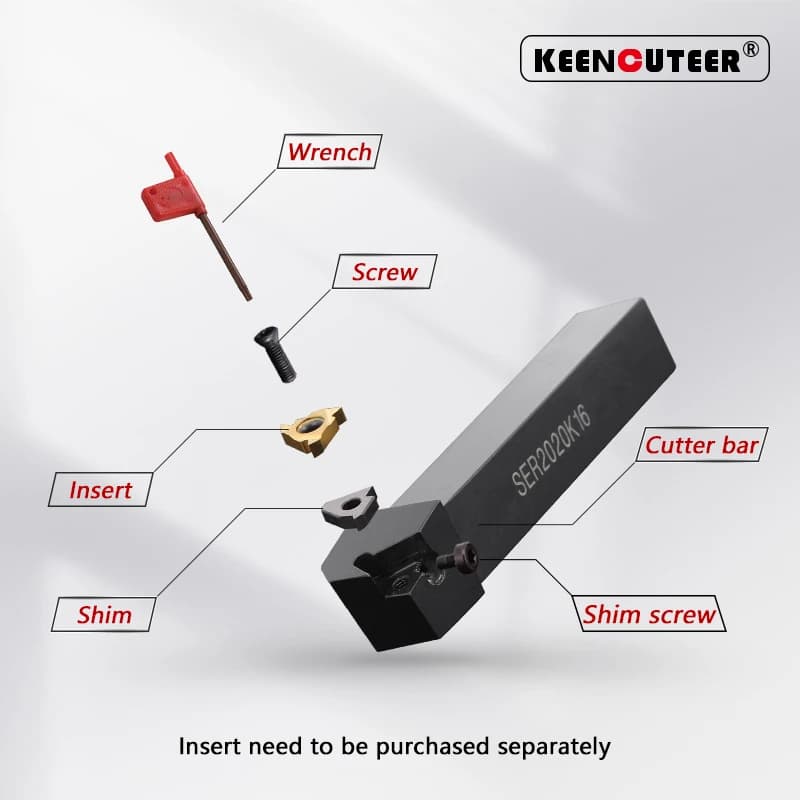

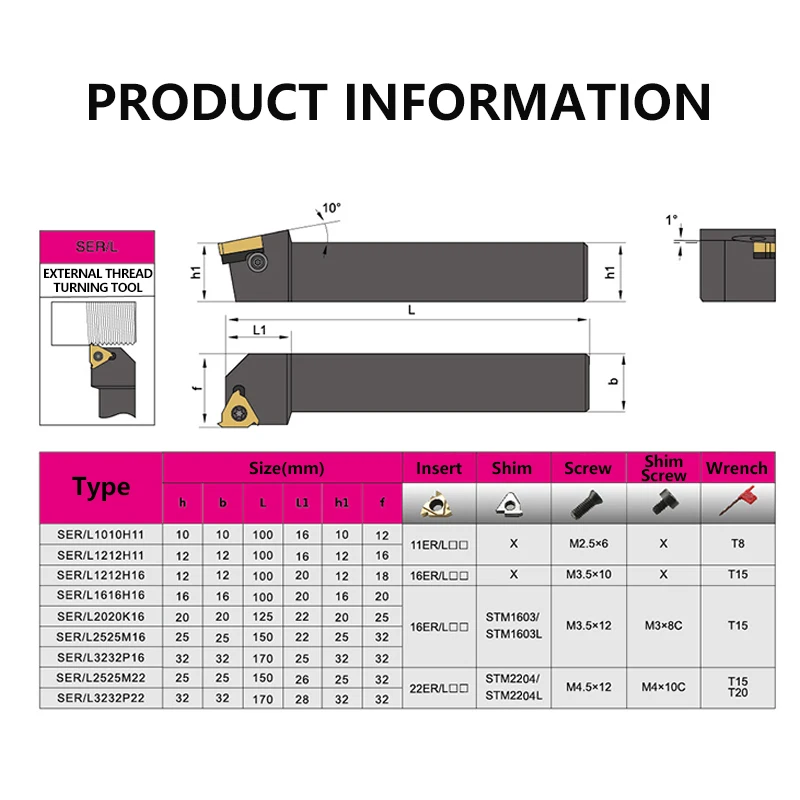

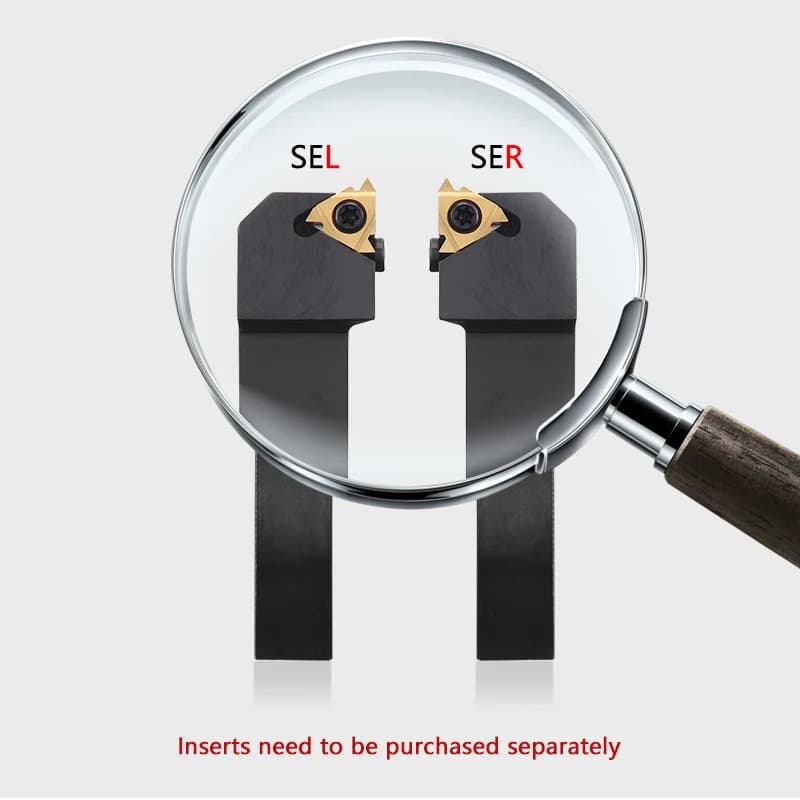

High-concerned chemical: None. Hardness: HRC42~46. Model Number: SER/L. Clamping Screw Size: M4 or M5 (standard for SER). Maximum Insert Size: 11mm IC (Inscribed Circle) for SER1010H11, 16mm IC for SER1212H16/11 & SER1616H16/11. Shank Height (Based on Model): 11mm, 16mm. Shank Size (Based on Model): 10x10mm, 12x12mm, 16x16mm, 20x20mm, 25x25mm. Tool Holder Length (Approx.): 100mm - 150mm (typical for SER series). Body Material: Alloy steel. Applicable Insert Shape: 55° or 60° rhombic threading inserts (e.g., 16ER, 11ER). Coolant Supply: Through-tool coolant capability (standard for SER-K/M variants). Hand of Cut: Right-hand (inferred from standard SER). Hardness: HRC 42-46. Insert Clamping Style: Screw-down, top clamp. Insert Seat Type: Single-sided, positive rake. Lead Angle: 0° (for external threading). Mounting: Fits standard lathe tool posts with square shank receptacles. Primary Application: External ISO metric, unified, and trapezoidal thread turning on CNC lathes. Product Type: External Thread Turning Tool Holder. Shank Type: Square shank. Surface Treatment: Nitriding or other wear-resistant coating (inferred). Tool Holder Series: SER. Q: What are the exact dimensions and specifications for the SER1010H11 and other SER model tool holders? A: The provided specifications list the Model Number as SER/L and a hardness of HRC42~46. For precise dimensions like shank size and tool pocket size, you would need to consult the specific technical drawing for each model (e.g., SER1010H11, SER1212H16/11) as these are standard industrial designations.. Q: How durable is this SER external thread turning tool holder given its HRC42~46 hardness rating? A: With a hardness rating of HRC42~46, this SER tool holder is built for durability and can withstand the significant forces involved in external threading operations. This hardness level provides excellent wear resistance, ensuring a long service life in a professional CNC or lathe environment.. Q: Can this SER lathe cutter bar be used for both CNC and manual lathe applications? A: Yes, the SER series tool holder is designed for external threading and turning operations on both CNC lathes and manual lathes. Its standardized design ensures secure clamping of the cutting insert for precise and repeatable results across different machine types.. Q: Does this CNC tool holder come with any warranty or guarantee? A: Warranty details are not provided in the current product information. We recommend contacting the seller directly to inquire about any specific warranty or satisfaction guarantee that may apply to this SER tool holder purchase.. Q: Is this SER SEL lathe cutter bar a good value compared to premium brand holders? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with its hardened construction, making it a cost-effective choice for standard external threading tasks..
