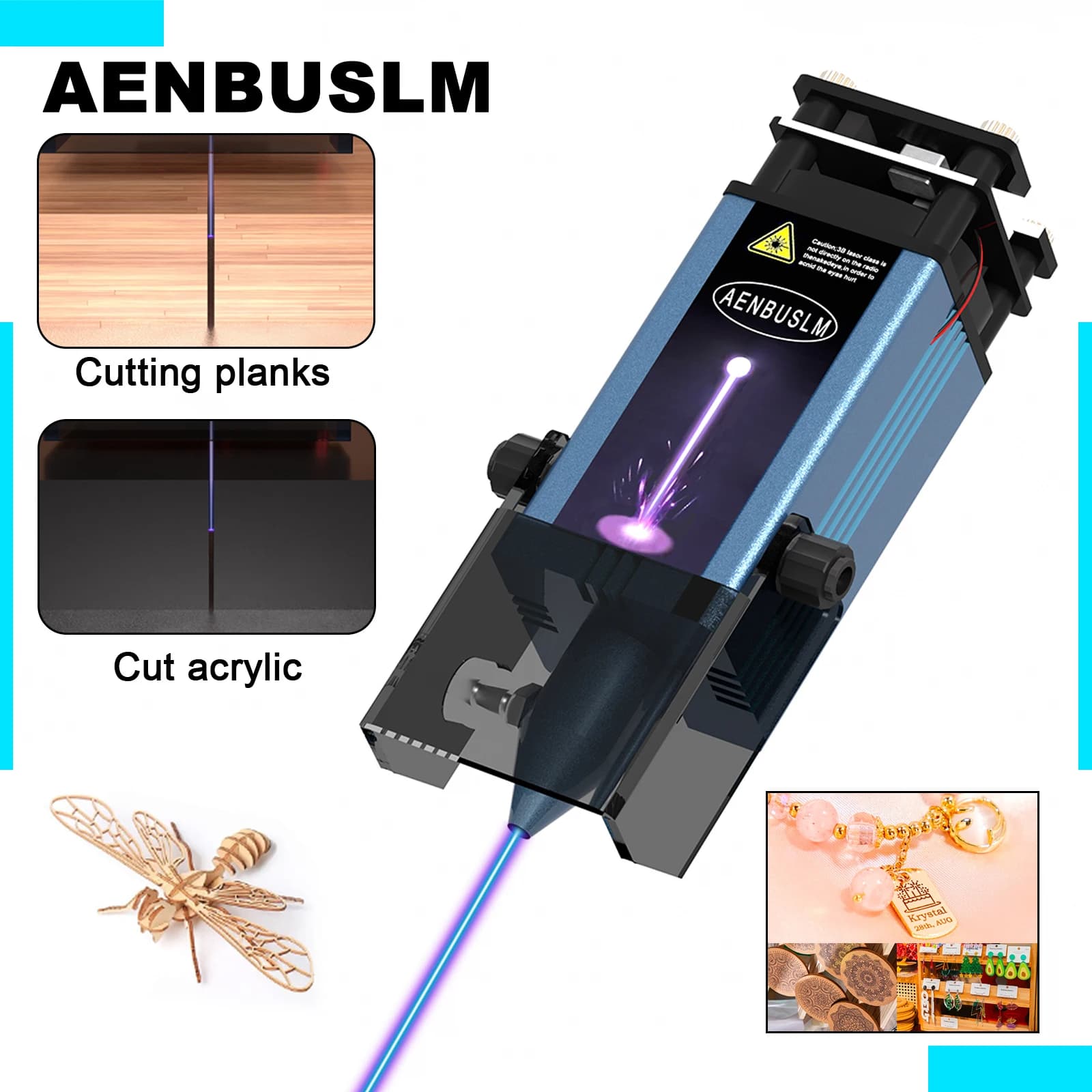

Upgrade your CNC machine with the AENBUSLM 40W/80W laser cutting module, a powerful 450nm blue light laser head designed for precision engraving and cutting. This module delivers focused energy for clean, fast results on wood, leather, and acrylic, featuring integrated air assist to reduce scorching and improve cut quality for professional-grade projects. Features and Benefits
- 40W or 80W Power Options - Choose the power level that matches your material thickness and desired working speed for optimal results.
- 450nm Blue Laser Wavelength - Offers superior absorption by materials like wood, leather, and plastic for more efficient engraving and cutting compared to standard red lasers.
- Integrated Air Assist Nozzle - Blows away debris and smoke during operation, resulting in cleaner edges, reduced flare-ups, and minimized heat discoloration.
- Compact Engraving Head Design - Easily integrates with most common CNC router frames and 3D printers for a versatile upgrade to your existing setup.
- Robust Aluminum Housing - Provides effective heat dissipation and durability for extended operation during demanding workshop sessions. Applications
- Custom Wood Signage & Decor - Create intricate designs and sharp lettering on plywood, MDF, and solid wood for personalized home and business decor.
- Leather Crafting & Personalization - Engrave detailed patterns, logos, or text onto wallets, belts, bags, and other leather goods with high contrast.
- Acrylic Model & Prototype Fabrication - Cut and mark acrylic sheets for architectural models, custom displays, and product prototypes with smooth, polished edges.
- DIY & Hobbyist Projects - Expand your creative capabilities for crafting, model making, and personalized gifts with a reliable, budget-friendly professional tool. Note: Always use appropriate laser safety glasses matching the 450nm wavelength and ensure proper ventilation when operating. Check your CNC machine's compatibility and power requirements before installation.
Spot Size: 0.08 x 0.08 mm (at focal point). Laser Power: 40W / 80W (Selectable). Power Supply Voltage: 12V DC. Storage Temperature: -10°C to 50°C. Auxiliary Air Supply: Required (Air Assist Port). Beam Divergence: < 1.5 mrad. Compatible Software: LightBurn, LaserGRBL. Control Interface: PWM / TTL. Cooling Method: Air Cooling. Focus Adjustment: Manual. Laser Type: Blue Diode Laser. Mounting Interface: Standard M4 Threads. Operating Humidity: 10% to 80% (Non-condensing). Operating Temperature: 10°C to 35°C. Wavelength: 450 nm. Working Area: 450 mm. Dimensions (Head): Approximately 120 x 80 x 60 mm (Inferred). Focal Length: 450 mm. Laser Wavelength: 450 nm. Spot Size: ~0.1 x 0.1 mm (Inferred at focal point). Weight (Head): Approximately 0.8 kg (Inferred). Compatible Materials: Wood, Acrylic, Leather, Paper, Fabric, Some Plastics. Housing Material: Aluminum Alloy. Lens Material: Coated Glass. Input Voltage: 12V DC or 24V DC (Inferred). Optical Power Output: 40W / 80W (Dual Power Mode). Maximum Cutting Speed: 3000 mm/min (Inferred). Maximum Engraving Speed: 10000 mm/min (Inferred). Operating Temperature Range: 10°C to 35°C. Storage Temperature Range: -10°C to 50°C. Control Interface: CNC-Compatible (PWM/TTL). Air Assist Connection: Standard Fitting (1/4" or 6mm). Beam Divergence: < 2.0 mrad (Typical for diode). Cooling Method: Air-Cooled (Passive Heatsink with Fan). Laser Type: Blue Diode Laser. Working Area (Module): 450 mm x 450 mm (Inferred from focal length). Q: What are the key specifications of the AENBUSLM 40W 80W laser module? A: This module features a 450nm blue light laser with a 40W/80W power output, suitable for engraving and cutting. It includes an integrated air assist system to improve cut quality and reduce charring. The specific focal length and dimensions should be confirmed with the seller for your CNC setup.. Q: How durable is this blue light laser engraving head for regular woodworking use? A: Built for industrial and CNC applications, it is designed for reliable performance and durability. The robust construction and air assist feature help manage heat and debris, extending the component's operational life. It offers dependable service for hobbyists and professionals with proper maintenance.. Q: Is this laser cutting module compatible with my existing CNC router? A: This laser engraving head is designed for standard CNC mounting interfaces, but compatibility depends on your machine's specific bracket and control system. You will need a compatible laser power supply and controller. Always verify voltage requirements and mounting hole patterns with your machine's specifications.. Q: Does the AENBUSLM laser head come with a warranty or guarantee? A: Warranty terms are typically set by the individual seller. It is important to check the product listing or contact the seller directly for details on their specific warranty coverage, duration, and claim process before purchasing.. Q: Is this 40W/80W laser engraver a good value compared to other options? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in engraving and cutting wood, acrylic, and other compatible materials. The inclusion of air assist adds significant value for cleaner results..
