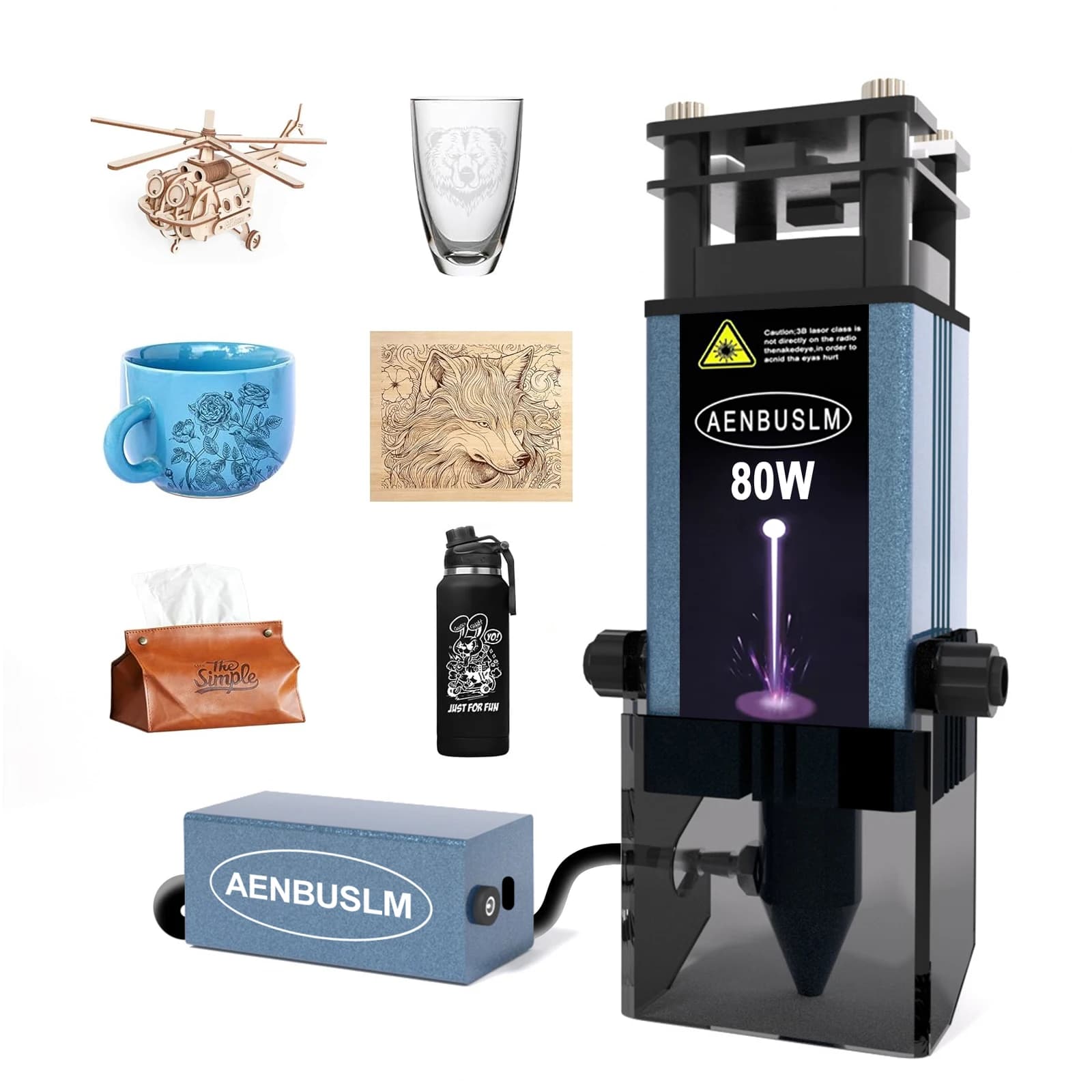

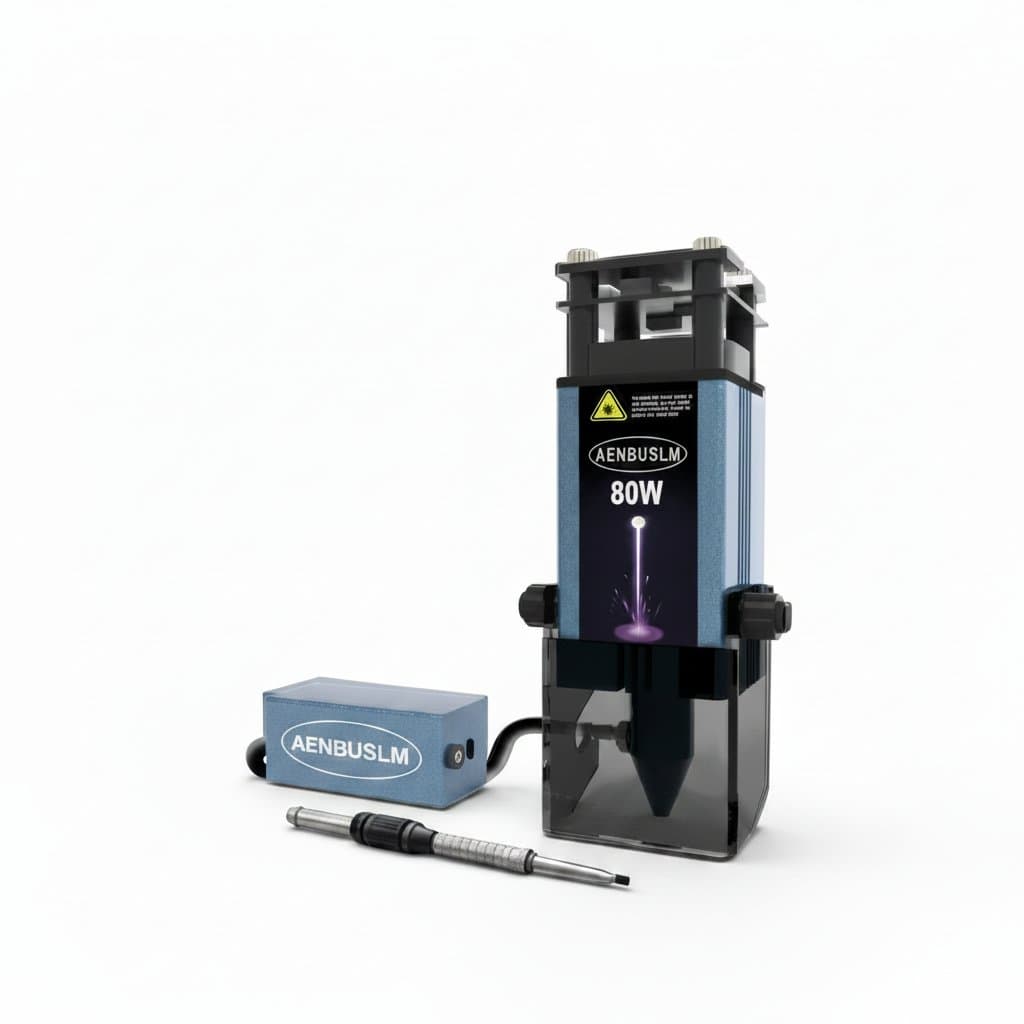

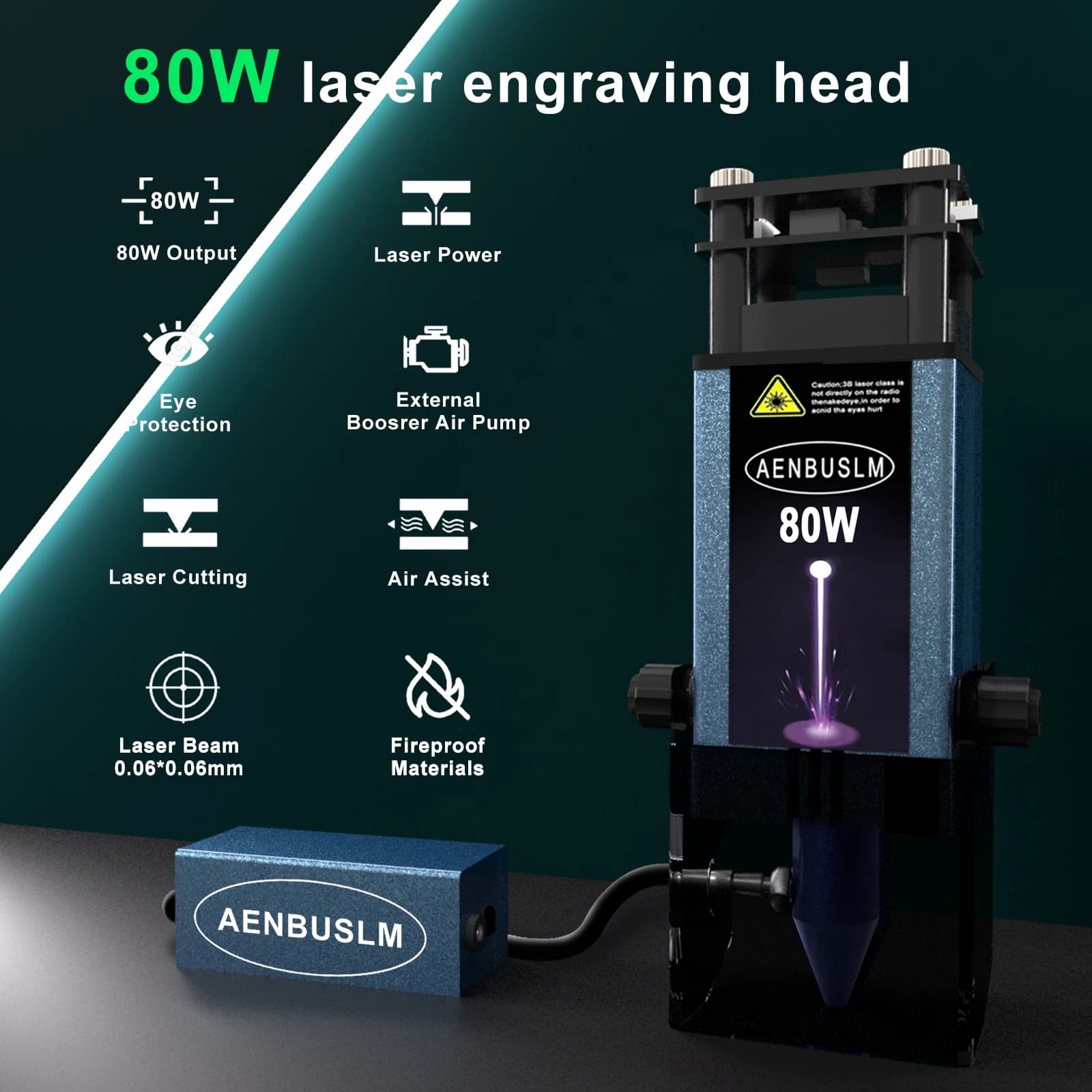

Unlock precise, high-power engraving and cutting with the AENBUSLM 450nm 40W/80W Laser Module. This professional-grade 12V/24V laser head delivers a focused 450nm wavelength for superior material absorption, offering clean results on wood, leather, acrylic, and more. Its robust construction ensures reliable performance for extended operation in demanding workshop environments. Features and Benefits
- 450nm Wavelength & 40W/80W Power - Provides optimal energy absorption for darker materials, resulting in faster engraving speeds and cleaner cuts with minimal charring.
- 12V/24V Dual Voltage Compatibility - Offers flexible integration with a wide range of existing CNC routers, 3D printers, and laser engraver frames without requiring special controllers.

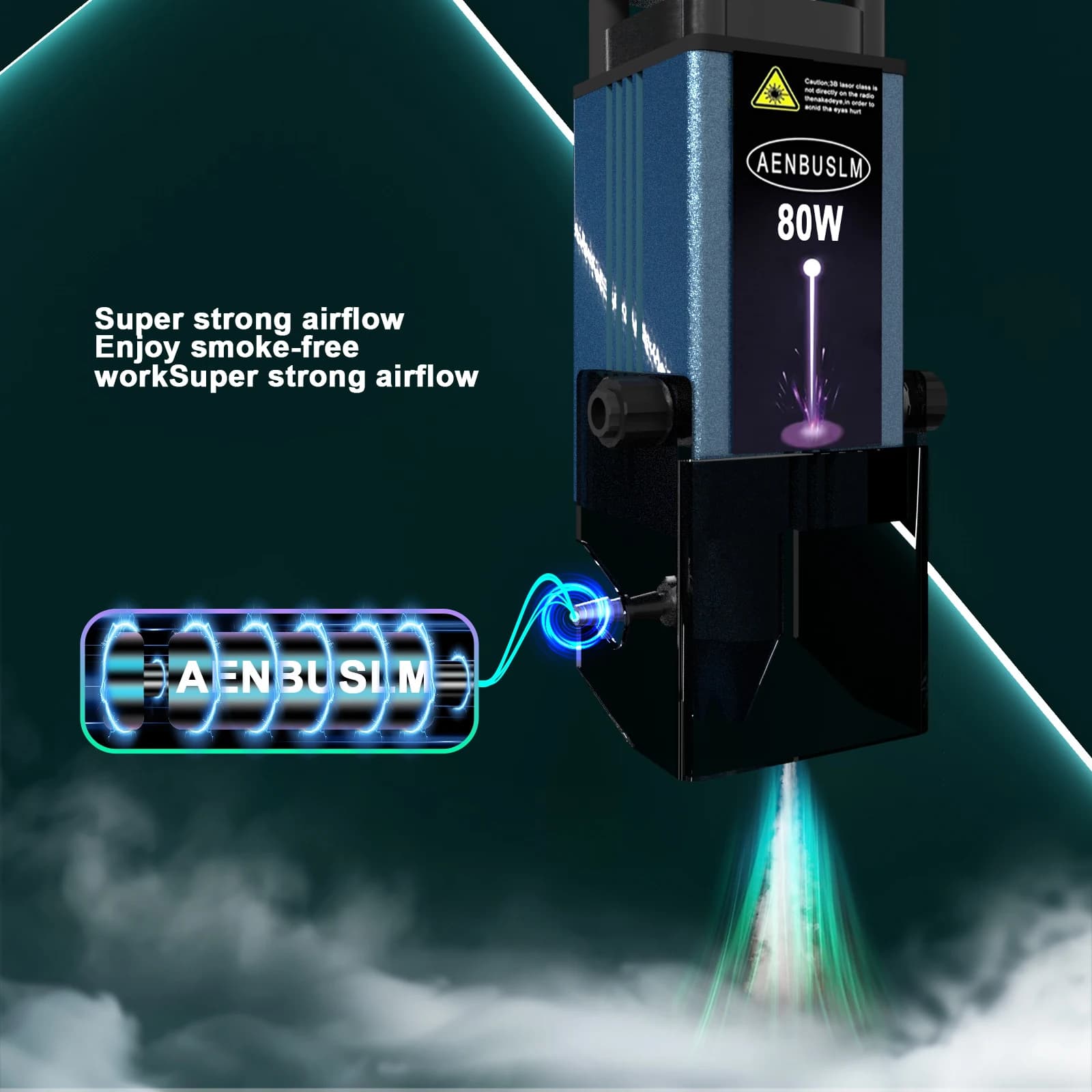

- Industrial-Grade Heat Sink & Cooling Fan - Maintains consistent laser diode temperature during long jobs, preventing power drop-off and extending the module's operational lifespan.
- Standard M8 Mounting Threads - Enables quick, secure, and tool-free installation onto most gantry systems, minimizing setup time and ensuring stable alignment.
- Focus-Adjustable Laser Head - Allows for precise calibration of the focal point to match material thickness, guaranteeing the sharpest possible engraving detail and cutting kerf. Applications
- Custom Woodworking & Signage - Permanently engrave intricate designs, logos, or text onto wooden plaques, cutting boards, and furniture with professional clarity.
- Personalized Goods & Crafts - Create detailed markings on leather goods, acrylic awards, and anodized aluminum for boutique retail or hobbyist projects.
- Prototyping & Model Making - Integrate with CNC or 3D printer setups to precisely cut thin wood, plastics, and fabrics for architectural models or DIY components.
- Industrial Part Marking - Reliably serial number, barcode, or label manufactured parts made from compatible plastics and coated metals for traceability.
Laser Power: 40 W / 80 W (Dual Power Mode). Operating Voltage: 12 V DC / 24 V DC. Laser Wavelength: 450 nm. Material: Aluminum Alloy, Plastic, Copper. Dimensions: 45 x 35 x 145 mm. Compatible Systems: CNC Router, 3D Printer, Woodworking Machine. Controller: CNC USB. Certification: CE. Cooling Method: Air-cooled. Main Application: Laser Engraving, Laser Cutting. Focal Length Adjustment: Manual, via rotating lens assembly. Spot Size: ~0.08mm x 0.08mm (Minimum, at focal point). Wavelength: 450nm (Blue-Violet). Housing Material: Anodized Aluminum Alloy. Operating Voltage: 12V DC / 24V DC (Dual-Voltage Input). Optical Power Output: 40W / 80W (Dual-Power Model). Maximum Cutting Speed (3mm Plywood): ~15mm/s at 80W (Approximate, material dependent). Maximum Engraving Speed: > 600mm/s (Typical for this power class on compatible machines). Control Interface: TTL/PWM Modulation (Standard for CNC control). Operating Temperature: 0°C to 40°C. Storage Temperature: -10°C to 60°C. Operating Current: ~7A at 12V for 80W model (Calculated from Power/Voltage). Beam Divergence: < 1.5 mrad (Typical for diode modules). Compatible Control Systems: GRBL, Mach3, LightBurn (Inferred from application). Connector Type: Aviation Plug (Common for laser modules). Cooling Method: Active Air Cooling (Integrated Fan). Depth of Field: ~2.5mm (Approximate at focal length). Laser Type: Solid-State Diode Laser. Lens Type: Focusable Collimation Lens (M9 Thread Common). Protection Class: IP54 (Dust and water splash resistant, typical for CNC tools). Recommended Duty Cycle: 80% (For prolonged operation at high power). Q: What are the key specifications for the AENBUSLM 450nm 40W / 80W Laser Module? A: This laser engraving head operates at a 450nm wavelength and is available in 40W or 80W power options. It requires a 12V or 24V DC power supply and is designed for integration with CNC routers and 3D printers for engraving and cutting tasks.. Q: How durable is the AENBUSLM laser engraving head for regular woodworking use? A: The module is built with a robust aluminum housing and high-quality optical components to ensure consistent performance and longevity. It is designed to withstand the vibrations and demands of regular CNC and engraving operations.. Q: Can this laser module be installed on my existing CNC machine or 3D printer? A: Yes, the AENBUSLM laser head is designed for compatibility with most standard CNC routers and modified 3D printer frames. It features common mounting points and standard electrical connections (12V/24V) for straightforward integration.. Q: Does the AENBUSLM laser engraver come with a warranty or guarantee? A: Yes, this product includes a standard manufacturer's warranty that covers defects in materials and workmanship. Please refer to the seller's specific warranty terms for the exact duration and coverage details.. Q: Is the AENBUSLM 40W/80W laser a good value compared to other engraving modules? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in woodworking, engraving, and cutting applications..
