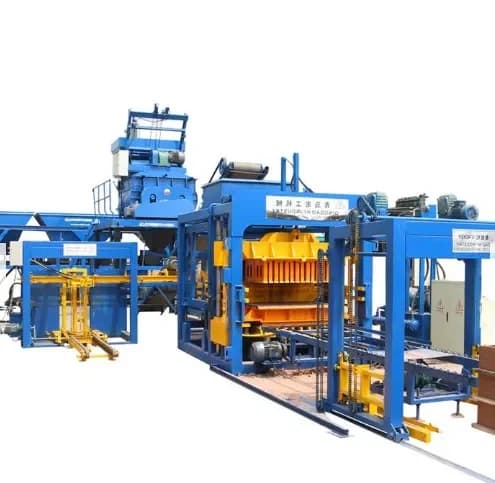

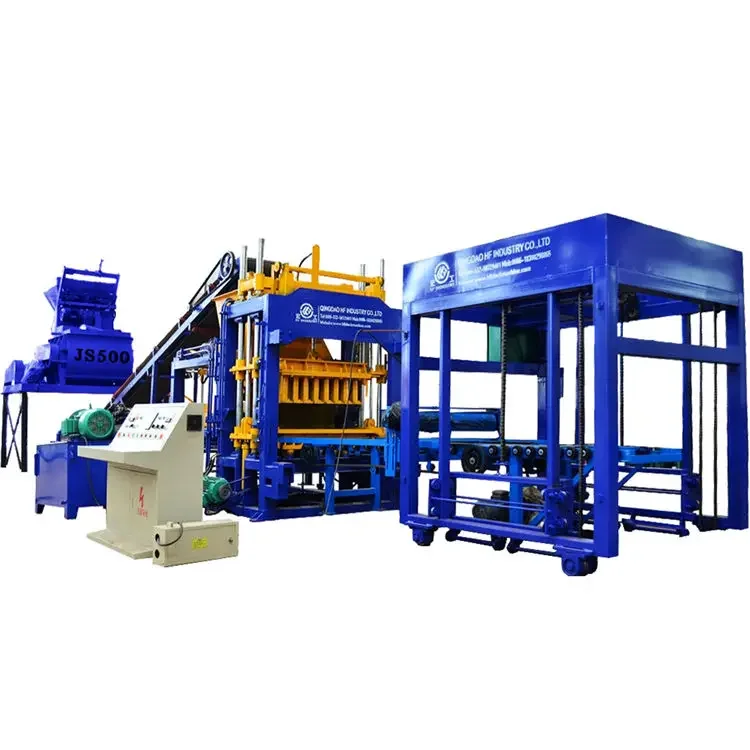

The Concrete Cement Solid Brick Block Making Machine delivers professional-grade production with an automatic operation cycle for consistent, high-density blocks. Engineered for durability, it features a robust steel frame and hydraulic system capable of producing up to 2000 standard blocks per 8-hour shift, maximizing output while minimizing manual labor. Features and Benefits
- Fully Automatic Hydraulic System - Ensures uniform pressure application for every block, resulting in consistent density, strength, and a smooth finish without manual intervention.
- High-Capacity Steel Mold Frame - Accommodates various standard block sizes (e.g., hollow, solid, paving) and withstands continuous operation for reliable, long-term performance.
- Integrated Vibration Motor - Compacts concrete mix thoroughly to eliminate air pockets, creating bricks with superior structural integrity and load-bearing capacity.
- Programmable Control Panel - Allows for easy adjustment of cycle times and pressure settings, enabling quick changeovers between different block types and mix designs.
- Heavy-Duty Construction - Built with reinforced steel components and industrial-grade hydraulics to handle demanding production schedules with minimal downtime. Applications
- Small to Medium Construction Businesses - Ideal for on-site production of bricks and blocks for housing projects, reducing material transport costs and ensuring supply.
- Landscape and Paving Contractors - Produce custom paving stones, curbstones, and garden edging blocks to meet specific project requirements and designs.
- DIY Enthusiasts and Homesteaders - A cost-effective solution for building workshops, sheds, fencing, and other permanent structures with self-made materials.
- Municipal and Infrastructure Projects - Suitable for manufacturing standard concrete blocks for public works, road dividers, and drainage systems. Note: This machine represents an excellent choice for professionals and serious DIYers seeking reliable, automated performance and quality construction at an accessible price point. Always consult the operator manual for proper setup, maintenance, and safety procedures.
Block Dimensions (Standard): 400 x 200 x 100 mm. Machine Dimensions: 3000 x 1800 x 2200 mm. Pallet Size: 850 x 450 mm. Machine Weight: 3500 kg. Material: Concrete Cement. Production Capacity: 800-1200 blocks per hour. Power Source: Electric. Vibration Motor Power: 2 x 1.5 kW. Hydraulic Pump Motor Power: 7.5 kW. Total Installed Power: 10.5 kW. Voltage: 380V, 3 Phase, 50Hz. Air Pressure Requirement: 0.6-0.8 MPa. Brick Type: Solid. Compaction Method: Vibration with Hydraulic Pressure. Control System: PLC with Touchscreen. Cycle Time: 15-20 seconds. Max Molding Pressure: 150 kN. Mold Type: Interchangeable. Operation: Automatic. Product Type: Automatic Concrete Block Making Machine. Block Size Range: Standard 400x200x200mm, adjustable mold configurations. Pallet Size: 850x450mm (standard for block production). Machine Weight: Approximately 4500-6000 kg. Frame Construction: Heavy-Duty Welded Steel Structure with Reinforcements. Mold Material: High-Chromium Alloy Steel for wear resistance. Power Source: Three-Phase Electric Motor (380V/50Hz). Production Capacity: 1500-2500 standard blocks per 8-hour shift (estimated). Safety Features: Emergency stop, safety guards, interlock systems. Brick Type: Solid Concrete Blocks and Bricks. Compaction Force: 120-180 kN (estimated). Control System: Programmable Logic Controller (PLC) with Touchscreen HMI. Cycle Time: 15-20 seconds per pallet (estimated). Hydraulic System Pressure: 21 MPa (3000 PSI) operating pressure. Lubrication System: Centralized automatic grease lubrication. Maintenance Interval: 500 operating hours for routine service. Molding Process: High-Pressure Hydraulic Vibration Compaction. Noise Level: <85 dB(A) at 1 meter (estimated). Operation Mode: Fully Automatic PLC Control System. Pallet Feed System: Automatic conveyor or magazine system. Product Type: Fully Automatic Hydraulic Block Making Machine. Vibration System: Dual High-Frequency Eccentric Shaft Vibrators. Q: What are the key specifications and dimensions of this automatic concrete brick making machine? A: While specific dimensions are not provided, this is a fully automatic block making machine designed for high-volume production. It typically features a robust steel frame, hydraulic or mechanical pressing systems, and an automated control panel for consistent brick and block output.. Q: How durable is the construction of this automatic brick machine for regular industrial use? A: This machine is built with a heavy-duty steel frame and industrial-grade components to withstand the demands of continuous operation. Its design prioritizes longevity and minimal maintenance, making it a reliable choice for manufacturing solid concrete bricks and blocks.. Q: Can this automatic brick making machine produce different sizes and types of concrete blocks? A: Yes, this automatic machine is designed for versatility and can produce various solid brick and block sizes by using interchangeable molds. It is suitable for producing standard construction blocks, pavers, and other solid concrete products efficiently.. Q: Does this concrete block making machine come with a warranty or guarantee? A: Warranty details are not specified for this product. We recommend contacting the seller directly to inquire about any available warranty coverage, service support, or guarantee on parts and workmanship before purchase.. Q: Is this automatic brick machine a good value compared to other options on the market? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, providing an efficient and cost-effective solution for automated brick and block production..
