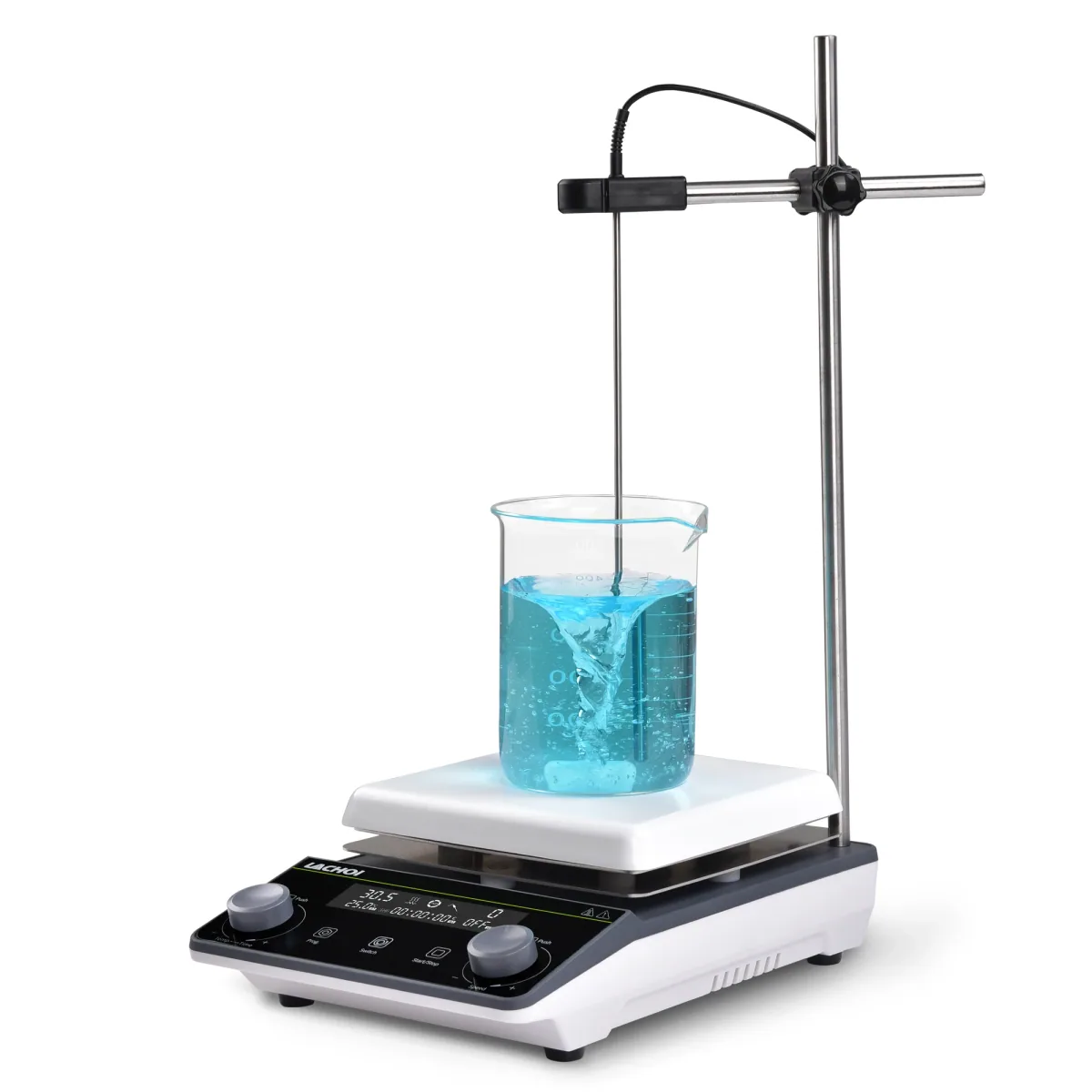

This magnetic stirrer hot plate is a bench unit for mixing and heating liquids, with a 150 x 150mm working plate, a brushless DC motor, speeds up to 1600rpm, a 5L maximum stirring volume and heating from room temperature to 300°C on the heated models. It comes in four versions: MSB-S (stirrer only), MSB-H (heating), MSB-D (stirrer with LCD display and timer) and MSB-HD (heating, LCD display, timer and temperature sensor).
Features and benefits:
- Four models in one range - pick stirring only, heating only, stirring with display, or the full heating and display version
- Brushless DC motor with speed up to 1600rpm - quiet, steady mixing of up to 5L
- Heated models reach 300°C from room temperature on a cast aluminium plate with ceramic spray coating, with a memory function
- LCD display and timing from 1 to 99h59min on the D and HD models, with a programme function
- The HD model includes a PT1000 temperature sensor: plate control within ±3 and liquid within ±0.5

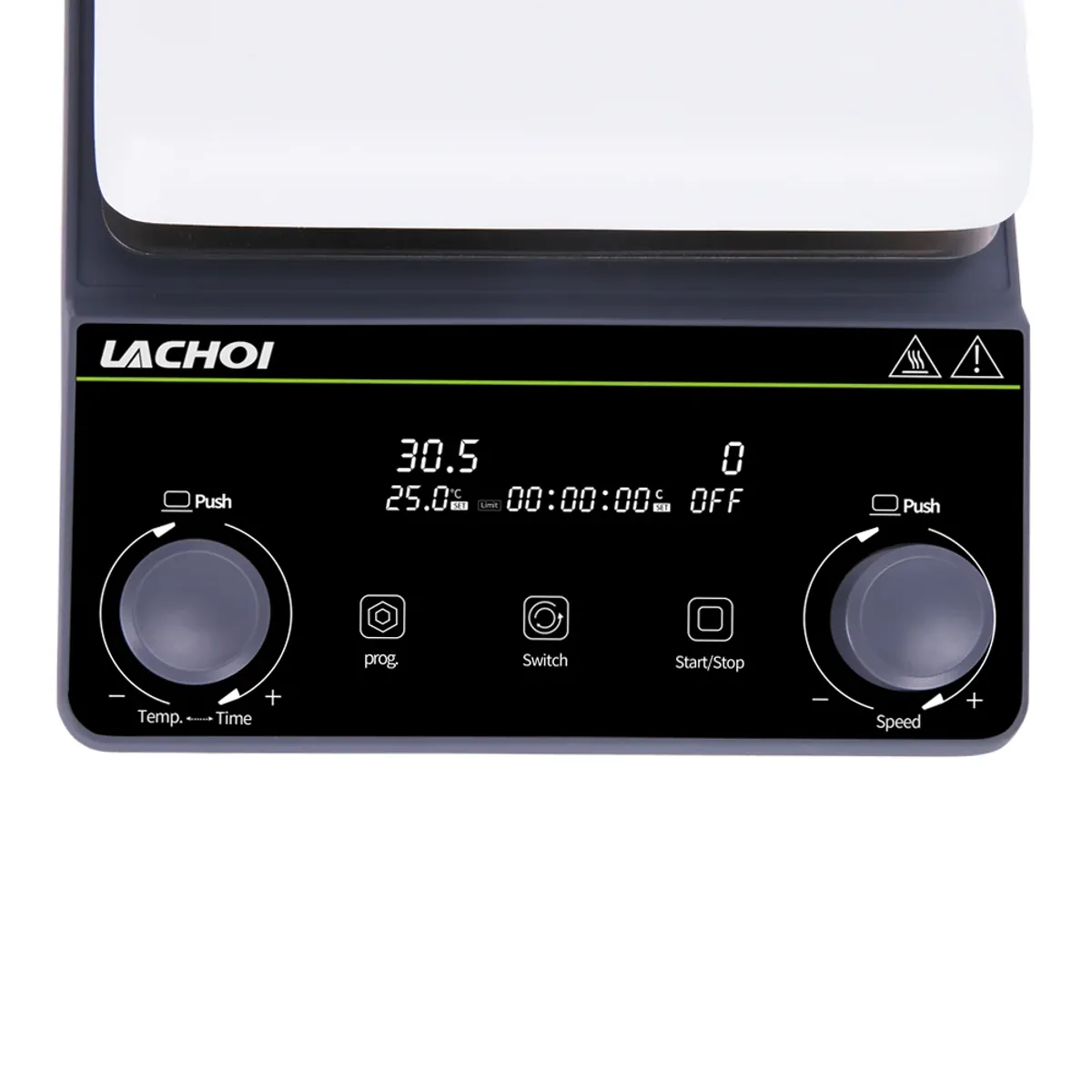

- Reversing stir direction (positive and inversion) and separate knobs for temperature or time and for speed, with Start/Stop and programme buttons

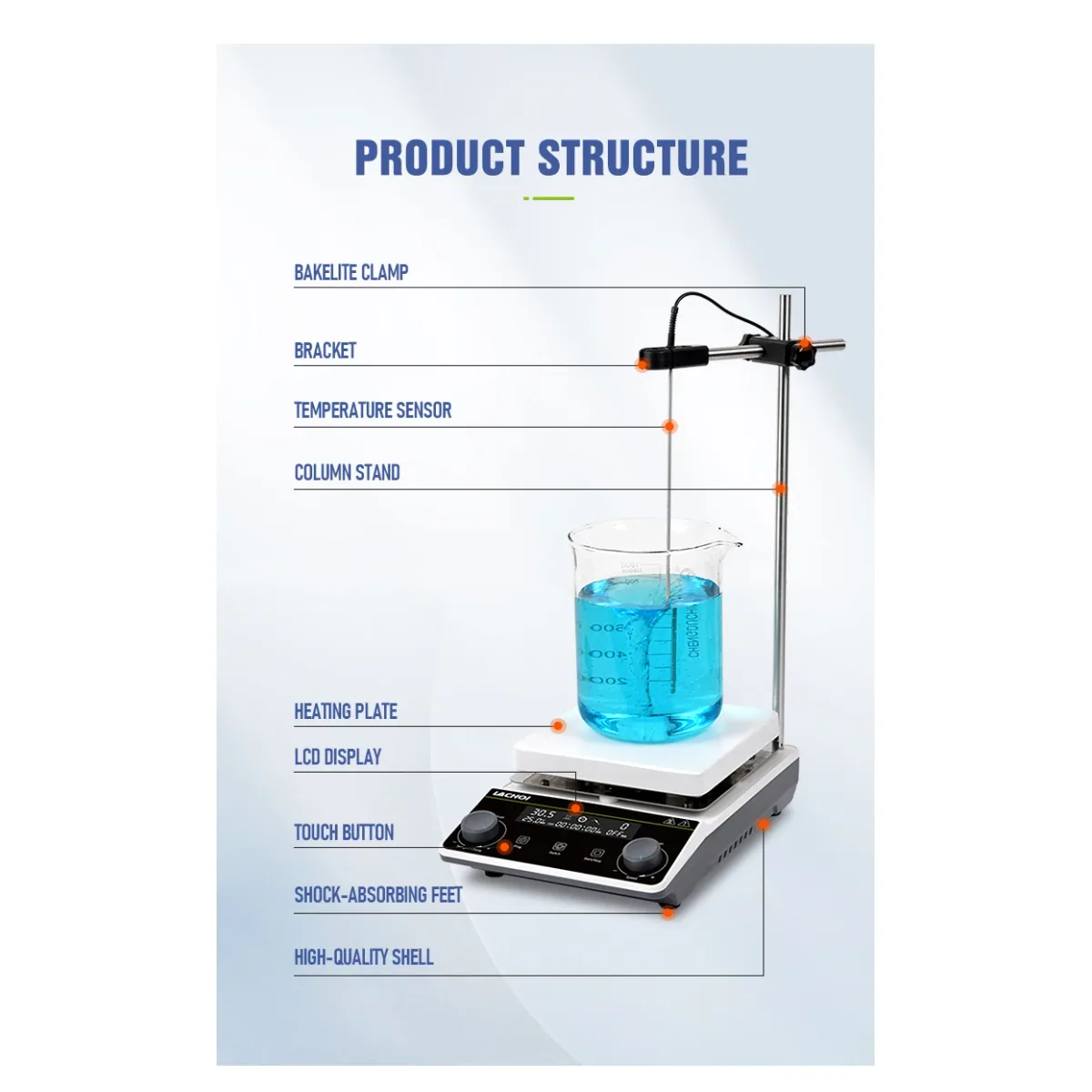

- Stainless pole, bakelite cross clamp and temperature support supplied with the heated models, plus shock-absorbing feet
Applications:
- Mixing and heating solutions in laboratory and school science work
- Dissolving powders and keeping a liquid at temperature in workshop and food or cosmetics preparation
- Home brewing and general bench mixing
- Teaching demonstrations of stirring, heating and timed mixing

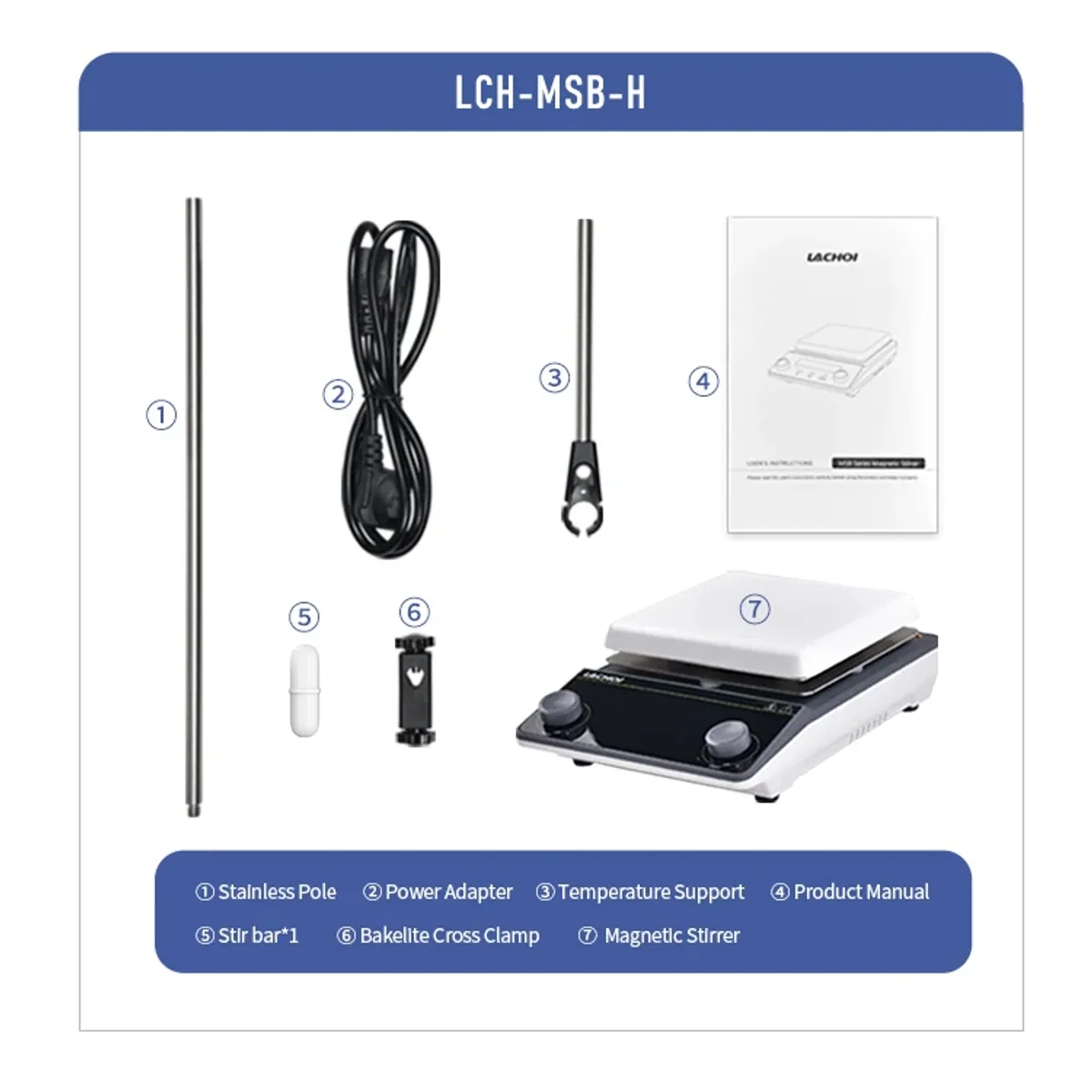

In the box:
- MSB-HD: magnetic stirrer, stainless pole, temperature sensor, power adapter, temperature support, 1 x stir bar, bakelite cross clamp and product manual
- MSB-H: magnetic stirrer, stainless pole, power adapter, temperature support, 1 x stir bar, bakelite cross clamp and product manual
- MSB-D and MSB-S: magnetic stirrer, power adapter, 1 x stir bar and product manual
Note: Choose the model in the options. Only the H and HD versions heat. Hot plate surfaces can burn, so keep flammable items clear and allow the plate to cool before cleaning. The supplied power adapter plug type is not stated, so check it before use and fit a suitable UK adapter if needed.

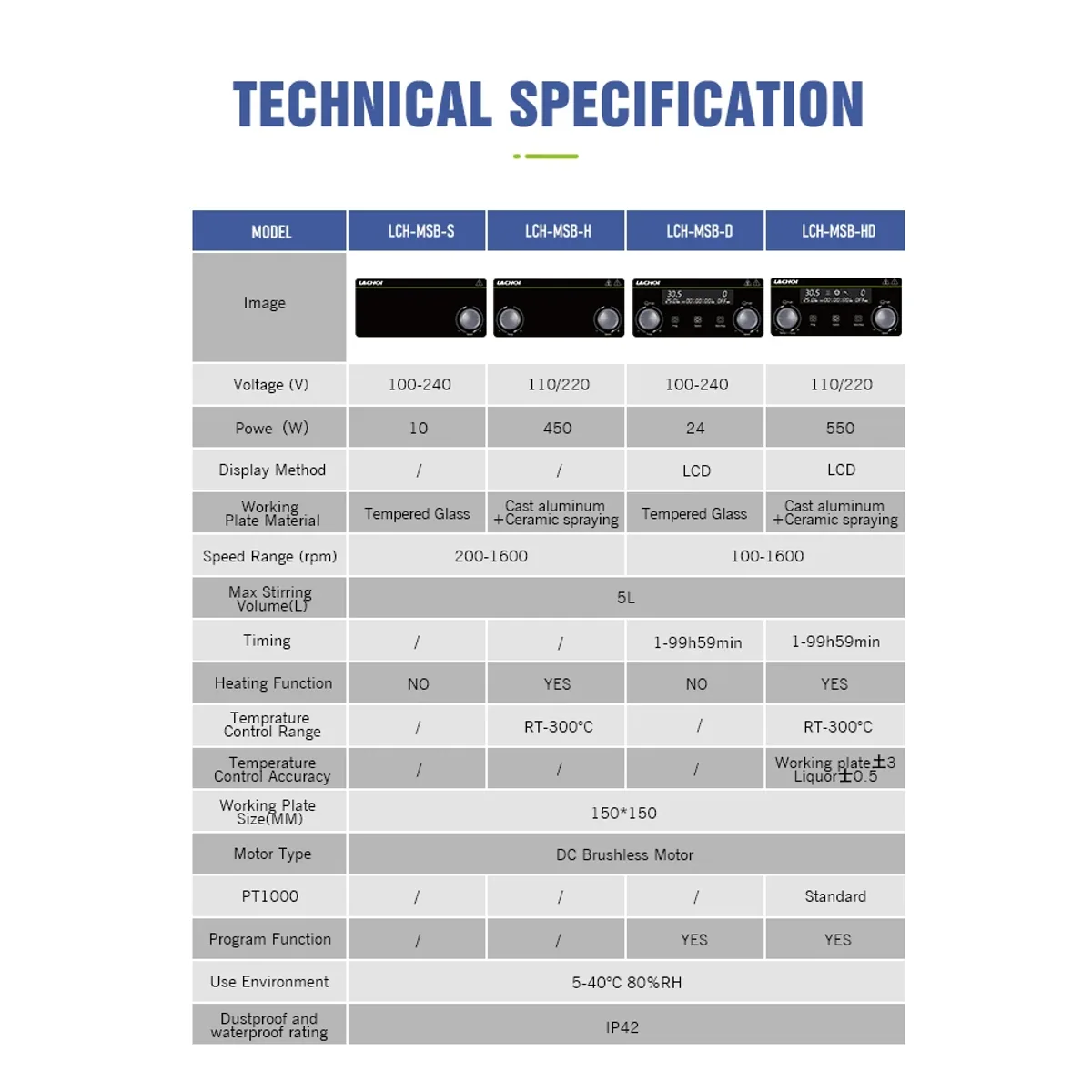

Models: MSB-S, MSB-H, MSB-D, MSB-HD (choose in options). Maximum stirring volume: 5L. Speed range: 100 to 1600rpm (D and HD); 200 to 1600rpm (S and H). Temperature range: Room temperature to 300°C (H and HD models). Heating: H and HD only; not on S and D. Motor: DC brushless motor. Working plate size: 150 x 150mm. Timing range: 1 to 99h59min (D and HD). Temperature control accuracy: Plate ±3, liquid ±0.5 (HD). Temperature sensor: PT1000, standard on HD. Programme function: D and HD. Power, S model: 10W, 100 to 240V. Power, H model: 450W, 110/220V. Power, D model: 24W, 100 to 240V. Power, HD model: 550W, 110/220V. Frequency: 50Hz. Plug: Not stated by the supplier; use a UK adapter if the supplied plug is not UK type. Working plate, S and D: Tempered glass. Working plate, H and HD: Cast aluminium with ceramic spraying. Display: LCD on D and HD only; S and H have no display. Controls: Temp./Time knob, Speed knob, switch, Start/Stop and prog. buttons. Stirring direction: Positive and inversion. Use environment: 5 to 40°C, 80%RH. Dustproof and waterproof rating: IP42. Weight: 3kg. Packed dimensions: 33.5 x 27 x 14cm. Support parts: Stainless pole, bakelite cross clamp and temperature support on H and HD. Feet: Shock-absorbing. Q: How does a magnetic stirrer work? A: A magnet spins under the working plate and turns the stir bar sitting in your vessel, which mixes the liquid without a shaft or paddle. On this unit the brushless motor drives the magnet at up to 1600rpm.. Q: How do you use a magnetic stirrer hot plate? A: Drop the stir bar into the vessel, stand it in the middle of the plate, then set the speed with the Speed knob. On heated models set the temperature or time with the other knob and press Start.. Q: What is the difference between the MSB-S, H, D and HD models? A: S is stirring only with no display. H adds heating to 300°C, D adds an LCD display, timer and programme function without heating, and HD has heating, LCD display and a PT1000 sensor.. Q: How hot does the MSB hot plate get? A: The heated H and HD models run from room temperature up to 300°C on a cast aluminium plate with ceramic spray coating. The S and D models do not heat.. Q: How much liquid can it stir? A: The maximum stirring volume is 5L on all four models..
