What does 'Normally Closed' mean and what happens if the power fails?

'Normally Closed' means the valve stays shut, blocking flow, until it receives power. If power is lost for any reason, the valve will automatically spring shut, which is a useful fail-safe for many systems.

What kind of fluids or gases can I use with this valve?

This valve is suitable for controlling the flow of air, water, and oil. Its brass body and stainless steel internals are designed for use with non-corrosive media up to a temperature of 70°C.

What is the operating pressure range and what size are the ports?

This valve operates with a pressure from 0 up to 8 kgf/cm² (about 113 PSI). The inlet and outlet ports are standard 1/4" female threads, so they'll connect with common fittings.

Valve 1/4 | Normally Closed 12V DC | For Air, Water, or Oil

Name: Valve 1/4 | Normally Closed 12V DC | For Air, Water, or Oil
Brand: Compel
SKU: SOLE-00002
Price: 10.99 USD
Availability: InStock
Rating: 4.8 (260 reviews)

Stock #:CMP-04538

SKU:SOLE-00002

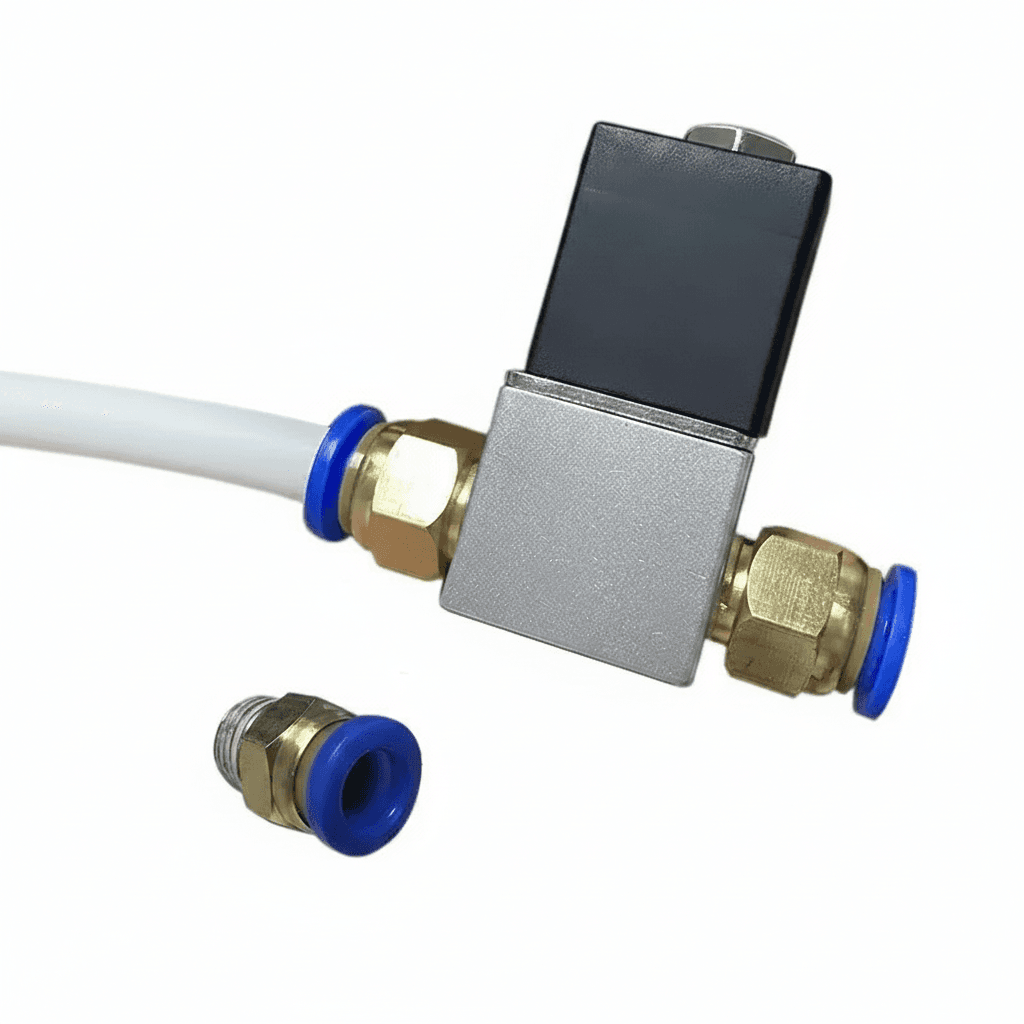

Valve 1/4 | Normally Closed 12V DC | For Air, Water, or Oil - Image 1

1 / 6

$10.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

SpecificationSelect an option

ColorSelect an option

Quantity

Valve 1/4 | Normally Closed 12V DC | For Air, Water, or Oil

$10.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What does 'Normally Closed' mean and what happens if the power fails?: 'Normally Closed' means the valve stays shut, blocking flow, until it receives power. If power is lost for any reason, the valve will automatically spring shut, which is a useful fail-safe for many systems.
What kind of fluids or gases can I use with this valve?: This valve is suitable for controlling the flow of air, water, and oil. Its brass body and stainless steel internals are designed for use with non-corrosive media up to a temperature of 70°C.
What is the operating pressure range and what size are the ports?: This valve operates with a pressure from 0 up to 8 kgf/cm² (about 113 PSI). The inlet and outlet ports are standard 1/4" female threads, so they'll connect with common fittings.

Solenoid Valves spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare solenoid valves

This product

Normally closed 1/4" solenoid valve, available in DC 12V/24V and AC 110V/220V, for air, water, or oil applications.

Valve 1/4 | Normally Closed 12V DC | For Air, Water, or Oil

Price$10.99

Rating4.8(260)

Sold3,000+

Stock In stock

You're viewing this

Alternative

An AC 220V 1/2 inch plastic normally closed solenoid valve for controlling water and air pressure.

Solenoid Valve | 12V/24V/220V NC | 1/2 & 3/4 for Water & Air

Price$11.99

Rating4.9(1232)

Sold10,000+

Stock In stock

View

Alternative

G1/2'' brass electric solenoid valve, normally closed, for water and air flow control in solar water heaters.

Solenoid Valve | Normally Closed Brass Body | 12V 24V 220V Water Air

Price$15.99

Rating4.8(192)

Sold2,000+

Stock In stock

View

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

$45.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

This is a normally closed solenoid valve. It controls the flow of air, water, or oil. It stays shut when there is no power and opens only when electricity is applied. This design makes it a reliable part for any automated fluid system. Features and Benefits - Normally Closed (NC) operation - The valve closes automatically when power is off, providing a safe shutoff to prevent leaks. - Multiple voltage options - You can get it in 12V DC, 24V DC, 110V AC, or 220V AC to match your system's power. - Alloy body with 1/4" ports - It has a solid build for managing common gases and liquids. - Fast-acting coil - The internal electric coil reacts quickly to power, allowing for fast opening and closing. Applications - Controlling water lines in an automated garden or greenhouse irrigation system. - Managing airflow from an air compressor to pneumatic tools or actuators. - Building custom liquid dispensers or process control systems for DIY projects.

Port Size: 1/4 inch. Body Material: Alloy. Voltage (DC): 12V, 24V. Voltage (AC): 110V, 220V. Fluid Compatibility: Air, Water, Oil. Operation: Normally Closed. Valve Type: Solenoid Valve. Port Size: 1/4 inch. Body Material: Alloy. Seal Material: NBR (Buna-N) (common for air, water, oil). Voltage (AC): 110V, 220V. Voltage (DC): 12V, 24V. Pressure Range: 0-1.0 MPa (0-145 PSI) (typical for general purpose solenoid valves). Temperature Range: -5°C to 80°C (23°F to 176°F) (typical for NBR seals). Number of Ports: 2-way. Applicable Media: Air, Water, Oil. Coil Type: Electric. Flow Rate (Cv): 0.23 Cv (estimated for 1/4 inch port). Model Number: 2V025. Motivity Type: Other (Solenoid Actuated). Operation Mode: Normally Closed (NC). Product Name: Normally Closed 1/4" Solenoid Valve DC 12V 24V Pneumatic Position Coil Alloy Internal Electric AC 110V 220V for Air Water Oil. Valve Type: Solenoid Valve. Q: What does 'normally closed' mean for this solenoid valve? A: A 'normally closed' valve stays shut by default, blocking the flow of air or liquid. When you send electricity to the coil, it opens the valve to let the medium pass through; it closes again when the power is cut.. Q: What does 'normally closed' mean for this solenoid valve? A: A 'normally closed' valve stays shut by default, blocking the flow of air or liquid. When you send electricity to the coil, it opens the valve to let the medium pass through; it closes again when the power is cut.. Q: What does 'normally closed' mean for this solenoid valve? A: A 'normally closed' valve stays shut by default, blocking the flow of air or liquid. When you send electricity to the coil, it opens the valve to let the medium pass through; it closes again when the power is cut.. Q: What are the valve body and internal seals made from? A: The valve body is made from an aluminum alloy, and the internal seals are NBR, which is a type of nitrile rubber. This combination works well for air, water, inert gases, and most oils.. Q: What are the valve body and internal seals made from? A: The valve body is made from an aluminum alloy, and the internal seals are NBR, which is a type of nitrile rubber. This combination works well for air, water, inert gases, and most oils.. Q: What are the valve body and internal seals made from? A: The valve body is made from an aluminum alloy, and the internal seals are NBR, which is a type of nitrile rubber. This combination works well for air, water, inert gases, and most oils.. Q: What is the maximum air pressure this valve can handle? A: This valve is rated to operate with pressures from 0 up to 1.0 MPa, which translates to about 145 PSI. It's well-suited for most pneumatic control systems but not for high-pressure hydraulics.. Q: What is the maximum air pressure this valve can handle? A: This valve is rated to operate with pressures from 0 up to 1.0 MPa, which translates to about 145 PSI. It's well-suited for most pneumatic control systems but not for high-pressure hydraulics.. Q: What is the maximum air pressure this valve can handle? A: This valve is rated to operate with pressures from 0 up to 1.0 MPa, which translates to about 145 PSI. It's well-suited for most pneumatic control systems but not for high-pressure hydraulics.. Q: I see 12V, 24V, 110V, and 220V options. How do I choose? A: You need to match the valve's voltage to your power source. The 12V and 24V options are DC and require a DC power supply, common in automotive or low-voltage electronics. The 110V and 220V are AC for standard wall power.. Q: I see 12V, 24V, 110V, and 220V options. How do I choose? A: You need to match the valve's voltage to your power source. The 12V and 24V options are DC and require a DC power supply, common in automotive or low-voltage electronics. The 110V and 220V are AC for standard wall power.. Q: I see 12V, 24V, 110V, and 220V options. How do I choose? A: You need to match the valve's voltage to your power source. The 12V and 24V options are DC and require a DC power supply, common in automotive or low-voltage electronics. The 110V and 220V are AC for standard wall power.. Q: Do I need to install a filter before the valve? A: It's a very good idea to install a filter on the inlet side. Debris in the air or fluid line can get stuck in the valve and cause it to leak or fail to close properly. A simple particle filter will extend its life.. Q: Do I need to install a filter before the valve? A: It's a very good idea to install a filter on the inlet side. Debris in the air or fluid line can get stuck in the valve and cause it to leak or fail to close properly. A simple particle filter will extend its life.. Q: Do I need to install a filter before the valve? A: It's a very good idea to install a filter on the inlet side. Debris in the air or fluid line can get stuck in the valve and cause it to leak or fail to close properly. A simple particle filter will extend its life..
