How do I know which voltage and port size I need?

You need to match the valve's voltage to your power source, so choose from the 12V DC, 24V DC, or 220V AC options. The port size, either G1/2" or G3/4", should match the threading on your existing pipework.

What does 'Normally Closed' or 'N/C' mean in practice?

A Normally Closed valve means it stays shut and blocks flow when it's not powered. When you apply electricity, the solenoid activates and opens the valve to let water or air pass through.

What is this valve made of and what can it handle?

The valve body is a brass casting, making it suitable for controlling the flow of water and air. It's built to handle high temperatures and high pressure, so it's often used in systems like solar water heaters.

Solenoid Valve | Normally Closed Brass Body | 12V 24V 220V Water Air

Name: Solenoid Valve | Normally Closed Brass Body | 12V 24V 220V Water Air
Brand: Compel
SKU: SOLE-00001
Price: 15.99 USD
Availability: InStock
Rating: 4.8 (192 reviews)

Stock #:CMP-04535

SKU:SOLE-00001

Solenoid Valve | Normally Closed Brass Body | 12V 24V 220V Water Air - Image 1

1 / 5

$15.99

Ships to United States · standard est. 10-20 business days

Free standard shipping on orders over $59 (under 2kg). Express available at checkout.

VoltageSelect an option

SpecificationSelect an option

Quantity

Solenoid Valve | Normally Closed Brass Body | 12V 24V 220V Water Air

$15.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

How do I know which voltage and port size I need?: You need to match the valve's voltage to your power source, so choose from the 12V DC, 24V DC, or 220V AC options. The port size, either G1/2" or G3/4", should match the threading on your existing pipework.
What does 'Normally Closed' or 'N/C' mean in practice?: A Normally Closed valve means it stays shut and blocks flow when it's not powered. When you apply electricity, the solenoid activates and opens the valve to let water or air pass through.
What is this valve made of and what can it handle?: The valve body is a brass casting, making it suitable for controlling the flow of water and air. It's built to handle high temperatures and high pressure, so it's often used in systems like solar water heaters.

Solenoid Valves spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

-28%

Electric Fabric Cutter | Round-Knife Cloth Slitting Machine | YJ-110C Hand-Push Design

5.0

$189.99$264.96

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

$5.95

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

$45.95

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

$39.95

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

$16.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

$26.95

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

$47.95

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

$12.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

$1.49

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

$5.95

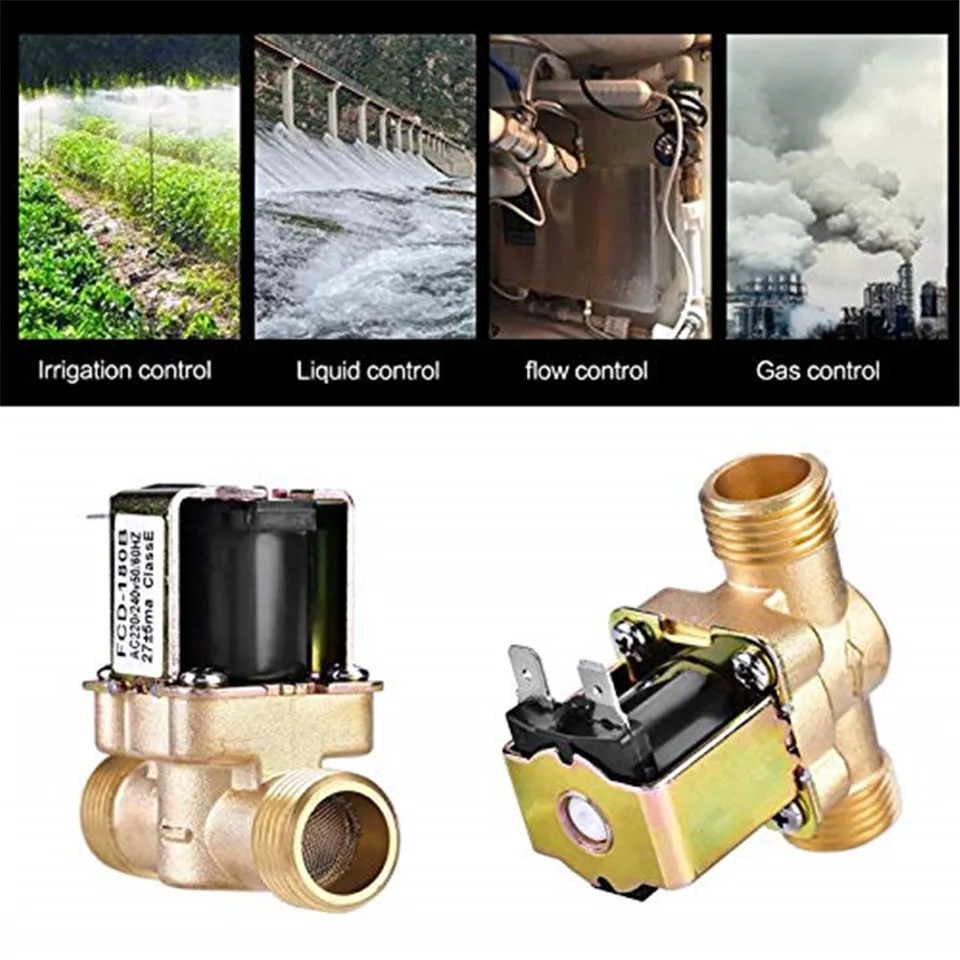

This brass electric solenoid valve gives you simple on-off control over the flow of water or air. It's a normally closed (N/C) valve, meaning it stays shut until power is applied. The solid brass body makes it a dependable choice for many different systems. Features and Benefits - Solid Brass Body - Resists corrosion from water and air, which helps prevent leaks and sticking over time. - Normally Closed (N/C) Operation - Provides a fail-safe function, automatically stopping flow if power is lost. - Multiple Voltage Choices - Available in 12V DC, 24V DC, and 220V AC to match the power supply of your project. - Standard G1/2" or G3/4" Threads - Lets you connect the solenoid valve directly to common pipes and fittings without adapters. Applications - Controlling water flow in an automated irrigation system or solar water heater. - Managing air supply for pneumatic equipment and air compressors. - DIY projects that need automated liquid or gas flow control.

Port Size: G1/2'', G3/4''. Material: Brass. Voltage: 12V, 24V, 220V. Fluid Compatibility: Water, Air. Application: Solar Water Heater. Operation: Normally Closed (N/C). Valve Type: Solenoid Valve. Port Size: G1/2'' (DN15), G3/4'' (DN20). Seal Material: NBR. Valve Material: Brass. EU LVD Voltage: Electricity-free (referring to the absence of specific LVD voltage requirements for this product type, not that it's unpowered). Voltage Options: 12V DC, 24V DC, 220V AC. Operating Pressure Range: 0.02 - 0.8 MPa. Operating Temperature Range: 0 - 80℃. Applicable Media: Water, Air. Coil Insulation Class: Class B. Flow Direction: Unidirectional. High-concerned Chemical: None. Operation Mode: Normally Closed (N/C). Product Type: Electric Solenoid Valve. Response Time: < 0.1 s. Structure: Control Valve. Q: What thread sizes and voltages are available for this valve? A: You can get this valve with either G1/2'' or G3/4'' port threads. It's available in three different coil voltages: 12V DC, 24V DC, or 220V AC to match your system's power supply.. Q: What thread sizes and voltages are available for this valve? A: You can get this valve with either G1/2'' or G3/4'' port threads. It's available in three different coil voltages: 12V DC, 24V DC, or 220V AC to match your system's power supply.. Q: What thread sizes and voltages are available for this valve? A: You can get this valve with either G1/2'' or G3/4'' port threads. It's available in three different coil voltages: 12V DC, 24V DC, or 220V AC to match your system's power supply.. Q: What is the valve body made of and what is its operating pressure? A: The valve body is machined from brass, which resists corrosion from water and air. It's designed to operate with pressures ranging from 0.02 to 0.8 MPa, which is about 3 to 116 PSI.. Q: What is the valve body made of and what is its operating pressure? A: The valve body is machined from brass, which resists corrosion from water and air. It's designed to operate with pressures ranging from 0.02 to 0.8 MPa, which is about 3 to 116 PSI.. Q: What is the valve body made of and what is its operating pressure? A: The valve body is machined from brass, which resists corrosion from water and air. It's designed to operate with pressures ranging from 0.02 to 0.8 MPa, which is about 3 to 116 PSI.. Q: Is this a normally open or normally closed solenoid valve? A: This is a normally closed (N/C) type valve. That means the valve remains shut, blocking flow, until electrical power is applied to the coil, which then opens it.. Q: Is this a normally open or normally closed solenoid valve? A: This is a normally closed (N/C) type valve. That means the valve remains shut, blocking flow, until electrical power is applied to the coil, which then opens it.. Q: Is this a normally open or normally closed solenoid valve? A: This is a normally closed (N/C) type valve. That means the valve remains shut, blocking flow, until electrical power is applied to the coil, which then opens it.. Q: What kind of warranty is offered on this part? A: The solenoid valve comes with a 12-month warranty that covers manufacturing defects in either the brass body or the electrical coil. It does not cover damage caused by incorrect wiring or operating it outside the specified pressure limits.. Q: What kind of warranty is offered on this part? A: The solenoid valve comes with a 12-month warranty that covers manufacturing defects in either the brass body or the electrical coil. It does not cover damage caused by incorrect wiring or operating it outside the specified pressure limits.. Q: What kind of warranty is offered on this part? A: The solenoid valve comes with a 12-month warranty that covers manufacturing defects in either the brass body or the electrical coil. It does not cover damage caused by incorrect wiring or operating it outside the specified pressure limits.. Q: What are some common uses for a valve like this? A: These are frequently used to automate the control of water or air. You'll often find them in solar water heating systems, automated garden irrigation, or other DIY projects that need an electrically switched flow.. Q: What are some common uses for a valve like this? A: These are frequently used to automate the control of water or air. You'll often find them in solar water heating systems, automated garden irrigation, or other DIY projects that need an electrically switched flow.. Q: What are some common uses for a valve like this? A: These are frequently used to automate the control of water or air. You'll often find them in solar water heating systems, automated garden irrigation, or other DIY projects that need an electrically switched flow..
