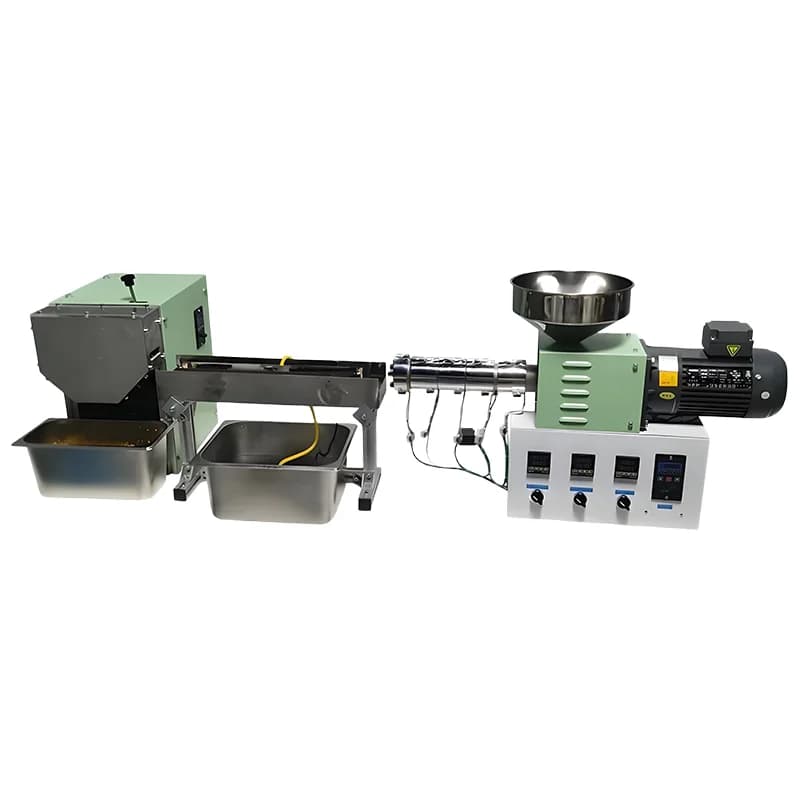

Engineered for high-efficiency material processing, this small extruder plastic granulator delivers consistent 3D printing filament production and plastic modification. Its optimized screw design and precise temperature control ensure uniform pelletizing for reliable, repeatable results in demanding laboratory and workshop environments. Features and Benefits
- High-torque DC motor with variable speed control - Provides consistent power for processing a wide range of thermoplastic materials without stalling
- Corrosion-resistant hardened steel cutting blades - Ensures long-lasting sharpness for clean, uniform granule size and reduced material dust
- Integrated water-cooling jacket on the barrel - Maintains stable extrusion temperatures for higher quality output and prevents material degradation
- Compact benchtop footprint with vibration-dampening feet - Enables stable operation in space-constrained labs and workshops without specialized mounting

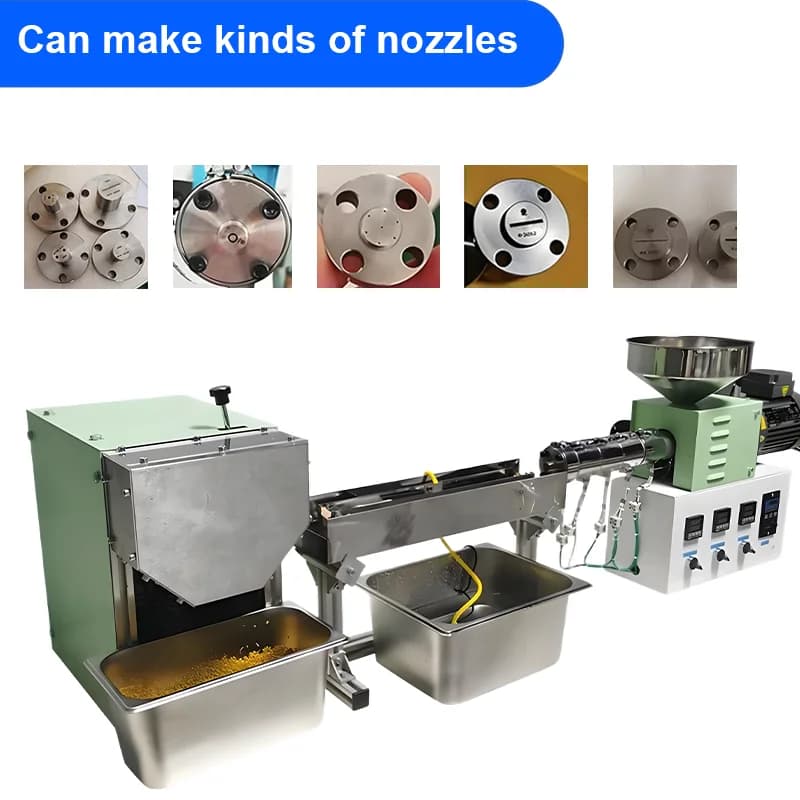

- Modular screw and die design - Allows for quick changes between material types and pellet sizes, increasing experimental flexibility Applications
- 3D Printing Filament Recycling - Convert failed prints and support material back into uniform pellets for creating new, custom-colored filament
- Laboratory Material Formulation - Develop and test new polymer blends and composite formulas with precise control over additive mixing
- Small-Batch Specialty Production - Create tailored plastic granules for prototyping, custom molding, or educational demonstrations
- Consumables Optimization - Modify commercial plastic pellets with colorants or performance enhancers to suit specific printer or project requirements Note: For optimal performance and longevity, please refer to the included manual for material compatibility guidelines and recommended cleaning procedures between material changes.

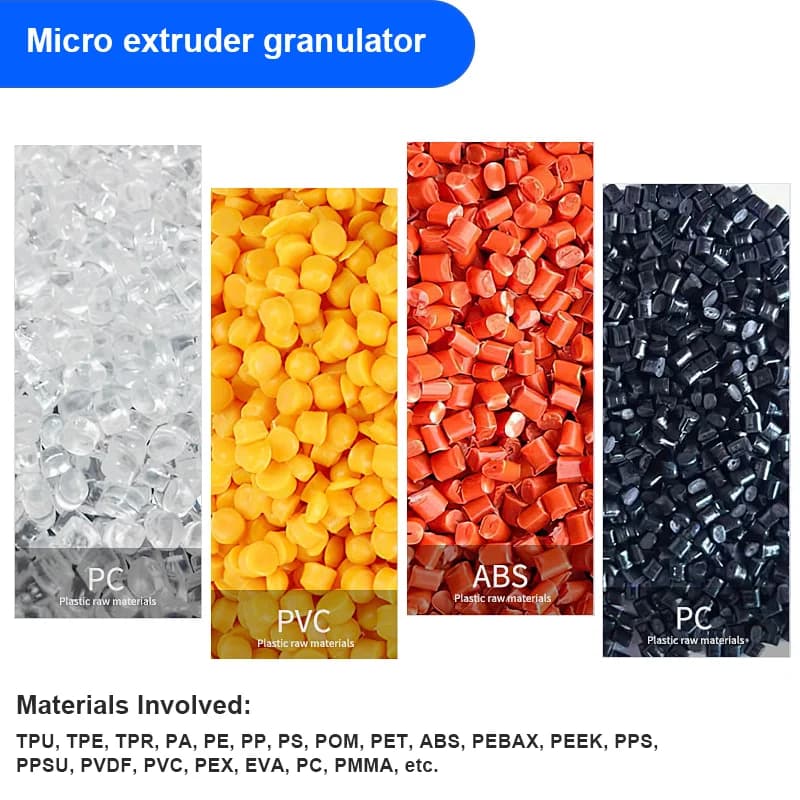

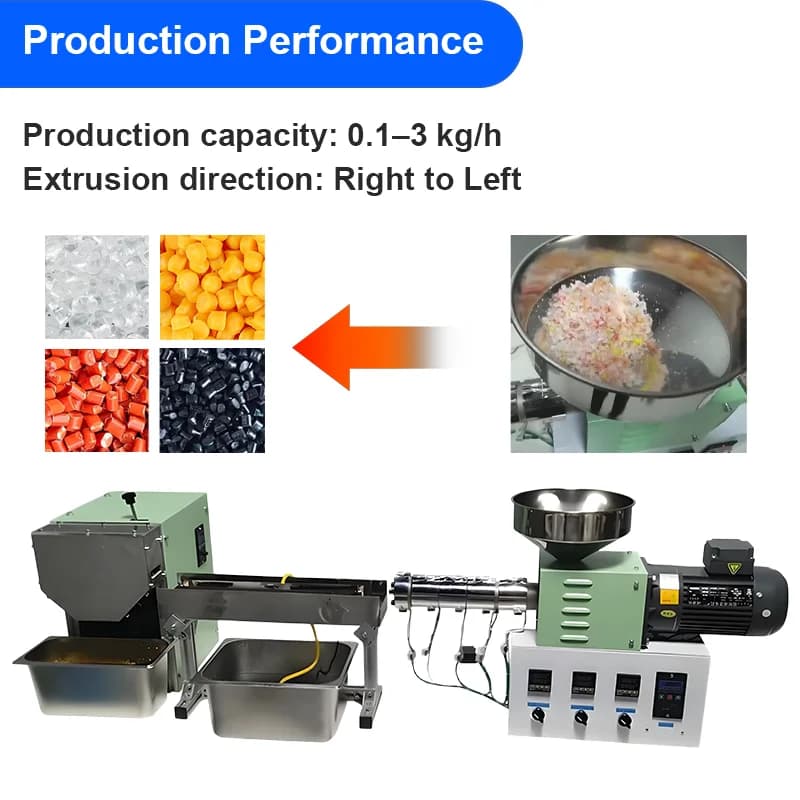

Dimensions (L x W x H): 800 x 400 x 500 mm. Weight: 45 kg. Frame Material: Powder-coated Steel. Throughput Capacity: 0.5 - 2 kg/h. Motor Power: 1.5 kW. Voltage: 220V AC, 50/60 Hz. Application: 3D Printing Consumables Production, Plastic Modification, Laboratory Extrusion. Control Interface: Digital Touchscreen. Cooling: Air-cooled. Extruder Type: Single Screw. Feed Mechanism: Manual Hopper. Heating Zones: 4. Length-to-Diameter Ratio (L/D): 25:1. Maximum Temperature: 350 °C. Model: Small Extruder Plastic Granulator. Screw Diameter: 20 mm. Screw Speed Range: 0 - 100 RPM. Temperature Control: PID. Granule Size: 2 - 4 mm (typical for 3D printing pellets). Length-to-Diameter Ratio (L/D): 25:1 to 40:1 (inferred for compounding). Screw Diameter: 16-20 mm (inferred standard for lab scale). Compatible Materials: PLA, ABS, PETG, TPU, and compounded polymers. Frame Construction: Powder-coated steel or aluminum alloy. Motor Power: 1.5 - 3 kW (inferred for lab-scale torque). Voltage: 220V Single Phase or 380V Three Phase (options inferred). Screw Speed Range: 0 - 300 RPM (adjustable). Throughput Capacity: 0.5 - 5 kg/h (inferred range for lab scale). Safety Features: Emergency stop, thermal fuses, motor overload protection. Maximum Barrel Temperature: 350°C - 400°C. Control System: Digital PLC with touchscreen interface. Cooling Method: Air-cooled or water-cooled barrel sections. Data Logging: Temperature, screw speed, and torque monitoring. Die Type: Single or dual-strand die for filament/pelletizing. Downstream Equipment: Integrated water bath and pelletizer/cutter. Feed Mechanism: Volumetric or gravimetric feeder compatible (hopper included). Heating Zones: 3 - 5 barrel zones with individual PID control. Noise Level: < 75 dB(A) (inferred for lab environment). Primary Application: 3D Printing Filament Production and Plastic Modification. Product Type: Laboratory-Scale Twin-Screw Extruder/Granulator. Screw Configuration: Co-rotating twin-screw. Q: What are the key specifications and dimensions of this small extruder plastic granulator? A: This is the Ztem Small Extruder Plastic Granulator, designed for laboratory use and small-scale production. While exact dimensions are not specified, its compact 'small extruder' design is ideal for benchtop operation in workshops or labs.. Q: How durable is the construction of this plastic granulator for regular use? A: Built for high-efficiency extrusion tasks like 3D printing consumables modification, it features a robust construction suitable for laboratory and prototyping environments. It is engineered to deliver reliable performance for consistent material processing.. Q: Can this small extruder be used to create custom 3D printing filament formulas? A: Yes, this granulator is specifically designed for plastic modification and formula extrusion, making it perfect for developing custom 3D printing consumables. It is an excellent tool for R&D labs, makerspaces, and small-batch production of specialized filaments.. Q: Does this Ztem plastic granulator come with a warranty or guarantee? A: Warranty details for this specific model are not provided in the product information. We recommend contacting the seller directly to inquire about any manufacturer's warranty or support options available for the Ztem brand.. Q: Is this small extruder plastic granulator a good value for its price? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use in labs, workshops, and small-scale manufacturing of modified plastics..
