CNC Plasma Cutter | 55A 110V/220V | 1-Inch Cutting Capacity | PT60 Torch

Name: CNC Plasma Cutter | 55A 110V/220V | 1-Inch Cutting Capacity | PT60 Torch
Brand: Compel Group
SKU: MANU-00131
Price: 992.99 GBP
Availability: InStock

Stock Nr:

SKU:

1 / 5

£992.99inc VAT

OptionSelect an option

Quantity

Secure checkout
All major cards
Tracked delivery

CNC Plasma Cutter | 55A 110V/220V | 1-Inch Cutting Capacity | PT60 Torch

£992.99

Fast Shipping

Secure Payment

Easy Returns

Good to know

Questions about this product

What can I cut with this CNC plasma cutter?: This plasma cutter is great for cutting up to 1 inch (25mm) thick mild steel, and it also works well on stainless steel, aluminium, and other conductive metals. It's suitable for metal fabrication shops, automotive repair, and DIY projects.
How do I connect this plasma cutter to my CNC machine?: The CUT55 Plasma Cutter has a CNC ready interface for easy integration with your CNC table. It requires a minimum 2-axis (X, Y) CNC control and is compatible with systems like the iYeah CNC System. You'll also need a compressor providing over 8 CFM at 60-90 PSI.
What's the maximum thickness this plasma cutter can handle?: This unit has a rated cutting capacity of 1 inch (25mm) for mild steel. For a severance cut, it can go up to an estimated 30-32mm in mild steel. It operates at 55A with a 60% duty cycle.

Manufacturing & CNC spec sheet (PDF)

Get a one-page sheet with full description, specifications, technical details, FAQs, price & SKU - handy to save, print, or share.

Not sure which one?

Compare with similar products

The same kind of product, in stock, in a similar price range.

This product: £992.99 · 5.0

This product

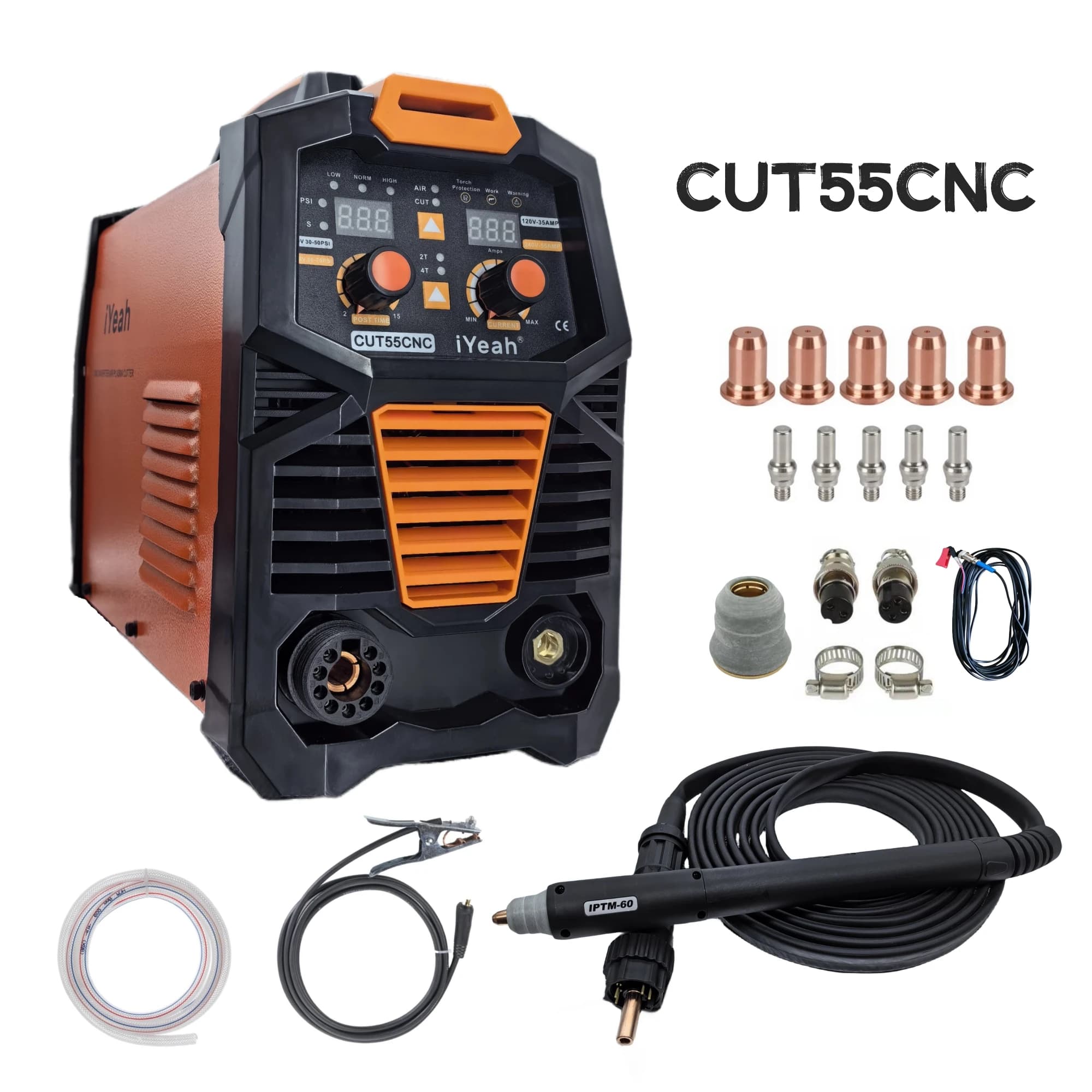

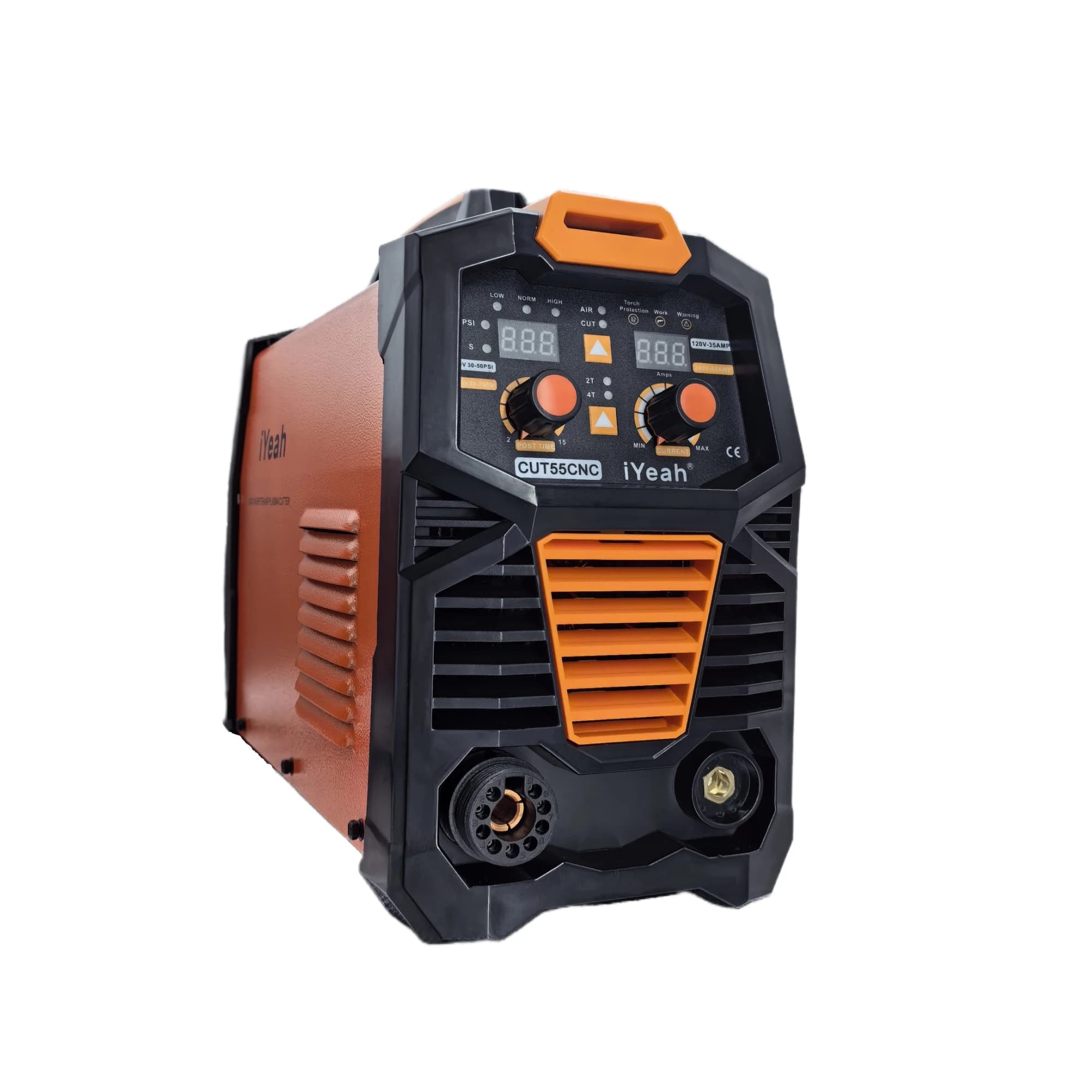

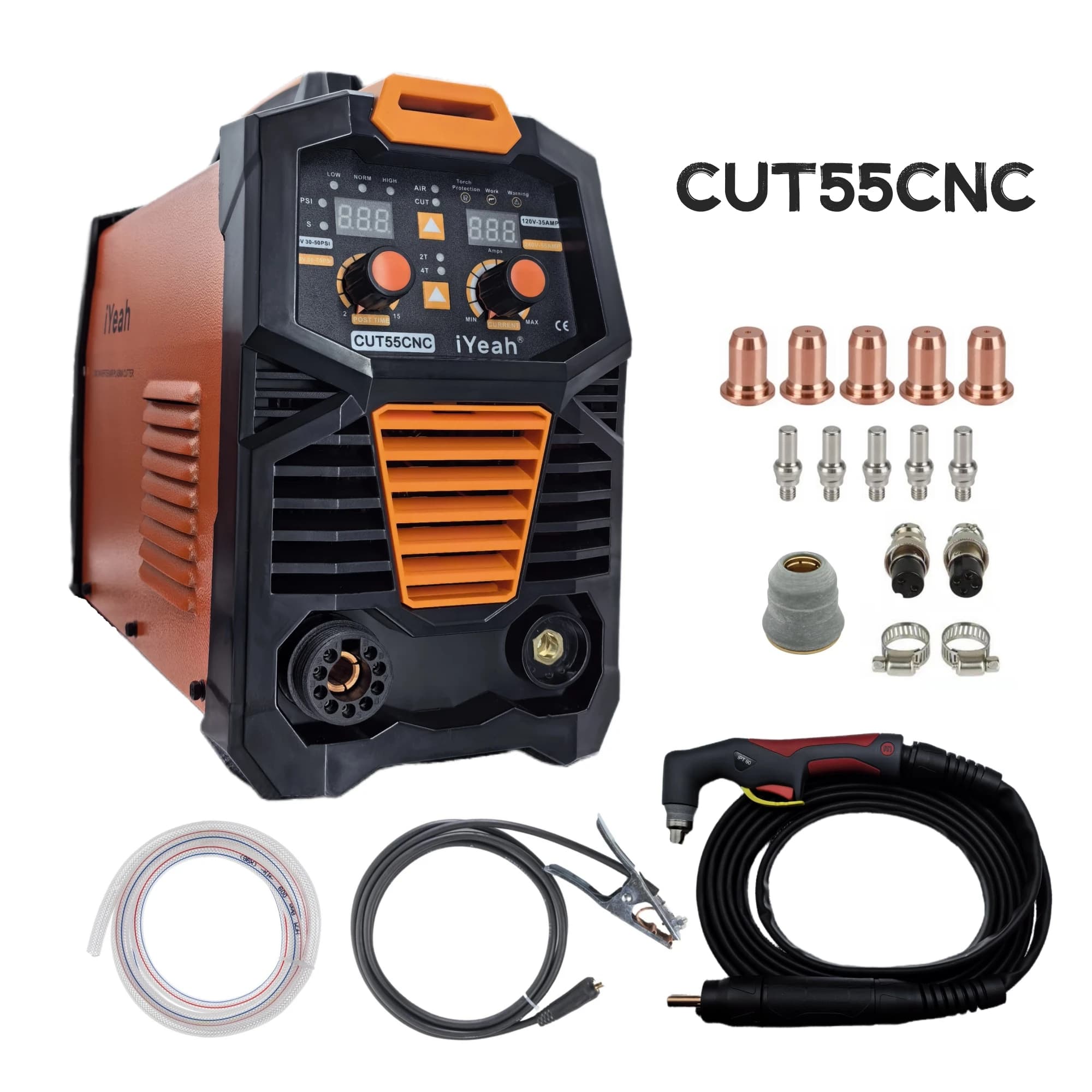

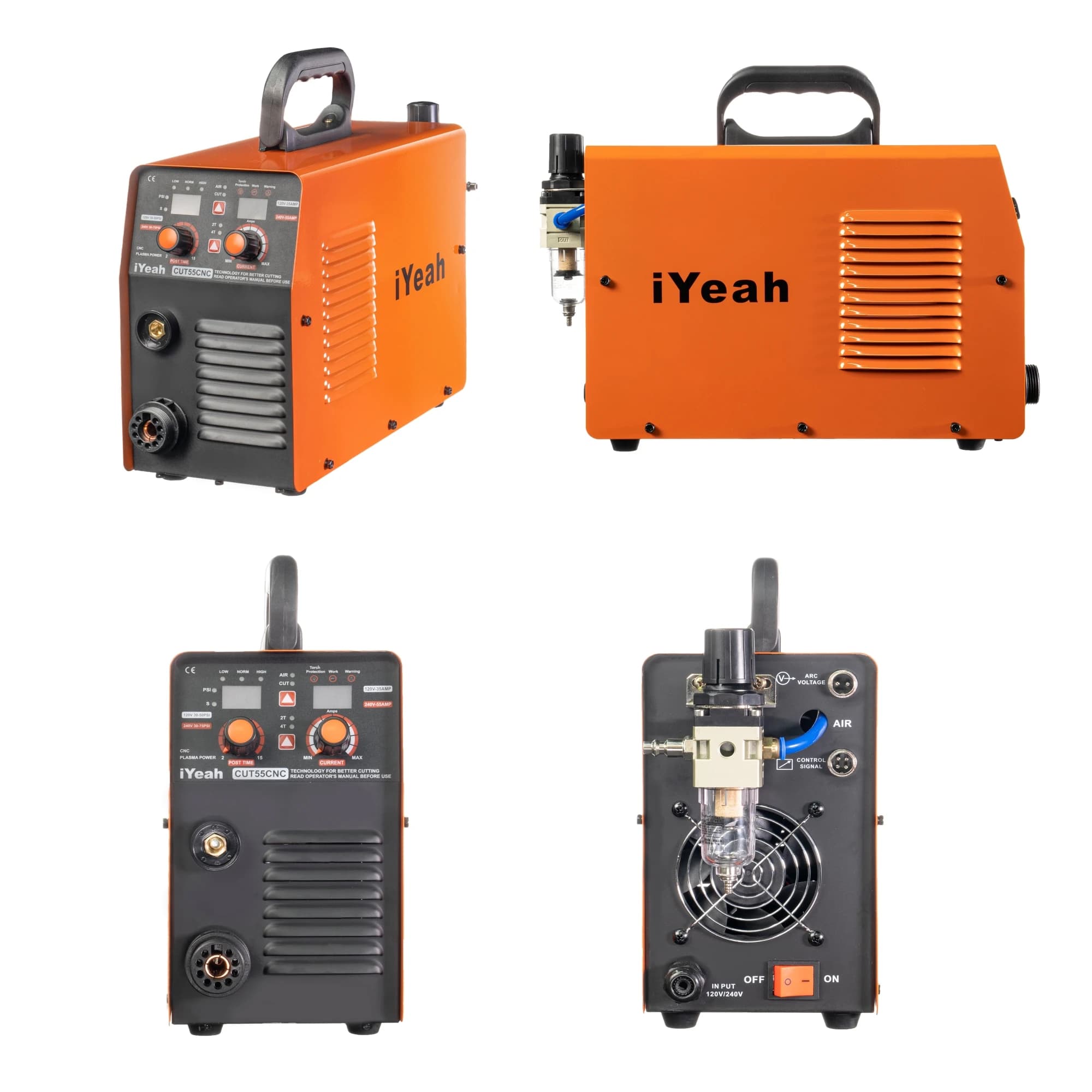

CNC iYeah Plasma Cutter CUT55 with PT60 torch, a 55A 110V/220V machine for industrial metal cutting up to 25mm thick.

CNC Plasma Cutter | 55A 110V/220V | 1-Inch Cutting Capacity | PT60 Torch

Price: £992.99
Rating: 5.0
Sold: 42+
Stock: In stock

You're viewing this

Alternative

Lotos LTP5500DCNC CNC plasma cutter with non-touch pilot arc, digital control, and Torch Height Control for precision metal cutting.

CNC Plasma Cutter with THC & Pilot Arc | LTP5500DCNC Model | Dual Voltage

Price: £872.99
Rating: Not rated
Sold: 8+
Stock: In stock

View

Compare options

More Manufacturing & CNC

All Manufacturing & CNC

Laser Engraver Controller | Professional Upgrade for CO2 Cutting Machines

5.0

£722.99

Mold Polisher | Professional 220V/110V Machine | Precision Polishing Tool

5.0

£821.99

Injection Molding Machine | 20g Capacity | Professional-Grade Polymer & Plastic Molder

5.0

£1,531.99

CNC Controller Kit | GRBL V5 with Nema23 High-Torque Motors | DIY CNC Machine Upgrade

5.0

£929.99

CNC Motion Controller | 4-Axis USB G-Code System | MPG Handwheel & Servo/Stepper Control

5.0

£649.99

CNC Plasma Cutter Controller | Professional Gantry Cutting System | Industrial-Grade Operation

5.0

£780.99

Fiber Laser Cutter | 3KW 6KW 12KW Power | Metal Sheet & Advertising Letter Engraving

5.0

£1,542.99

Automatic Powder Filler | Precision Dispenser for Flour, Beans & Glitter | 500g Capacity

5.0

£1,029.99

100W CO2 Laser Power Supply | High-Performance for Engraving & Cutting Machines

4.9

£423.99

Laser Engraver Controller | RDC6445G Upgrade for CO2 Cutting Machines | Enhanced Precision

4.7

£539.99

Quick-Change Lathe Tool Post Set | European Style AB Tool Holder | For 180-280mm Swing Lathe Beds

4.0

£421.99

6-Axis CNC Controller | Professional Multi-Machine System for CNC Routers & Wood Lathes

4.0

£536.99

Explore the range

Popular in Industrial & Machinery

Browse Industrial & Machinery

TUYA WiFi/ZigBee MCB Smart Circuit Breaker Over Current Under Voltage Protection Power Metering 1-63A Remote Control Switch

4.9

£83.99

Push-to-Connect Air & Water Fittings | 4mm-12mm OD | Quick-Release Hose Couplings

4.9

£21.99

Fitting | 304 Stainless Steel Compression | 1/2 NPT Union

4.9(49)

£21.99

Complete the set

Accessories & add-ons

Sensor Protection Sleeve | Stainless Steel Blind Tube | 6mm

5.0(11)

£38.99

Motion Sensor Bracket | Automatic IR Lamp Holder | 110-240V AC

4.8(196)

£45.99

Soil Moisture NPK Sensor | 7-in-1 Agricultural Probe Accessory

4.8(25)

£65.99

Arduino Raspberry Pi Sensor Kit (45pc) | Modules for UNO R3 MEGA2560

4.7(58)

£72.99

Reflector Plate | Photoelectric Sensor Accessory | TD Series

4.7(23)

£39.99

Load Cell ADC Module | 24-Bit HX711 Sensor Accessory

4.4(21)

£20.99

Bending Strain Gauge Amplifier Module | Sensor Accessories UK

£27.99

The CNC Non-HF Pilot Arc CUT55 Plasma Cutter delivers professional 55A cutting power for up to 25mm (1 inch) thick steel. Its dual-voltage 110V/220V capability and CNC compatibility provide exceptional versatility, while the non-HF pilot arc ensures reliable starts on painted, rusty, or uneven surfaces without high-frequency interference. Features and Benefits - 55A Non-HF Pilot Arc System - Ensures clean, consistent arc starts on non-pristine metals and eliminates electrical interference with sensitive CNC controllers or computers - Dual Voltage 110V/220V Operation - Offers flexibility for shop or jobsite use, allowing you to connect to standard outlets or higher-power sources for maximum performance - Includes PT60/PTM60 Straight Torch - Provides a durable, ergonomic torch designed for manual operation and is compatible with CNC mounting for automated cutting setups - 25mm (1") Rated Cutting Capacity - Handles a wide range of material thicknesses commonly found in fabrication, repair, and creative metalworking projects - CNC Machine Ready Interface - Features standard connections for seamless integration with CNC tables, enabling automated precision cutting for repeatable production work Applications - Metal Fabrication Shops - For cutting steel plate, brackets, and custom parts up to 1 inch thick with clean, precise edges - Automotive Repair and Restoration - Ideal for cutting out rusted panels, modifying frames, and creating custom exhaust components - DIY and Home Workshop Projects - A powerful, versatile tool for building gates, furniture, sculptures, or other metal creations - Prototyping and Small-Scale Production - When paired with a CNC table, it enables accurate, repeatable cutting of multiple parts from sheet metal Note This machine is an excellent choice for DIY enthusiasts and professionals seeking reliable plasma cutting performance and CNC readiness at a budget-friendly price point. Always consult the manual for proper setup, operation, and safety procedures.

Input Voltage: 110 V / 220 V AC. Rated Current: 55 A. Duty Cycle: 60%. Maximum Cutting Capacity (Mild Steel): 25 - 30 mm at 70 PSI. Torch Model: PT60 / PTM60. Torch Type: Straight. Pilot Arc Type: Non-HF Pilot Arc. Weight: 10 kg. Model Number: CUT55CNC. Overall Dimensions (Plasma Unit): Estimated 500 x 250 x 400 mm. Net Weight (Plasma Unit): Estimated 15-25 kg. Ideal Material: Carbon Steel, Stainless Steel, Aluminum, other conductive metals. Input Voltage: Dual Voltage 110V / 220V AC. Power Supply Type: Inverter-based. Cutting Speed (for 25mm MS): Estimated 400-600 mm/min. Maximum Cutting Capacity (Mild Steel): 25 mm (1 inch). Maximum Severance Cut Capacity: Estimated 30-32 mm (mild steel). Recommended Compressor Capacity: > 60 Liters/min, > 8 CFM. Control Interface: CNC software interface for computer control. Air Pressure Requirement: Estimated 4-6 Bar (60-90 PSI). Axis Control: Minimum 2-axis (X, Y) CNC control. CNC Controller: iYeah CNC System. Cooling Method: Air-cooled plasma torch. Cutting Gas: Dry, clean compressed air. Cutting Technology: Plasma Arc Cutting. Duty Cycle: Estimated 60% at rated output (based on industry standard for class). Included Torch: PT60 or PTM60 Straight Torch. Maximum Rated Cutting Current: 55 Amps. Pilot Arc System: Non-HF (High Frequency) Pilot Arc. Plasma Cutter Model: CUT55CNC. Product Type: CNC Plasma Cutting System. Torch Connection: Likely Machine Torch (based on PT60/PTM60 designation). Q: What are the key specifications for the CNC Non-HF Pilot Arc CUT55 Plasma Cutter? A: The CUT55 CNC iYeah Plasma Cutter is a 55A machine that operates on both 110V and 220V power. It is designed for easy cutting up to 25mm thickness and comes equipped with a PT60/PTM60 straight torch for precision work.. Q: What are the exact specifications and dimensions of the CUT55 CNC iYeah Plasma Cutter? A: The CUT55 CNC model has a rated cutting current of 55A and operates on both 110V and 220V power. It comes with a PT60/PTM60 straight torch and is designed for easy cutting of materials up to 25mm thick.. Q: How durable and reliable is the iYeah CUT55 CNC Plasma Cutter for regular workshop use? A: This plasma cutter is built for reliability in demanding environments. The CNC interface and non-HF pilot arc system are designed for stable performance, making it a dependable choice for both fabrication shops and serious DIY projects.. Q: How durable is the build quality of this CNC plasma cutter for regular workshop use? A: This plasma cutter is built with industrial-grade components for reliable performance. The inclusion of a robust PT60 torch and a non-HF pilot arc system ensures longevity and stable operation during frequent cutting tasks.. Q: Can the CUT55 Plasma Cutter be integrated with a CNC table for automated cutting? A: Yes, the 'CNC' in its name indicates it is designed for computer numerical control integration. It works seamlessly with compatible CNC tables, allowing for automated, precise cutting of complex shapes from materials like steel and aluminum.. Q: Is the CUT55 CNC plasma cutter compatible with standard CNC tables and software? A: Yes, as a CNC-ready plasma cutter, it is designed to integrate with standard CNC gantry tables and common control software. The unit includes the necessary interfaces for connecting to your existing CNC setup.. Q: What kind of warranty or guarantee comes with the CUT55 CNC Plasma Cutter machine? A: Warranty details are typically provided by the seller at the time of purchase. We recommend confirming the specific warranty period and coverage for parts like the torch and power unit directly with your retailer before buying.. Q: Does this plasma cutter come with a manufacturer's warranty or guarantee? A: Yes, the product includes a standard manufacturer's warranty. For specific warranty duration and coverage details, please refer to the documentation provided with your purchase or contact the seller directly.. Q: Is the iYeah CUT55 a good value compared to other 55A plasma cutters? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use, featuring dual-voltage operation and CNC readiness at a competitive price point.. Q: Is the iYeah CUT55 CNC a good value compared to other plasma cutters in its class? A: Yes, this offers excellent value for DIY enthusiasts and professionals seeking quality without premium brand pricing. It delivers reliable performance for regular use with features like dual voltage and a 25mm cutting capacity..
