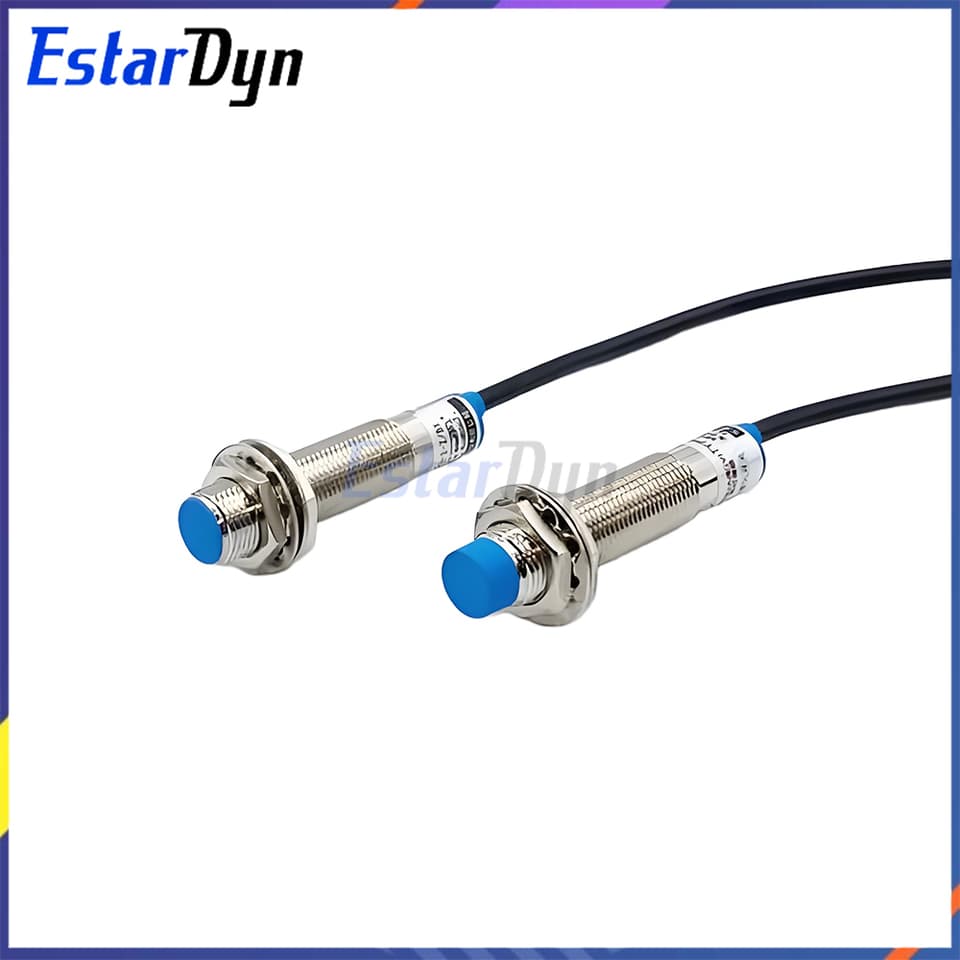

Proximity Sensor | M18 Inductive Switch | 6-36V PNP NPN 4-Pin

This M18 inductive sensor finds metal objects up to 8mm away. It doesn't need to touch them. It's a key part for automated systems. It tells your control system where things are and if they're there. The sensor uses a standard 4-pin M12 connector. This makes it easy to connect and disconnect. Features and Benefits - 8mm Detection Range - It accurately finds metal parts from a set distance. This non-contact method helps prevent wear. - PNP and NPN Options - You can get it in NPN (sinking) or PNP (sourcing) types. This matches your PLC's input needs. - NO and NC Choices - Pick a normally open (NO) or normally closed (NC) M18 switch. This fits your machine's logic. - IP67 Housing - The M18 sensor is sealed against dust and water. It works well in tough industrial places. Applications - Counting Parts - Put it next to a conveyor. It counts metal cans, gears, or other items as they go by. - Finding Position - Use it on machine tools or robot arms. It confirms a part is in place before the next step. - Limit Stops - Install this M18 sensor as an end-stop. Use it on linear actuators or machine guards to show travel limits. What It Is This is an M18 inductive proximity sensor switch, designed to detect the presence of metallic objects without physical contact. It operates within a 6-36 V DC range, classifying it as a low voltage device. The sensor features a 4-pin M12 connector for connectivity. It offers both Normal Open and Normal Close output states, with the flexibility of PNP or NPN output types. This barrel sensor has an 18 mm detection distance, making it suitable for various industrial sensing applications. Key Uses & Applications This M18 inductive switch is commonly used in automation and manufacturing for tasks such as object counting, positioning, and presence detection. Its 18 mm detection distance allows it to sense metallic components on assembly lines or within machinery. The dual PNP and NPN output types, along with Normal Open and Normal Close states, provide versatility for integration into different control systems. Its low voltage operation makes it suitable for electronics module applications requiring reliable industrial sensors. How to Choose When selecting a proximity sensor, consider the material to be detected; this inductive sensor is for metallic objects. Check the required detection distance, as this model offers 18 mm. Verify the operating voltage matches your system; this sensor uses 6-36 V DC. Decide between PNP or NPN output types and Normal Open or Normal Close states based on your controller's input requirements. The 4-pin M12 connector is a standard for many industrial sensor setups. To test a proximity sensor, ensure it is powered correctly within its 6-36 V DC range and observe its output change when a metallic object enters its 18 mm detection field.
