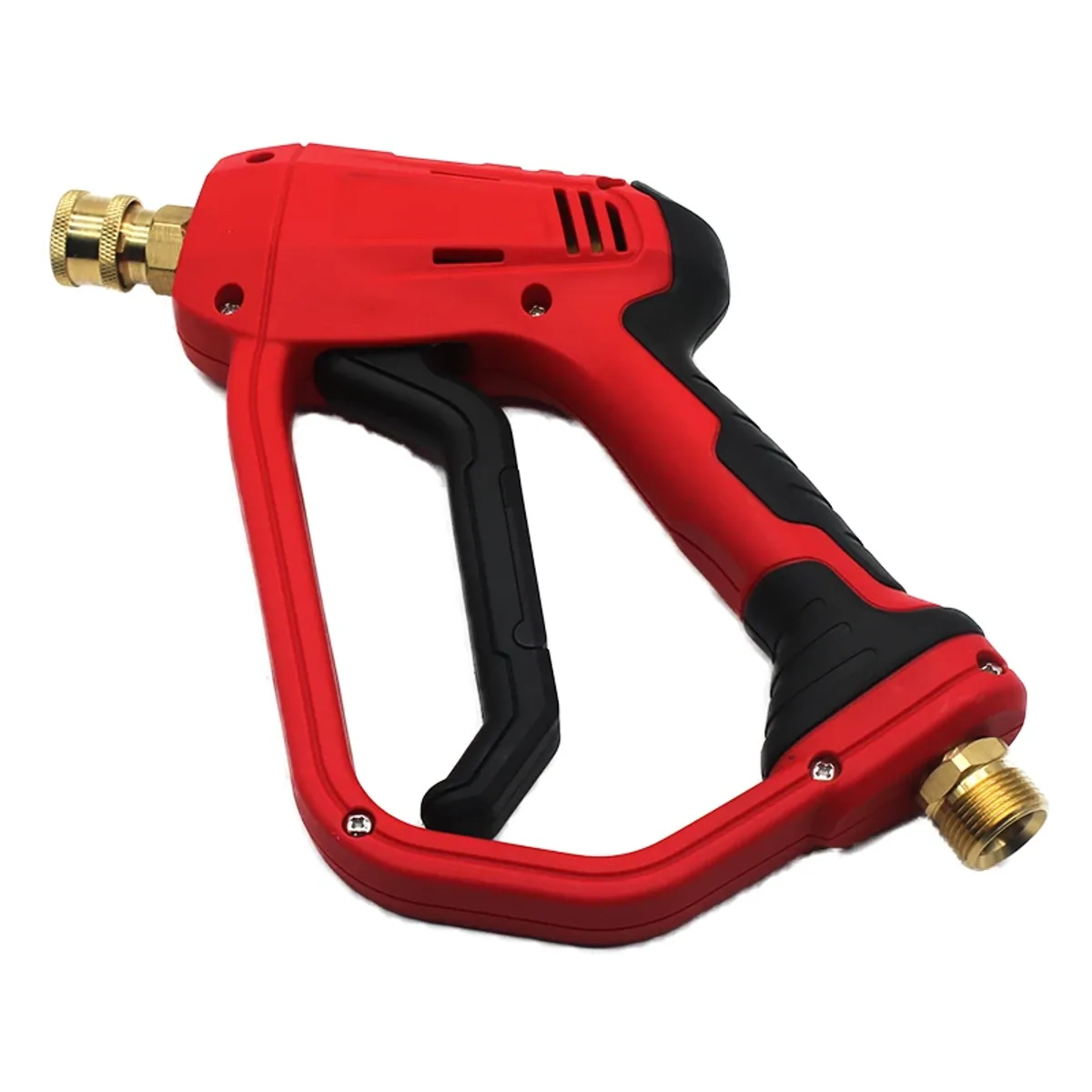

This high pressure trigger gun is a spray gun for pressure washers, rated up to 280bar (4000psi) with a maximum flow of 25l/m and a maximum temperature of 150°. It has an M22x1.5 male thread on the hose side and a G1/4 female thread on the lance side, with brass fittings and a red body with a black rubber grip and trigger.
Features and benefits:
- Rated up to 280bar (4000psi) - covers the pressure of most trade electric pressure washers
- Maximum flow 25l/m and maximum temperature 150° - suits hot and cold water cleaning
- M22x1.5 male hose thread with 14mm ID connector - fits hoses and machines that use an M22 outlet
- G1/4 female thread for the lance - takes lances and nozzle holders with a matching thread
- Brass quick release connector - nozzles and adapters are swapped without tools
- Brass and engineering plastic construction - brass fittings at the inlet and outlet, plastic body
- Black rubber grip and black trigger - a firm hold during long cleaning runs

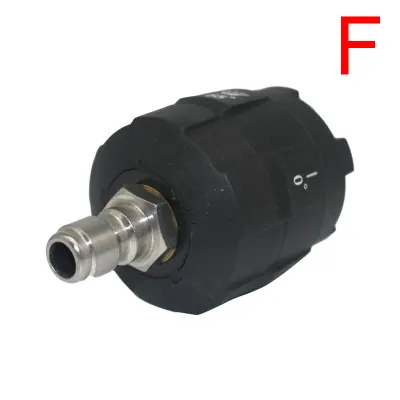

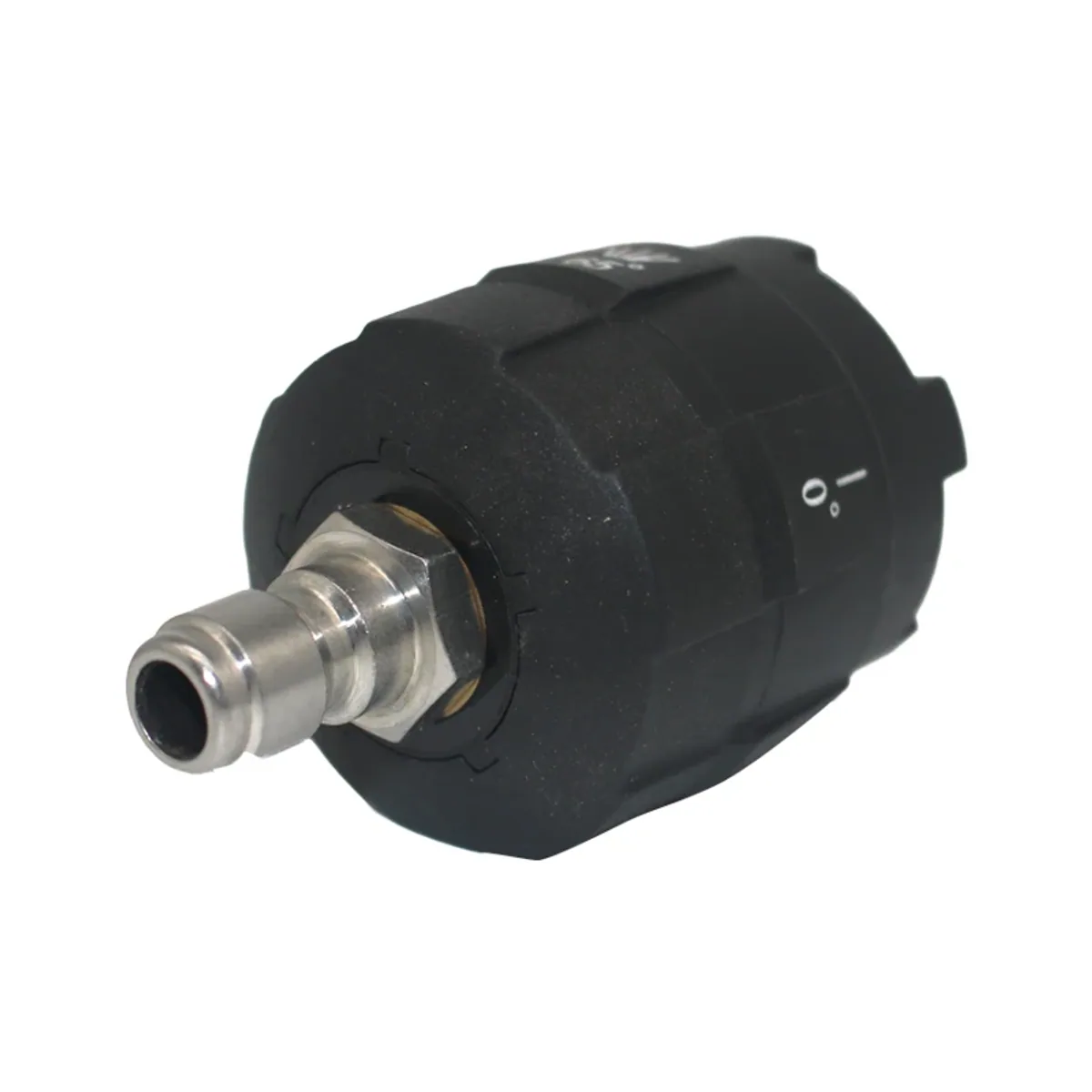

- Rotary nozzle options with 0°, 15°, 25°, 40° and 65° settings - a concentrated 0° jet through to a wide 65° spray
Applications:
- Cleaning vehicles, plant and workshop floors
- Washing patios, drives, walls and fences
- Replacing a worn or leaking trigger gun on a pressure washer
- Contract cleaning with electric pressure washers
In the box:

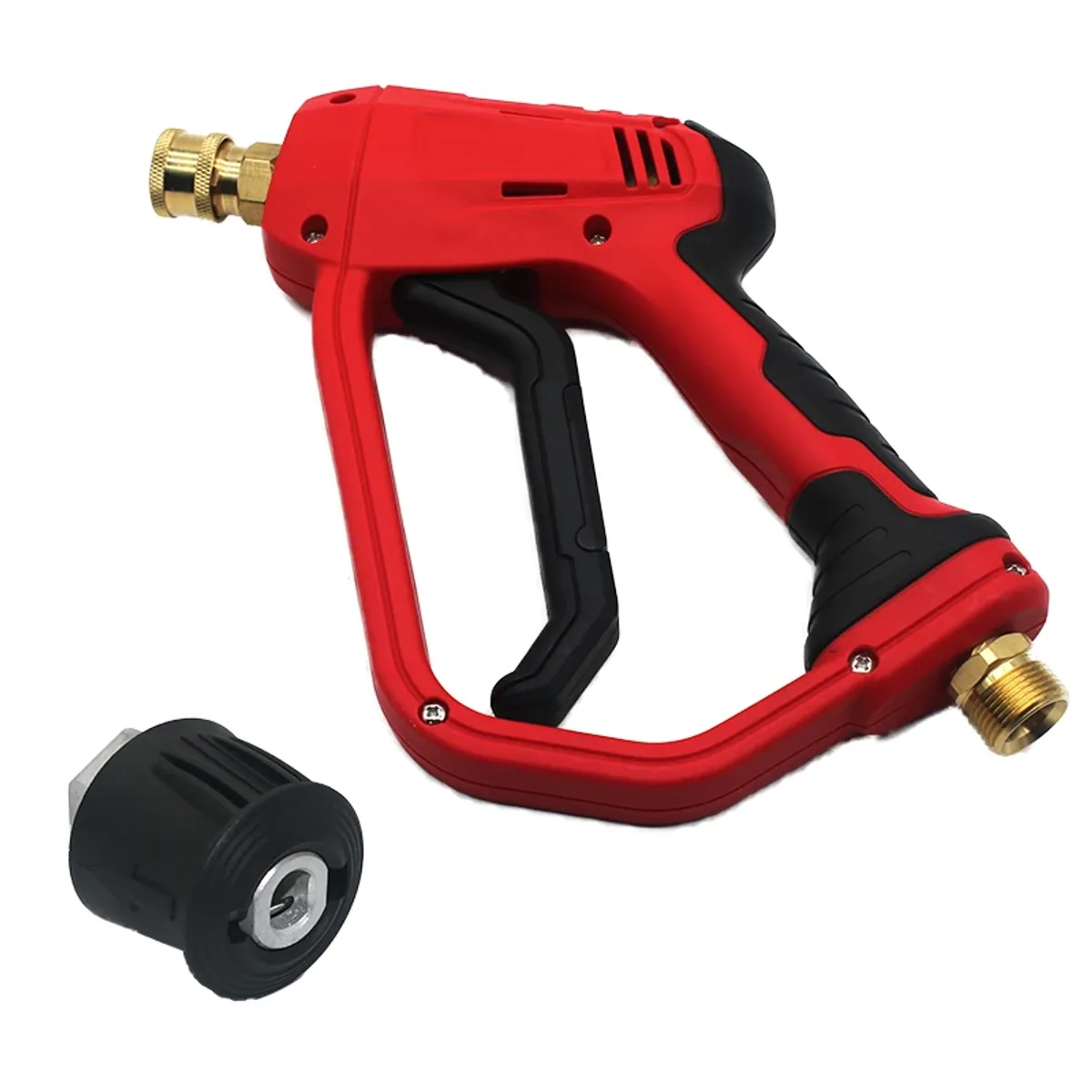

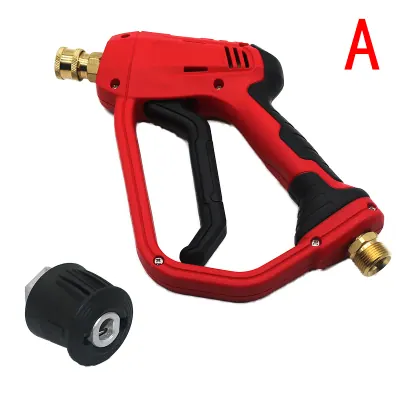

The pack depends on the option chosen. Option A is a gun with one adapter and option B is a gun with an adapter and rotary nozzle. Check the option picture before ordering.
Note: Never exceed the 280bar (4000psi) rating, the 25l/m flow or the 150° temperature limit, and never point the jet at people or animals. Check that the thread on your hose and lance matches M22x1.5 and G1/4 before fitting. Measurements were taken by hand, so small differences may occur.

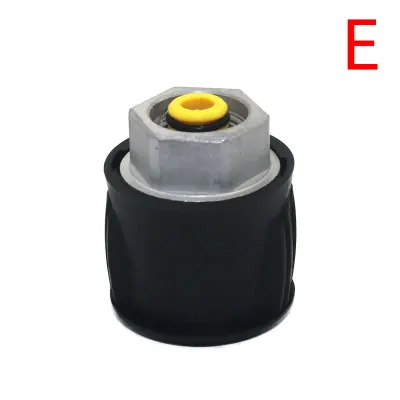

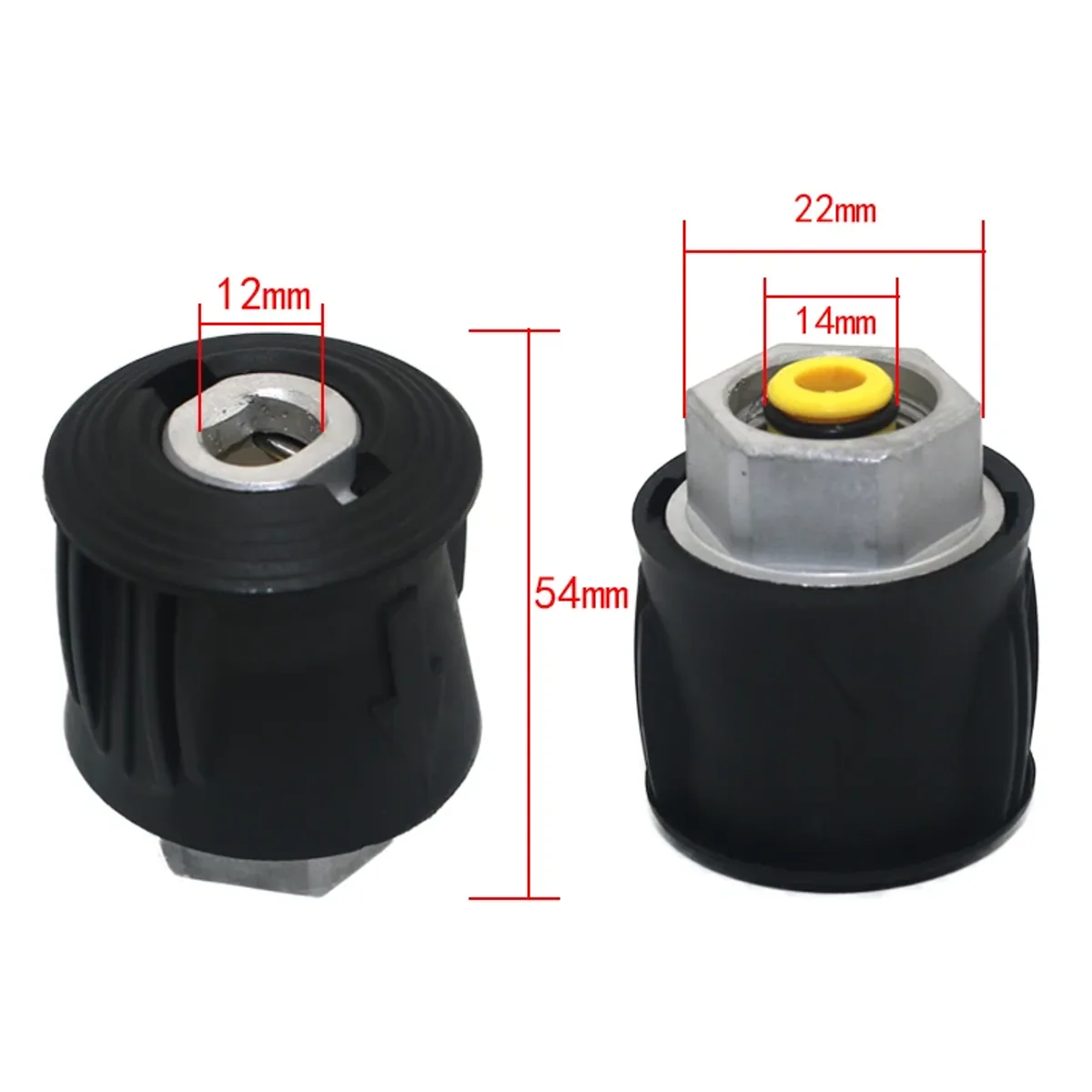

Product type: High pressure trigger gun. Maximum pressure: 280bar / 4000psi. Maximum flow: 25l/m. Maximum temperature: 150°. Hose connector: M22x1.5 male thread, 14mm ID. Lance connector: G1/4 female thread. Quick release connector: Brass. Material: Brass and engineering plastic. Colour: Red body, black grip and trigger. Nozzle angles (rotary nozzle options): 0°, 15°, 25°, 40° and 65°. Suitable for: Professional and commercial pressure washers. Options: Six option sets, A to F (see option pictures). Body: Red, with black rubber grip and black trigger. Inlet end: Brass quick-connect fitting. Outlet end: Brass threaded fitting. Nozzle adapter bore: 12mm on one end, 14mm on the other end. Nozzle adapter height: 54mm. Nozzle adapter hex width: 22mm. Measurement note: Sizes are measured by hand and may vary slightly. Package contents: Varies by option: gun with adapter, or gun with adapter and rotary nozzle. Q: What is a pressure washer lance? A: A lance is the tube that fits between the trigger gun and the nozzle, and it sets the reach and direction of the jet. This item is the trigger gun, which has a G1/4 female thread to accept a lance.. Q: What thread does the hose connect to? A: The hose end is an M22x1.5 male thread with a 14mm ID connector. The lance end is a G1/4 female thread.. Q: What pressure and flow is this gun rated for? A: It is rated up to 280bar (4000psi) with a maximum flow of 25l/m and a maximum temperature of 150°.. Q: What spray angles does the rotary nozzle give? A: The rotary nozzle has settings of 0°, 15°, 25°, 40° and 65°. The 0° setting gives a concentrated stream and 65° gives the widest spray.. Q: Will it fit my electric pressure washer? A: The listing describes it as suitable for professional and commercial electric pressure washers and gives the hose thread as M22x1.5. Check that your machine and hose use that thread before ordering..
